Mostek MK4116N-2GP 16Kx1 150ns DRAM DIP-16 NOS Vintage 1979 IC
Mostek MK4116N-2GP 16Kx1 150ns DRAM DIP-16 NOS Vintage 1979 IC
Regular price
$6.95 USD
Regular price
Sale price
$6.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Mostek
Model: MK4116N-2
MPN: MK4116N-2GP
Type: Dynamic RAM Integrated Circuit
Memory Type: DRAM
Memory Organization: 16K x 1 Bit
Memory Density: 16 Kbit
Access Time: 150 ns
Minimum Cycle Time: 320 ns
Page-Mode Access Time: 100 ns
Refresh Type: 128-Cycle RAS-Only Refresh
Supply Voltages: +12V, +5V and −5V
Output Type: TTL-Compatible Three-State
Package Type: Plastic DIP / PDIP
Number of Pins: 16
Mounting Style: Through-Hole
Date Code: 7918
Country/Region of Manufacture: Malaysia
Product Status: Discontinued / Obsolete
Condition: New Old Stock
DESCRIPTION

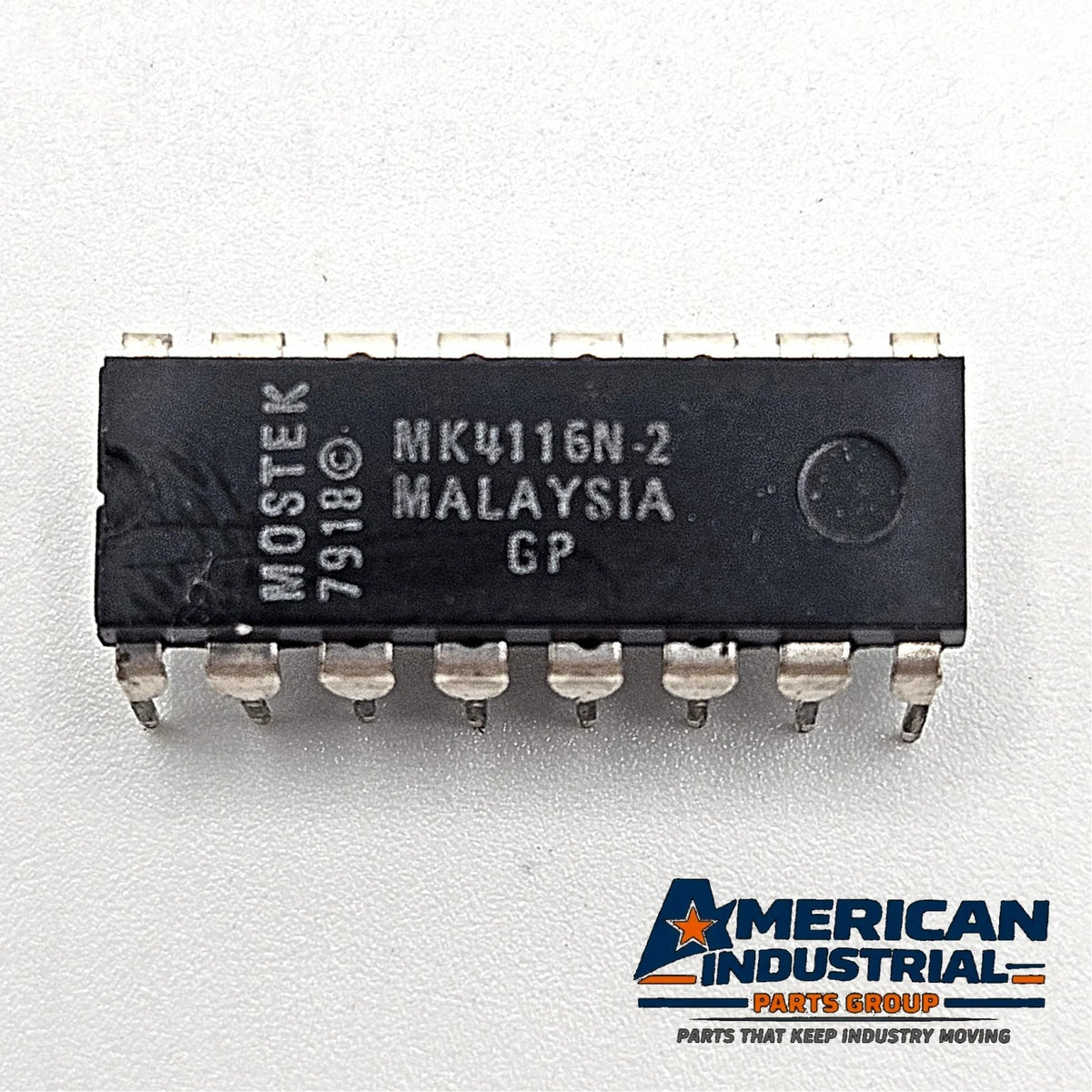

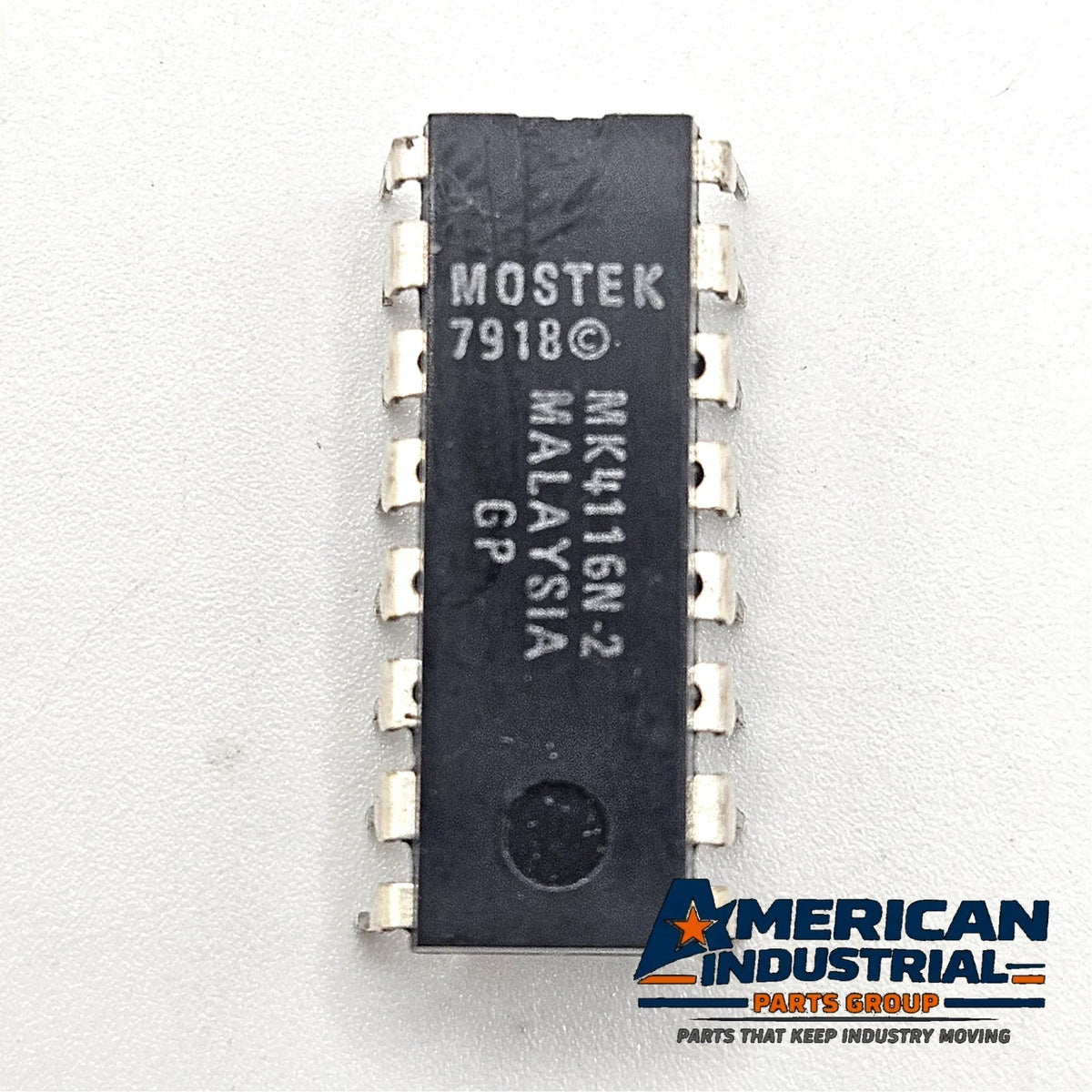

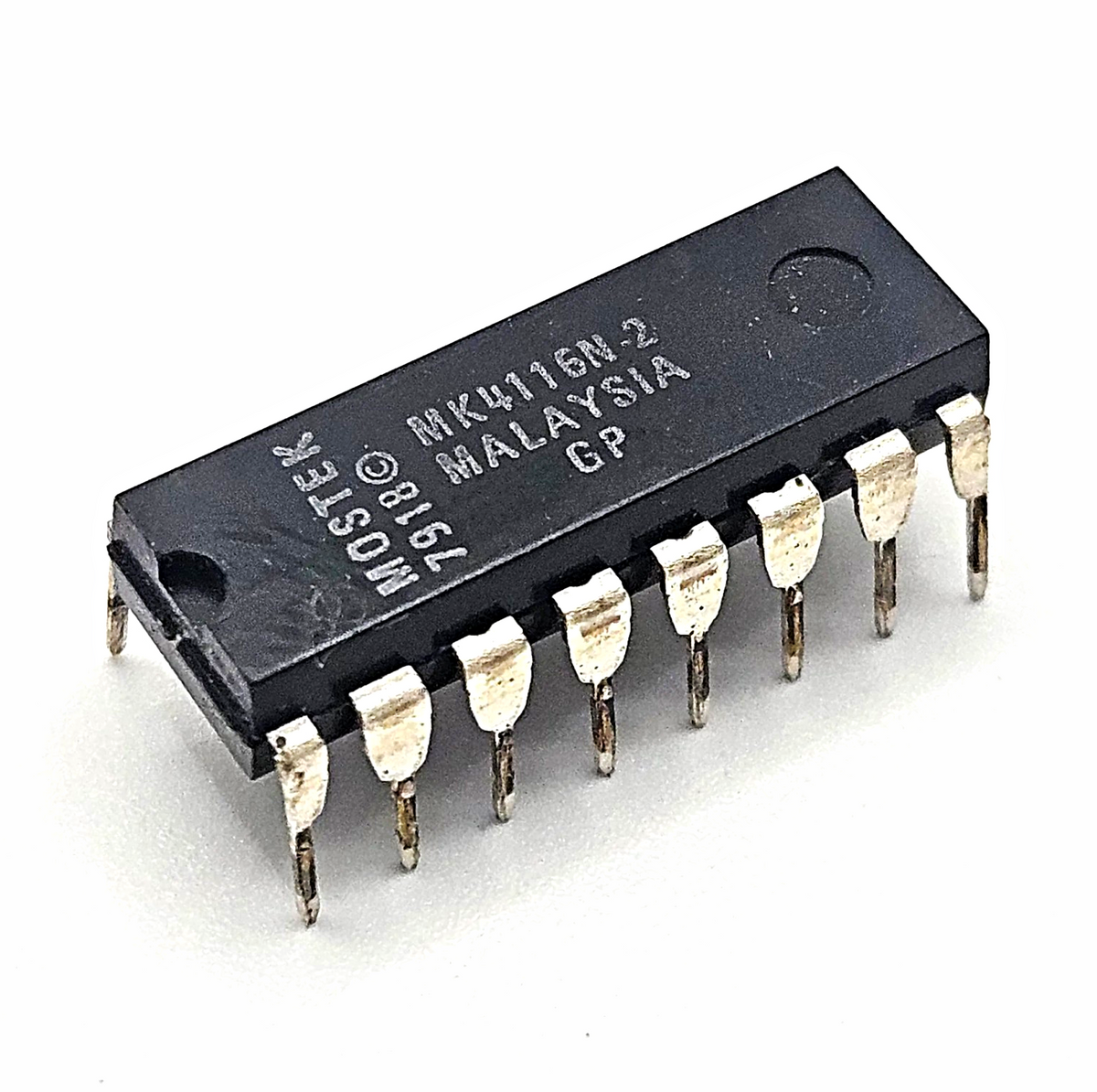

Mostek MK4116N-2GP discontinued 16,384 × 1-bit dynamic RAM integrated circuit. The device is marked MK4116N-2, Malaysia, GP, with date code 7918.
This vintage 16K DRAM uses the industry-standard 16-pin through-hole configuration and provides a 150 ns maximum access time. It supports page-mode operation, read-modify-write cycles and 128-cycle RAS-only refresh.
Features:
Mostek MK4116N-2GP
MK4116N-2 Device Marking
16,384 x 1-Bit Organization
16 Kbit Memory Density
150 ns Maximum Access Time
320 ns Minimum Cycle Time
100 ns Page-Mode Access Time
128-Cycle RAS-Only Refresh
Page-Mode Operation
Read-Modify-Write Capability
TTL-Compatible Three-State Output
+12V, +5V and −5V Supply Requirements
16-Pin Plastic DIP Package
Through-Hole Mounting
Date Code 7918
Made in Malaysia
Discontinued Vintage Memory IC
This component is new old stock and may show cosmetic marks, terminal discoloration, or other evidence of extended storage and handling. Functional testing has not been represented. Please review all photographs for the exact condition, markings, and item included.
Confirm the exact part number, speed grade, supply voltages, pin configuration, timing and refresh requirements of the original equipment before installation.
DISCLAIMER
This item is new old stock and has been stored for an extended period. It may show cosmetic marks, terminal discoloration, or other evidence of storage and handling. Functional testing has not been represented. Please review all photos for the exact physical condition and markings. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Mostek. All product names, trademarks, brands and logos are the property of their respective owners. This discontinued component was sourced from existing inventory and is not covered by the original manufacturer’s warranty.
COMPATIBILITY & CROSS-REFERENCE
The Mostek MK4116, introduced in 1977, is the original 4116 16K x 1 dynamic RAM — it exceeded 75% of the worldwide DRAM market and was cloned by many manufacturers. The -2 suffix is the 150 ns speed grade. Published 4116-family equivalents include the TMS4116 (Texas Instruments), MCM4116 (Motorola), μPD416 (NEC), TMM416 (Toshiba), AM9016 (AMD), and MB8116 (Fujitsu). Always confirm speed grade, supply voltages, and timing against your equipment before substituting.
Q&A
Q: What is the Mostek MK4116N-2GP? A: A 16,384 x 1-bit dynamic RAM with a 150 ns maximum access time in a 16-pin plastic DIP, date code 7918.
Q: What supply voltages does the MK4116 require? A: +12V (VDD), +5V (VCC), and −5V (VBB).
Q: Why is this chip discontinued? A: The 64K DRAM generation moved to 5V-only operation, superseding 12V/±5V 16K parts like the MK4116, and Mostek has been defunct since 1985. Remaining supply is new old stock.
Mostek MK4116N-2GP MK4116N-2 MK4116N2GP MK4116 4116N 4116 DRAM Mostek Memory IC 16Kx1 DRAM 16K DRAM 16384x1 Memory 150ns DRAM Page Mode RAM RAS Refresh Dynamic RAM PDIP-16 DIP-16 16 Pin IC Through Hole Memory Chip Discontinued IC Obsolete Semiconductor New Old Stock NOS Vintage Electronics Vintage Computer Parts 1979 Integrated Circuit Retro Computer RAM Apple II Memory TRS-80 Memory ZX Spectrum RAM Commodore PET RAM IBM PC Memory Arcade Machine RAM Legacy Memory Circuit Board Repair Computer Restoration Malaysia Semiconductor
