Motorola 1N3208 Stud Mount Rectifier Diode 15A 50V DO-5 ECG5940 Vintage NOS
Motorola 1N3208 Stud Mount Rectifier Diode 15A 50V DO-5 ECG5940 Vintage NOS
Regular price
$7.95 USD
Regular price
Sale price
$7.95 USD
Shipping calculated at checkout.
12 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
MPN: 1N3208
Model: 1N3208
Type: Standard Recovery Rectifier Diode
Package: DO-5 (DO-203AB) Stud Mount
Polarity: Standard (Cathode to Case / Stud)
Max Repetitive Reverse Voltage (VRRM): 50 V
Average Forward Current (IF(AV)): 15 A
Peak Surge Current (IFSM): 250 A
Max Forward Voltage: 1.5 V
Cross Reference: ECG5940 / NTE5940
Date Code: 7244
Mounting Hardware: Nut, Washers, Solder Lug Included
Condition: New Old Stock
Quantity: 1
DESCRIPTION

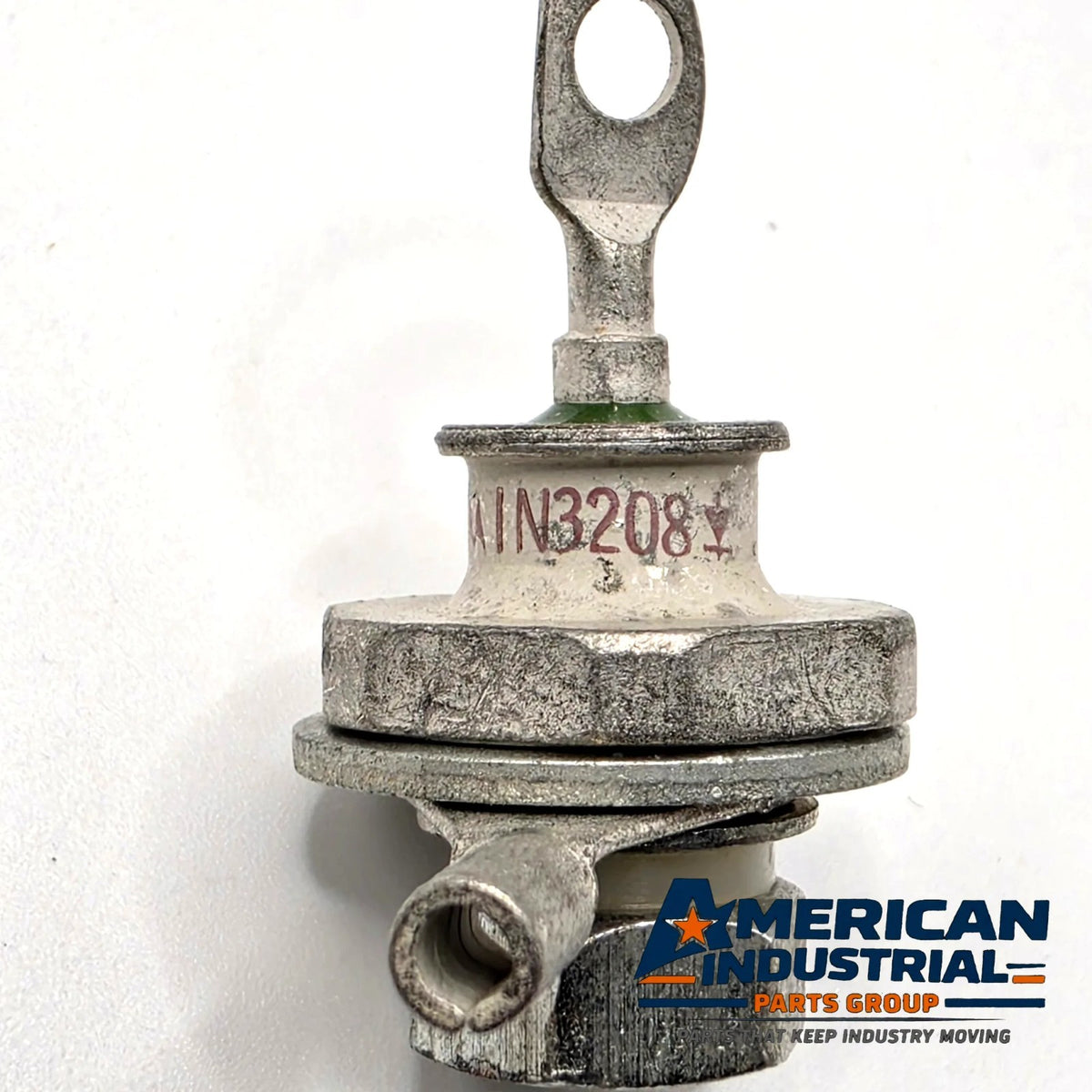

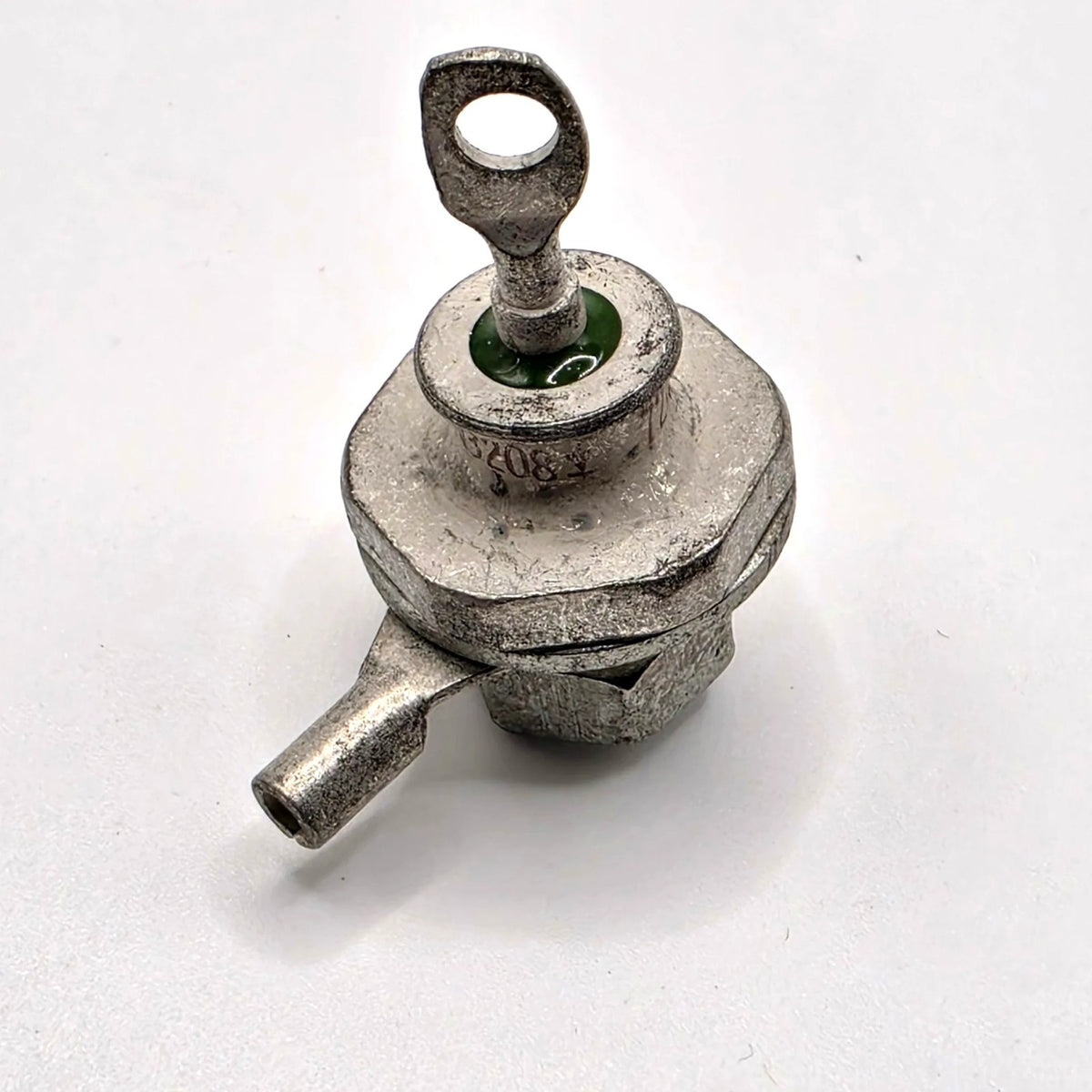

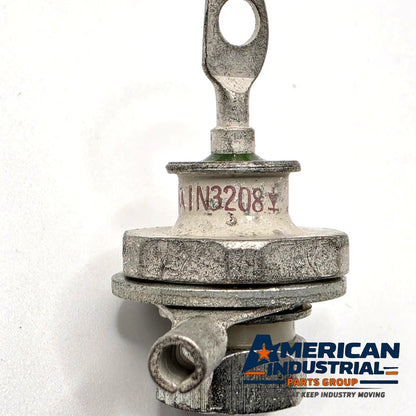

New old stock Motorola 1N3208 stud-mount rectifier diode in a DO-5 (DO-203AB) package, rated 15A and 50V. The ceramic body is marked with the Motorola logo, "1N3208," the diode polarity symbol, and date code 7244. It comes in its original bag with a typed ECG label reading "ECG-5940 1N-3208 R-50PRV 15A Cathode Case DO-5." The mounting hardware is installed on the stud: hex nut, washers, and solder lug terminal. Never installed. Light surface tarnish from age, as pictured.
Features:
Motorola 1N3208 standard recovery rectifier
50 V repetitive peak reverse voltage
15 A average forward current
250 A peak surge current
DO-5 (DO-203AB) threaded stud package
Standard polarity, with cathode to case/stud
Eyelet anode terminal on top
Mounting nut, washers, and solder lug included
Date code 7244
Original ECG-labeled bag
Compatibility:
Direct replacement for a 1N3208 from any manufacturer, including ECG5940 and NTE5940. It also replaces lower-voltage standard-polarity DO-5 15A stud rectifiers in the same footprint. Do not use it in place of a reverse-polarity "R" version (1N3208R / NTE5941), where the anode is the case.
Q&A
Q: Which terminal is the cathode?
A: The case and threaded stud are the cathode. The top eyelet terminal is the anode.
Q: Is this the same as an NTE5940?
A: Yes. ECG5940 / NTE5940 is the cross-reference for the 1N3208, and the original bag label lists both.
Q: Can I use it in place of a 1N3208R?
A: No. The R suffix means reverse polarity (anode to case). This is the standard cathode-to-case version.
Q: Does it need a heatsink?
A: For currents near its 15A rating, mount it to a heatsink or chassis with the included hardware.
DISCLAIMER
Items are new old stock, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola or any other manufacturer. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
1N3208, 1N3208 Motorola, Motorola stud diode, ECG5940, NTE5940, DO-5 rectifier, DO-203AB diode, 15A 50V diode, stud mount rectifier, stud diode, cathode case diode, power rectifier diode, vintage Motorola diode, NOS rectifier, battery charger diode replacement, welder rectifier replacement, power supply rectifier replacement, alternator diode replacement, shorted rectifier replacement, open diode replacement
