Motorola 2N1545 Germanium PNP Power Transistor TO-3 NOS Vintage

ITEM SPECIFICS

Brand: Motorola
Model: 2N1545
MPN: 2N1545
Type: PNP Power Transistor
Transistor Type: PNP
Semiconductor Material: Germanium
Package/Case: TO-3
Collector-Emitter Voltage: 30V
Collector-Base Voltage: 60V
Collector Current: 5A
Power Dissipation: 106W
DC Current Gain: 75–150
Mounting Style: Chassis / Through-Hole
Number of Leads: 2
Secondary Marking: 0-52
Condition: New Old Stock

DESCRIPTION

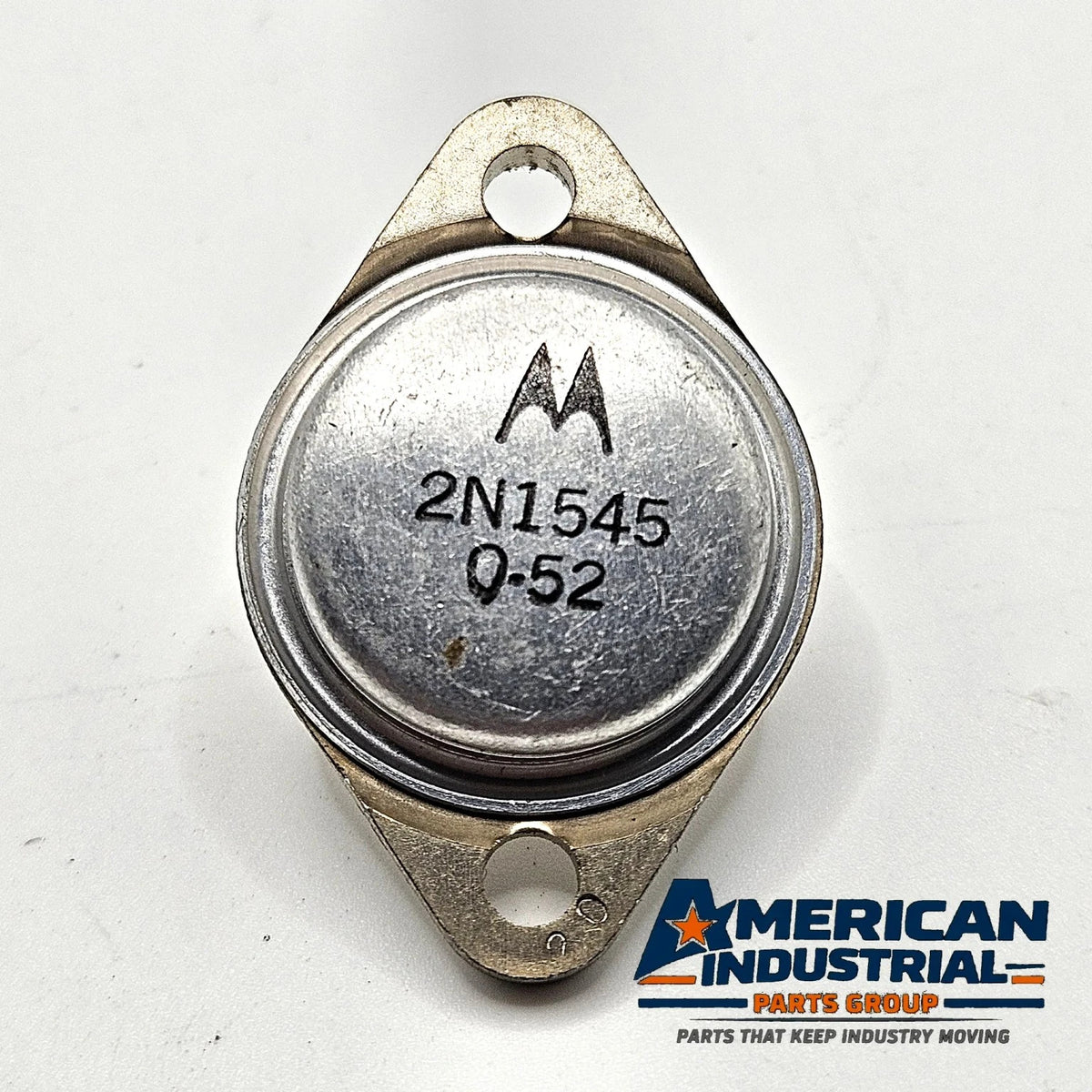

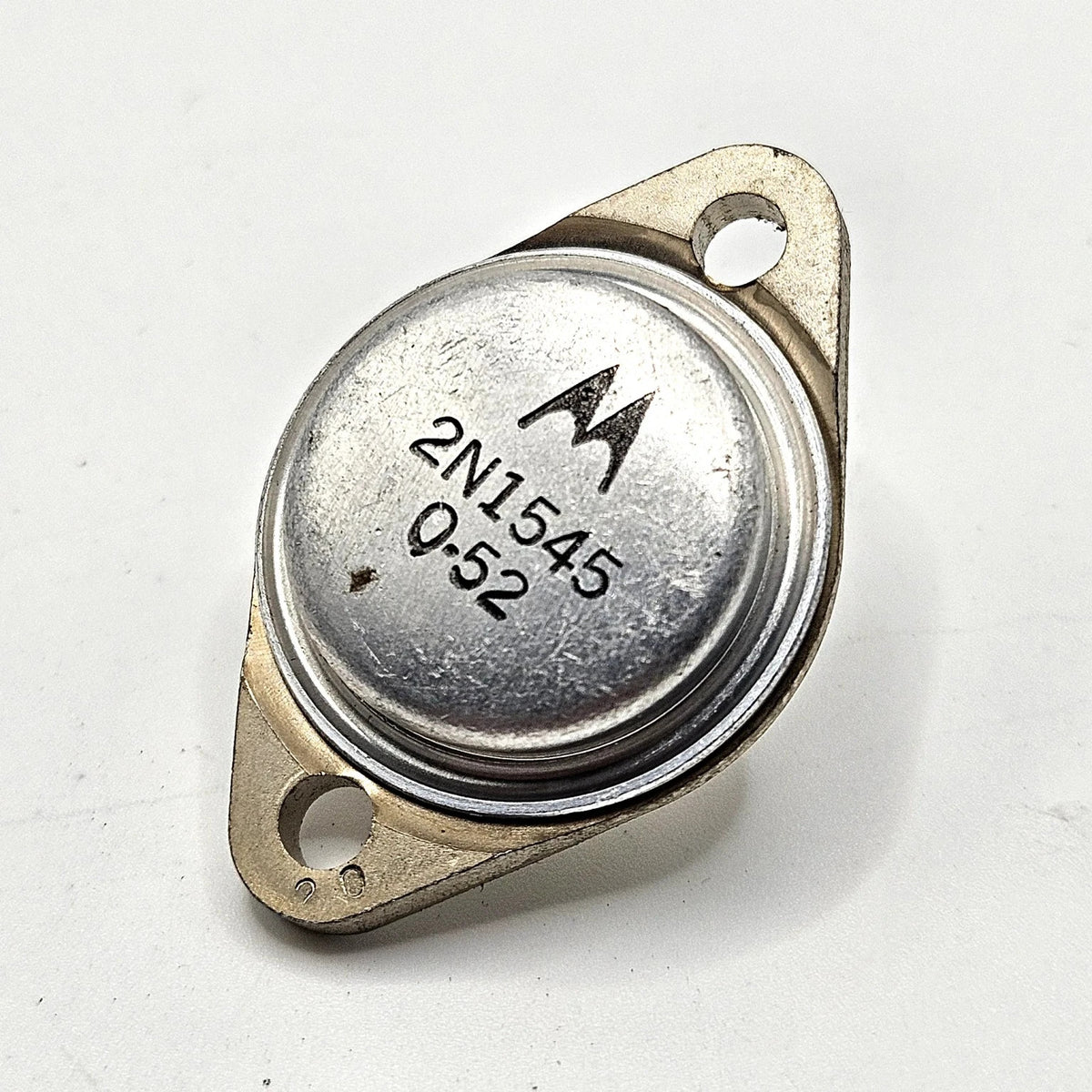

Motorola 2N1545 vintage germanium PNP power transistor in the classic TO-3 metal power package.

The 2N1545 is part of Motorola's early germanium power-transistor family designed for switching and amplifier applications. Original Motorola documentation identifies this device in the 5-amp power-transistor series.

Features:

Motorola 2N1545
Germanium PNP power transistor
5A collector-current class
30V collector-emitter rating
60V collector-base rating
106W maximum power dissipation
75–150 DC current-gain group
TO-3 metal package

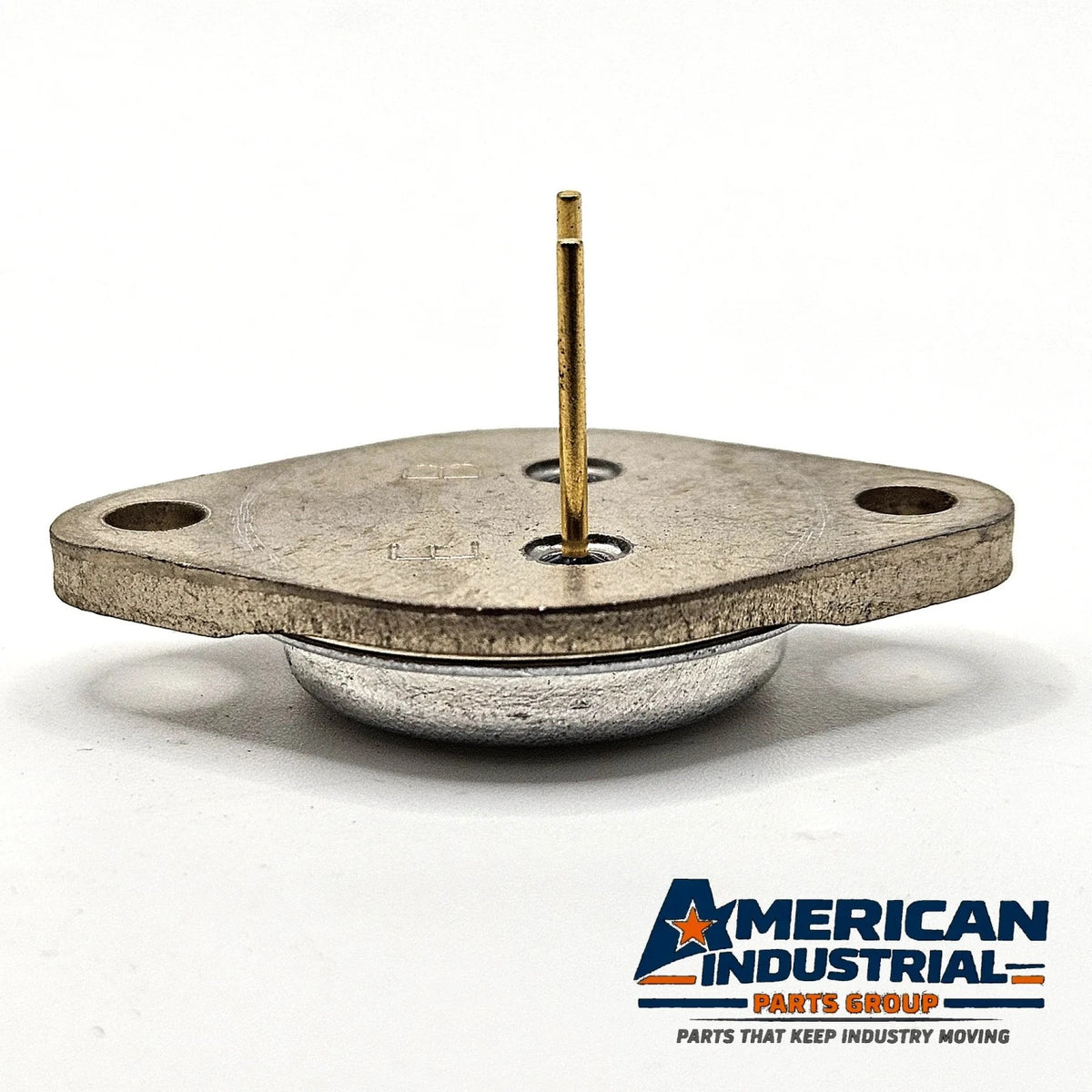

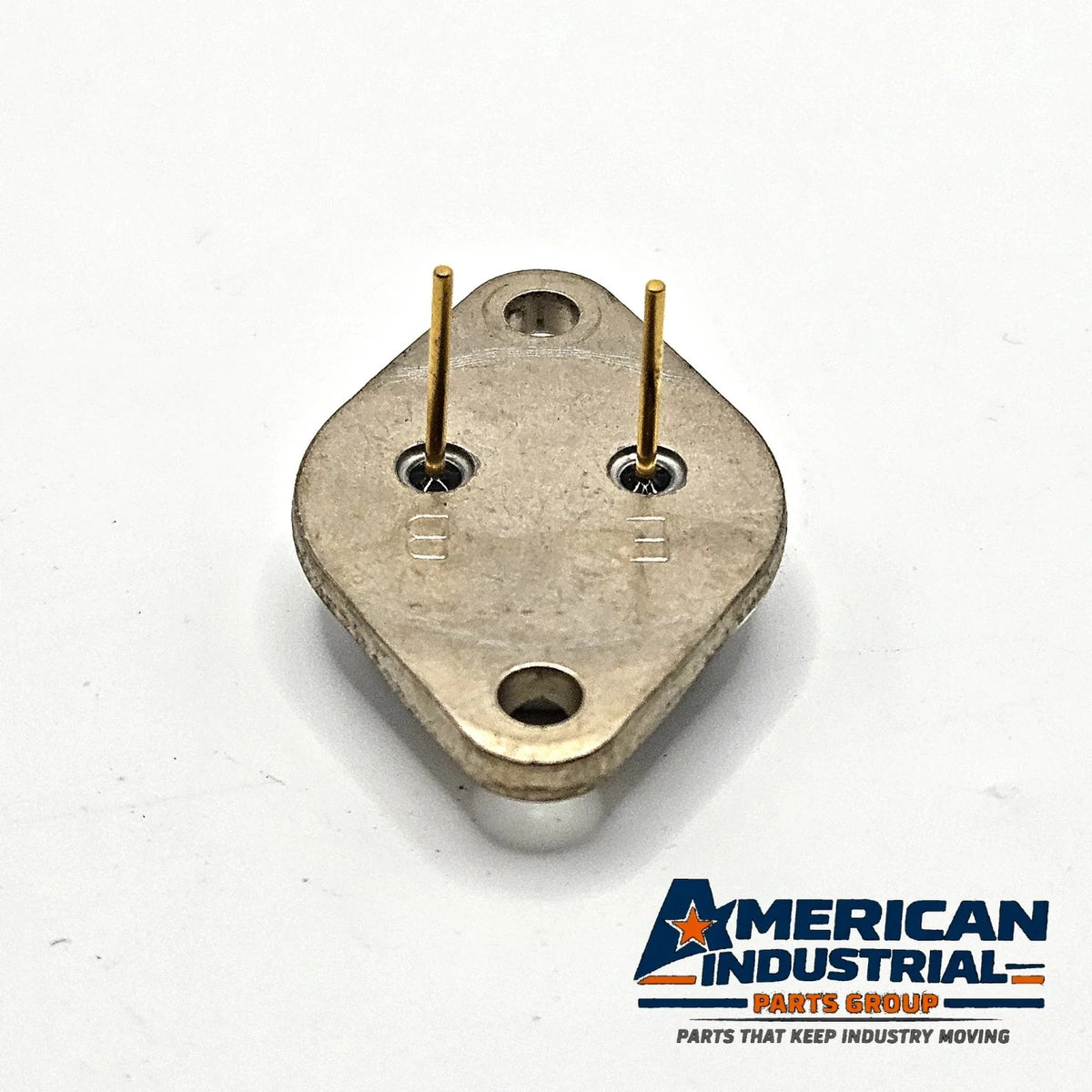

Two-terminal leads with case collector connection
Vintage discrete semiconductor
Secondary device marking: 0-52
New Old Stock

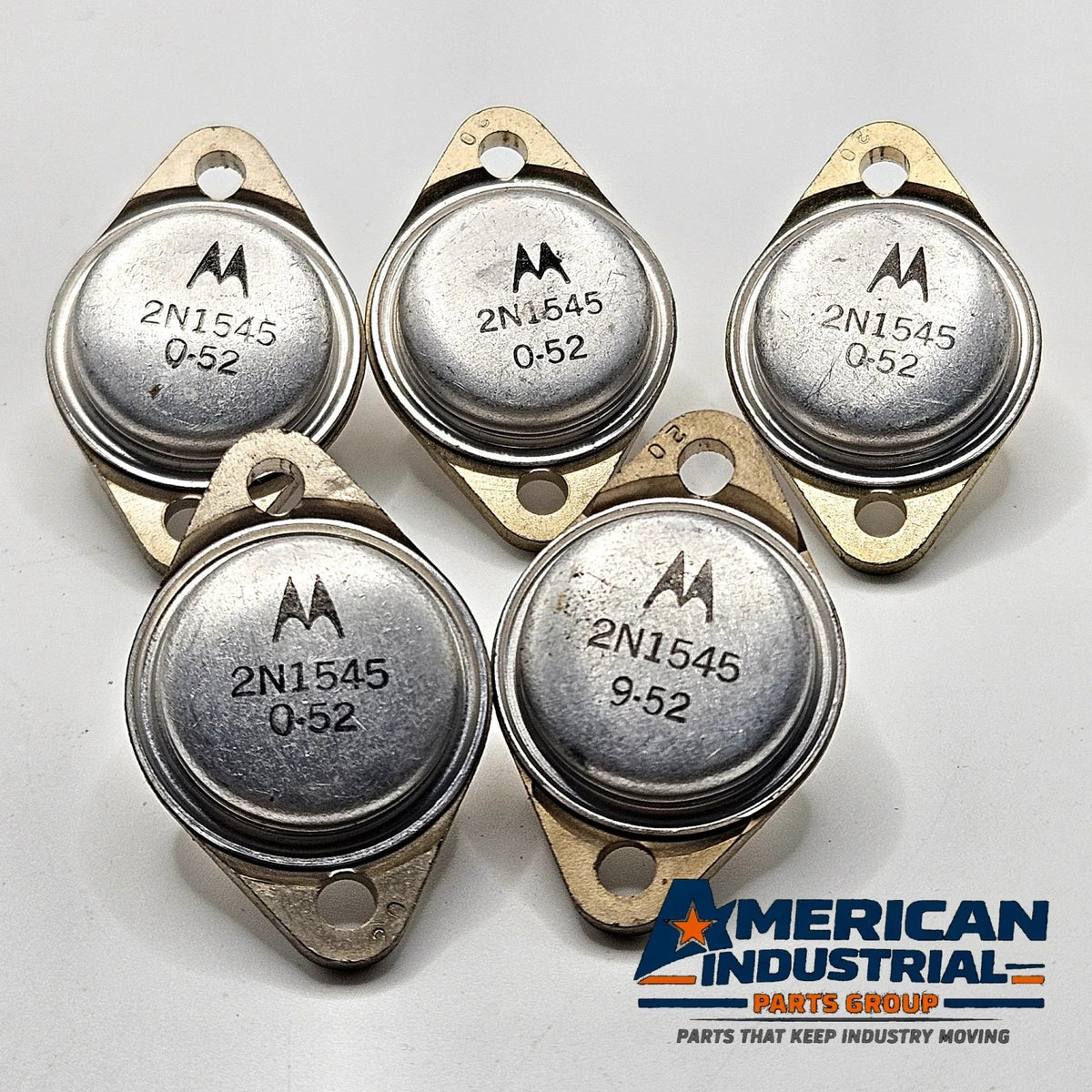

This is an older production electronic component and may show normal cosmetic evidence of long-term storage and handling. Please review all photographs for exact markings and physical condition.
