Motorola 2N2646 Lot of 10 Unijunction Transistors UJT TO-18 New
Motorola 2N2646 Lot of 10 Unijunction Transistors UJT TO-18 New
Regular price
$39.99 USD
Regular price
Sale price
$39.99 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola Semiconductor Products
Model: 2N2646
MPN: 2N2646
Type: Unijunction Transistor (UJT)
Polarity: N-Type UJT
Package/Case: TO-206AA / TO-18 metal can
Number of Pins: 3
Mounting Style: Through-Hole
Material: Metal
Power Dissipation: 300mW
RMS Emitter Current: 50mA
Peak Point Current: 5ยตA maximum
Emitter Reverse Voltage: 30V maximum
Interbase Voltage: 35V maximum
AC/DC: Not applicable โ low-power timing and switching semiconductor
Quantity: 10
Condition: New
DESCRIPTION

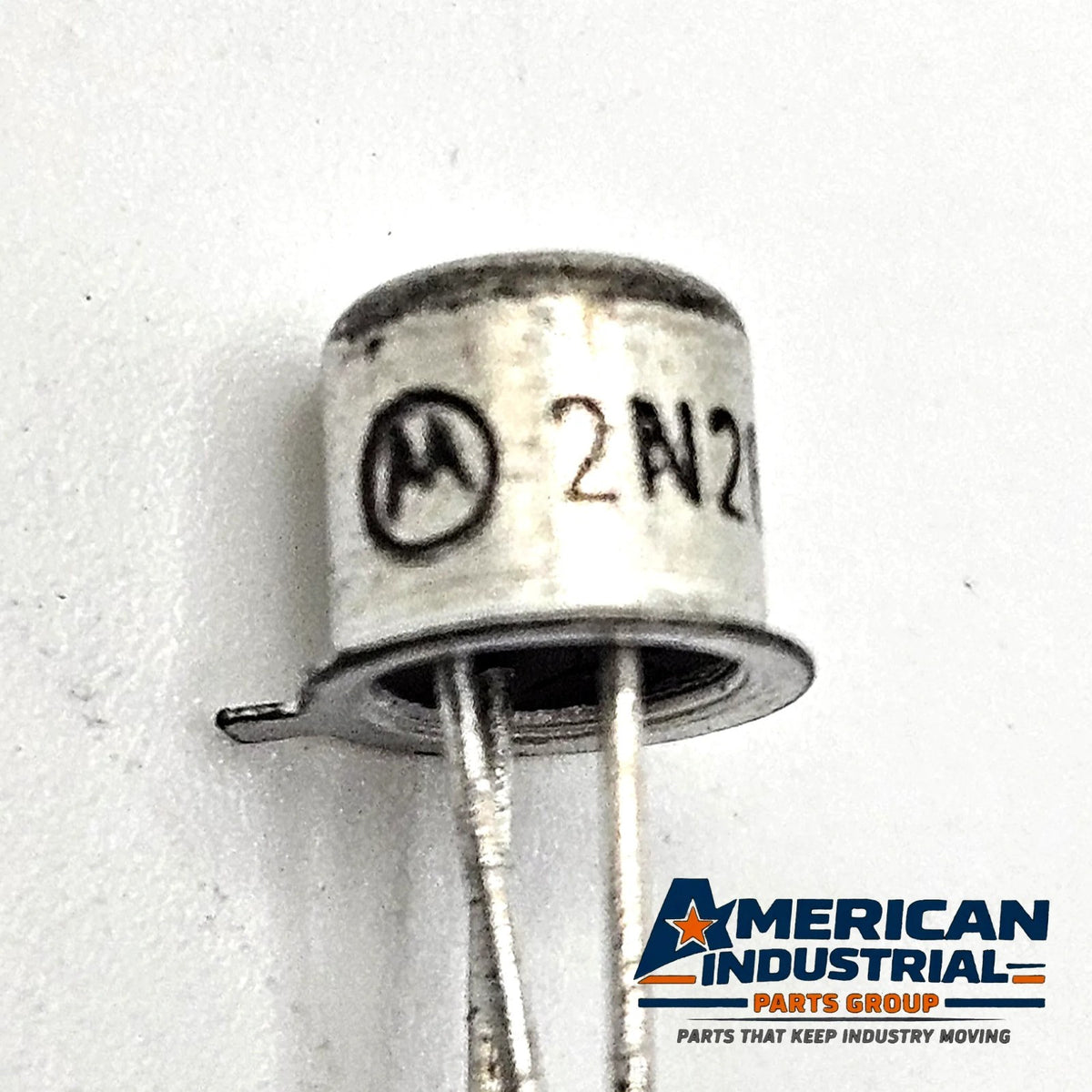

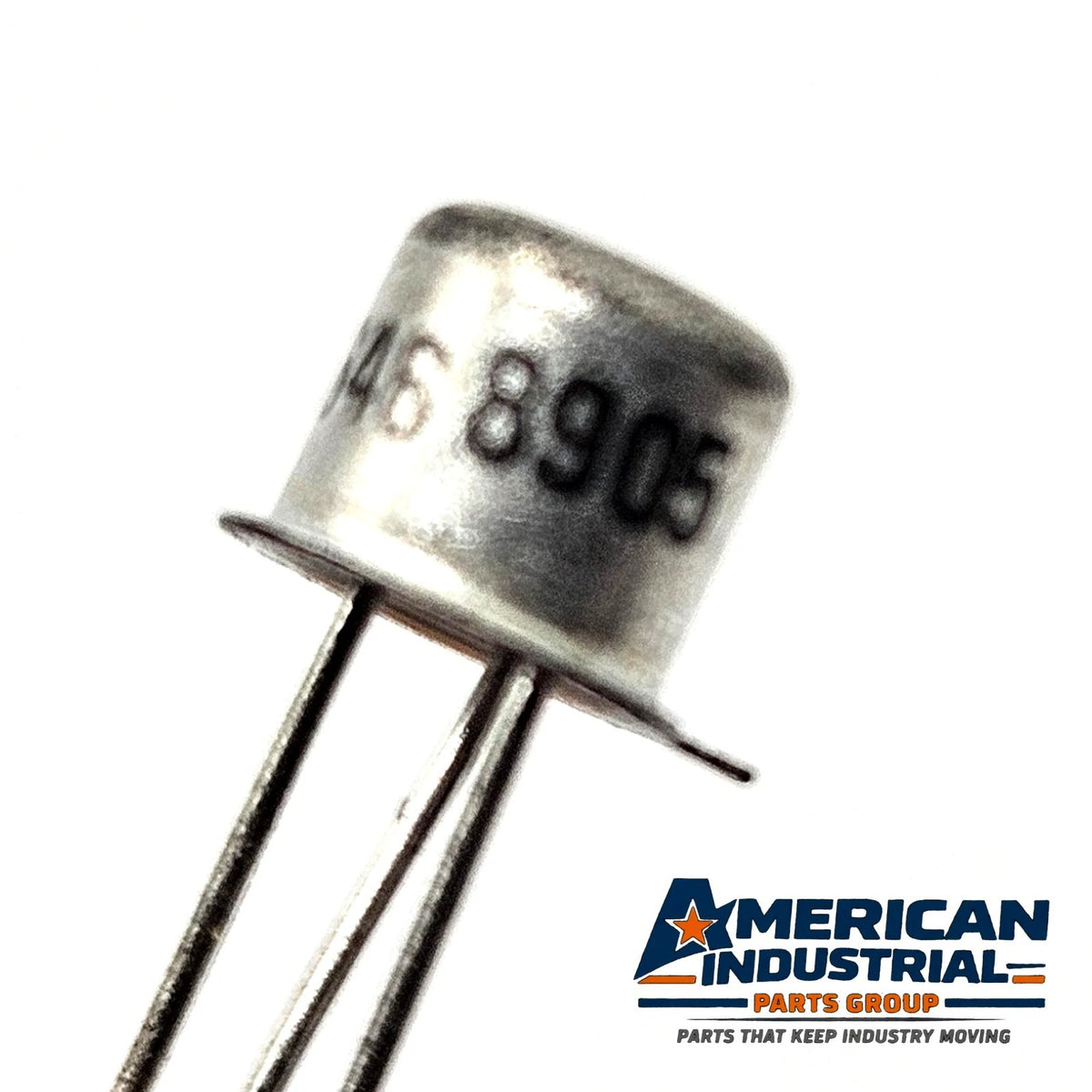

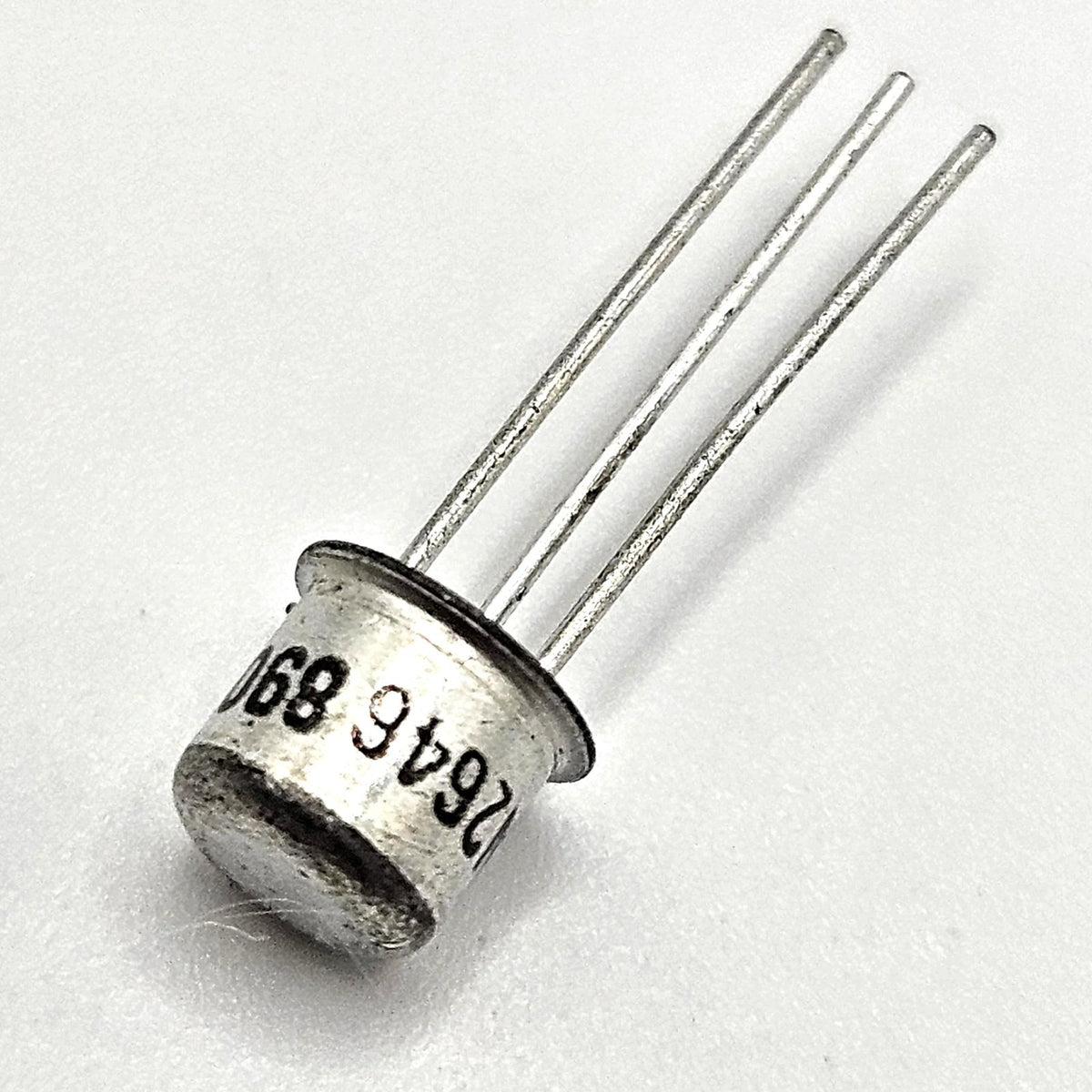

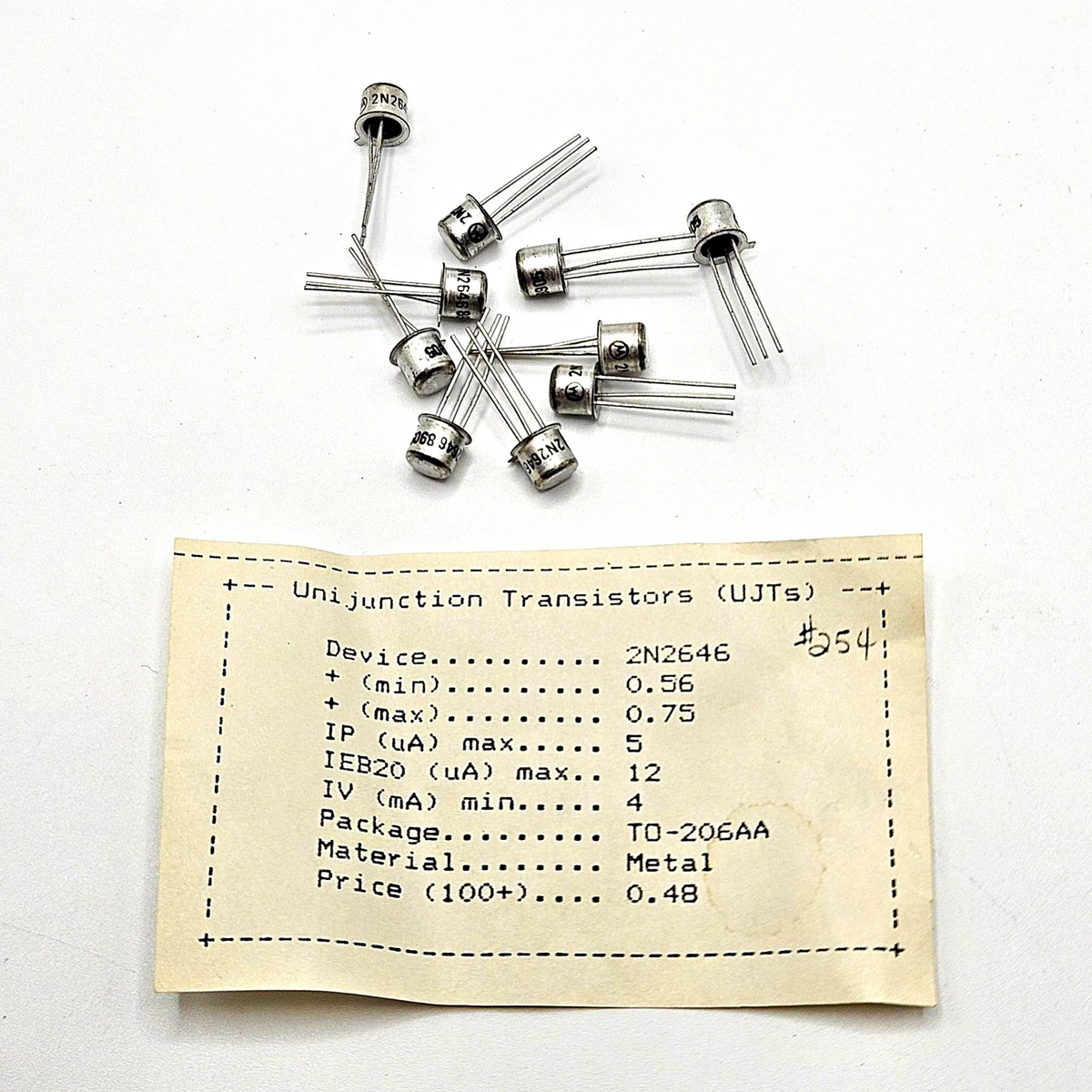

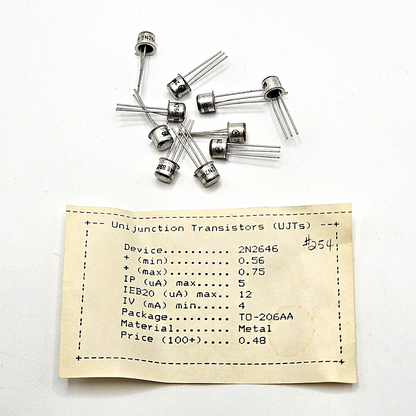

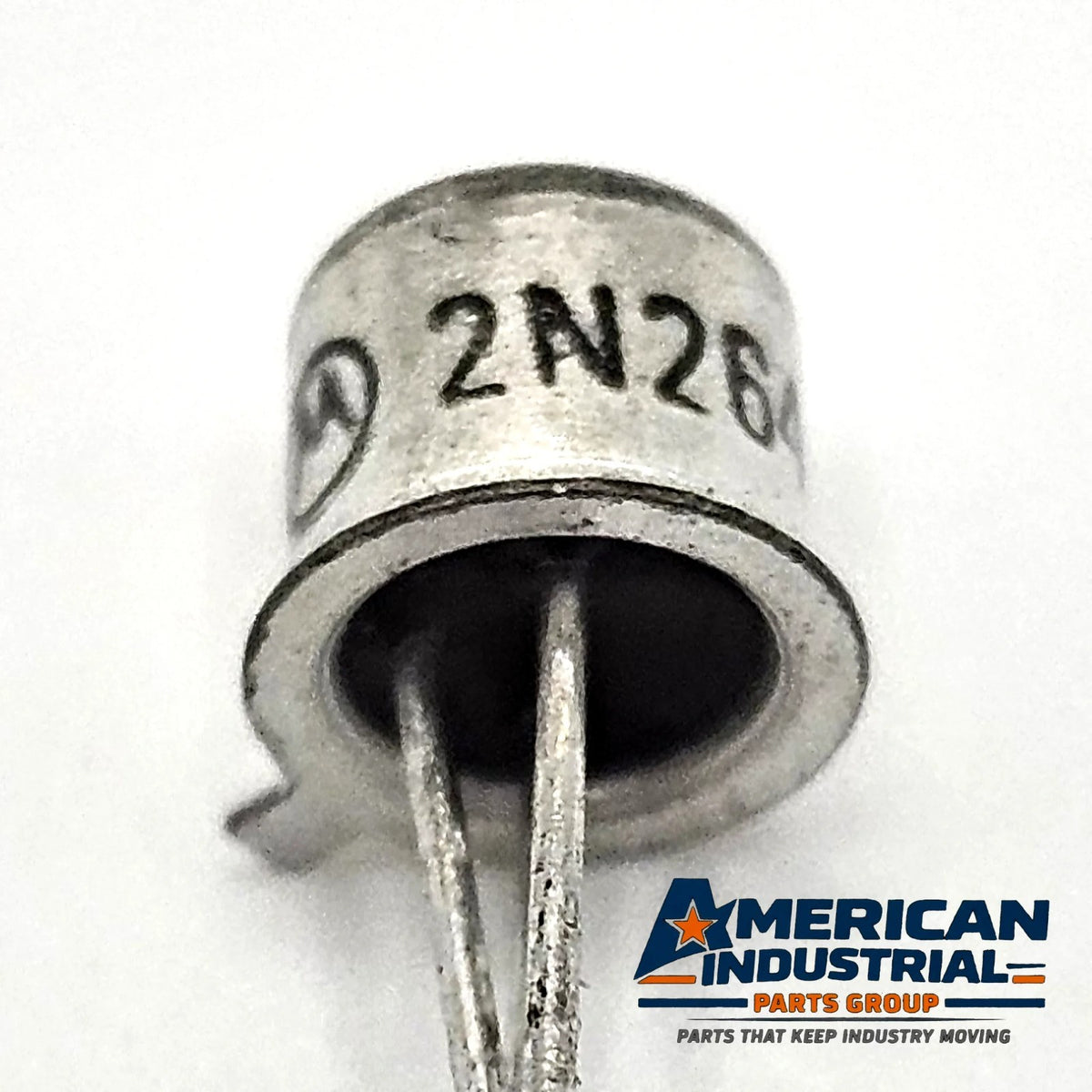

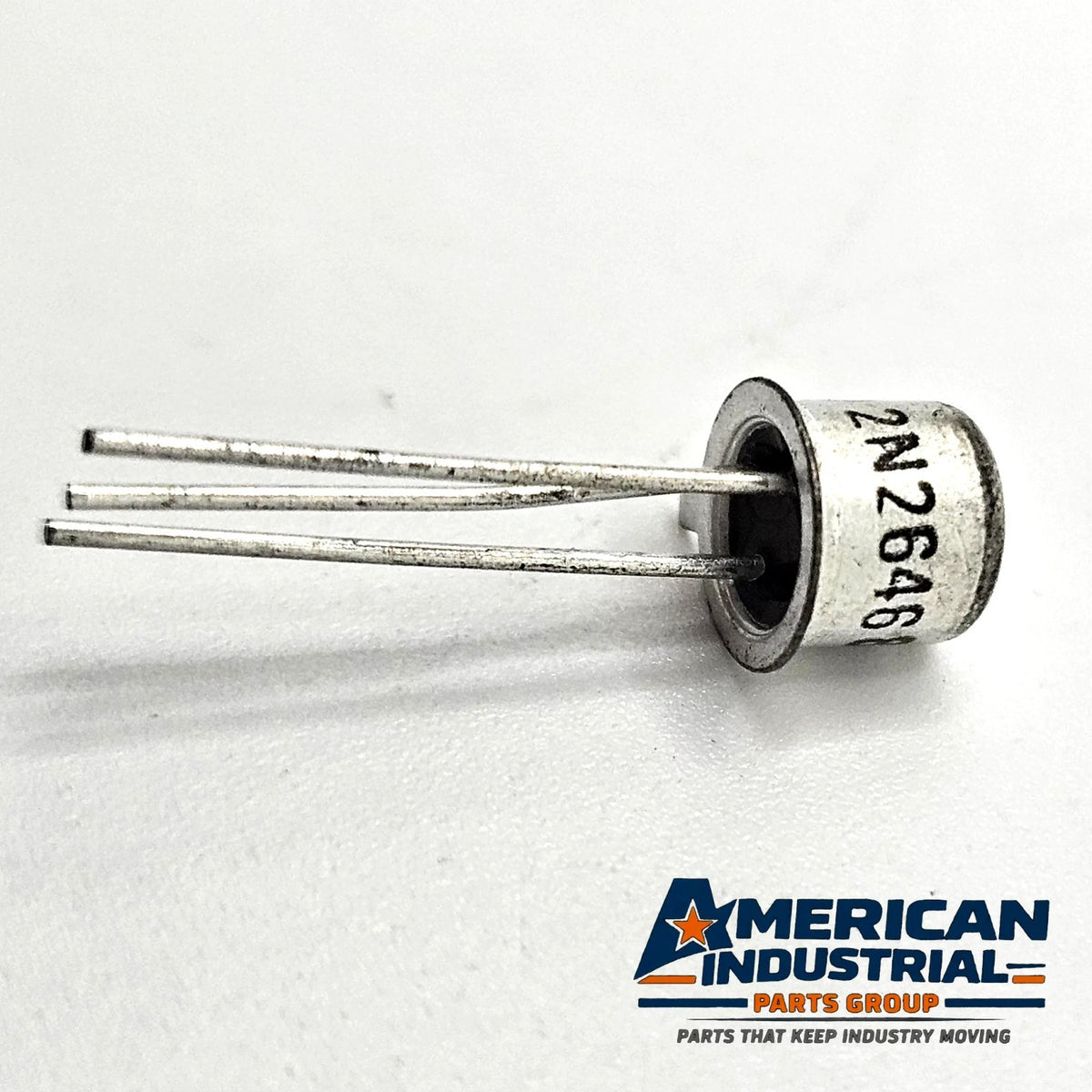

Lot of 10 new Motorola 2N2646 unijunction transistors in three-lead TO-18 metal-can packages.
The 2N2646 is designed for pulse circuits, timing circuits, sensing circuits, oscillator circuits, and thyristor-trigger applications.
Features:
Motorola semiconductor logo
2N2646 marking
Three-lead metal-can package
Through-hole mounting
300mW power dissipation
50mA RMS emitter current
30V maximum emitter reverse voltage
35V maximum interbase voltage
Lot includes 10 pieces
Please review all photographs for the exact markings, leads, and package condition.
DISCLAIMER
New electronic components supplied without original retail packaging. Electrical testing is not included. Verify pin configuration and specifications for your application before installation.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The 2N2646 is a silicon unijunction transistor in a TO-18 metal can, rated 30V emitter reverse, 35V interbase, 50mA RMS emitter current and 300mW. Lead order per Central Semiconductor's datasheet is emitter, base 1, base 2. NTE's NTE6410 is a unijunction transistor with similar ratings but in a TO-92 package, so it is not a pin-for-pin package match.
Q&A
Q: What are the ratings of the 2N2646? A: 35V interbase, 30V emitter reverse, 50mA RMS emitter current, 300mW.
Q: What is it used for? A: Pulse, timing, sensing and SCR trigger circuits.
Q: How many are included? A: Ten.
Motorola 2N2646 lot of 10 2N2646 UJT Unijunction Transistor Unijunction Device TO-18 TO-206AA Metal Can Transistor Pulse Timing Circuit Oscillator Trigger Circuit Thyristor Trigger Vintage Electronics Industrial Control Replacement Semiconductor timing circuit failed replacement
