Motorola 2N3738 NPN Silicon Power Transistor TO-66 225V NOS Vintage

ITEM SPECIFICS

Brand: Motorola
MPN: 2N3738
Model: 2N3738
Type: NPN Silicon Power Transistor
Transistor Polarity: NPN
Package / Case: TO-66
Mounting Style: Through-Hole
Collector-Emitter Voltage: 225 V
Collector-Base Voltage: 250 V
Emitter-Base Voltage: 6 V
Power Dissipation: 20 W
Gain-Bandwidth Product: 10 MHz
Terminals: 2 leads plus case collector
Collector Connection: Case
Country of Manufacture: Malaysia
Condition: New Old Stock

Motorola documentation identifies the 2N3738 as a high-voltage NPN silicon power transistor in the TO-66 metal package. The original Motorola literature specifically identifies applications including line-operated equipment, audio output amplifiers, low-current high-voltage converters, and AC line relays. The collector is electrically connected to the metal case.

DESCRIPTION

Motorola 2N3738 vintage NPN silicon power transistor from new old stock inventory.

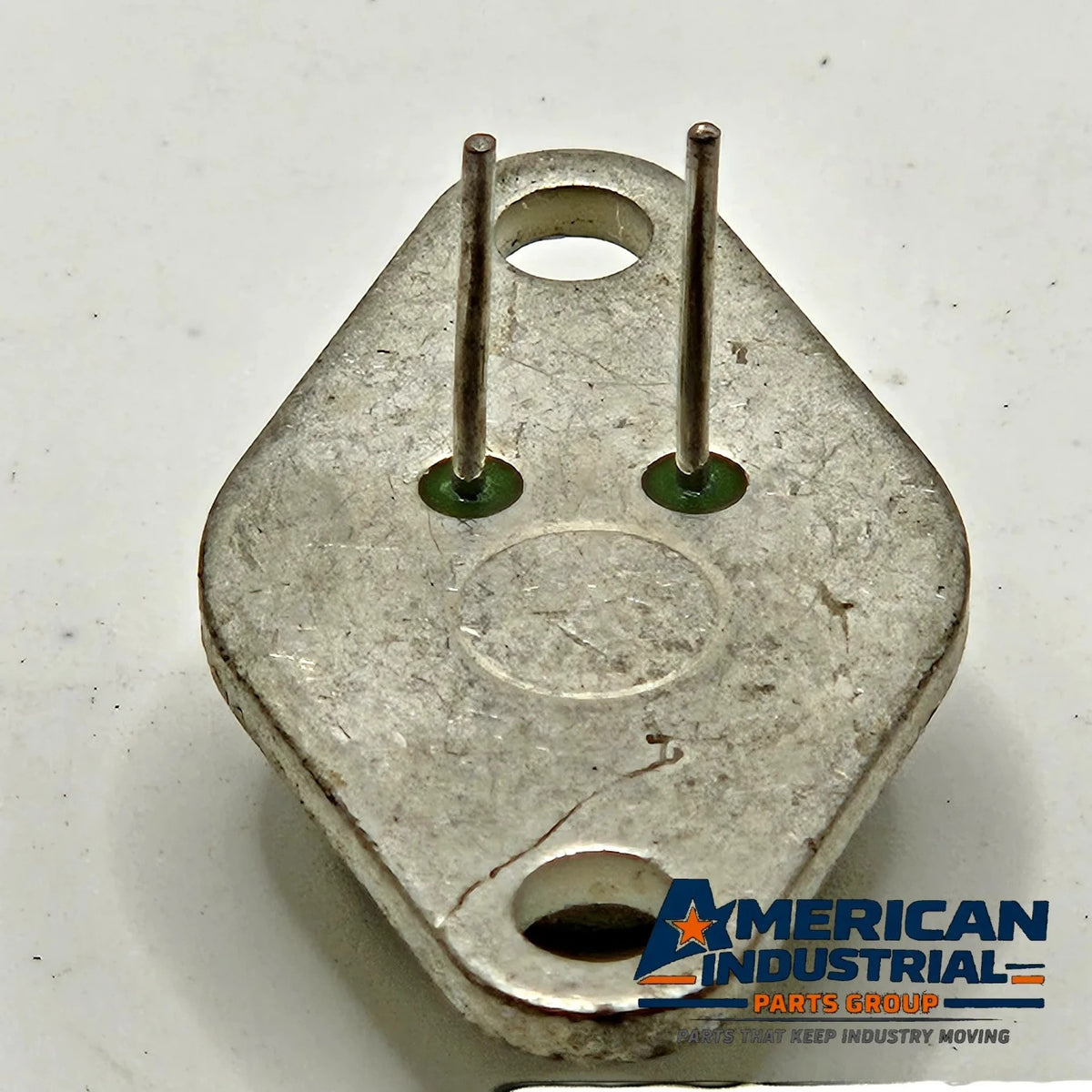

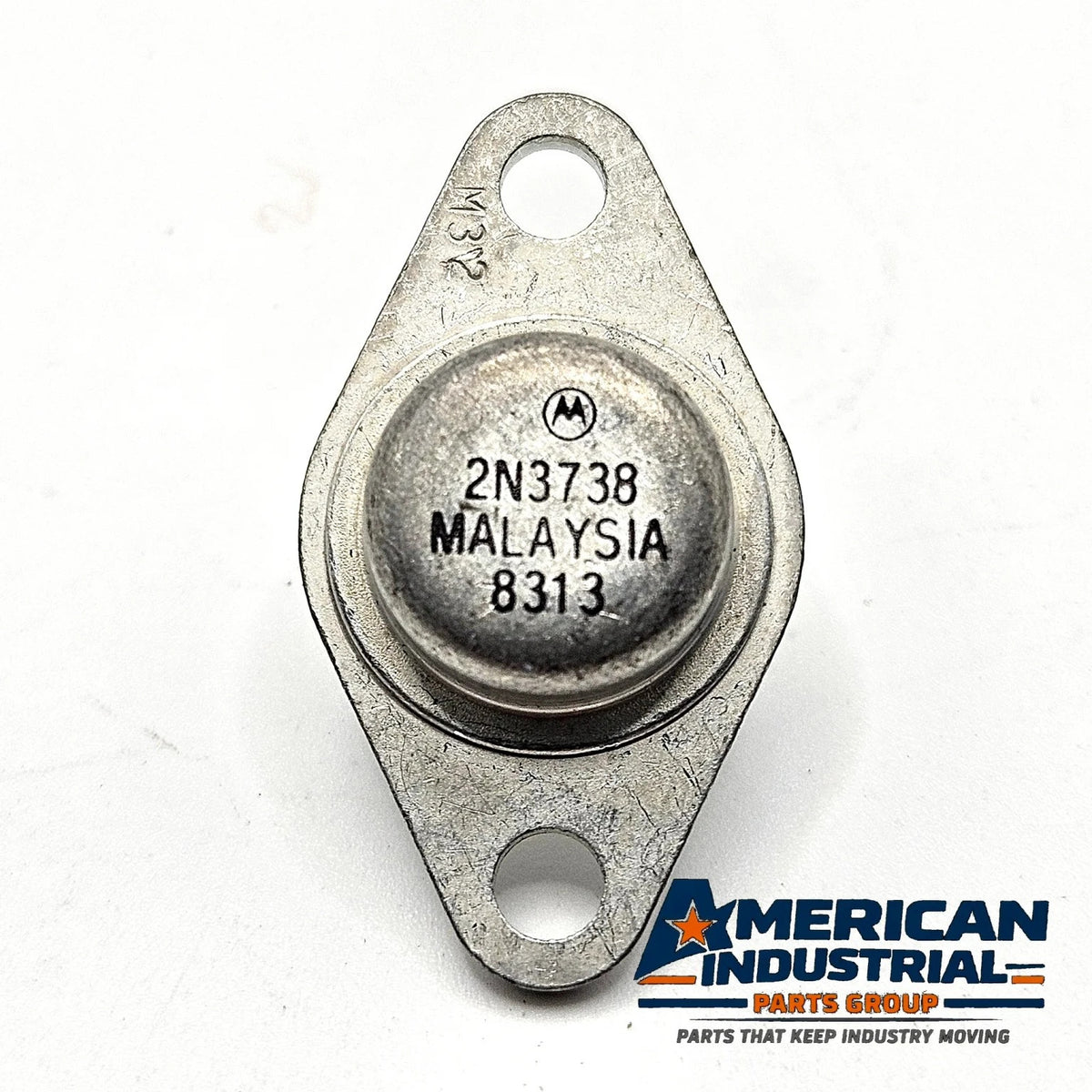

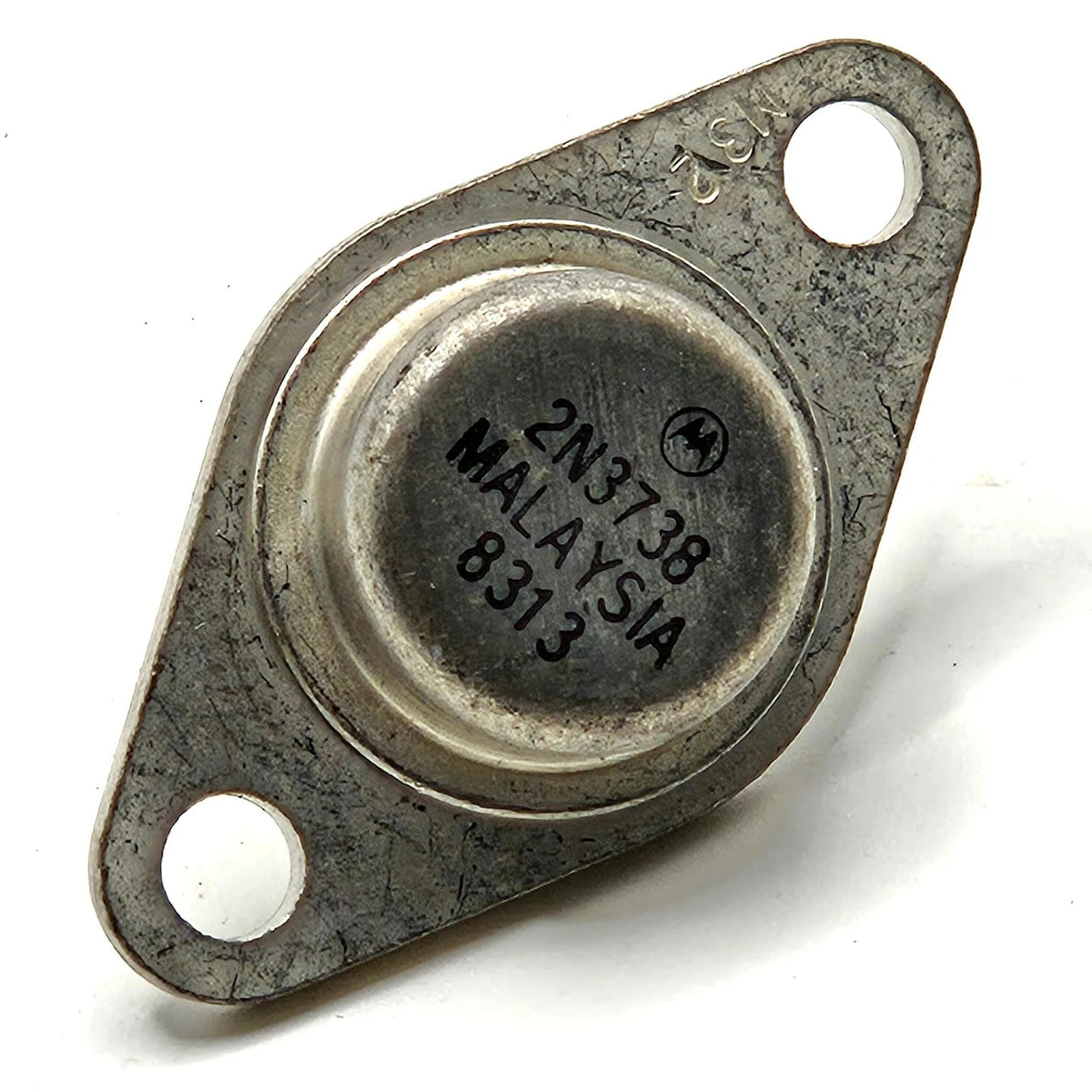

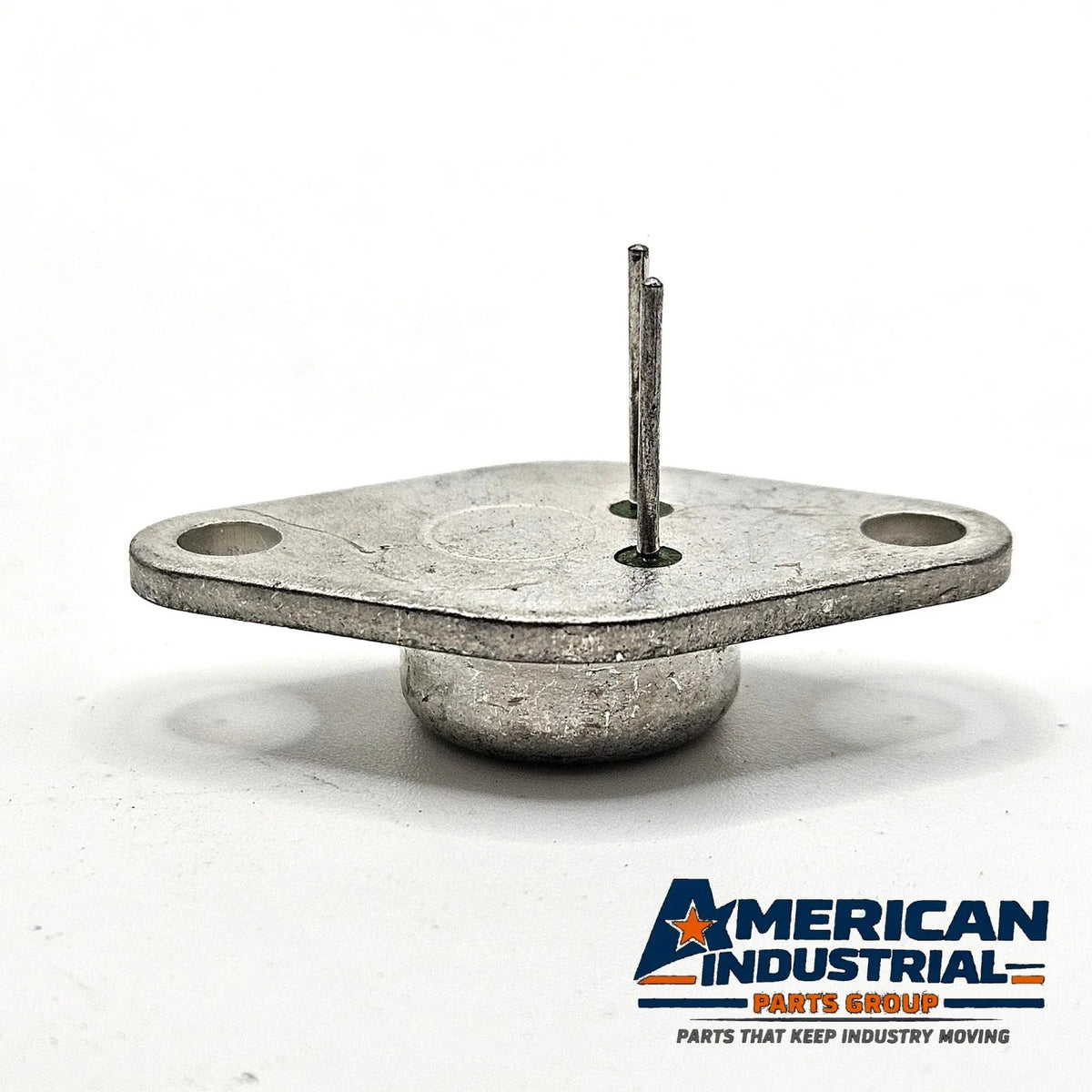

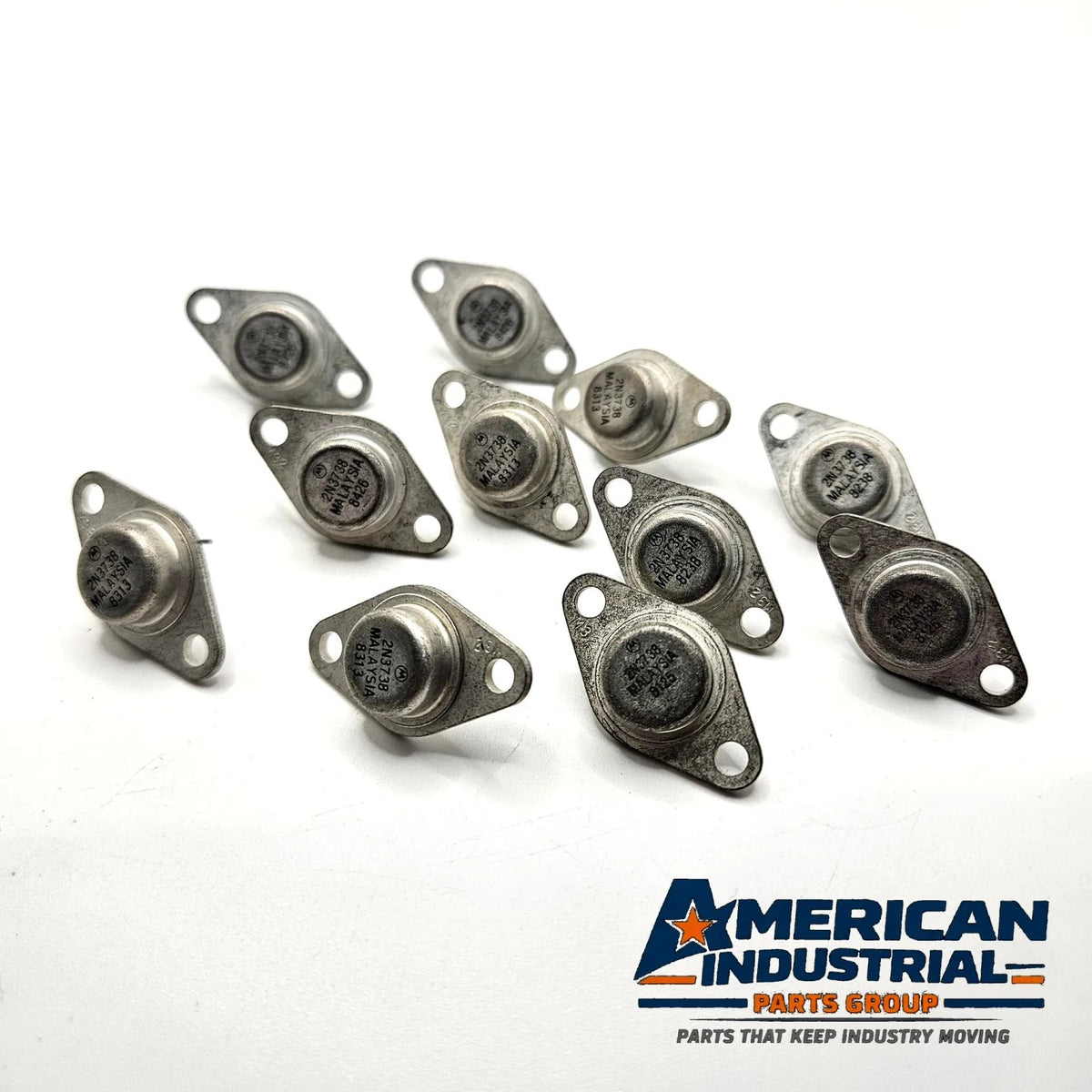

The device is marked Motorola 2N3738 and is housed in the classic metal TO-66 package. These are genuine vintage Motorola-manufactured components. Inventory shown includes varying secondary manufacturing/lot markings, so the secondary code received may differ from the photographs.

• Motorola 2N3738
• NPN silicon power transistor
• High-voltage transistor
• 225 V collector-emitter rating
• 250 V collector-base rating
• TO-66 metal package
• 20 W maximum device dissipation rating
• Through-hole mounting
• Collector connected to case
• Vintage discontinued semiconductor
• New old stock

Original Motorola documentation identifies the 2N3738 as a high-voltage NPN transistor intended for applications including amplifiers, converters, switching, and line-operated circuitry.

DISCLAIMER

New old stock. Components may show cosmetic signs of long-term storage and handling consistent with their age, including minor oxidation, discoloration, marks, or scratches on the metal case and leads. Secondary manufacturing and lot markings may vary from the item photographed. Please review all photographs carefully. Buyer is responsible for verifying the 2N3738 part number and suitability for the intended application.
