Motorola 2N4393 N-Channel JFET Switch Chopper TO-18 Gold Leads 40V Vintage NOS
Motorola 2N4393 N-Channel JFET Switch Chopper TO-18 Gold Leads 40V Vintage NOS
Regular price
$5.95 USD
Regular price
Sale price
$5.95 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability

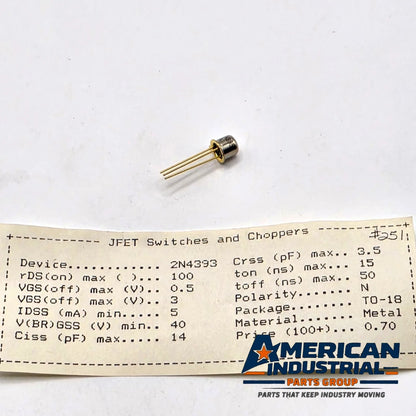

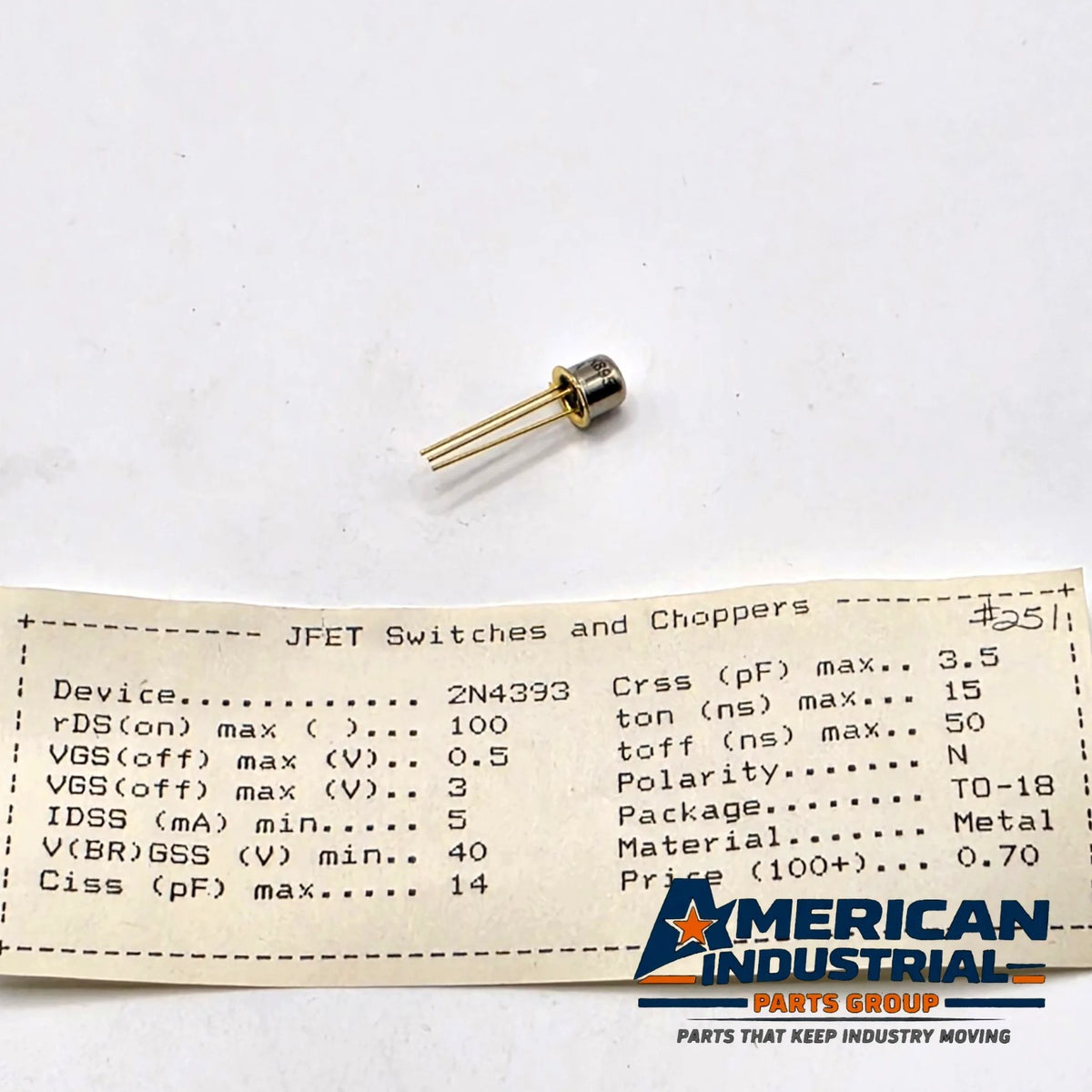

ITEM SPECIFICS
Brand: Motorola
Model: 2N4393
MPN: 2N4393
Type: N-Channel Junction FET (JFET), Switch / Chopper
Gate-Source Breakdown Voltage V(BR)GSS: 40V minimum
Drain Current IDSS: 5mA minimum (VDS = 20V, VGS = 0V)
Gate-Source Cutoff Voltage VGS(off): -0.5V to -3V
On-Resistance rDS(on): 100Ω maximum
Input Capacitance Ciss: 14pF maximum
Reverse Transfer Capacitance Crss: 3.5pF maximum
Power Dissipation: 1.8W
Package: TO-18 Metal Can
Leads: Gold-Plated
Mounting: Through-Hole
Condition: New
Quantity: 1
DESCRIPTION

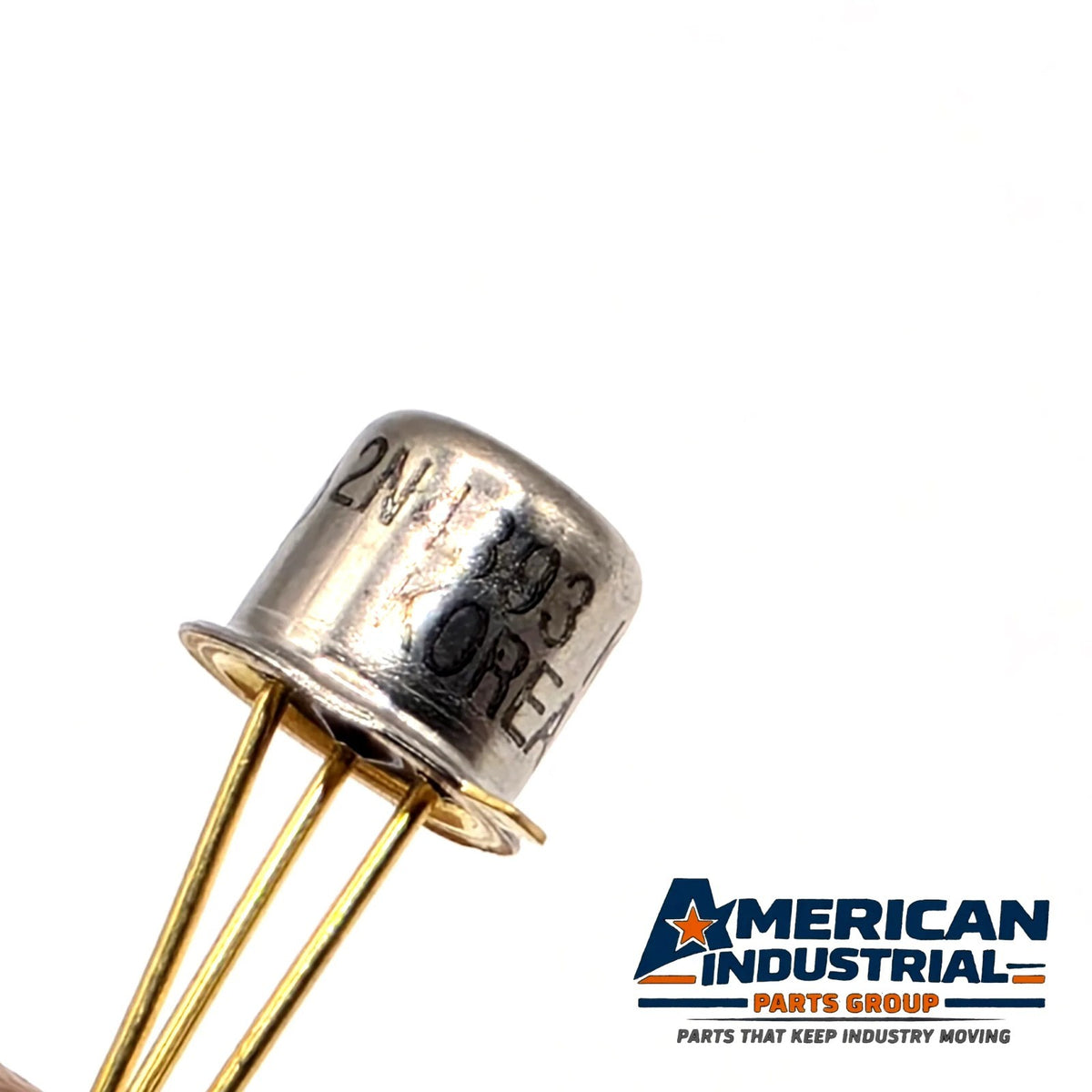

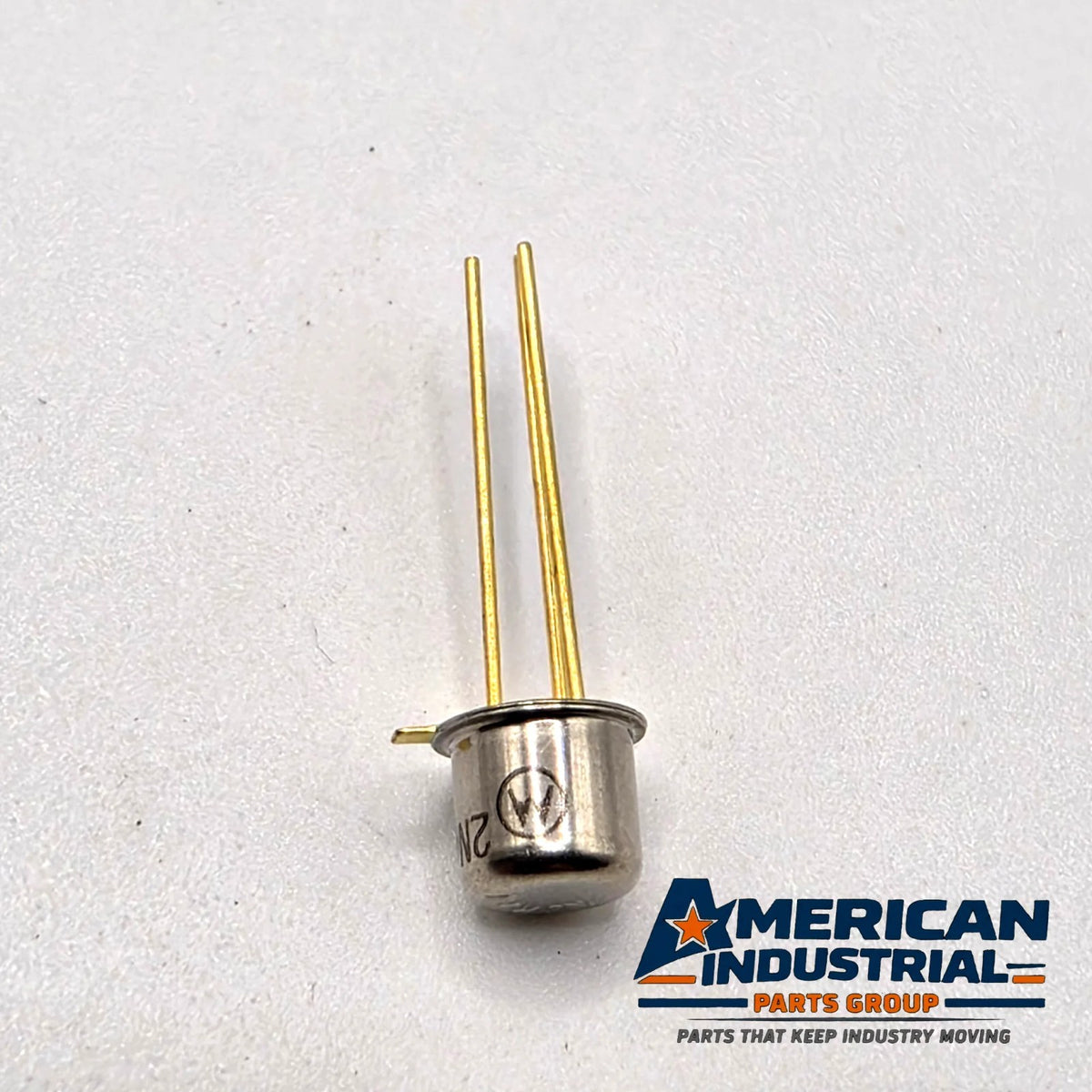

New old stock Motorola 2N4393 N-channel JFET analog switch in a hermetic TO-18 metal can with gold-plated leads. Case marked with the Motorola logo and "2N4393." Never installed; leads are straight and unsoldered.
The 2N4393 is a low on-resistance JFET built for analog switching and chopper circuits. It is the lowest-cutoff-voltage member of the 2N4391 / 2N4392 / 2N4393 family.
Features:
N-channel JFET for analog switching and chopper use
100Ω maximum on-resistance
Gate-source cutoff voltage -0.5V to -3V
5mA minimum IDSS
40V gate-source breakdown
14pF maximum input capacitance, 3.5pF maximum reverse transfer capacitance
Fast switching: 15ns maximum turn-on, 50ns maximum turn-off
Hermetic TO-18 metal can with gold-plated leads
Original Motorola manufacture
Compatibility:
Direct replacement for 2N4393 in TO-18 through-hole positions. Same family as the 2N4391 and 2N4392, which have higher cutoff voltages and lower on-resistance; check VGS(off) requirements before substituting between them.
Q&A
Q: Is the 2N4393 N-channel or P-channel?
A: N-channel JFET.
Q: What is the difference between the 2N4391, 2N4392, and 2N4393?
A: They are the same JFET switch family graded by cutoff voltage and on-resistance. The 2N4393 has the lowest cutoff voltage (-0.5V to -3V) and a 100Ω maximum on-resistance.
Q: What is the 2N4393 used for?
A: Analog switching, choppers, sample-and-hold, and multiplexer circuits.
Q: What package is this?
A: TO-18 hermetic metal can with three gold-plated leads.
DISCLAIMER
Item is new old stock, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
