Motorola 2N4403 PNP General Purpose Transistor TO-92 40V 600mA Vintage NOS
Motorola 2N4403 PNP General Purpose Transistor TO-92 40V 600mA Vintage NOS
Regular price
$1.99 USD
Regular price
Sale price
$1.99 USD
Shipping calculated at checkout.
7 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
Model: 2N4403
MPN: 2N4403
Type: PNP Bipolar Junction Transistor (BJT)
Collector-Emitter Voltage (VCEO): 40V
Collector-Base Voltage (VCBO): 40V
Emitter-Base Voltage (VEBO): 5V
Collector Current (IC): 600mA continuous
Power Dissipation: 625mW at 25°C ambient
Transition Frequency (fT): 200 MHz minimum
Package: TO-92
Mounting: Through-Hole
Pinout: Emitter-Base-Collector (marked "EBC")
Condition: New
Quantity: 1
DESCRIPTION

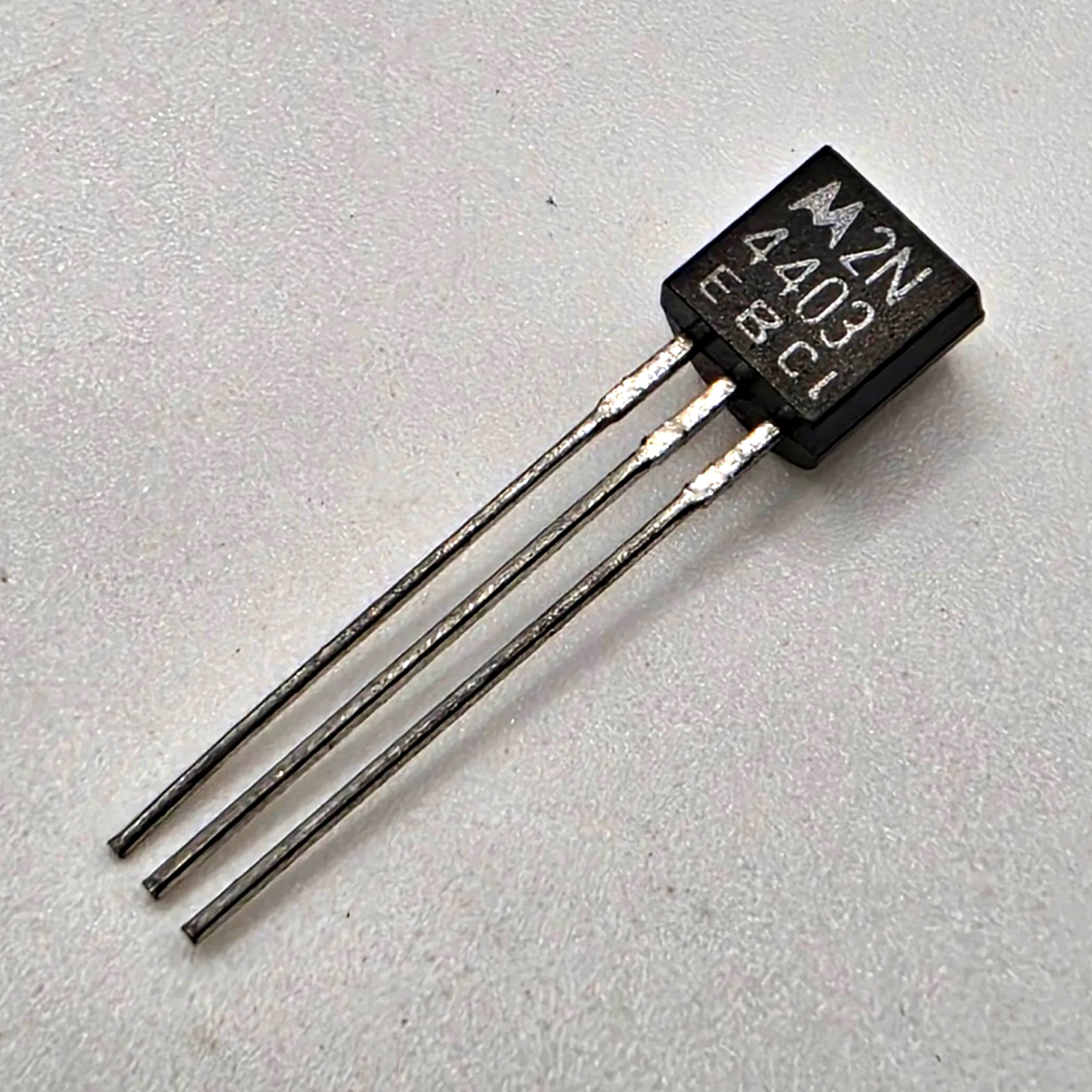

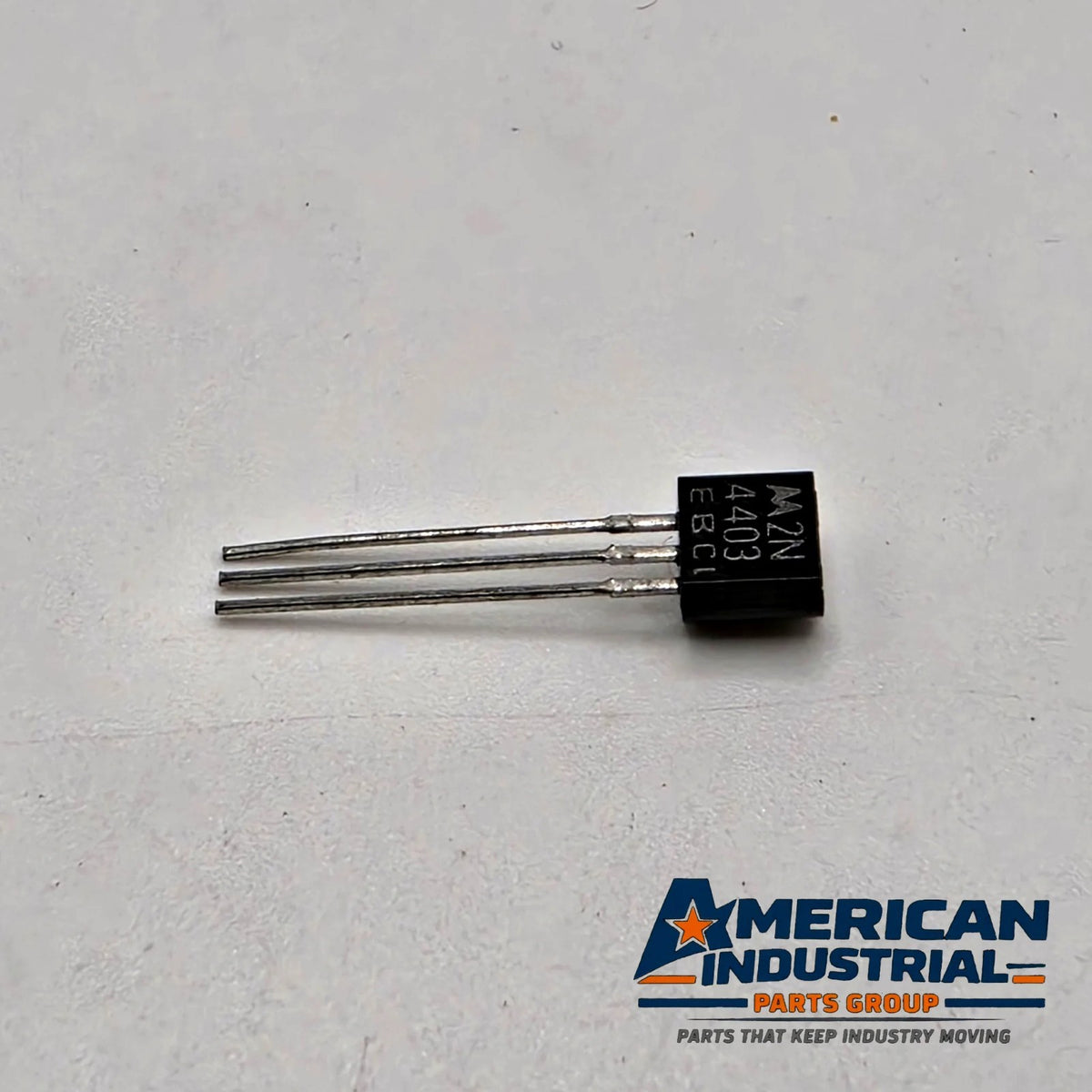

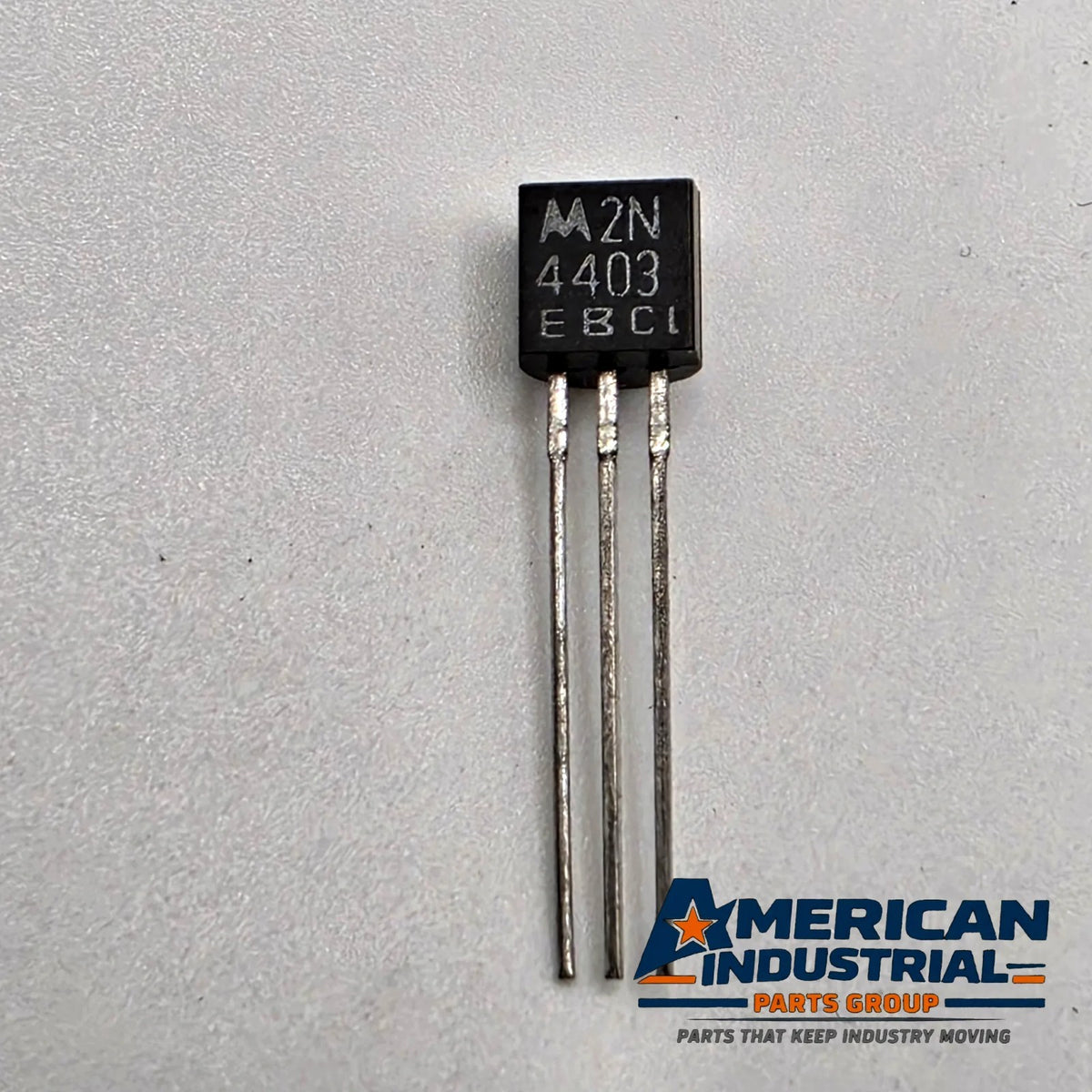

New old stock Motorola 2N4403 PNP silicon general-purpose transistor in a TO-92 package. Marked with the Motorola logo, "2N4403," and "EBC" to identify the lead order. Never installed; leads are straight and unsoldered.
Features:
PNP silicon general-purpose amplifier and switching transistor
40V collector-emitter rating
600mA continuous collector current
625mW power dissipation at 25°C ambient
200 MHz minimum gain-bandwidth product
DC current gain (hFE) 100–300 at 150mA
Lead order printed on the case: Emitter, Base, Collector
Original Motorola manufacture
Compatibility: Direct replacement for 2N4403 in TO-92 through-hole positions. Standard 2N4403 pinout is pin 1 emitter, pin 2 base, pin 3 collector. Commonly paired with the 2N4401 NPN in push-pull and complementary circuits.
Q&A
Q: Is the 2N4403 NPN or PNP?
A: PNP. Its NPN counterpart is the 2N4401.
Q: What is the 2N4403 pinout?
A: Emitter, Base, Collector (pins 1, 2, 3), as printed on the case.
Q: How much current can a 2N4403 handle?
A: 600mA continuous collector current, with 625mW maximum dissipation at 25°C ambient.
Q: Can this replace a 2N3906?
A: Both are TO-92 PNP general-purpose transistors, but the 2N4403 has a higher current rating. Check pinout and circuit requirements before substituting.
DISCLAIMER
Item is new old stock, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
2N4403, Motorola 2N4403, 2N4403 transistor, 2N4403 PNP, PNP transistor TO-92, general purpose PNP transistor, 40V PNP transistor, 600mA PNP transistor, small signal PNP transistor, switching transistor TO-92, 2N4401 complement, 2N3906 alternative, vintage Motorola transistor, NOS Motorola transistor, amplifier transistor replacement, audio circuit transistor replacement, circuit board not working transistor replacement, power supply transistor failed replacement
Thank you for shopping with American Industrial Parts Group!
