Motorola 2N5302 NPN Silicon Power Transistor 60V 30A 200W TO-3 New
Motorola 2N5302 NPN Silicon Power Transistor 60V 30A 200W TO-3 New
Regular price
$19.95 USD
Regular price
Sale price
$19.95 USD
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
Model: 2N5302
MPN: 2N5302
Type: Bipolar Junction Transistor (BJT)
Transistor Polarity: NPN
Semiconductor Material: Silicon
Collector-Emitter Voltage: 60 V maximum
Collector-Base Voltage: 60 V maximum
Continuous Collector Current: 30 A maximum
Base Current: 7.5 A maximum
Power Dissipation: 200 W maximum at case temperature of 25°C
Package: TO-3 / TO-204AA metal case
Connections: Pin 1 Base; Pin 2 Emitter; Case Collector
Mounting Style: Through-hole / chassis mount
Additional Printed Marking: 8339
Quantity: 1
Condition: New
DESCRIPTION
Motorola 2N5302 NPN silicon power transistor in a TO-3 metal package. Motorola specifies this device for power amplifier and switching circuit applications.
Maximum ratings include 60 V collector-emitter voltage, 30 A continuous collector current, and 200 W power dissipation with the case maintained at 25°C. These are individual maximum limits; permissible operation depends on the safe operating area, temperature, and cooling.

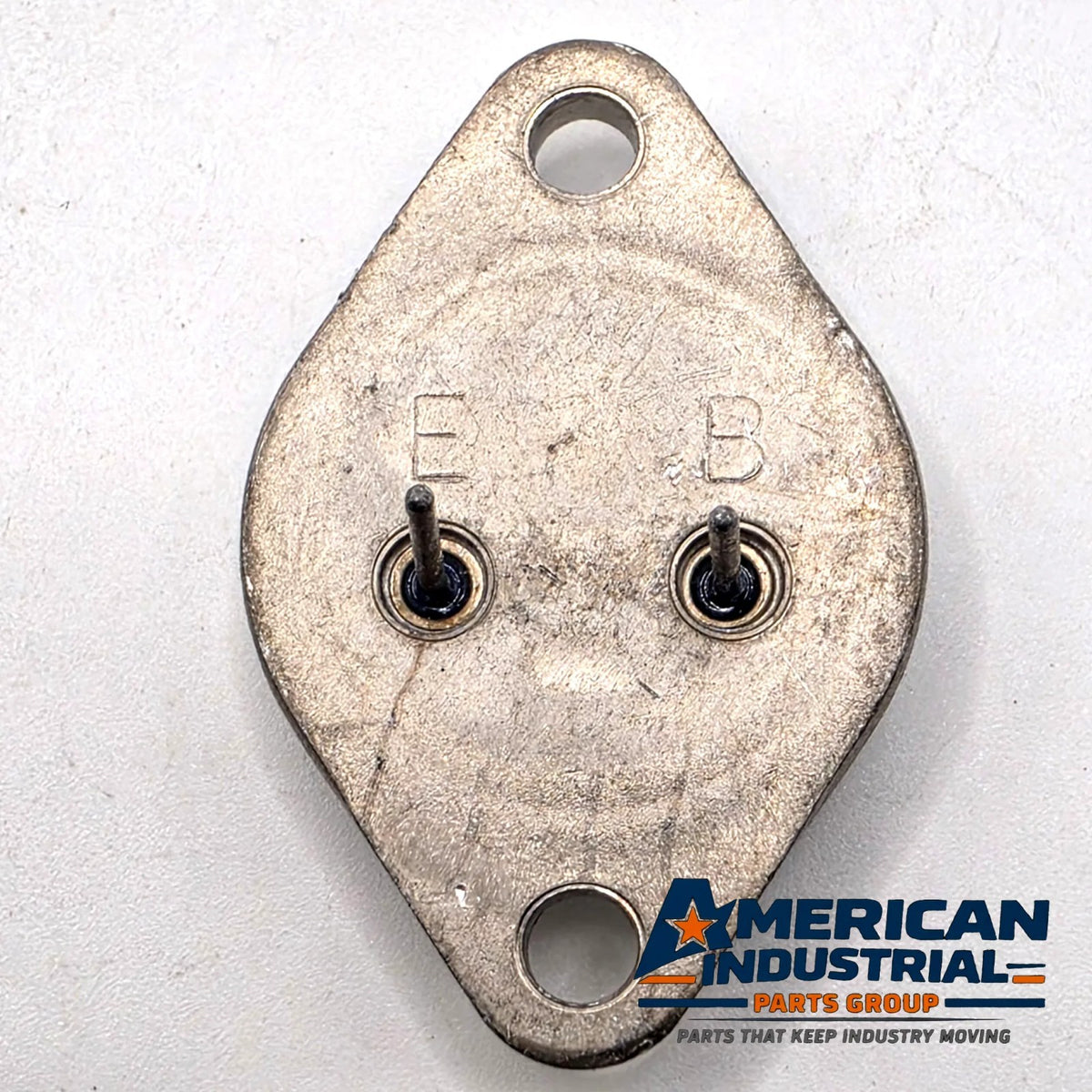

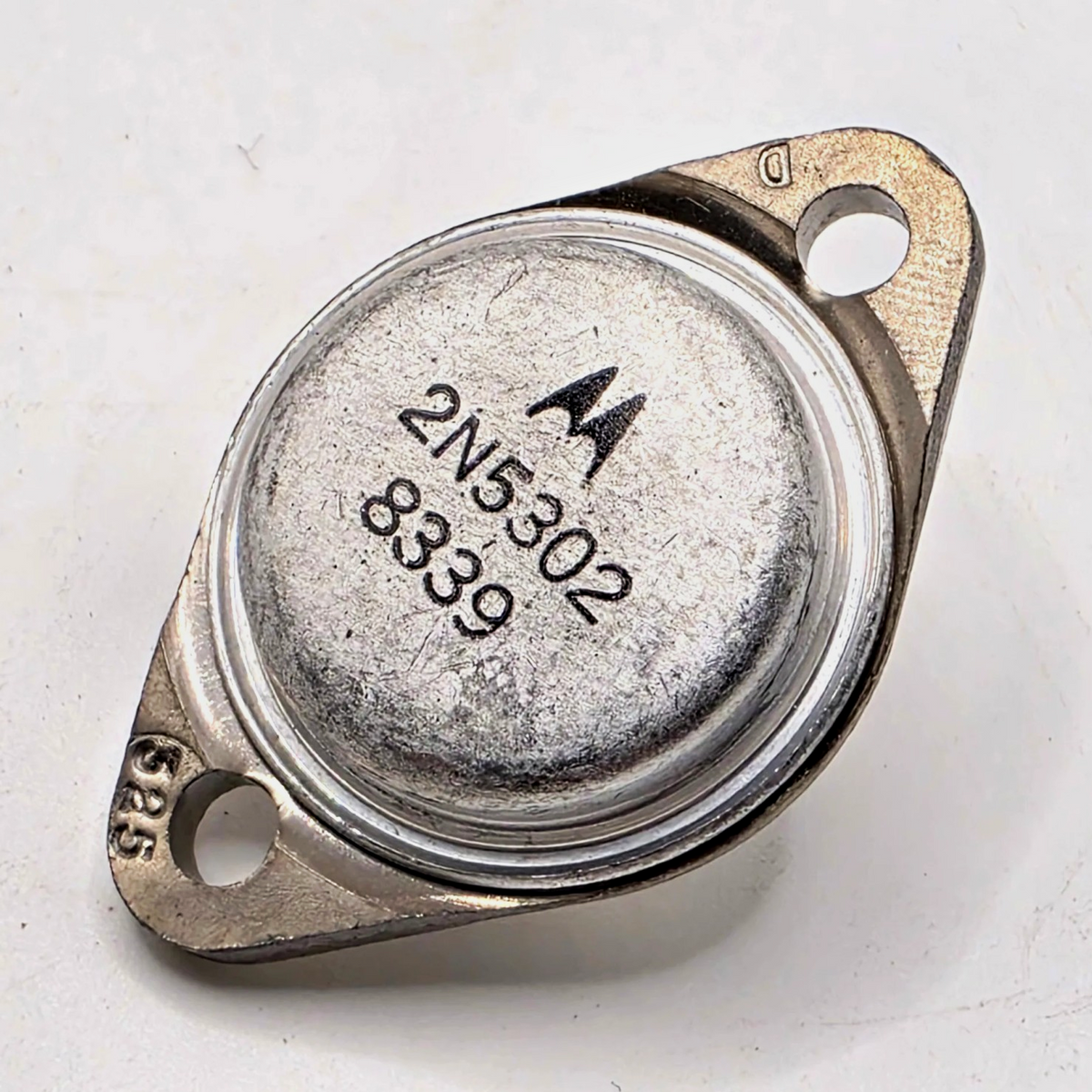

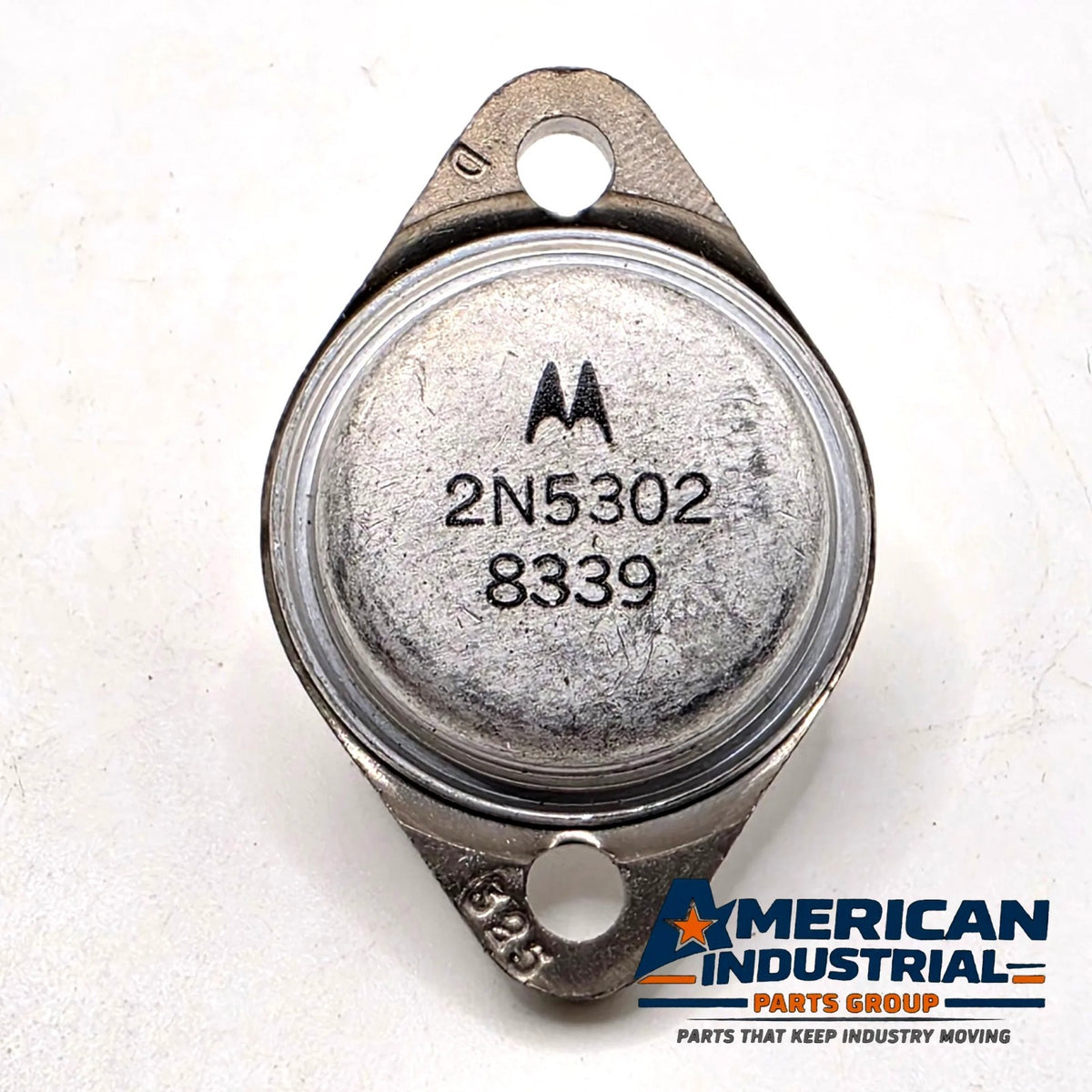

The photographed transistor carries the Motorola logo, part number 2N5302, and separate marking “8339.” The underside has emitter and base identification beside the two leads; the metal case forms the collector connection.

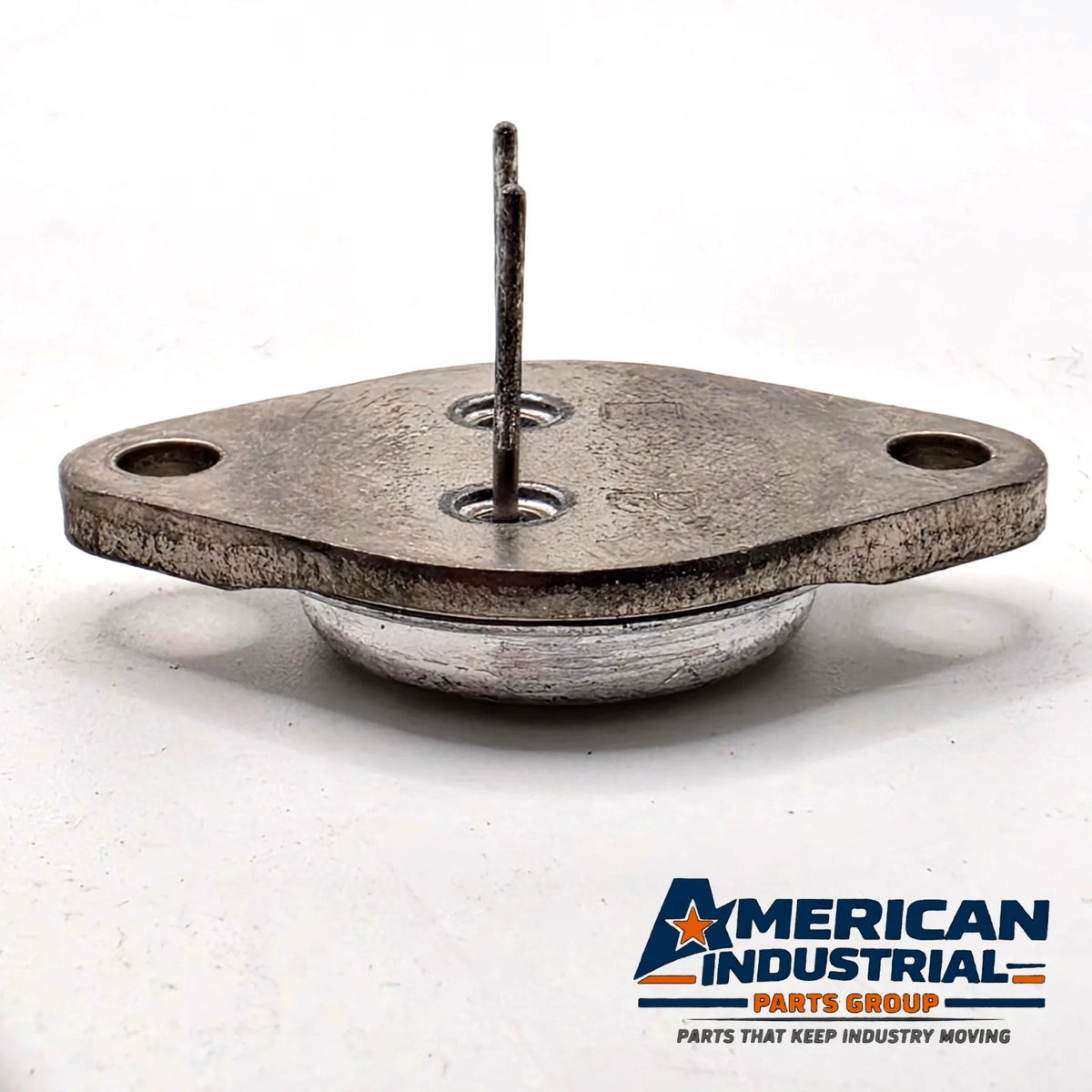

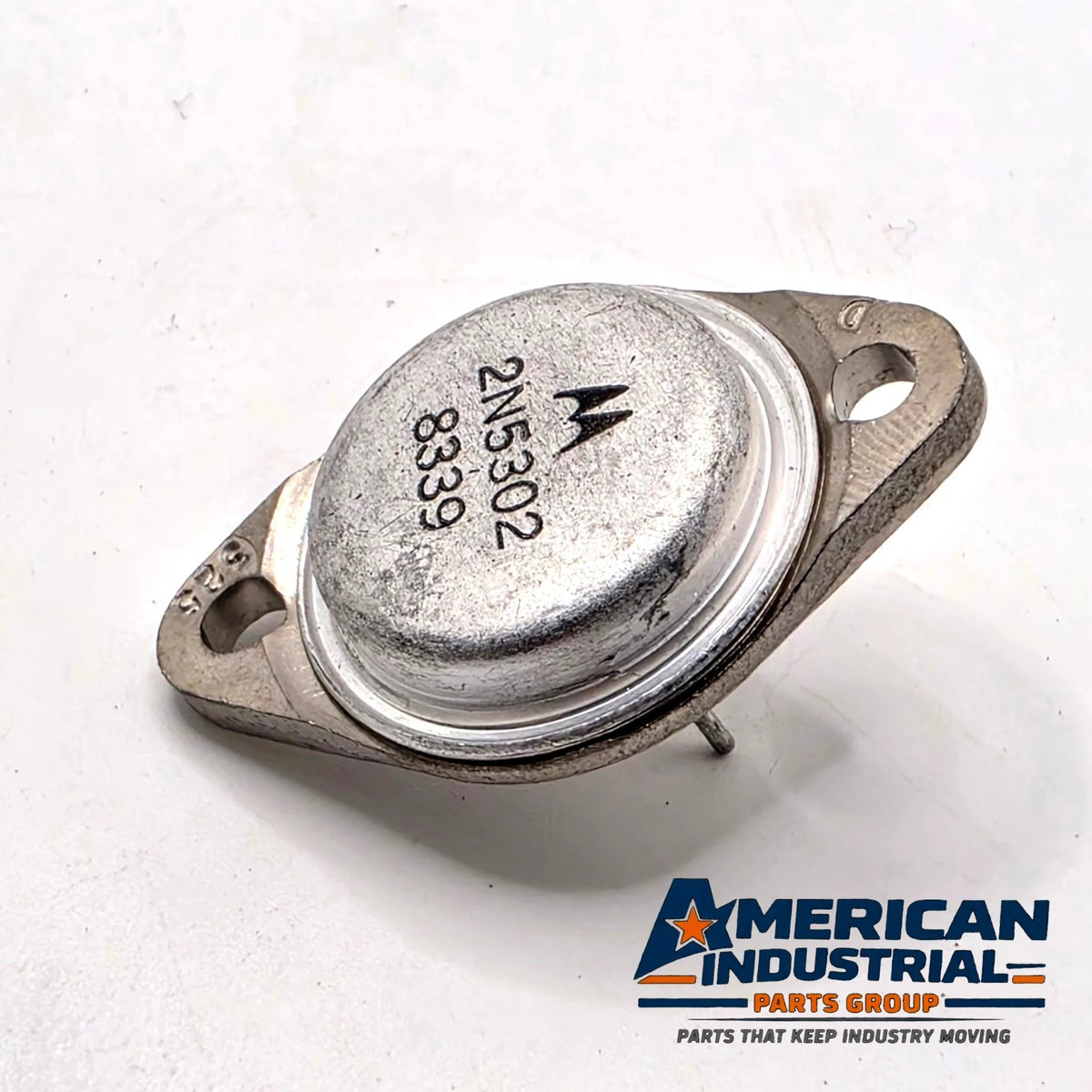

New condition. Photos show surface scratches and discoloration on the metal housing. Electrical test results have not been provided. Includes one transistor as pictured.
COMPATIBILITY & CROSS-REFERENCE
Direct replacement for the 2N5302. It is the 60 V member of the 2N5301 to 2N5303 NPN family: the 2N5301 is rated 40 V and 30 A, and the 2N5303 is rated 80 V and 20 A. The complementary PNP device is the 2N4399 (60 V, 30 A, 200 W) for push-pull output stages. Confirm voltage, current, safe operating area and heatsink insulation against the original circuit before substituting.
Q&A
Q: What are the 2N5302's main ratings? A: NPN, 60 V, 30 A continuous, 200 W at 25°C case, TO-3.
Q: What is the PNP complement? A: The 2N4399.
Q: Which terminal is the case? A: The case is the collector; the two pins are the base and emitter.
Q: How many are included? A: One.
DISCLAIMER
Please review all photos and item specifics carefully before purchase. Confirm the exact part number, terminal connections, cooling requirements, and suitability for your application before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is an independent seller and is not an authorized distributor or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Manufacturer names and part numbers are used for product identification. As an independent reseller, the original manufacturer warranty does not apply.
