Motorola 2N6385 NPN Darlington Power Transistor 80V 10A TO-3 New Old Stock
Motorola 2N6385 NPN Darlington Power Transistor 80V 10A TO-3 New Old Stock
Regular price
$14.95 USD
Regular price
Sale price
$14.95 USD
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
MPN: 2N6385
Type: NPN Darlington Power Transistor
Transistor Type: BJT
Polarity: NPN
Package: TO-3 / TO-204AA metal can
Collector-Emitter Voltage: 80V
Collector Current: 10A
Power Dissipation: 100W at specified case temperature
Material: Silicon
Mounting Style: Through-hole / chassis mount

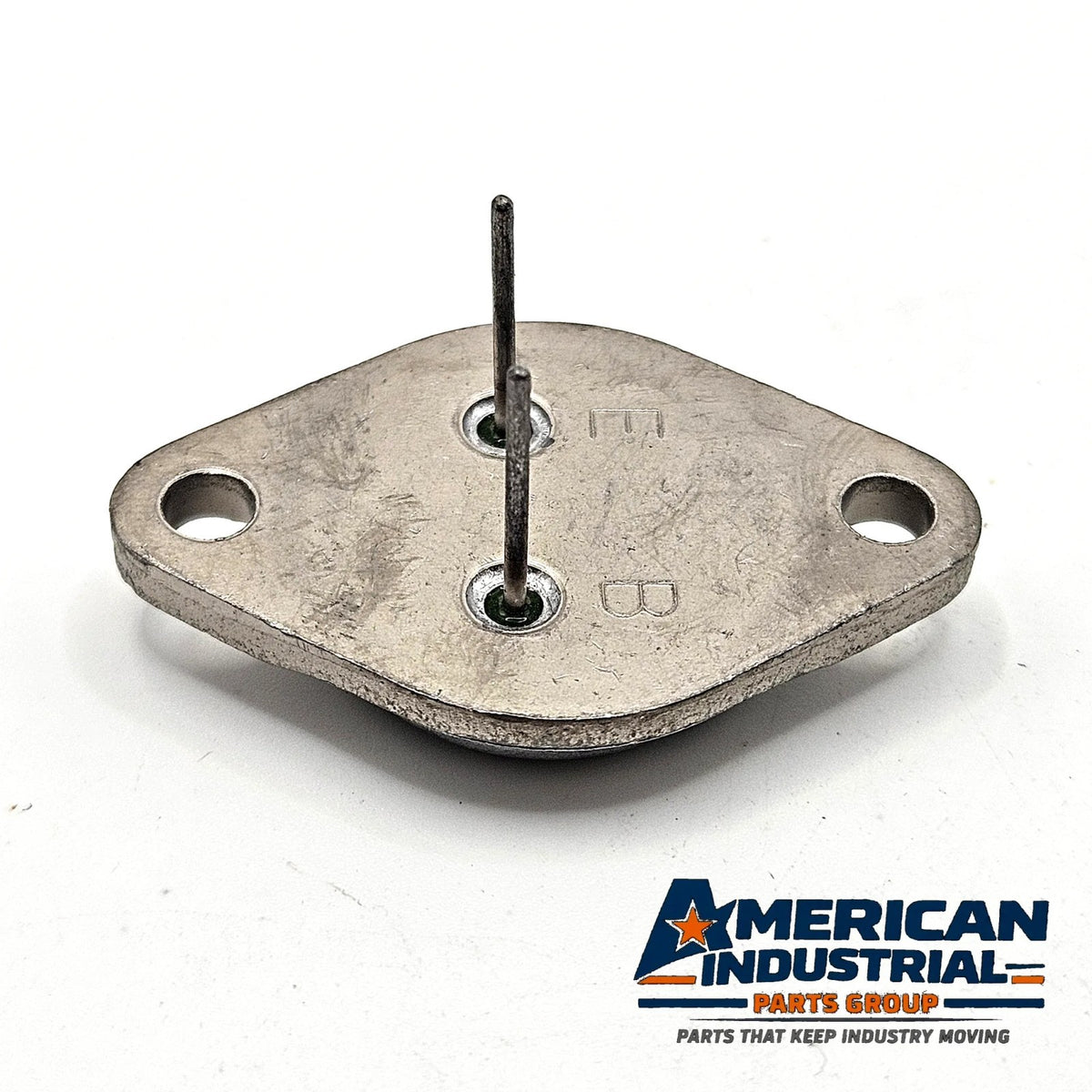

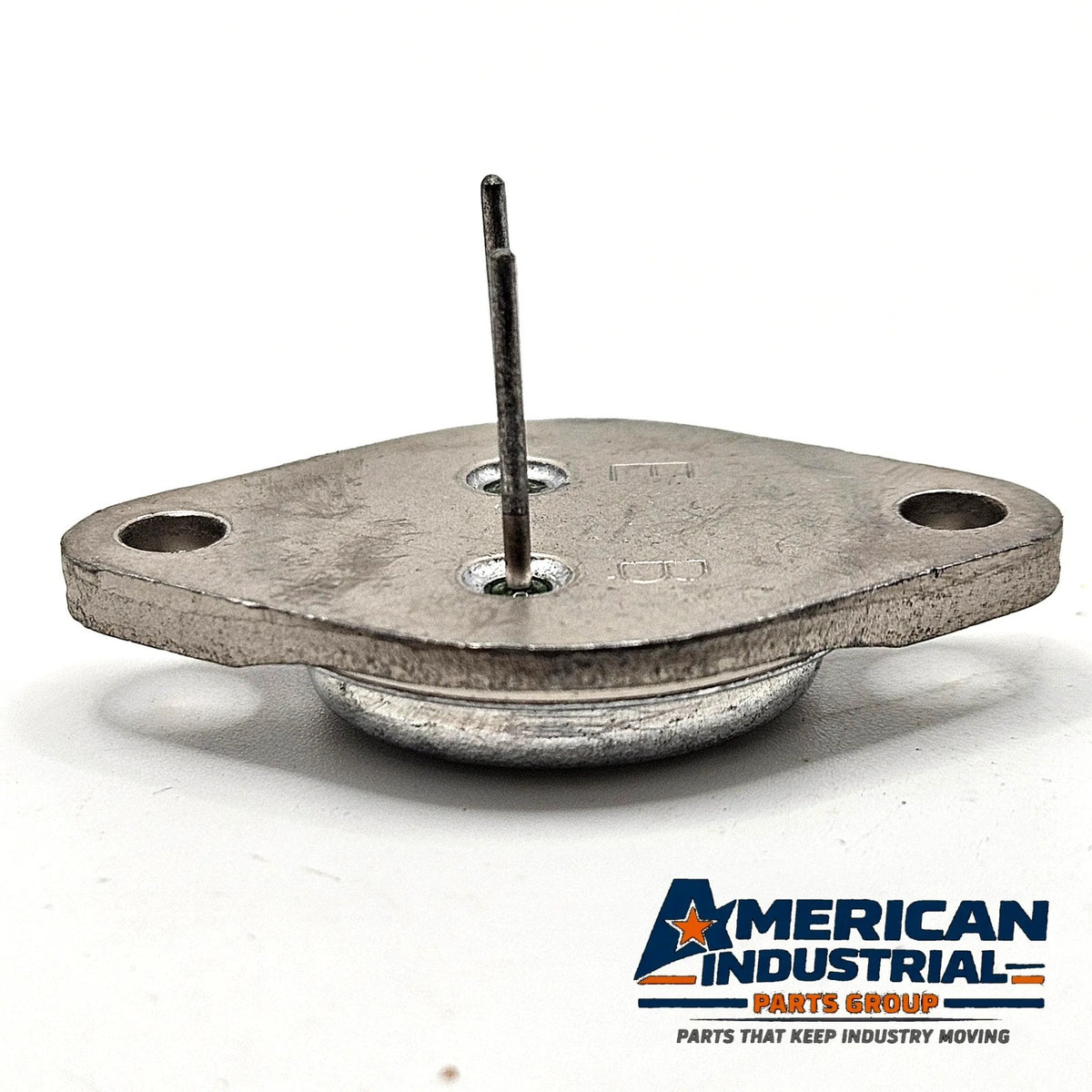

Terminal Configuration: Base, emitter, and case collector
Markings: Motorola logo, 2N6385, 7813
Country/Region of Manufacture: Not verified
Condition: New old stock
DESCRIPTION

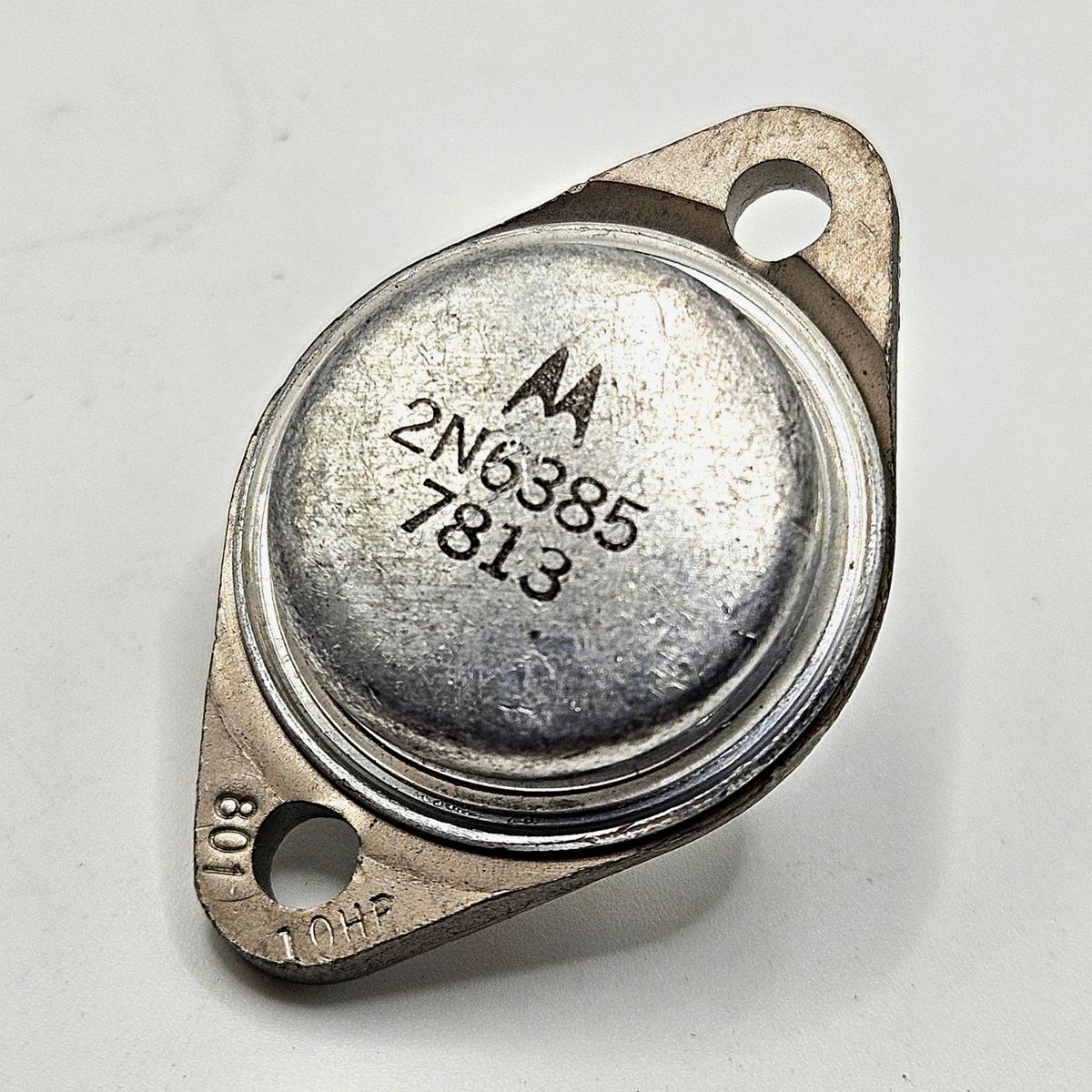

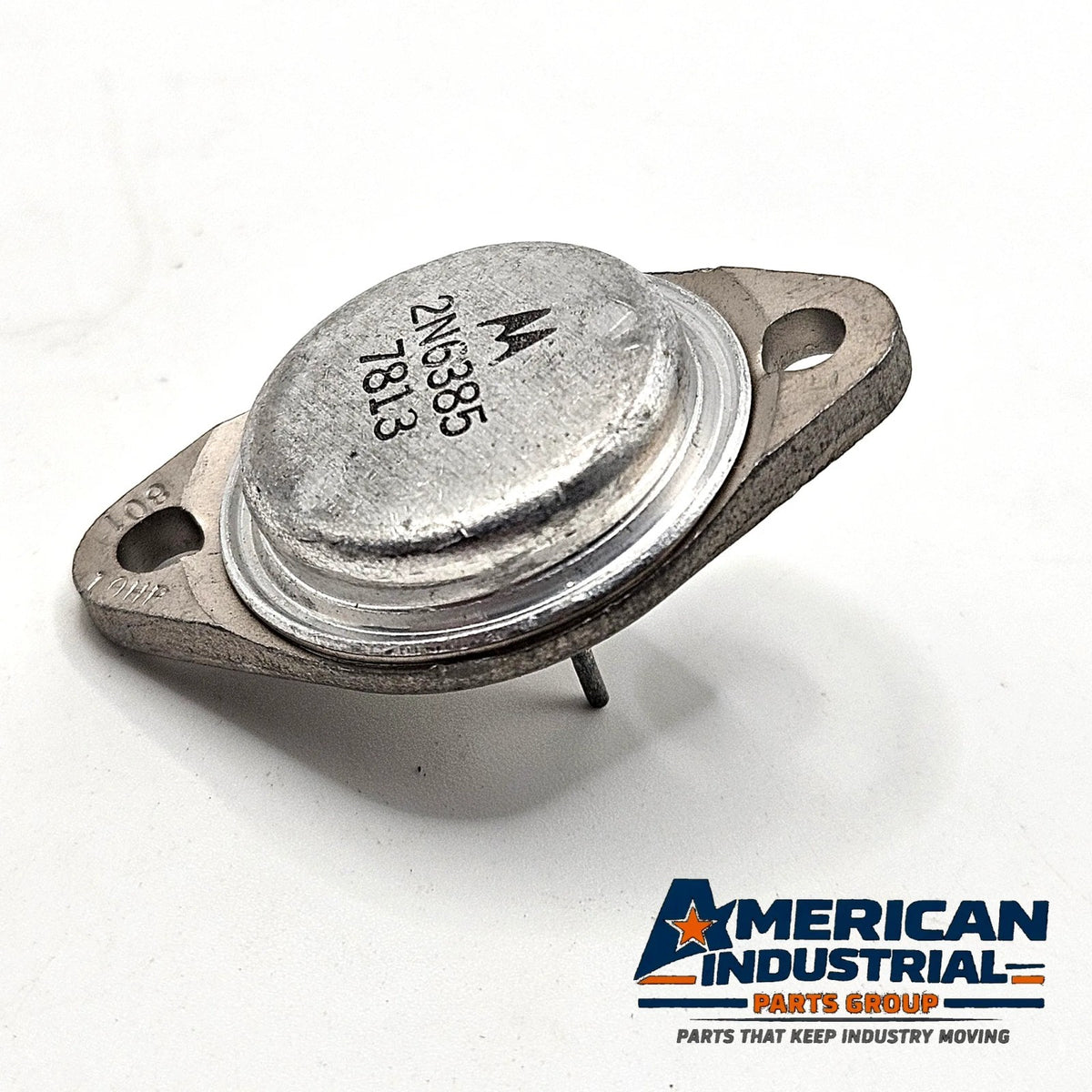

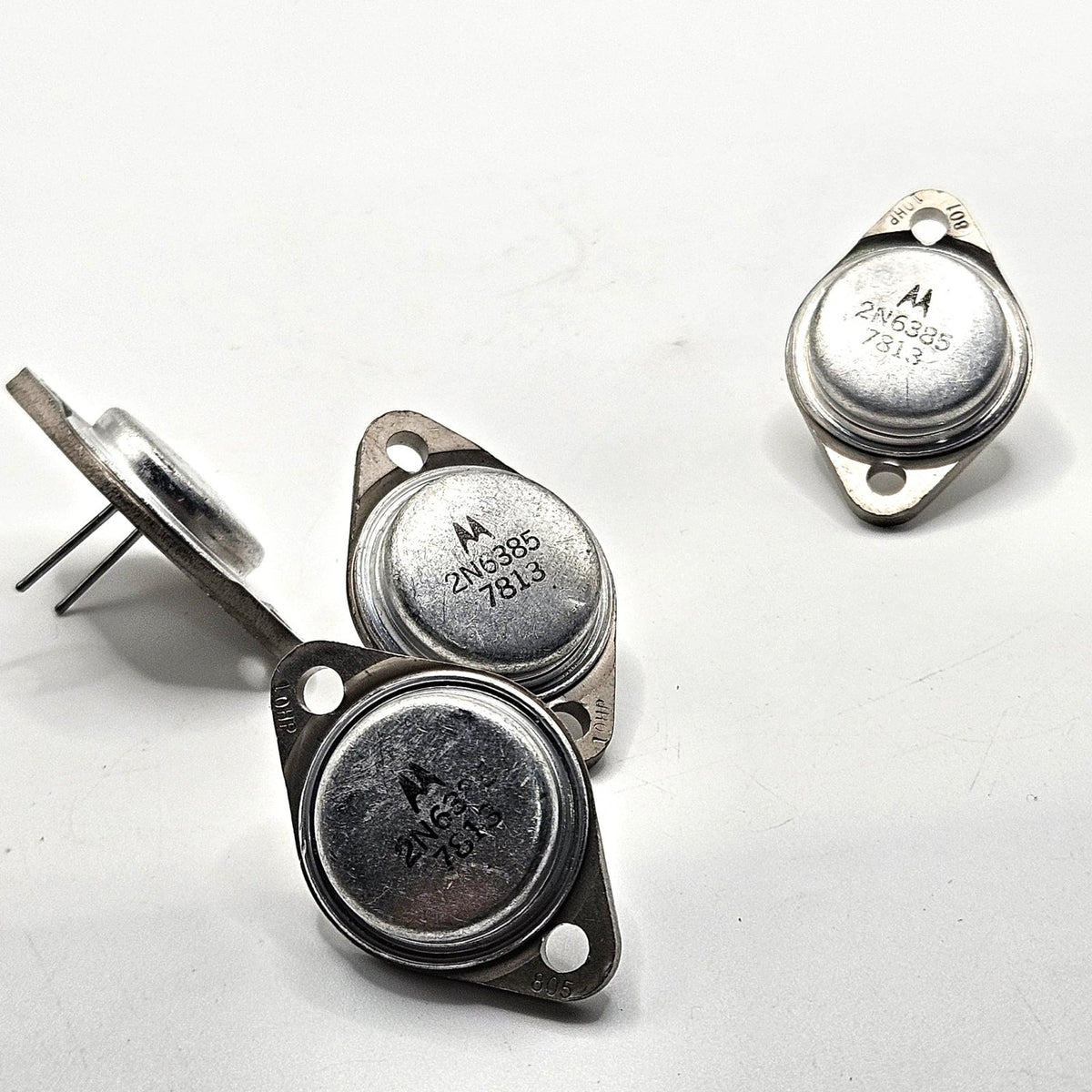

One Motorola 2N6385 NPN silicon Darlington power transistor in a TO-3 metal package.
The 2N6385 is specified as an 80-volt, 10-amp power Darlington transistor for applications such as power switching, audio amplification, hammer drivers, and regulator circuits. The device is marked with the Motorola logo, 2N6385, and code 7813. The 7813 marking has not been independently decoded as a date or lot code.
This is new old stock. The part has not been electrically tested and is sold as shown. Please verify the electrical specifications, pin configuration, package, and application requirements before installation.
COMPATIBILITY & CROSS-REFERENCE
The Motorola 2N6385 is an NPN silicon Darlington power transistor in a TO-3 (TO-204AA) metal package, rated 80V and 10A. Use it to replace a failed 2N6385 in power switching, audio amplifier, hammer driver, and regulator circuits. Confirm pinout, ratings, and gain against your circuit before installing, since other TO-3 Darlington transistors differ in ratings and gain.
Q: What does the Motorola 2N6385 replace?
A: A failed or missing 2N6385 NPN Darlington power transistor in a TO-3 chassis mount.
Q: What are its ratings?
A: 80V collector-emitter, 10A collector current, and 100W power dissipation at a specified case temperature.
Q: Is it tested?
A: No. It is new old stock, untested and sold as shown.
DISCLAIMER
New old stock with visible age-related surface marks from storage and handling. Untested and sold as shown. Ships fast with tracking. 30-day returns; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of Motorola or any other transistor manufacturer. Motorola is a trademark of its respective owner. This is secondary-market inventory and is not covered by any manufacturer warranty.
Motorola 2N6385 2N6385 transistor NPN Darlington power transistor TO-3 TO204AA 80V 10A 100W silicon transistor power switching audio amplifier regulator transistor vintage electronics replacement component new old stock NOS power amplifier output transistor failed Darlington transistor replacement hammer driver transistor
Thank you for shopping with American Industrial Parts Group!
