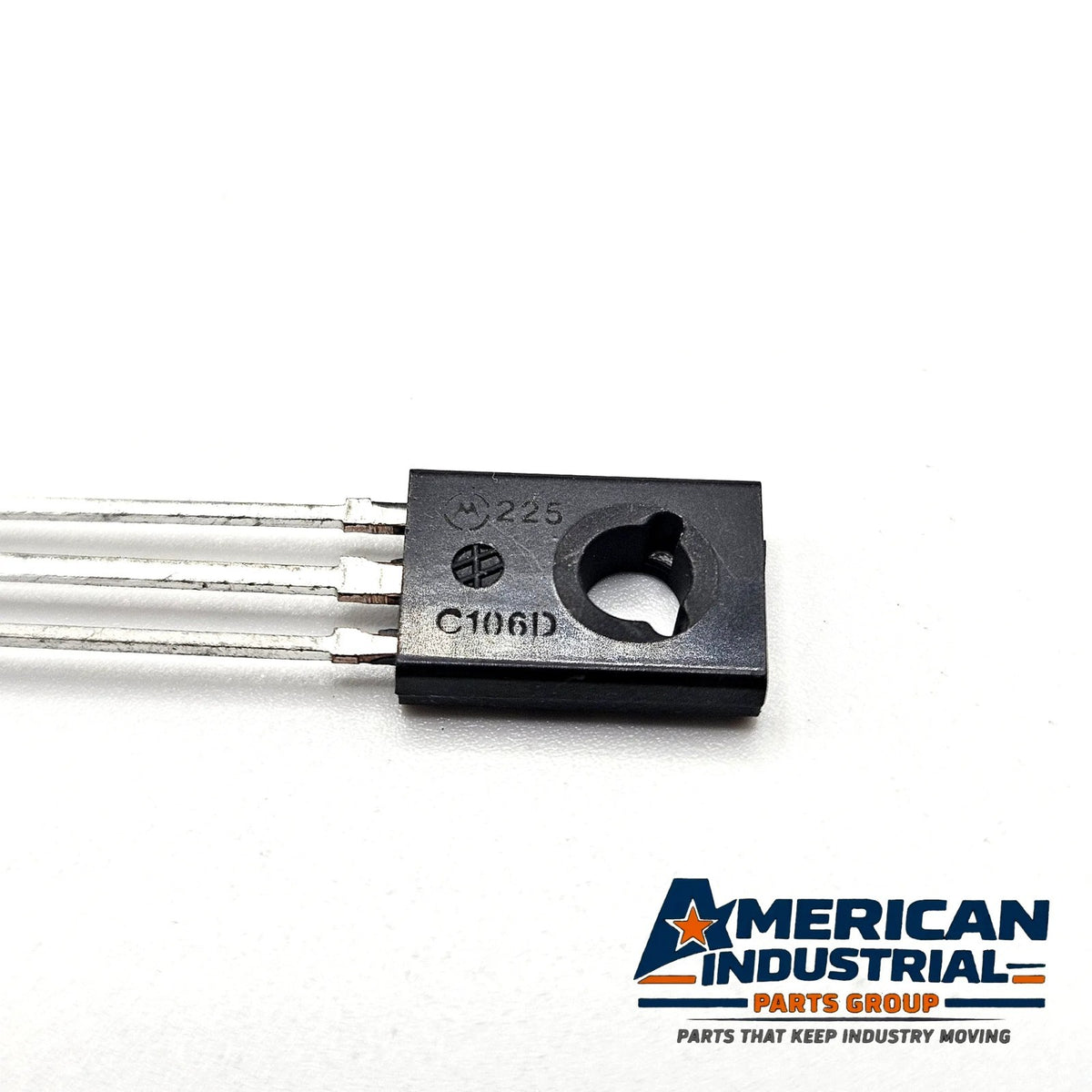

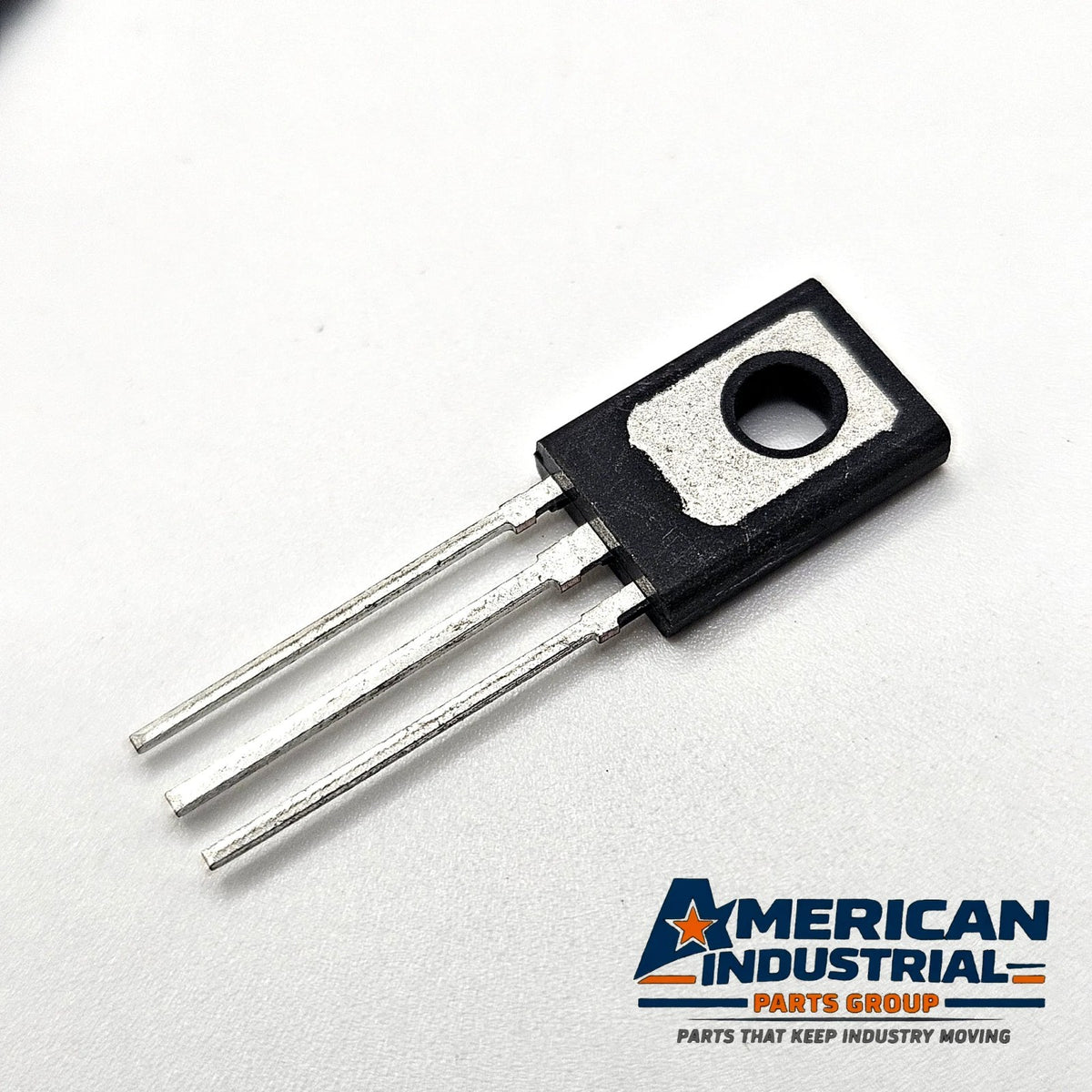

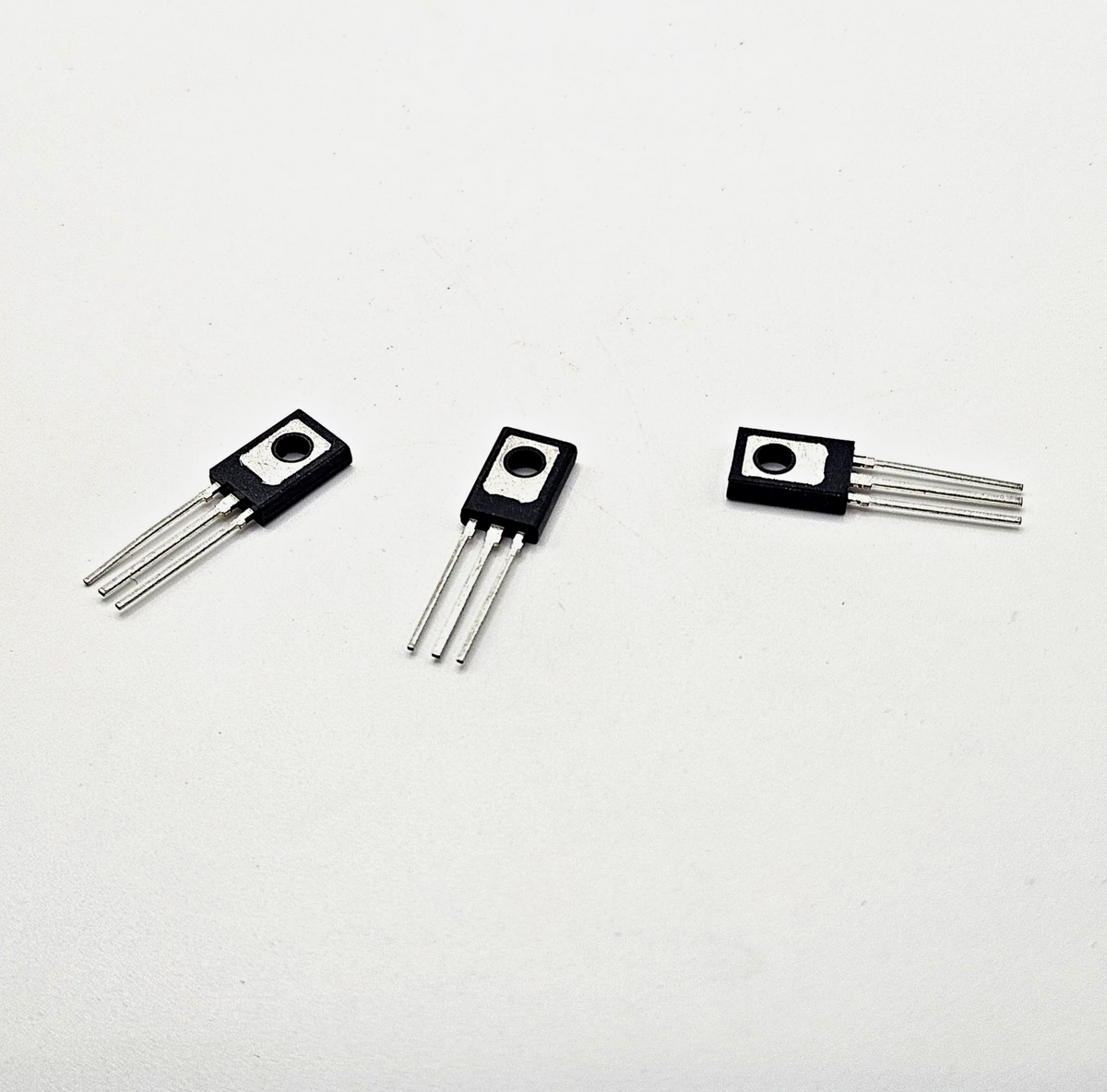

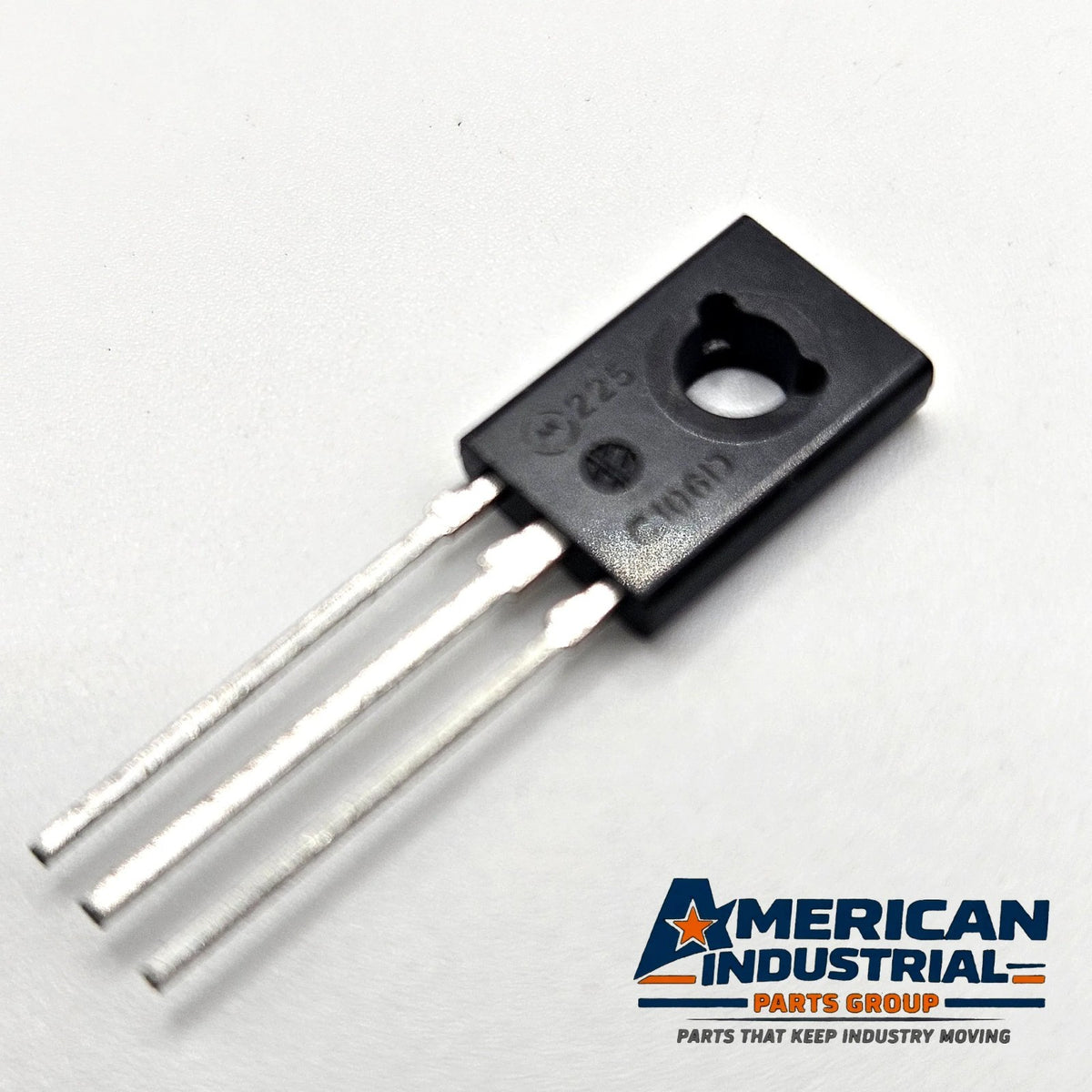

Motorola C106D Lot of 3 4A 400V Sensitive Gate SCR TO-225AA
Motorola C106D Lot of 3 4A 400V Sensitive Gate SCR TO-225AA
Regular price
$4.95 USD
Regular price
Sale price
$4.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola Semiconductor Products
Model: C106D
MPN: C106D
Series: C106
Type: Silicon Controlled Rectifier (SCR) / Thyristor
Average On-State Current: 4A
Repetitive Peak Off-State Voltage: 400V
Repetitive Peak Reverse Voltage: 400V
Non-Repetitive Peak On-State Current: 20A
Number of Pins: 3
Package/Case: TO-225AA-style flange mount
Mounting Style: Through-Hole
AC/DC: AC/DC switching applications
Quantity: 3
Condition: New
DESCRIPTION
Lot of 3 Motorola C106D sensitive-gate silicon controlled rectifiers (SCRs). These three-terminal through-hole devices are designed for controlled switching and power-control applications.
Features:
Motorola C106D
4A average on-state current
400V voltage rating
20A non-repetitive peak on-state current
3-lead through-hole package
Flange-mount package with mounting hole
Suitable for AC and DC switching/control circuits
Lot includes 3 pieces
Loose electronic components. Please review all photographs for the exact markings, package style, and condition.
DISCLAIMER
New components supplied loose without retail packaging. Electrical testing is not included. Please confirm specifications and pin configuration for your application before installation.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The Motorola C106D is a sensitive-gate SCR rated 4A RMS and 400V in a TO-225AA package (formerly TO-126). Onsemi and Littelfuse list the C106D1 and C106DG as 400V, 4A types in the same package family; the D1 suffix is the European-equivalent designation. Confirm package, gate sensitivity and pin configuration before substituting.
Q&A
Q: What are the ratings of the C106D? A: 4A RMS, 400V, sensitive gate, TO-225AA.
Q: What is equivalent? A: The C106D1 and C106DG types carry the same headline ratings.
Q: How many are included? A: Three.
Motorola C106D C106 D SCR Thyristor Silicon Controlled Rectifier Sensitive Gate 4A 400V TO-225AA TO-202 Power Control Switching Component Electronic Parts Industrial Surplus Replacement SCR not triggering replacement motor speed control failed replacement
Thank you for shopping with American Industrial Parts Group!
