ITEM SPECIFICS Brand: Motorola MPN: MC1741SG Function: Operational amplifier Type: 741 high-performance op amp Package: TO-78 metal can, 8-pin Mounting Style: Through-Hole Temperature Range: −55°C to +125°C Equivalent Family: 741 / ECG-941 / 741CJ Condition: New Old Stock Quantity: 1

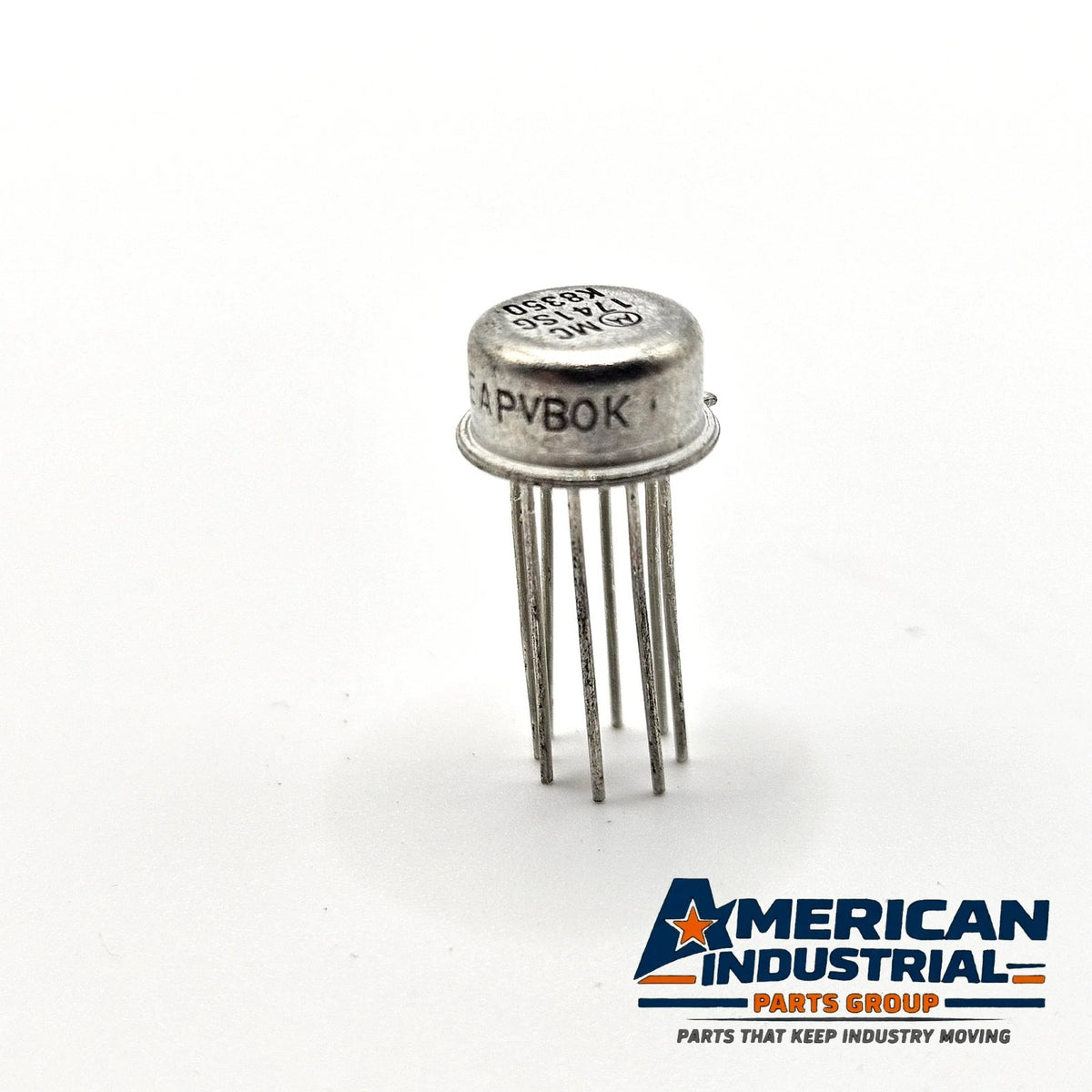

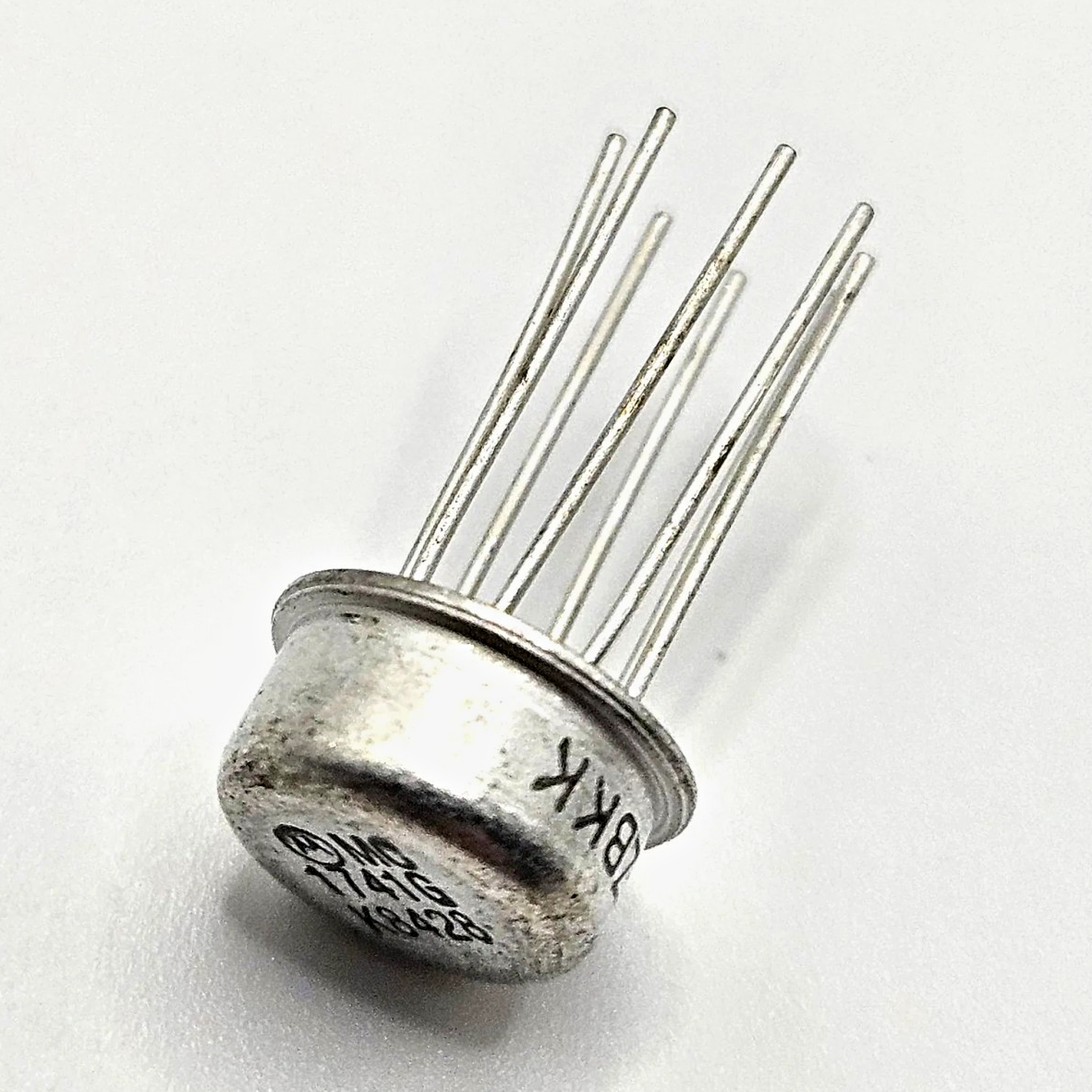

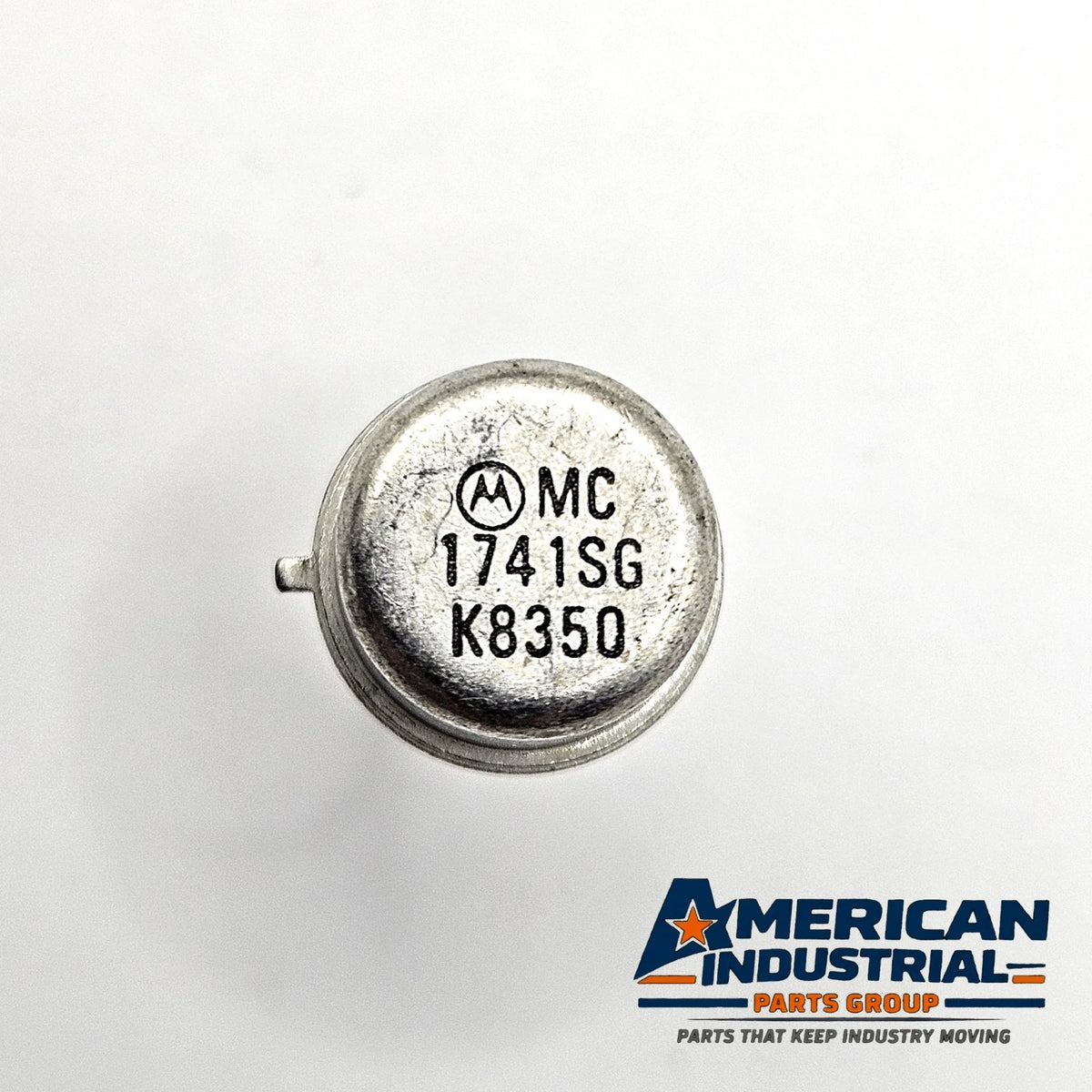

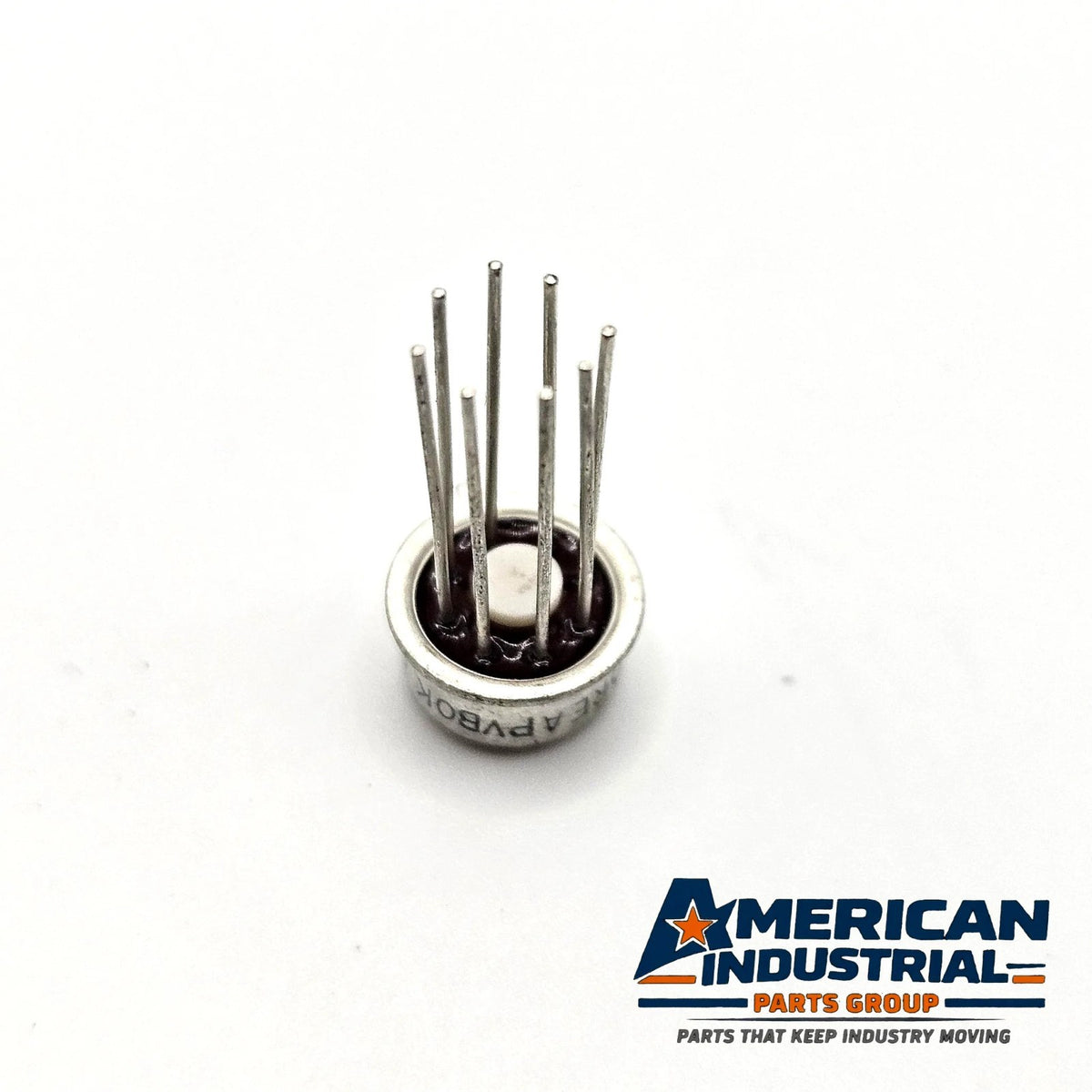

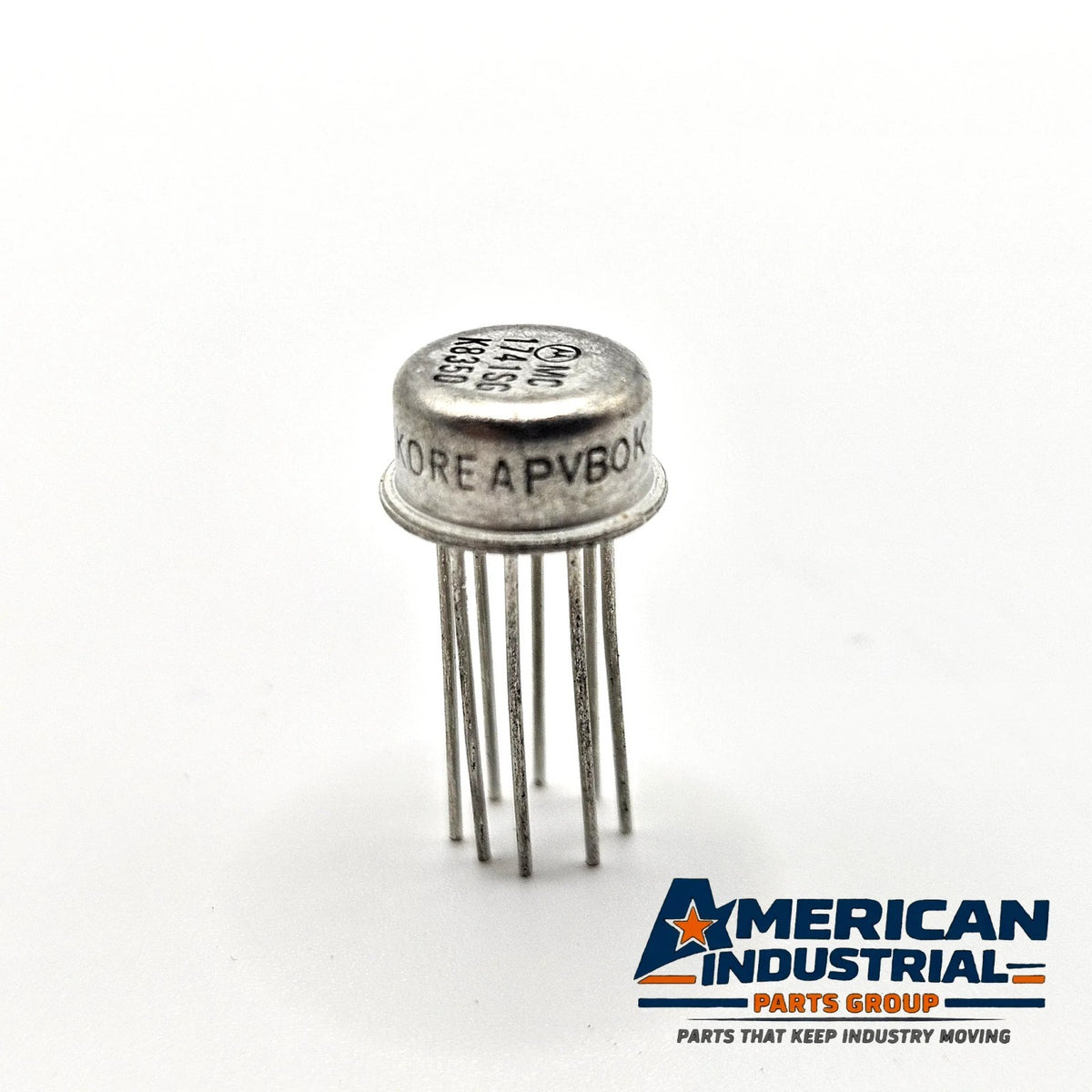

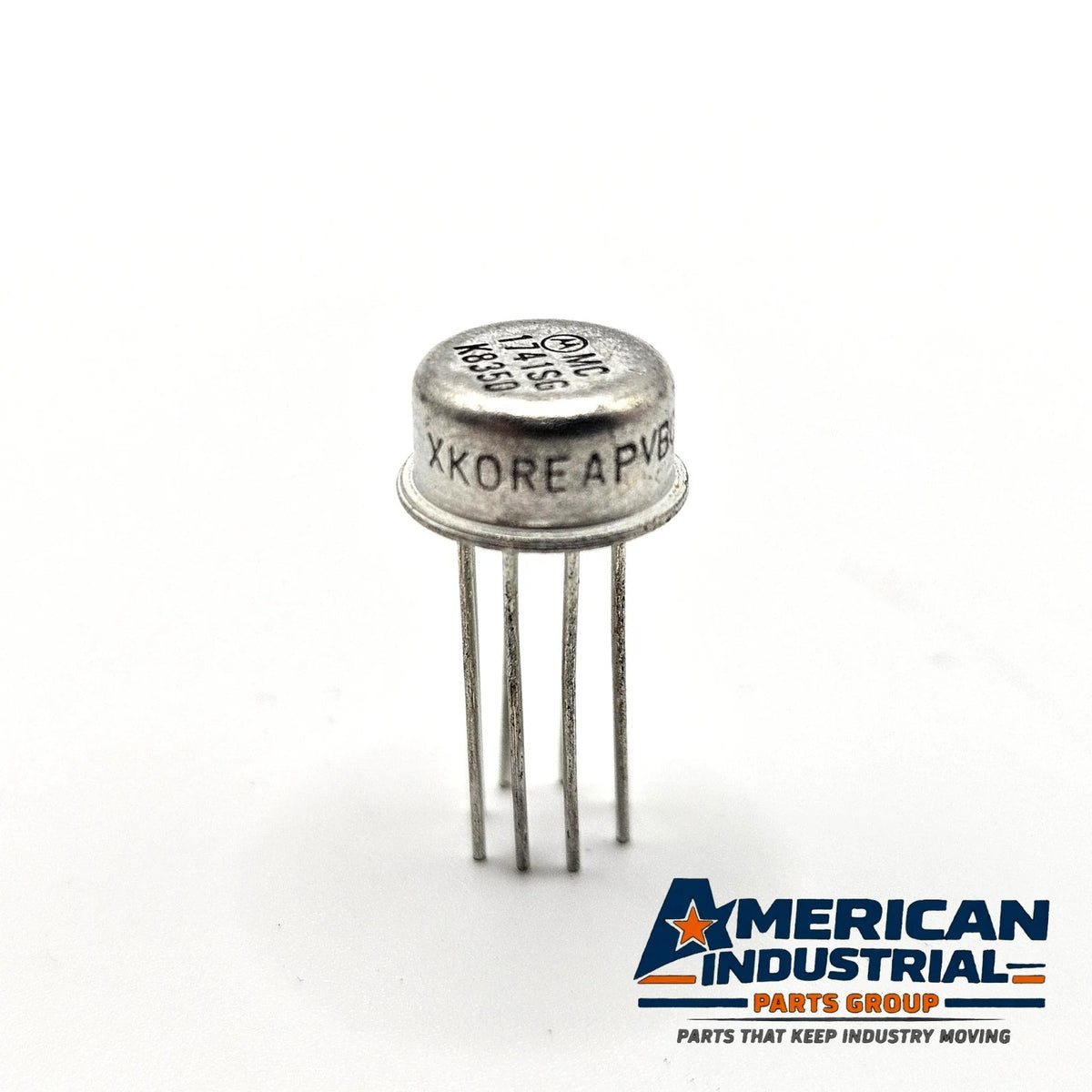

DESCRIPTION New old stock Motorola MC1741SG high-performance operational amplifier in an 8-pin metal-can package. The device is marked MC 1741SG with Motorola identification and date code K8350. The original bag label identifies ECG-941 and 741CJ as cross-reference designations. Features include internal compensation, offset-null capability, wide common-mode range, short-circuit protection, and high slew-rate performance. Untested.
DISCLAIMER Sold as new old stock, untested. Original packaging is aged and may show storage wear. Please verify pinout and electrical requirements before use.
LEGAL DISCLAIMER Motorola is a trademark of Motorola Solutions, Inc. or its respective owners. American Industrial Parts Group is not an authorized Motorola distributor.
COMPATIBILITY & CROSS-REFERENCE The MC1741SG is a high-performance version of the 741 operational amplifier in an 8-lead metal can. The bag label cross-references ECG-941; NTE's NTE941 (ECG941) is a general-purpose 741 in an 8-lead metal can whose replacement list includes the MC1741G and MC1741CG, but it is rated 0.5V/µs, so it is a functional 741 substitute rather than a slew-rate match for the MC1741S. Confirm pinout, slew rate and temperature range against the original circuit before substituting.
Q&A Q: What is the MC1741SG? A: A Motorola high-performance 741 op amp in an 8-pin metal can. Q: Is ECG-941 an exact replacement? A: It is a standard 741 in the same package; it does not match the higher slew rate of the MC1741S. Q: How many are included? A: One.
