Motorola MC7406P MC4006P Hex Inverter Buffer Driver Open Collector DIP-14 NOS
Motorola MC7406P MC4006P Hex Inverter Buffer Driver Open Collector DIP-14 NOS
Regular price
$7.99 USD
Regular price
Sale price
$7.99 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
Model: MC7406P
MPN: MC7406P
Type: Hex Inverter Buffer/Driver
Logic Family: TTL
Number of Circuits: 6
Output Type: Open Collector
Package: 14-Pin Plastic DIP
Mounting: Through-Hole
Operating Temperature: 0°C to 70°C
Date Code: 7210
Condition: New Old Stock (NOS)
Quantity: 1
DESCRIPTION

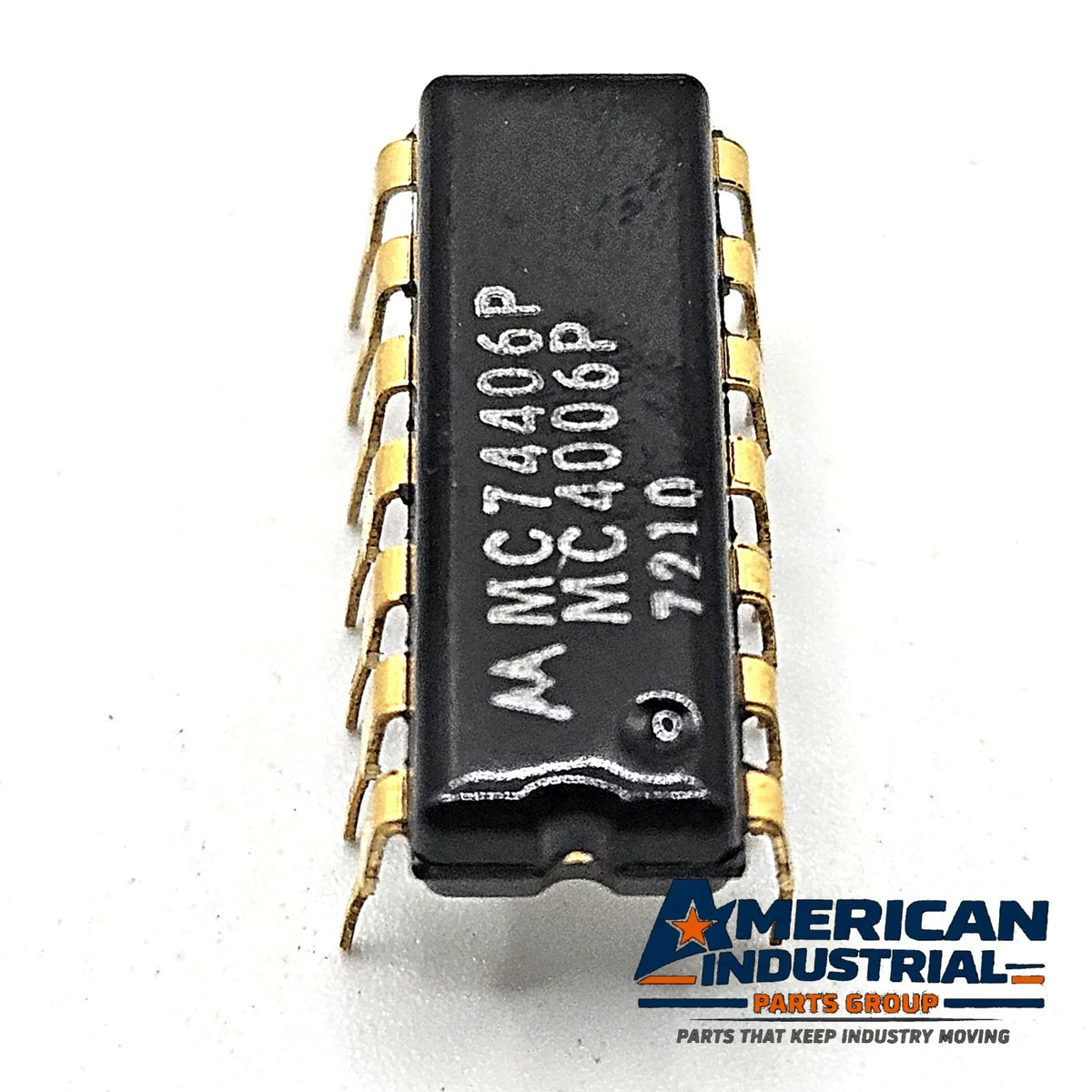

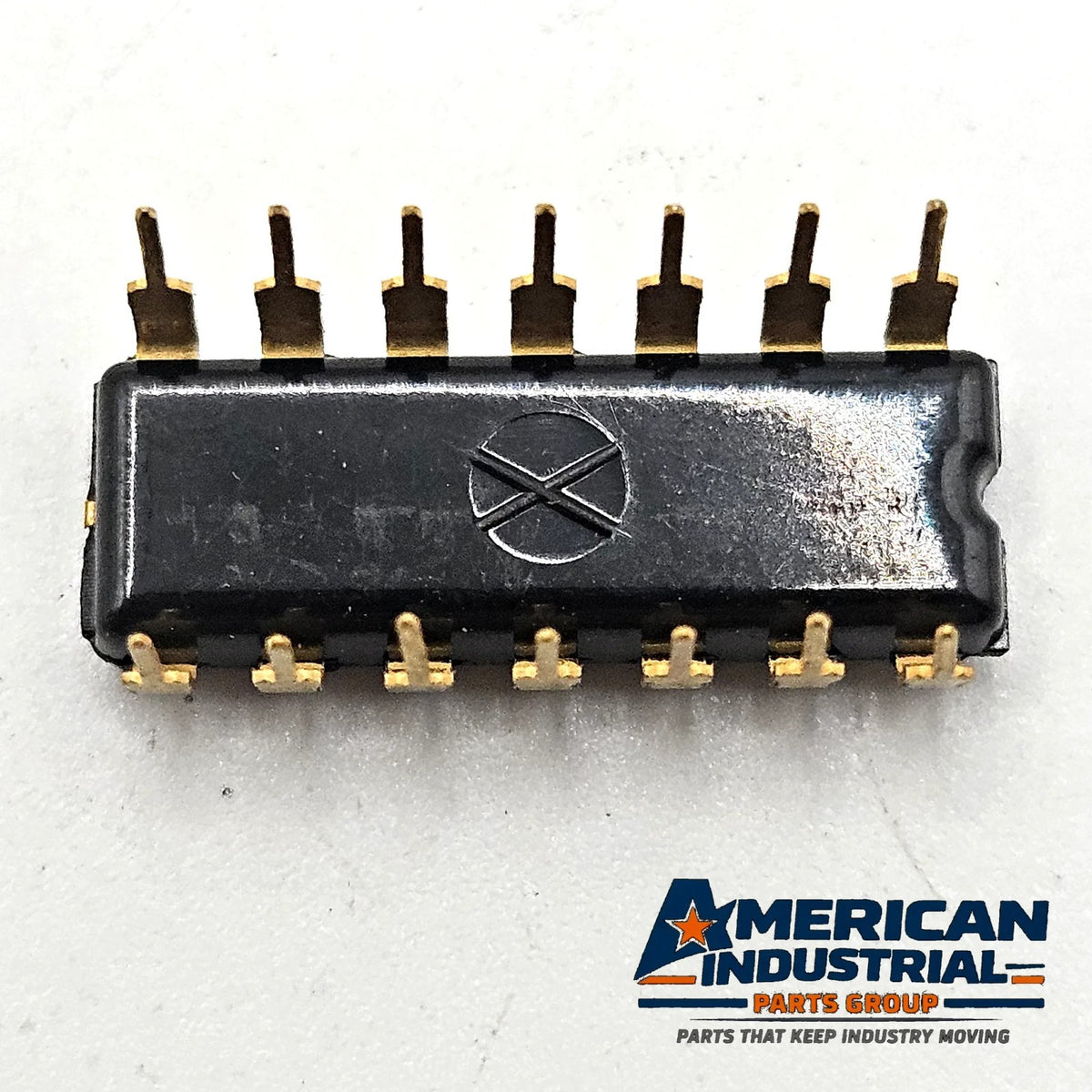

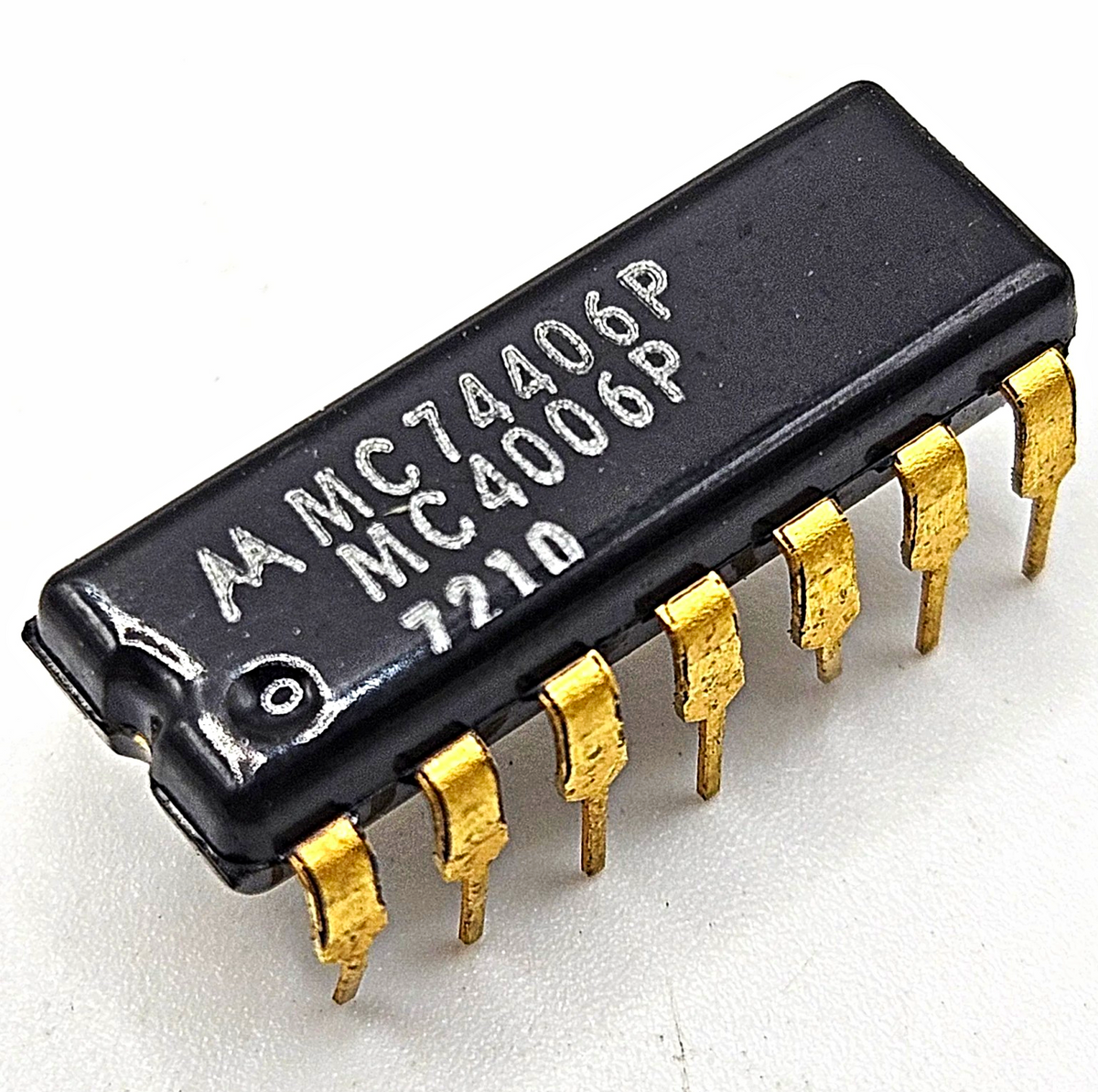

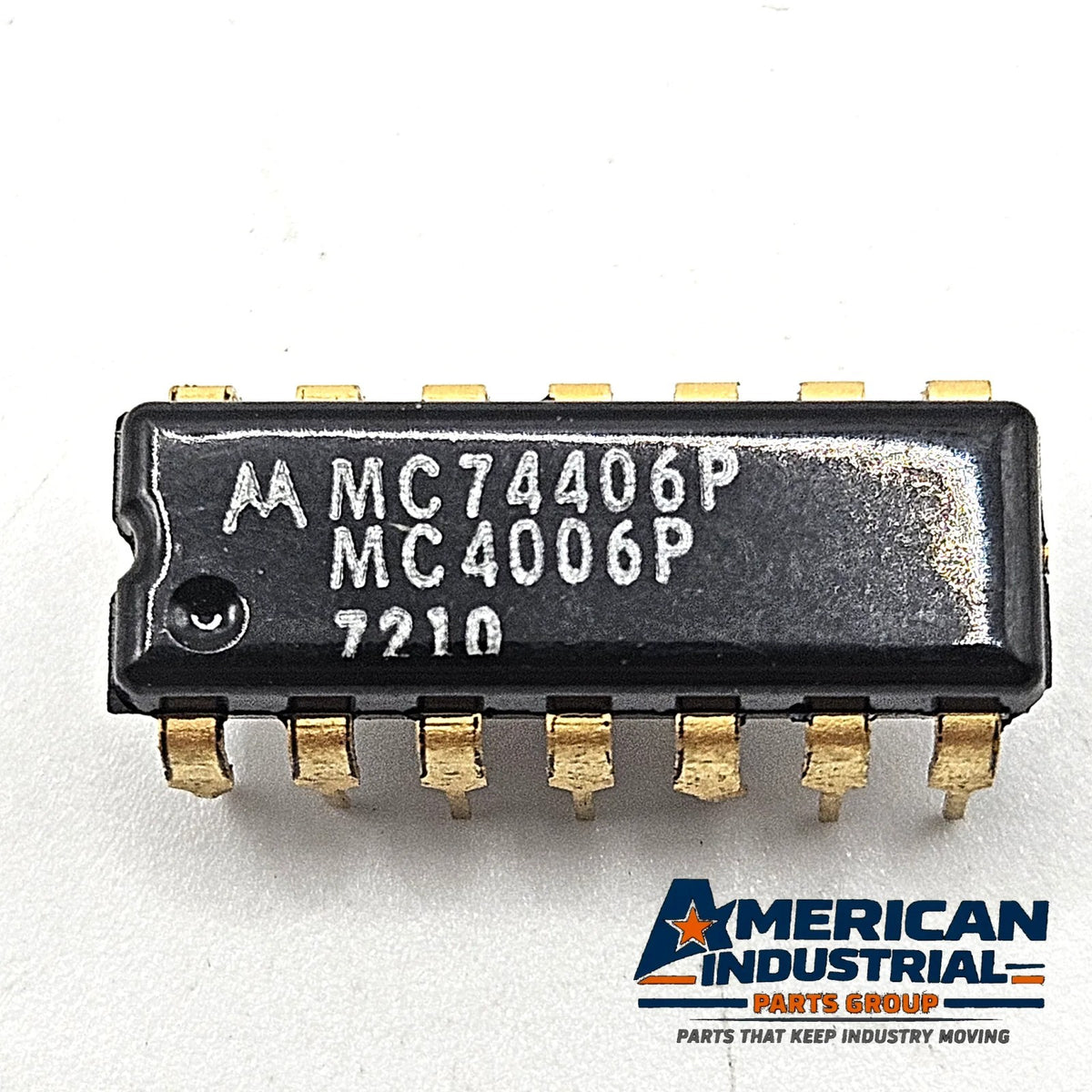

New Old Stock Motorola MC7406P hex inverter buffer/driver, 14-pin plastic DIP. Part is dual-marked "MC7406P" and "MC4006P" with the Motorola logo and date code 7210.
Features:
Type: TTL hex inverter buffer/driver (7406 function), six inverting buffers/drivers
Open-collector outputs (external pull-up resistors required)
Package: 14-pin plastic dual in-line (DIP), through-hole
Operating temperature: 0°C to 70°C
Date code: 7210
Condition: New Old Stock (NOS)
COMPATIBILITY & CROSS-REFERENCE
Equivalent to the standard 7406 hex inverter buffer/driver; listed alternates include SN7406N and DM7406N.
Direct replacement for a Motorola MC7406P.
Verify pinout and supply requirements against your equipment before installing.
Q&A
Q: What is a Motorola MC7406P?
A: A TTL hex inverter buffer/driver with six inverting open-collector buffers, in a 14-pin plastic DIP.
Q: What replaces an MC7406P?
A: This MC7406P is a direct replacement. The SN7406N and DM7406N are equivalent 7406-type parts.
Q: Does it need pull-up resistors?
A: Yes. The outputs are open collector and need external pull-up resistors.
Q: Why is it marked MC7406P and MC4006P?
A: The part carries both Motorola part numbers on the package.
DISCLAIMER
Item is new old stock. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Motorola. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
Motorola MC7406P, MC4006P, 7406 hex inverter buffer driver, SN7406N equivalent, DM7406N equivalent, open collector inverter IC, TTL hex inverter, 14 pin DIP logic IC, vintage Motorola IC, NOS Motorola integrated circuit, 7406 IC replacement, logic IC failed replacement, vintage computer repair IC, arcade board repair IC, TTL logic chip replacement
Thank you for shopping with American Industrial Parts Group!
