Motorola MJ2500 PNP Darlington Power Transistor 10A 60V 150W TO-3 NOS
Motorola MJ2500 PNP Darlington Power Transistor 10A 60V 150W TO-3 NOS
Regular price
$7.99 USD
Regular price
Sale price
$7.99 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
MPN: MJ2500
Model: MJ2500
Type: Darlington Power Transistor
Polarity: PNP
Material: Silicon
Collector-Emitter Voltage (VCEO): 60 V
Collector-Base Voltage (VCB): 60 V
Emitter-Base Voltage (VEB): 5 V
Collector Current (IC): 10 A
Power Dissipation: 150 W at 25 °C case
DC Current Gain (hFE): 1000 min at 5 A
Junction Temperature: -55 °C to +200 °C
Package: TO-3 Metal Can
Complement: MJ3000 (NPN)
Date Code: 8836
Country of Manufacture: Mexico
Quantity: 1
Condition: New (New Old Stock)
DESCRIPTION

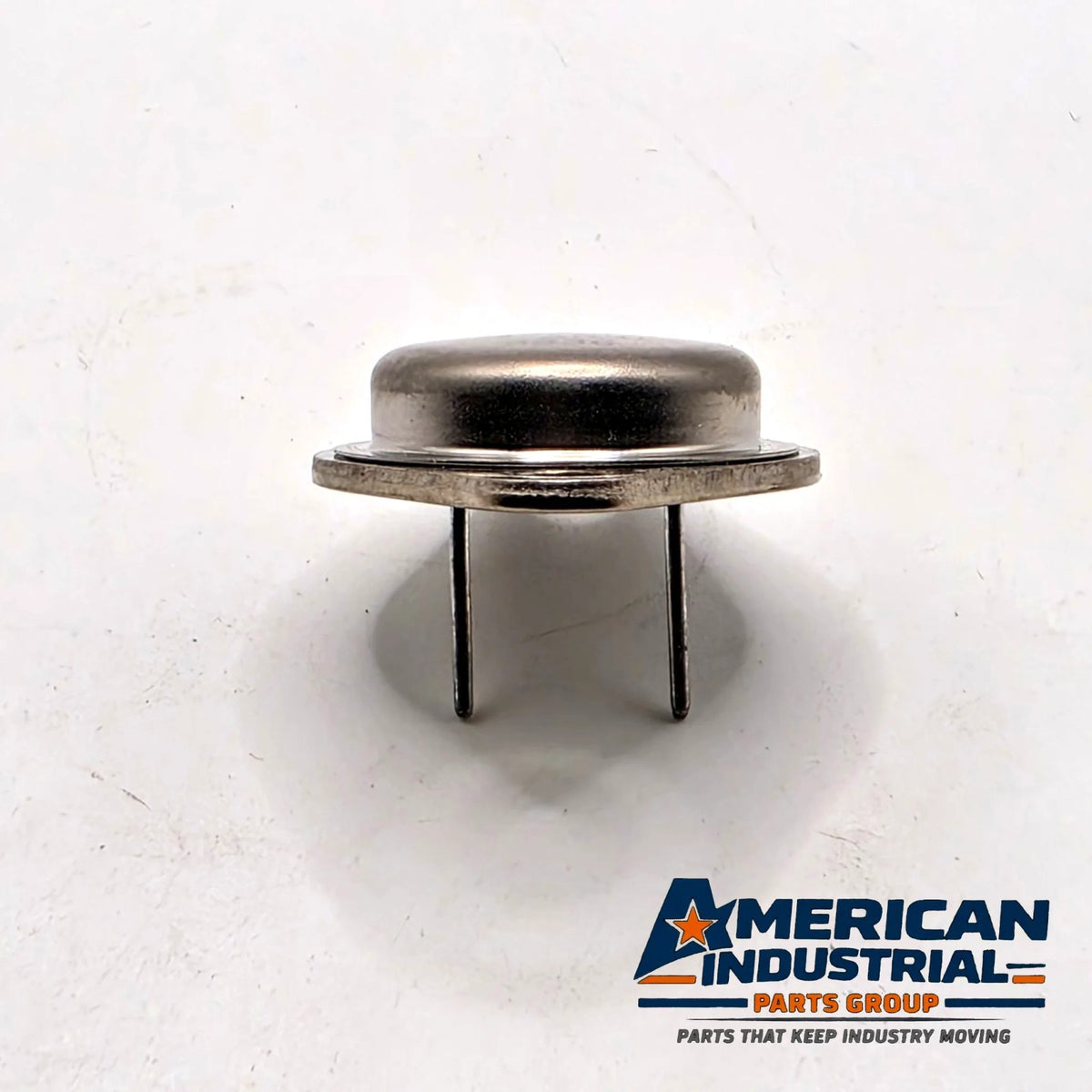

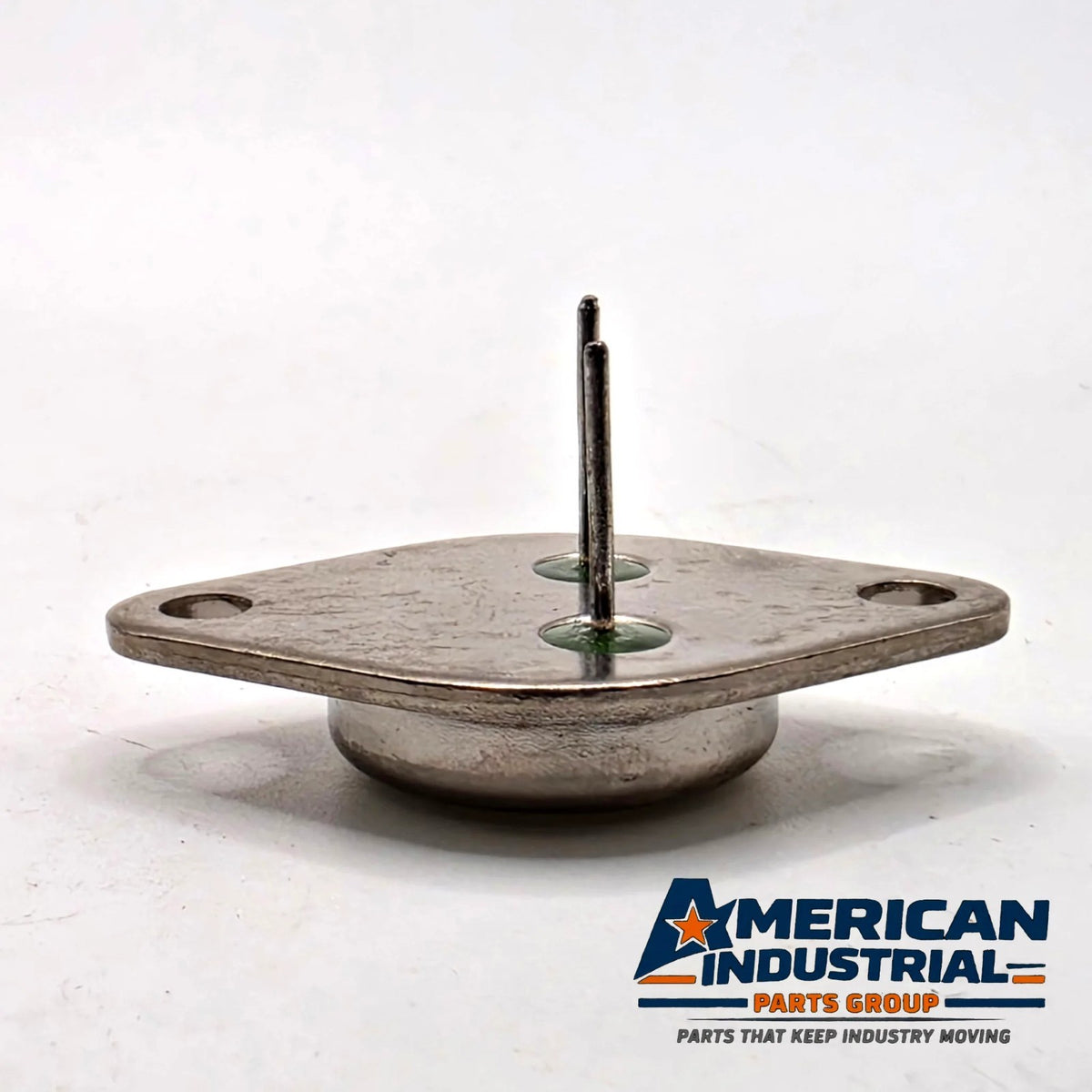

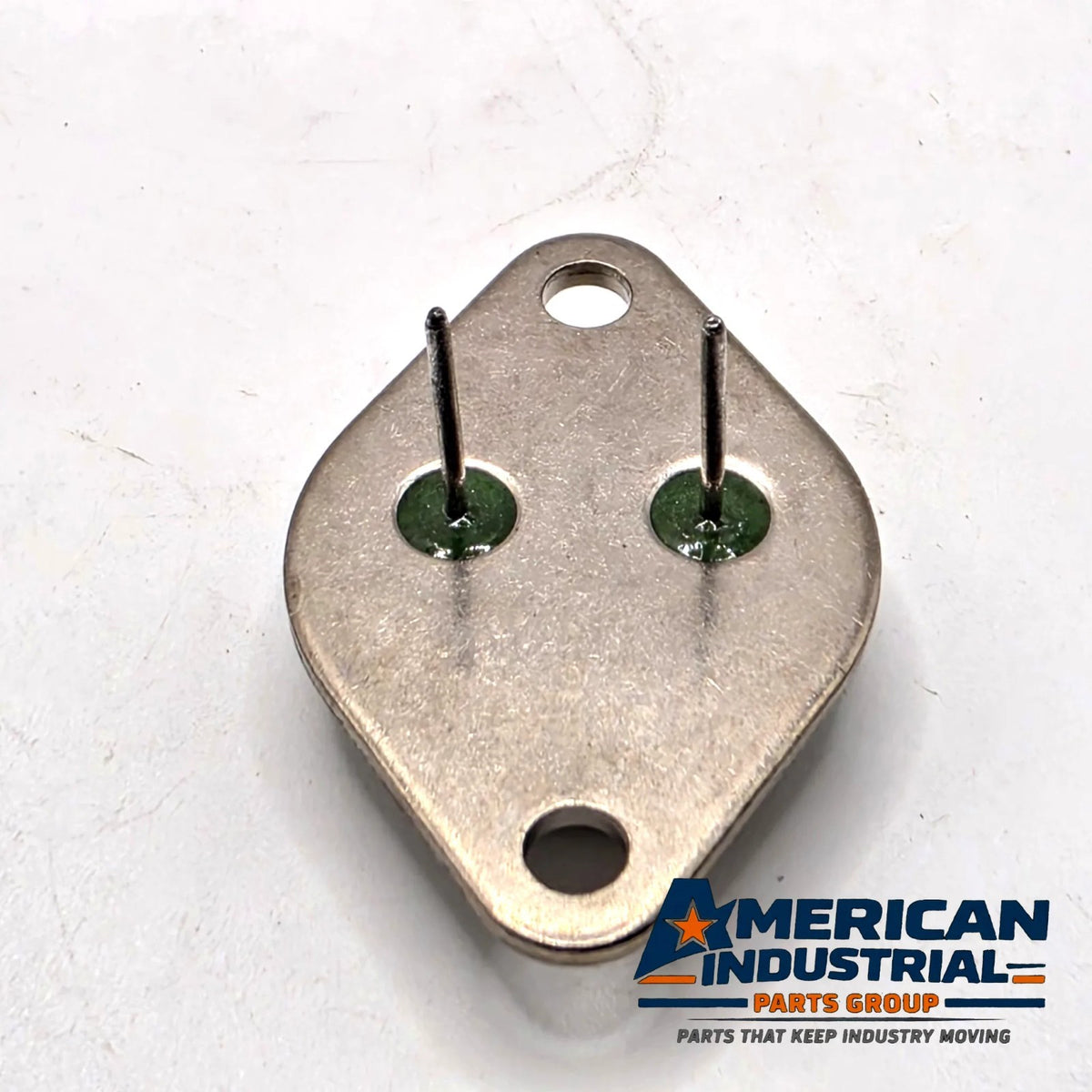

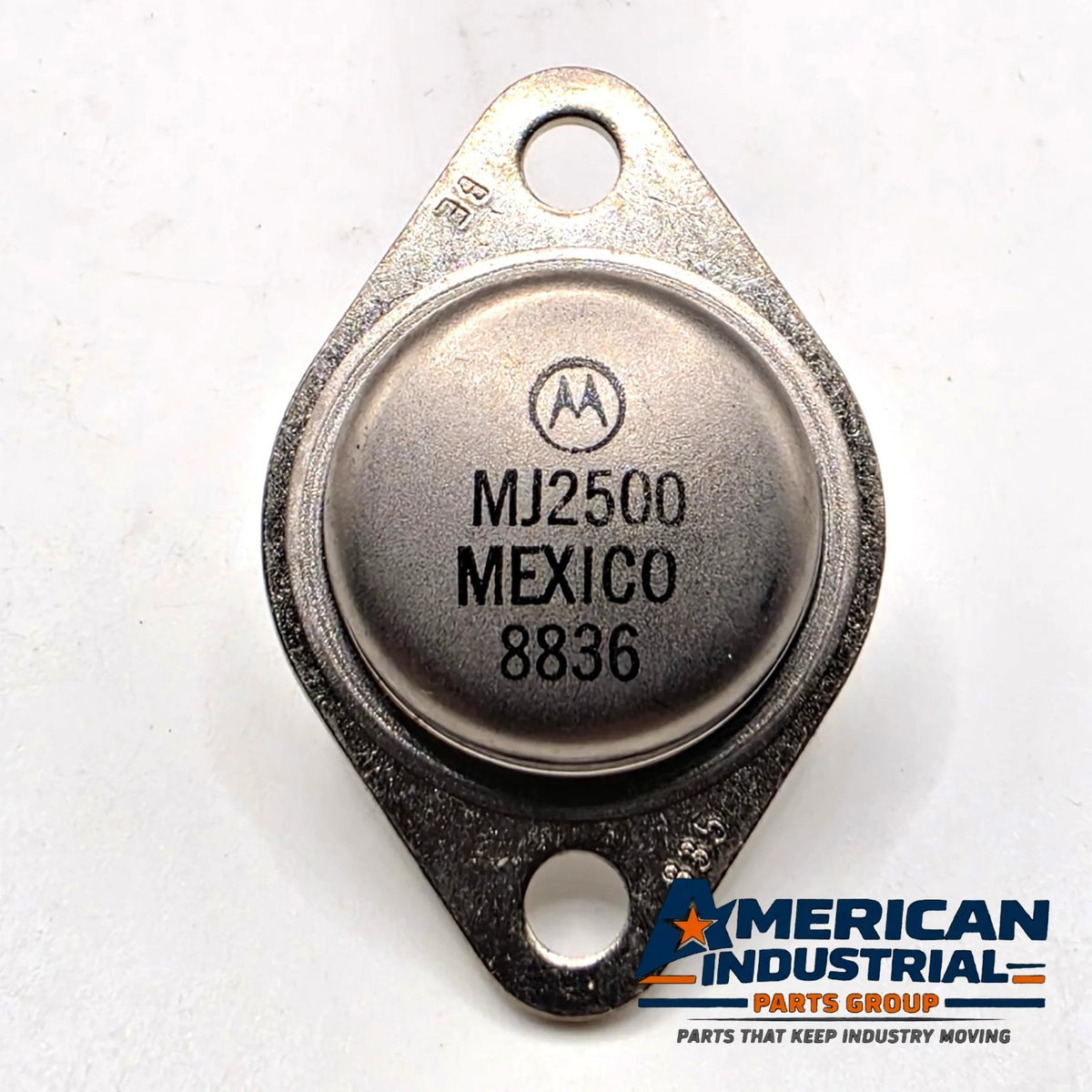

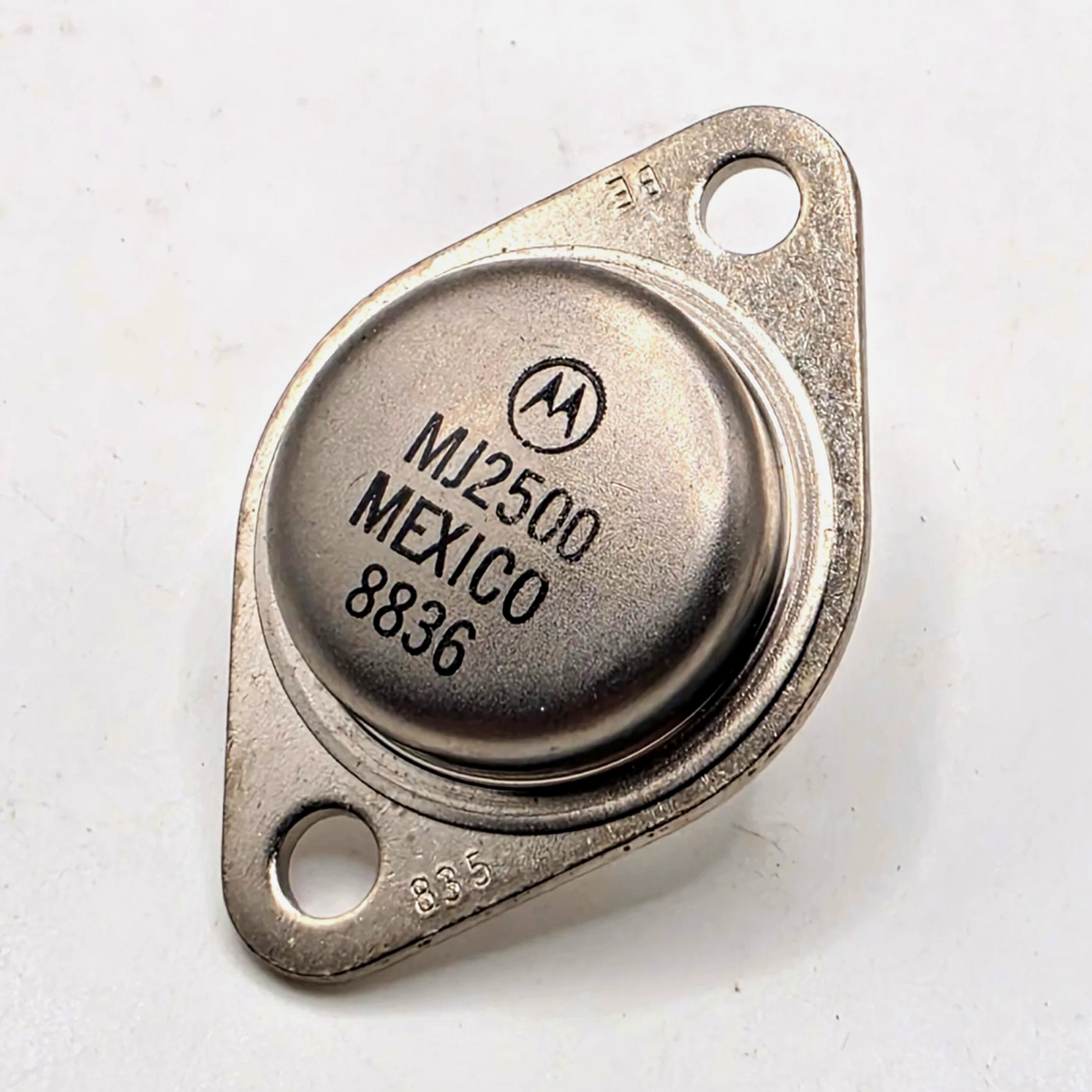

This is one Motorola MJ2500 PNP silicon Darlington power transistor in a TO-3 metal can. It's new old stock and has never been installed. The case is marked with the Motorola logo, "MJ2500," "MEXICO" and the date code "8836." The flange is stamped "835." The case shows light handling marks. Both pins and the green glass seals are intact. Please see the photos.
Features:
PNP silicon Darlington with high DC current gain: hFE 1000 minimum at 5 A
60 V VCEO / VCB, 5 V VEB
10 A collector current, 0.2 A base current
150 W power dissipation at 25 °C case (derate 0.857 W/°C)
VCE(sat) 2.0 V max at 5 A; 4.0 V max at 10 A
-55 °C to +200 °C junction temperature range
TO-3 package; the case is the collector
Complementary NPN: MJ3000
Compatibility:
Direct replacement for the MJ2500 in audio power amplifier output stages, linear power supplies and regulators, motor and solenoid drivers, and industrial controls. Pairs with the MJ3000 NPN in complementary output stages. The MJ2501 is the 80 V version. Verify ratings and heatsink insulation against your equipment before installing.
