Motorola MJ3001 NPN Darlington Power Transistor 80V 10A 150W TO-3 NOS
Motorola MJ3001 NPN Darlington Power Transistor 80V 10A 150W TO-3 NOS
Regular price
$12.95 USD
Regular price
Sale price
$12.95 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Motorola
MPN: MJ3001
Type: NPN Darlington Power Transistor
Transistor Polarity: NPN
Configuration: Darlington
Collector-Emitter Voltage (VCEO): 80V
Collector Current (IC): 10A
Power Dissipation: 150W at case temperature 25°C
Package/Case: TO-3 / TO-204AA
Mounting Style: Chassis Mount / Through-Hole
Country/Region of Manufacture: Mexico, package marking
Additional Marking: 8925
Condition: New old stock
DESCRIPTION

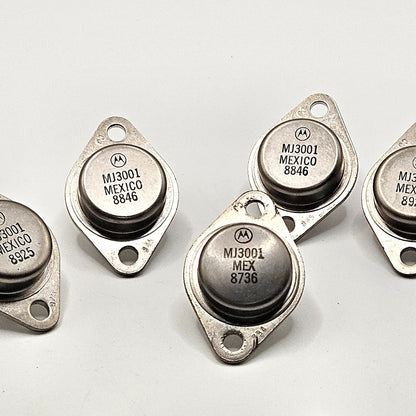

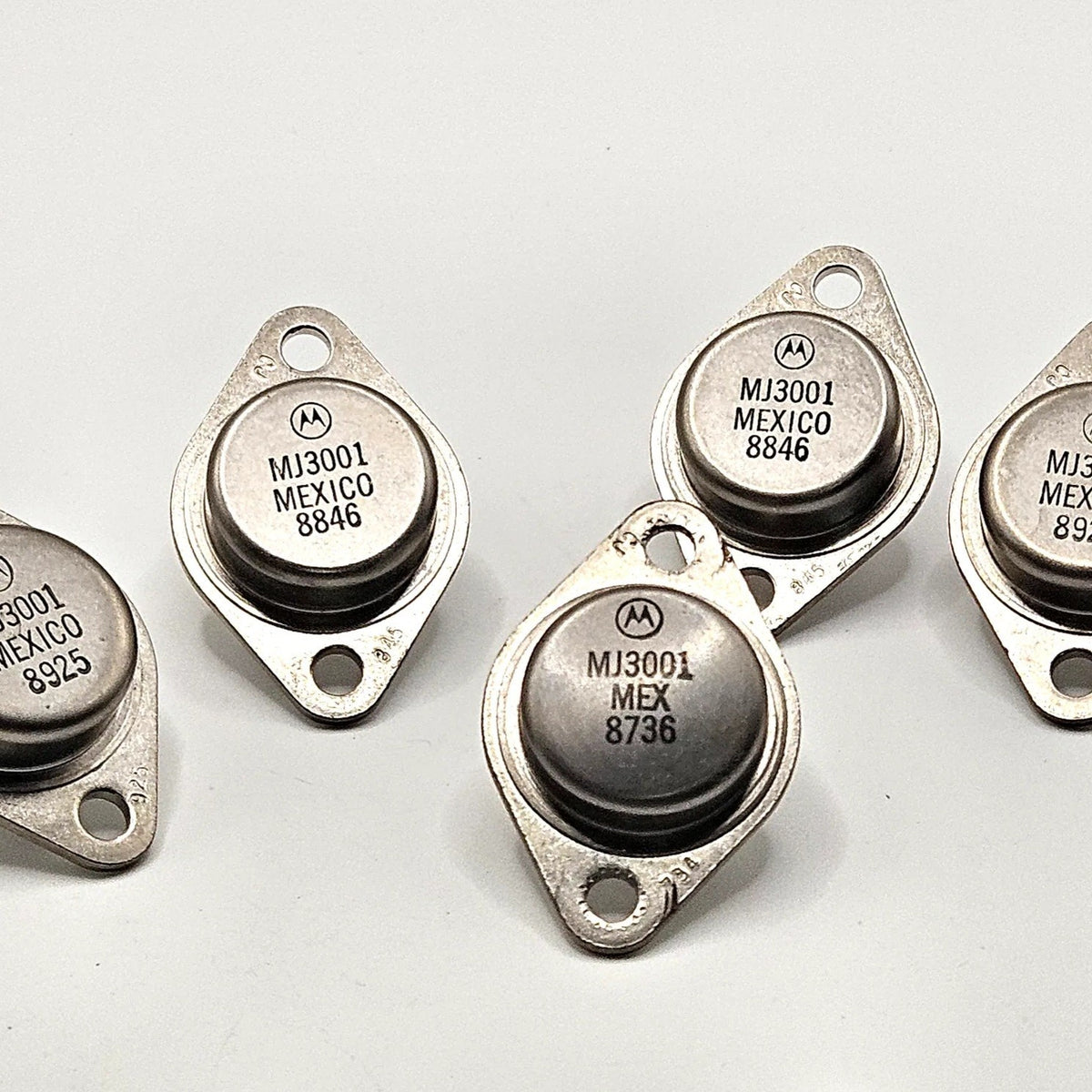

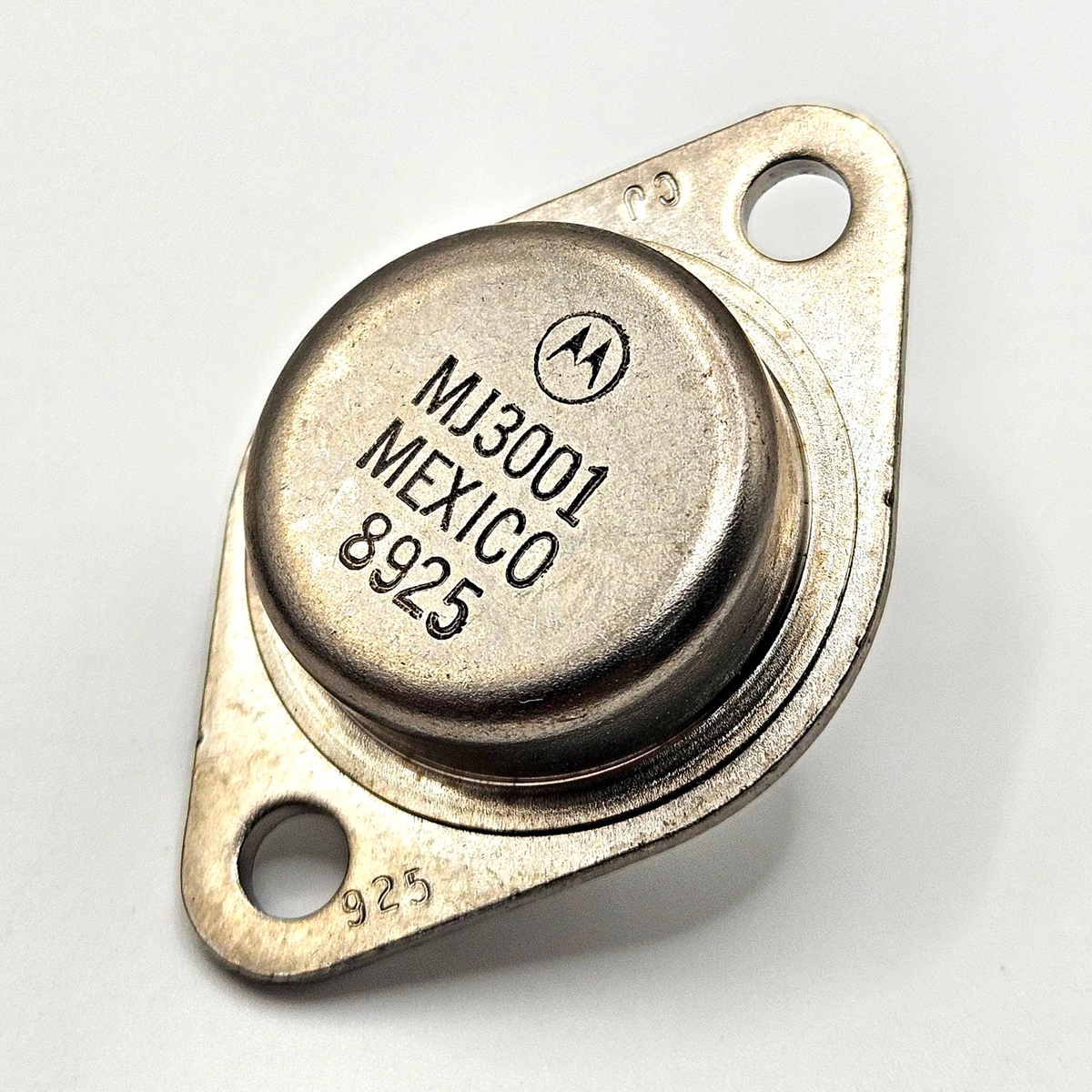

New old stock Motorola MJ3001 silicon NPN Darlington power transistor in a TO-3 metal package. Datasheet ratings include 80V collector-emitter voltage, 10A collector current, and 150W total device dissipation at a 25°C case temperature. Package marking shows the Motorola logo, MJ3001, MEXICO, and 8925. Part is untested and sold as shown.
COMPATIBILITY & CROSS-REFERENCE
The Motorola MJ3001 is an NPN silicon Darlington power transistor in a TO-3 (TO-204AA) metal package rated 80V, 10A, and 150W. Use it to replace a failed MJ3001 in audio power amplifiers, power switching circuits, and motor driver circuits. Confirm pinout, ratings, and gain against your circuit before installing, since other TO-3 Darlington transistors differ in ratings and gain.
Q: What does the Motorola MJ3001 replace?
A: A failed or missing MJ3001 NPN Darlington power transistor in a TO-3 chassis mount.
Q: What are its ratings?
A: 80V collector-emitter, 10A collector current, and 150W power dissipation at 25°C case temperature.
Q: Is it tested?
A: No. It is new old stock, untested and sold as shown.
DISCLAIMER
New old stock. Leads, case, and finish may show storage or handling marks. Part is untested and sold as shown. Ships fast with tracking. 30-day returns; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of Motorola or any successor company. All trademarks belong to their respective owners. This is secondary-market inventory and is not covered by any manufacturer warranty.
Motorola MJ3001 MJ 3001 NPN Darlington power transistor 80V 10A 150W TO-3 TO-204AA silicon bipolar transistor chassis mount through-hole audio power amplifier DC-AC converter low-voltage motor driver power switching vintage electronics replacement component new old stock NOS Mexico marking audio amplifier output transistor failed Darlington transistor replacement power amplifier blown output transistor
Thank you for shopping with American Industrial Parts Group!
