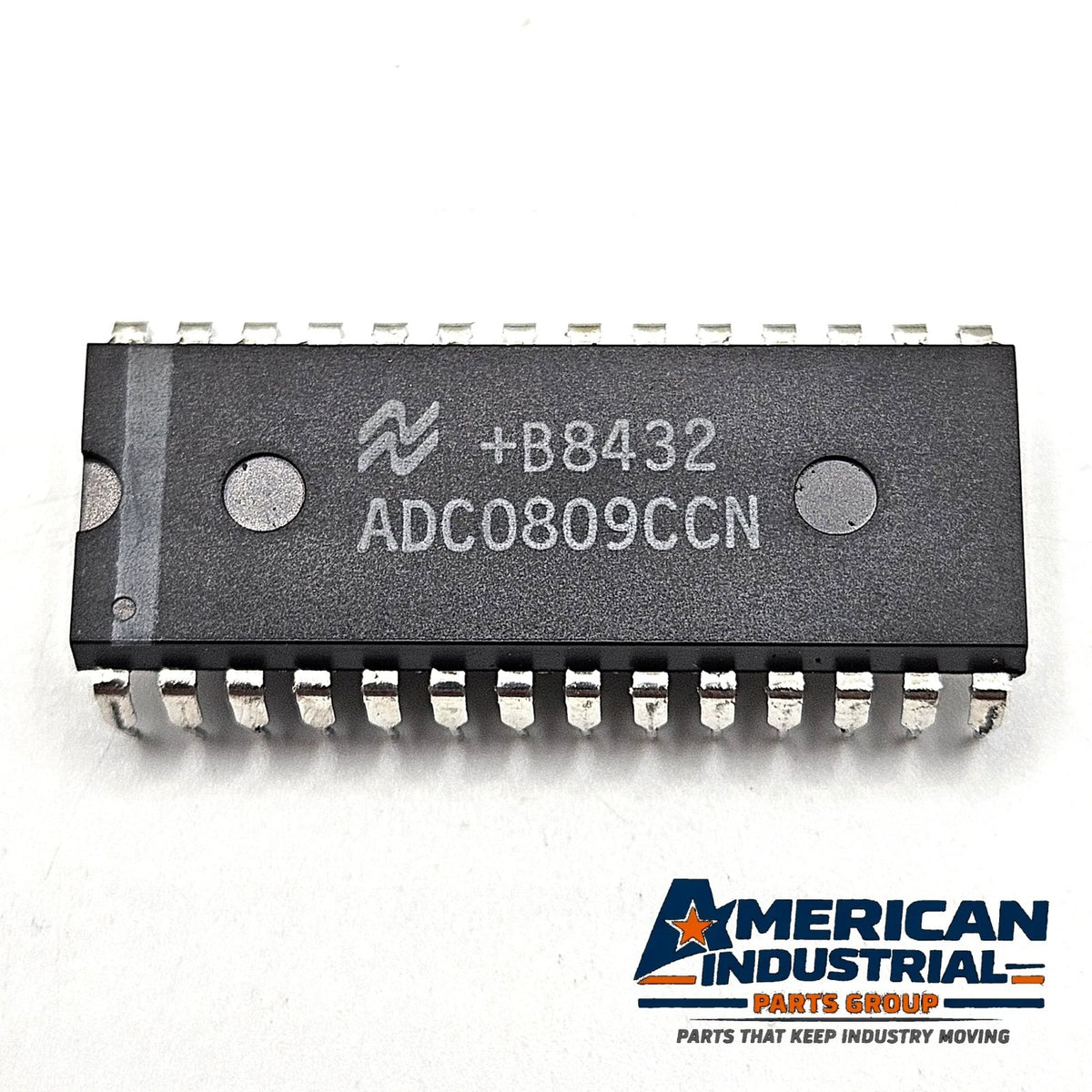

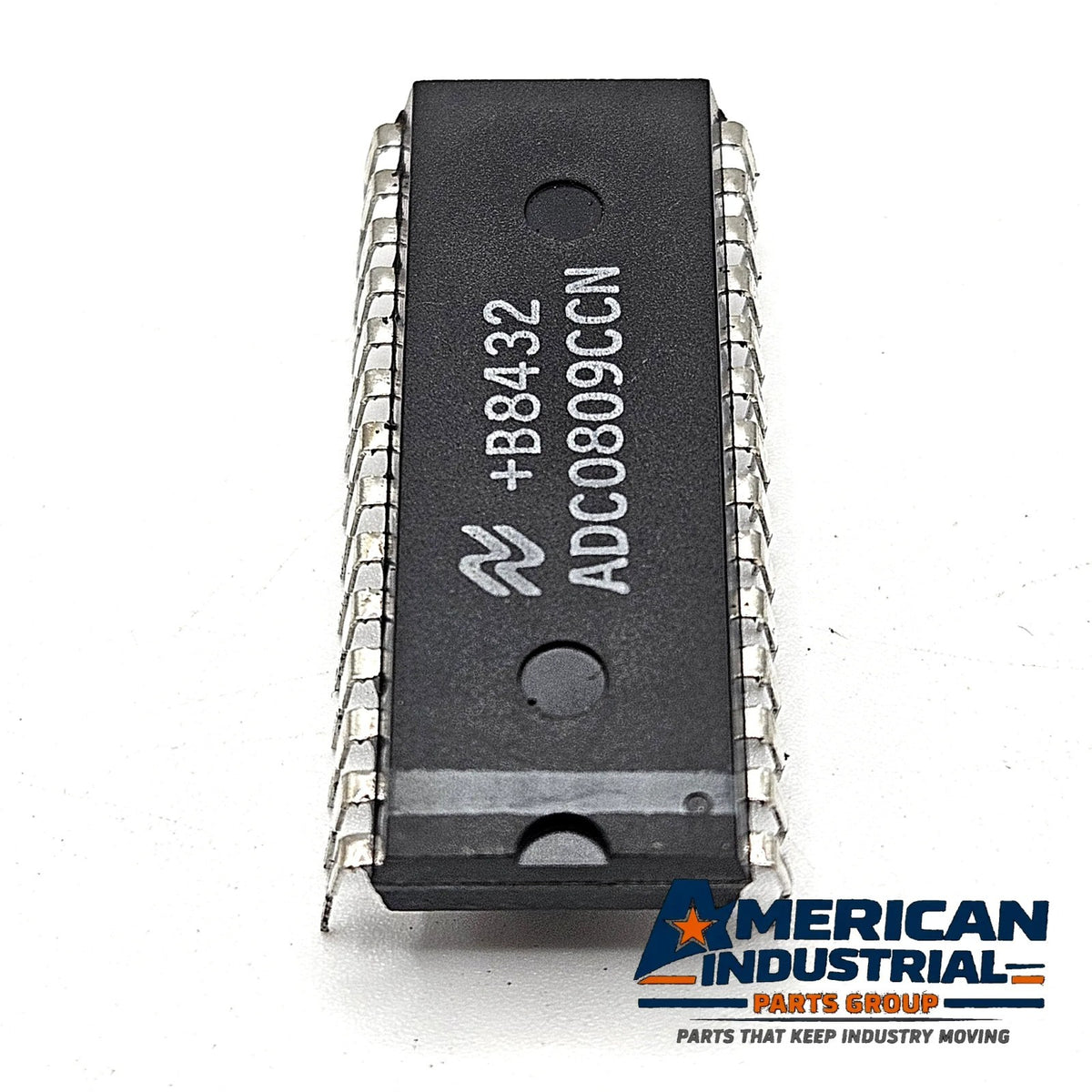

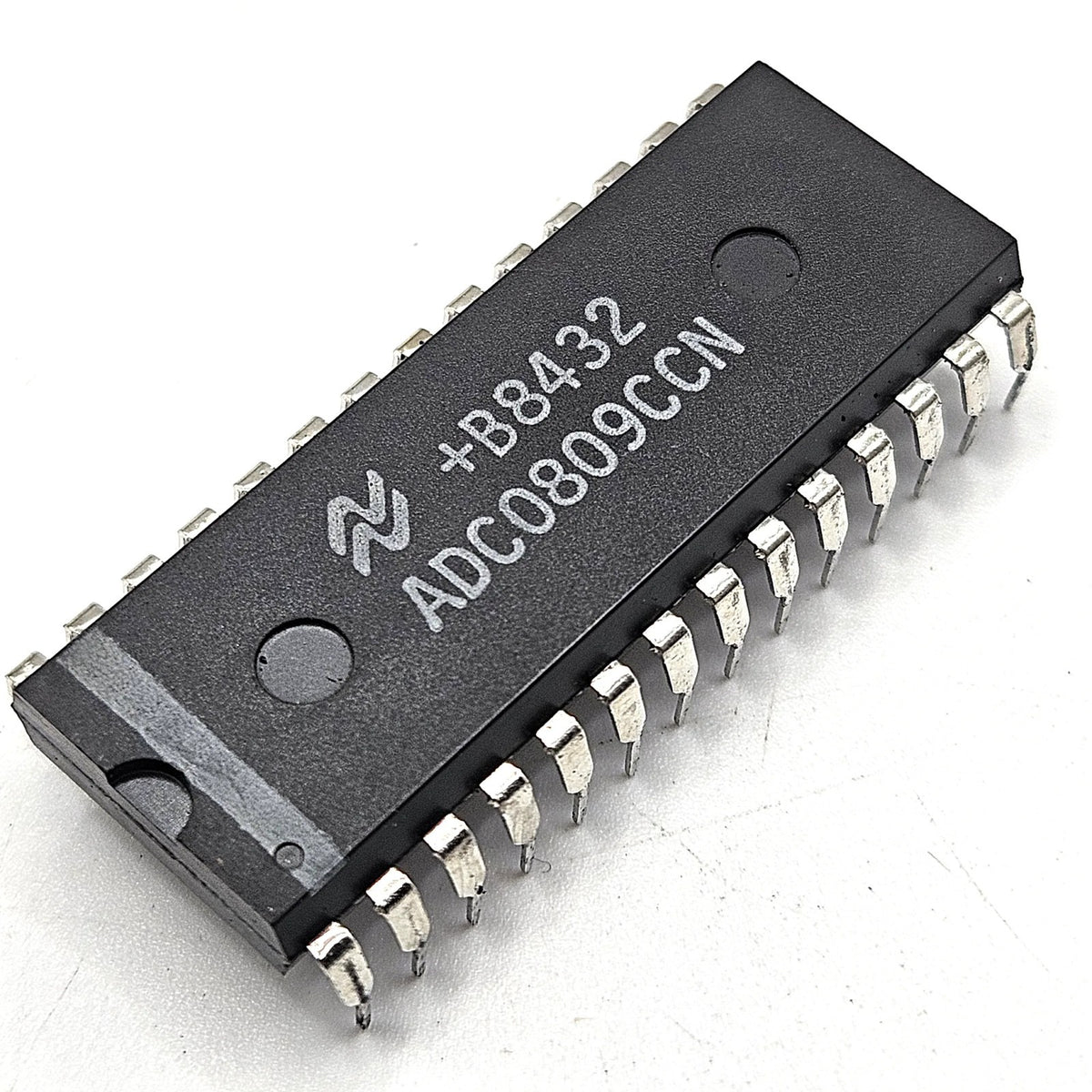

National Semiconductor ADC0809CCN 8-Bit ADC 28-Pin DIP New Old Stock
National Semiconductor ADC0809CCN 8-Bit ADC 28-Pin DIP New Old Stock
Regular price
$5.50 USD
Regular price
Sale price
$5.50 USD
Shipping calculated at checkout.

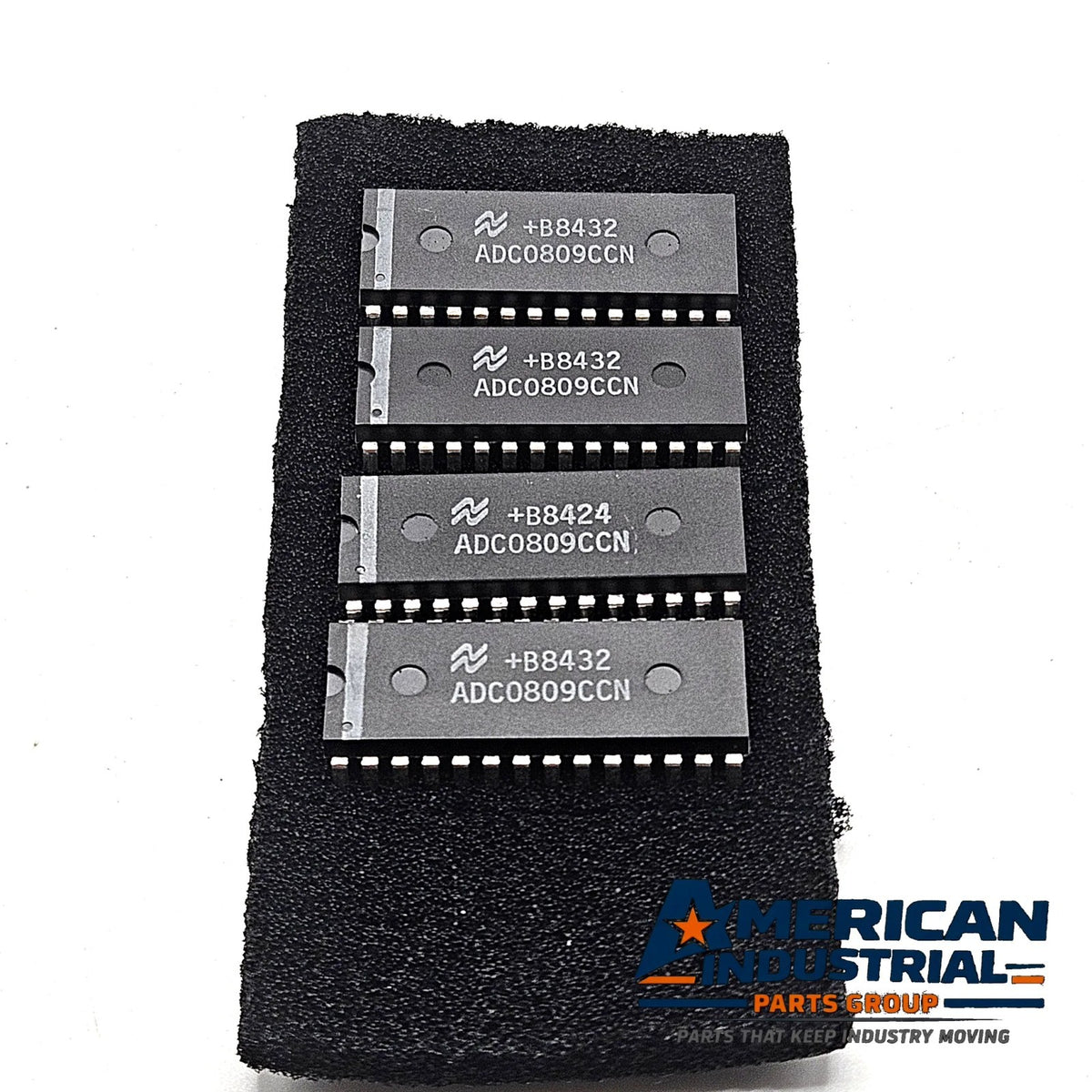

4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: National Semiconductor
Model: ADC0809CCN
MPN: ADC0809CCN
Series: ADC0809
Type: Analog-to-Digital Converter
Resolution: 8-Bit
Analog Input Channels: 8
Architecture: Successive Approximation (SAR)
Interface: Parallel
Package: 28-Pin PDIP
Mounting: Through-Hole
Supply Voltage: 4.5–6 VDC
Operating Temperature: −40°C to +85°C
Condition: New Old Stock
DESCRIPTION
National Semiconductor ADC0809CCN analog-to-digital converter featuring 8-bit resolution, an integrated eight-channel analog multiplexer, and microprocessor-compatible control logic.
The device converts a selected analog input into an eight-bit digital output. Features include latched multiplexer addressing, TTL-compatible three-state outputs, and operation from a nominal 5 VDC supply.
Features:
Eight single-ended analog input channels
Successive-approximation conversion
Parallel digital output
Typical conversion time of 100 microseconds at a 640 kHz clock
28-pin through-hole DIP package
Obsolete ADC0809 product family

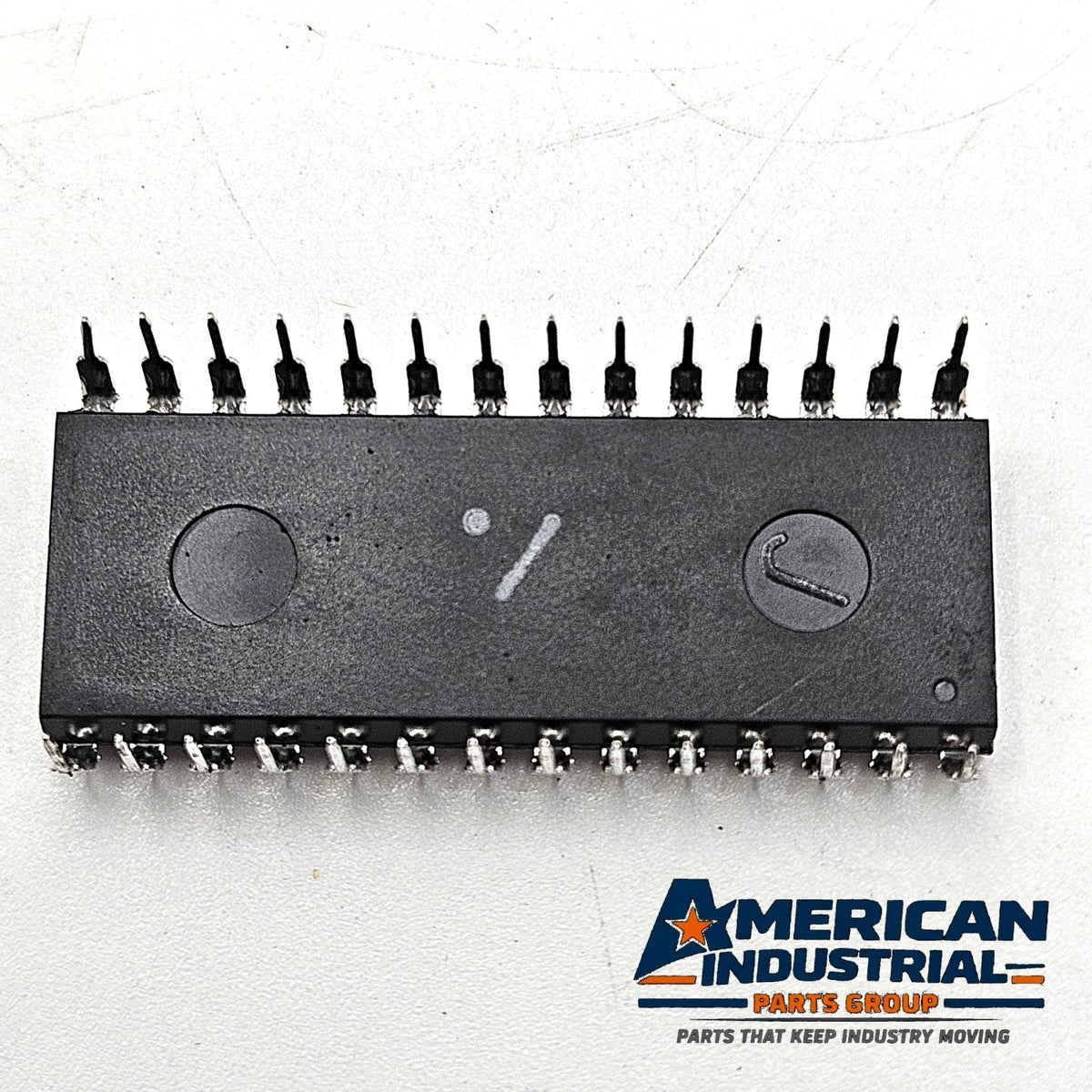

New old stock. Please review the photos for markings, lead condition, and cosmetic storage wear. No electrical testing is represented.
COMPATIBILITY & CROSS-REFERENCE
Direct replacement for a National Semiconductor ADC0809CCN (28-pin PDIP, 8-bit, 8-channel, ±1 LSB, −40°C to +85°C). The ADC0808CCN is the higher-accuracy (±1/2 LSB) member of the same ADC0808/ADC0809 family in the same package. Texas Instruments now lists the ADC0809CCN following its acquisition of National Semiconductor.
Verify pinout, clock, and supply requirements before installing.
Q&A
Q: What is an ADC0809CCN?
A: An 8-bit successive-approximation A/D converter with an 8-channel analog multiplexer and parallel output, in a 28-pin DIP.
Q: What replaces an ADC0809CCN?
A: These ADC0809CCN units are a direct replacement. The ADC0808CCN is the higher-accuracy version of the same family.
Q: What supply voltage does it use?
A: 4.5 to 6 VDC, nominally 5 VDC.
Q: Does it need an external clock?
A: Yes. The listed 100 microsecond conversion time is at a 640 kHz clock.
DISCLAIMER
Confirm the exact part number, pinout, and circuit requirements before purchasing. This is an electrostatic-sensitive component; appropriate handling precautions are required.
Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or representative of National Semiconductor or Texas Instruments. All product names, trademarks, brands, and logos belong to their respective owners. No manufacturer warranty is represented or included.
National Semiconductor ADC0809CCN ADC0809 ADC0809 CCN 8-bit analog-to-digital converter ADC0809 series eight-channel multiplexer SAR ADC parallel interface 28-pin DIP PDIP through-hole integrated circuit microprocessor-compatible A/D converter data acquisition circuit board repair replacement chip obsolete electronic components vintage electronics new old stock ADC failed replacement data acquisition board repair.
Thank you for shopping with American Industrial Parts Group!
