National Semiconductor DM74LS157N Quad 2:1 Multiplexer DIP-16 New Open Box
National Semiconductor DM74LS157N Quad 2:1 Multiplexer DIP-16 New Open Box
Regular price
$4.95 USD
Regular price
Sale price
$4.95 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
Item Specifics
Brand: National Semiconductor
MPN: DM74LS157N
Type: Quad 2-Line to 1-Line Data Selector/Multiplexer
Logic Family: 74LS
Package: PDIP-16 / DIP-16
Number of Pins: 16
Mounting Style: Through-Hole
Output Type: Non-Inverting
Condition: New Open Box
Additional Marking: 939
Quantity: 1
Description

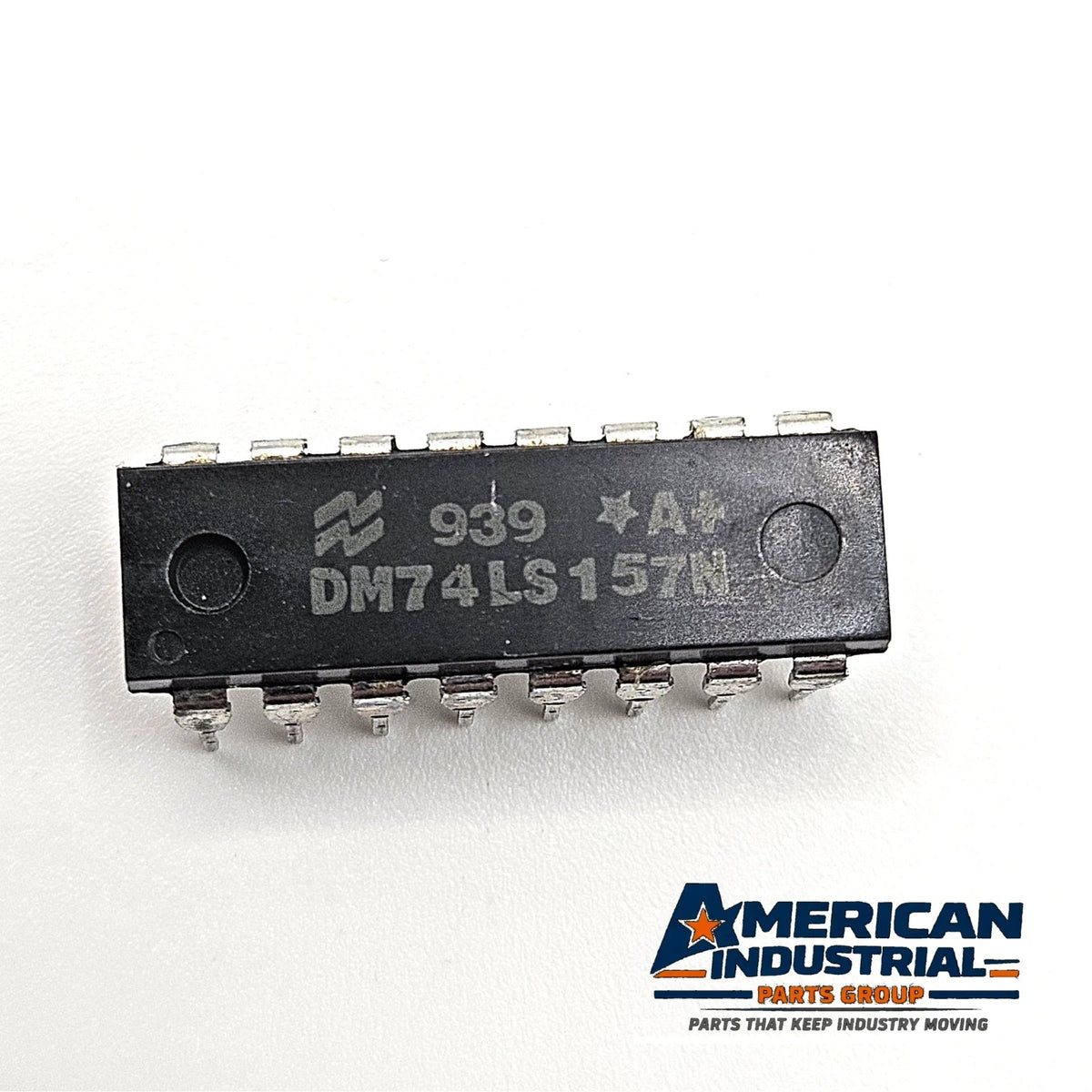

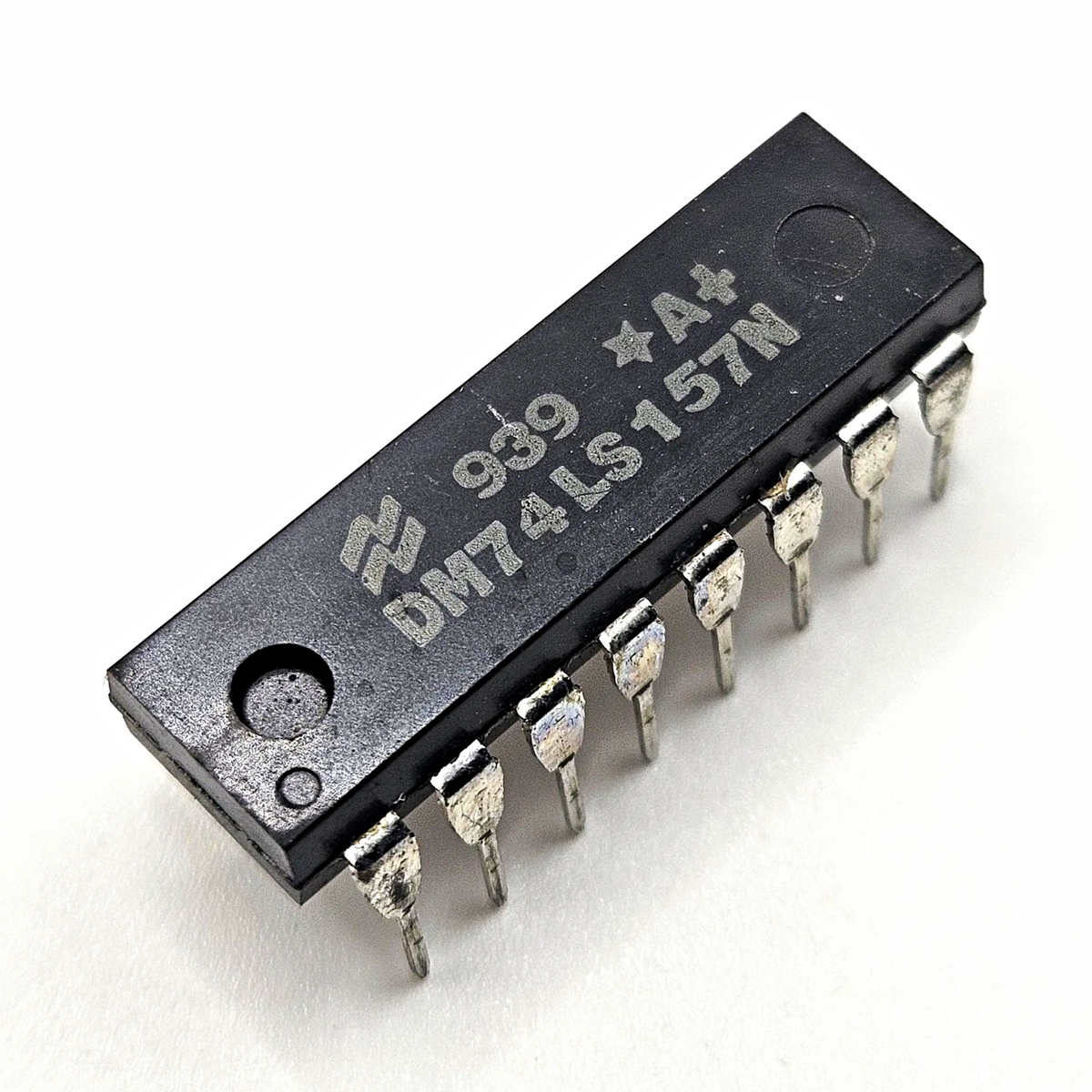

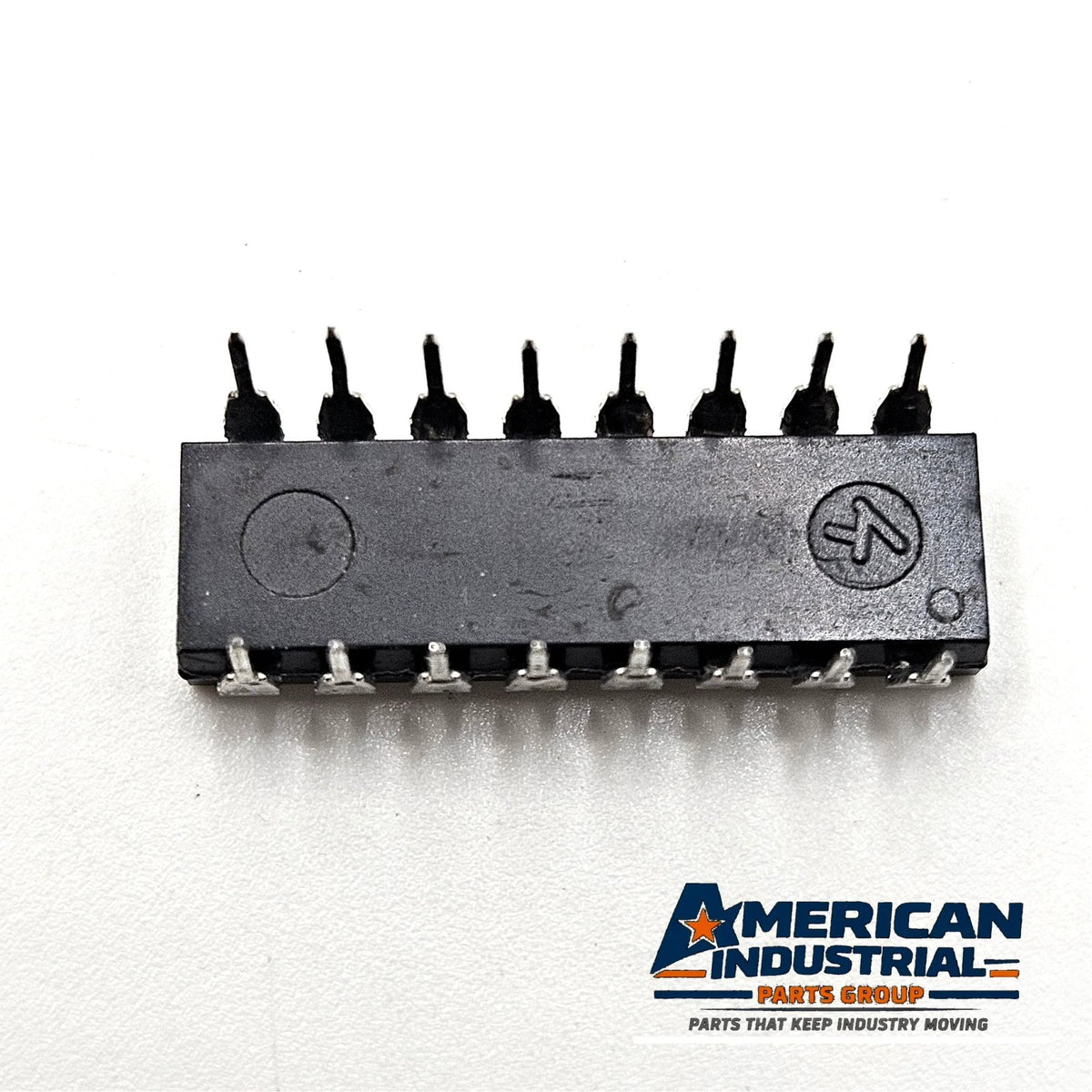

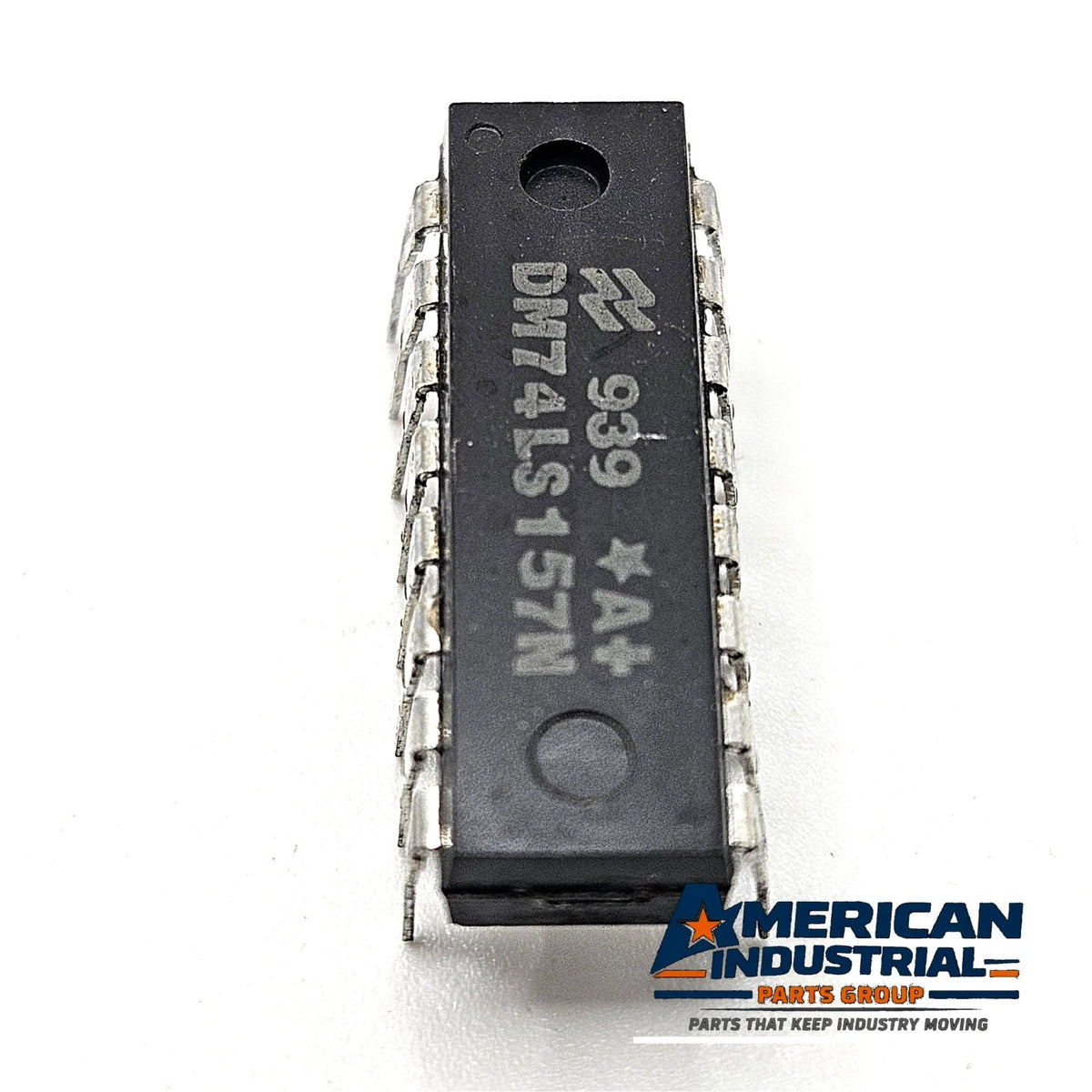

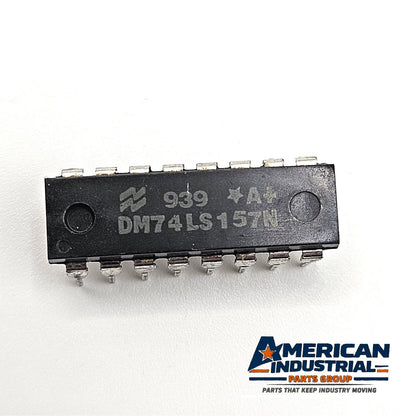

One National Semiconductor DM74LS157N integrated circuit in new open-box condition.
The DM74LS157N is a quad 2-line-to-1-line data selector/multiplexer with four 2:1 channels and non-inverting outputs. It is housed in a 16-pin through-hole DIP package.
The actual component is shown in the photos and is marked DM74LS157N with the National Semiconductor logo. Leads and body may show light cosmetic signs of storage or handling. No electrical testing is represented in this listing.
Disclaimer
New open box. Review all photos for exact condition and markings. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
Legal Disclaimer
American Industrial Parts Group is not an authorized distributor, reseller, or representative of National Semiconductor or Texas Instruments. All trademarks belong to their respective owners. This is secondary-market inventory and carries no manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The National Semiconductor DM74LS157N is a 74LS157-family quad 2-line-to-1-line data selector/multiplexer with true (non-inverting) outputs and a separate strobe input, in a 16-pin DIP for 5V TTL logic. Texas Instruments SN74LS157N is the same function and package, so it can serve as a cross-reference in 74LS157 sockets. It is not interchangeable with the 74LS158, which presents inverted data, and it is not a drop-in for 74HC157 or 74S157 devices, which have different electrical characteristics. Use it to replace a failed 74LS157 in vintage computers, arcade boards, and TTL logic repair, and confirm the pinout against your board before installing.
Q: What does the DM74LS157N replace?
A: Other 74LS157 quad 2:1 data selector/multiplexers in 16-pin DIP sockets, including SN74LS157N.
Q: What is the difference between the 74LS157 and the 74LS158?
A: The 74LS157 presents true data at its outputs, while the 74LS158 presents inverted data.
Q: What supply voltage does it use?
A: It is a 5V TTL part; the Texas Instruments SN74LS157 data lists 4.75V to 5.25V.
National Semiconductor DM74LS157N 74LS157 74LS157N IC quad 2-line to 1-line data selector multiplexer 4-channel 2-to-1 multiplexer 16-pin DIP DIP-16 PDIP-16 through-hole 74LS logic low-power Schottky TTL data selector digital logic chip vintage electronics computer arcade repair open box 74LS157 not working replacement multiplexer failed data selector chip replacement arcade board logic chip failed
