National Semiconductor DM74LS74AN Dual D Flip-Flop 14-Pin DIP New Open Box
National Semiconductor DM74LS74AN Dual D Flip-Flop 14-Pin DIP New Open Box
Regular price
$5.00 USD
Regular price
Sale price
$5.00 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: National Semiconductor
MPN: DM74LS74AN
Series: 74LS
Type: Dual D-Type Flip-Flop
Function: Positive-Edge-Triggered D Flip-Flop
Features: Preset, Clear, Complementary Outputs
Number of Elements: 2
Number of Bits per Element: 1
Package: 14-Pin DIP / PDIP
Mounting Style: Through-Hole
Condition: New Open Box
Additional Marking: SP8408+
DESCRIPTION
One National Semiconductor DM74LS74AN integrated circuit in new open-box condition.
The DM74LS74AN is a dual positive-edge-triggered D-type flip-flop with preset, clear, and complementary outputs. The device is housed in a 14-pin through-hole DIP package.

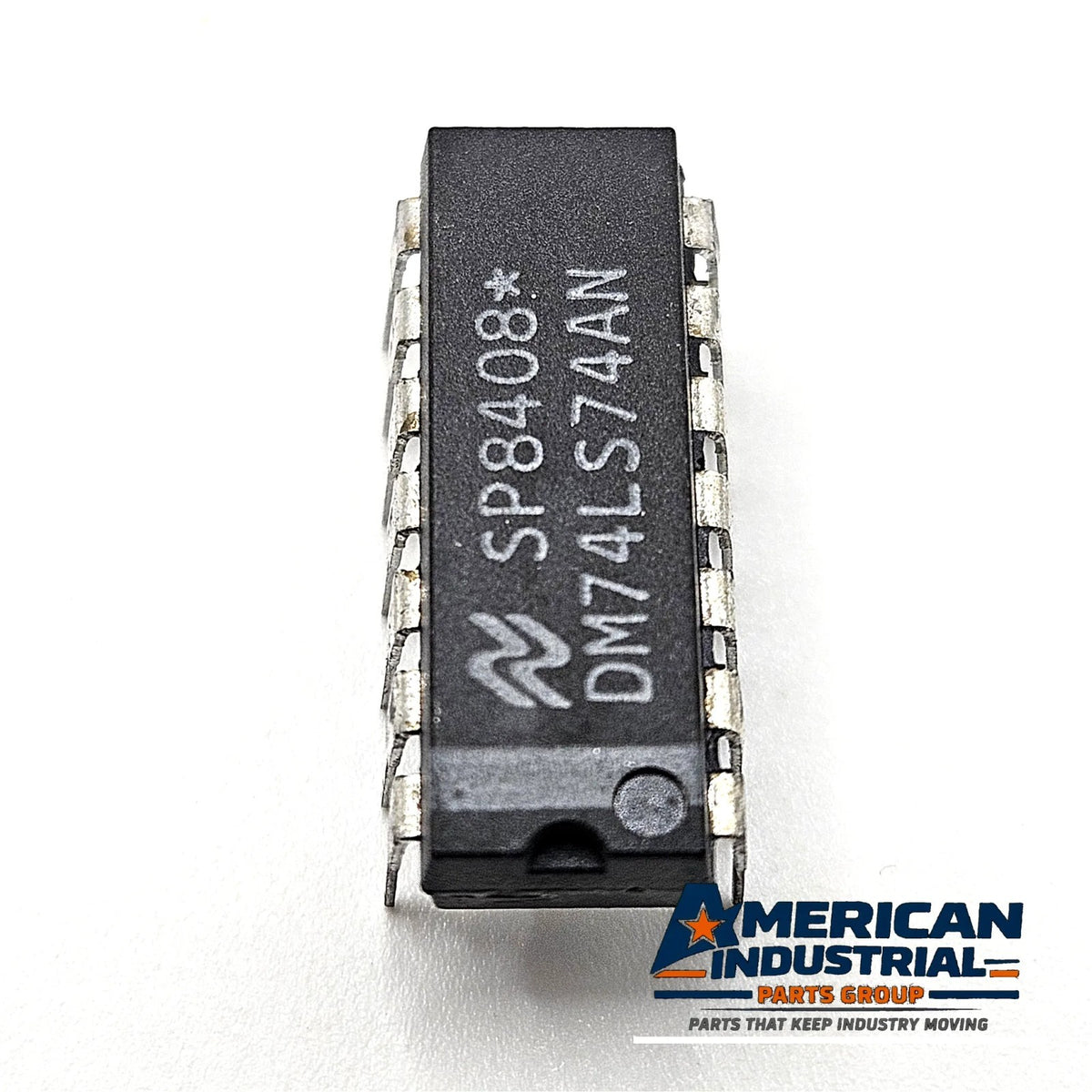

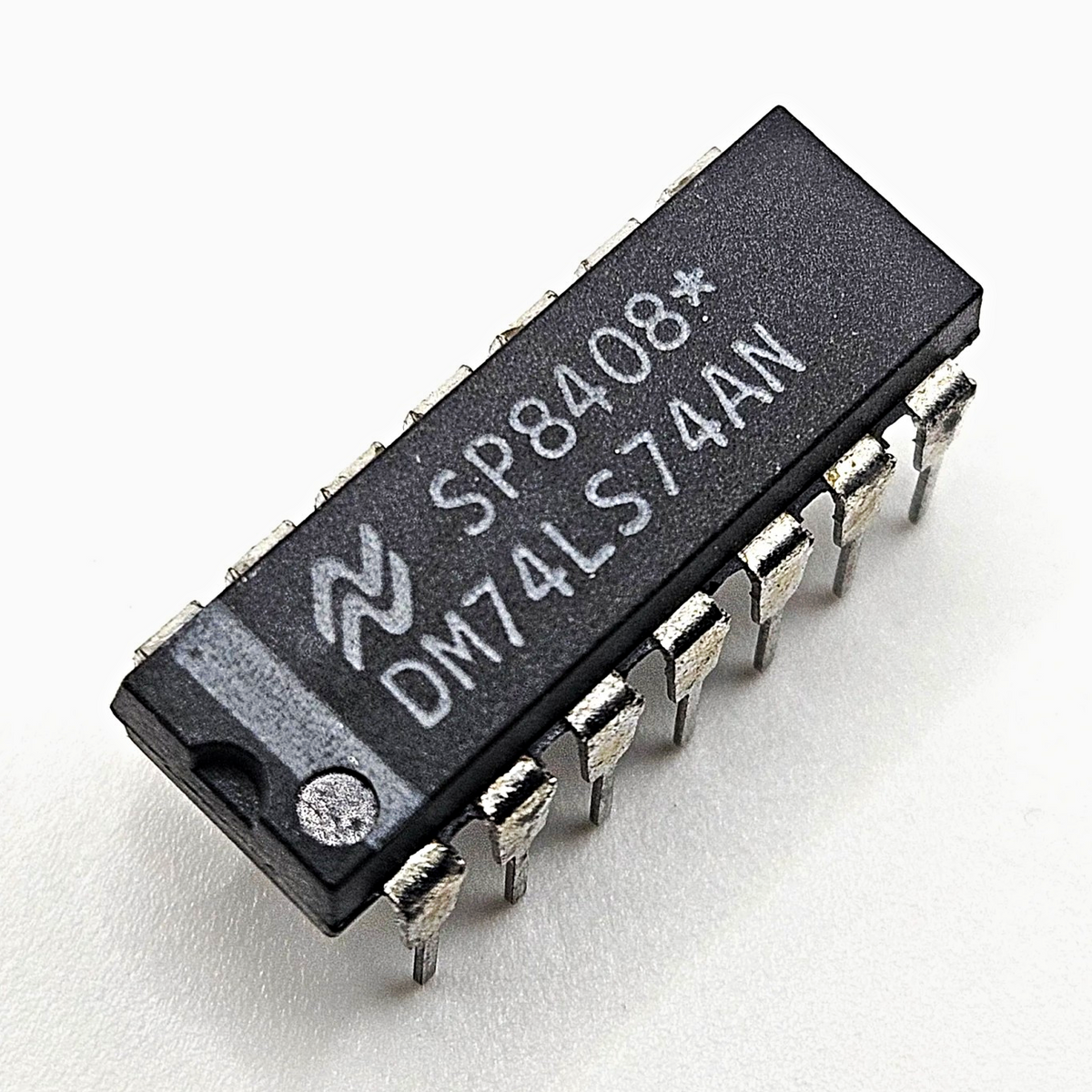

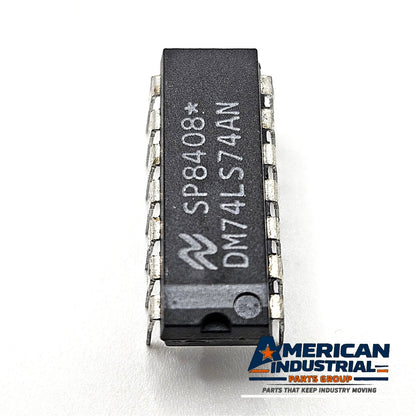

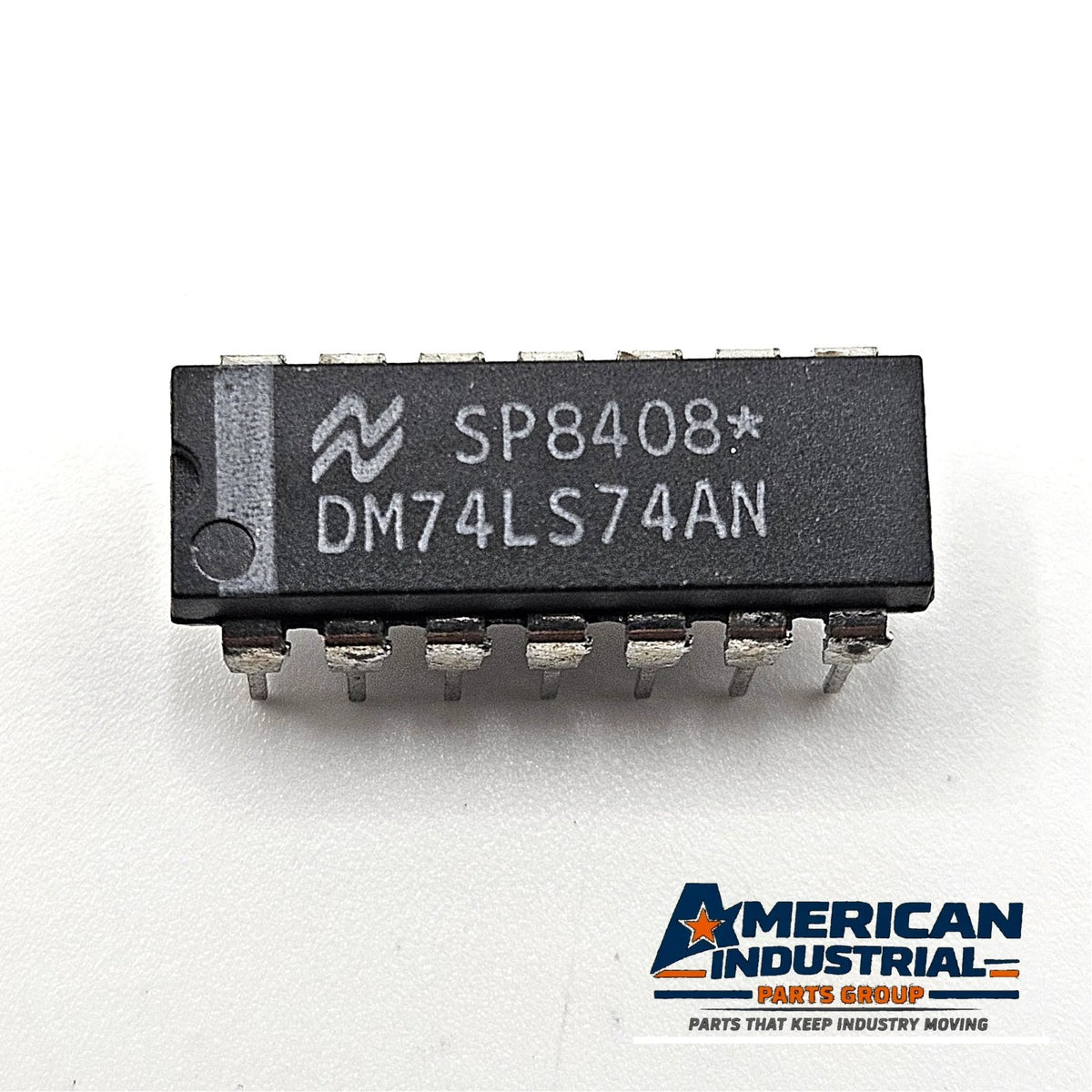

The component is marked DM74LS74AN and SP8408+ with the National Semiconductor logo. Leads and body may show light cosmetic signs of storage or handling. No electrical testing is represented in this listing.
DISCLAIMER
New open box. Review all photos for exact condition and markings. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of National Semiconductor or Texas Instruments. All trademarks belong to their respective owners. This is secondary-market inventory and carries no manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The National Semiconductor DM74LS74AN is a 74LS74-family dual D-type positive-edge-triggered flip-flop with preset and clear in a 14-pin DIP for 5V TTL logic. Texas Instruments SN74LS74AN, Motorola SN74LS74AN, and Signetics 74LS74AN are the same function and package, so each can serve as a cross-reference for the others in 74LS74 sockets. It is not a drop-in for 74HC74 or 74S74 devices, which have different electrical characteristics. Use it to replace a failed 74LS74 in vintage computers, arcade boards, and TTL logic repair, and confirm the pinout against your board before installing.
Q: What does the DM74LS74AN replace?
A: Other 74LS74 dual D flip-flops in 14-pin DIP sockets, including SN74LS74AN and 74LS74AN.
Q: What supply voltage does it use?
A: It is a 5V TTL part; the Texas Instruments SN74LS74A datasheet lists 4.75V to 5.25V.
Q: Is it tested?
A: No electrical testing is represented. It is new open box, sold as shown.
