National Semiconductor DM74LS86N Quad 2-Input XOR Gate 14-Pin DIP NOS
National Semiconductor DM74LS86N Quad 2-Input XOR Gate 14-Pin DIP NOS
Regular price
$4.95 USD
Regular price
Sale price
$4.95 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: National Semiconductor
Model: DM74LS86N
MPN: DM74LS86N
Type: Quad 2-Input Exclusive-OR Gate
Logic Family: 74LS
Number of Gates: 4
Inputs per Gate: 2
Package: 14-Pin DIP / PDIP
Function: Digital XOR Logic Gate
Condition: New old stock
DESCRIPTION

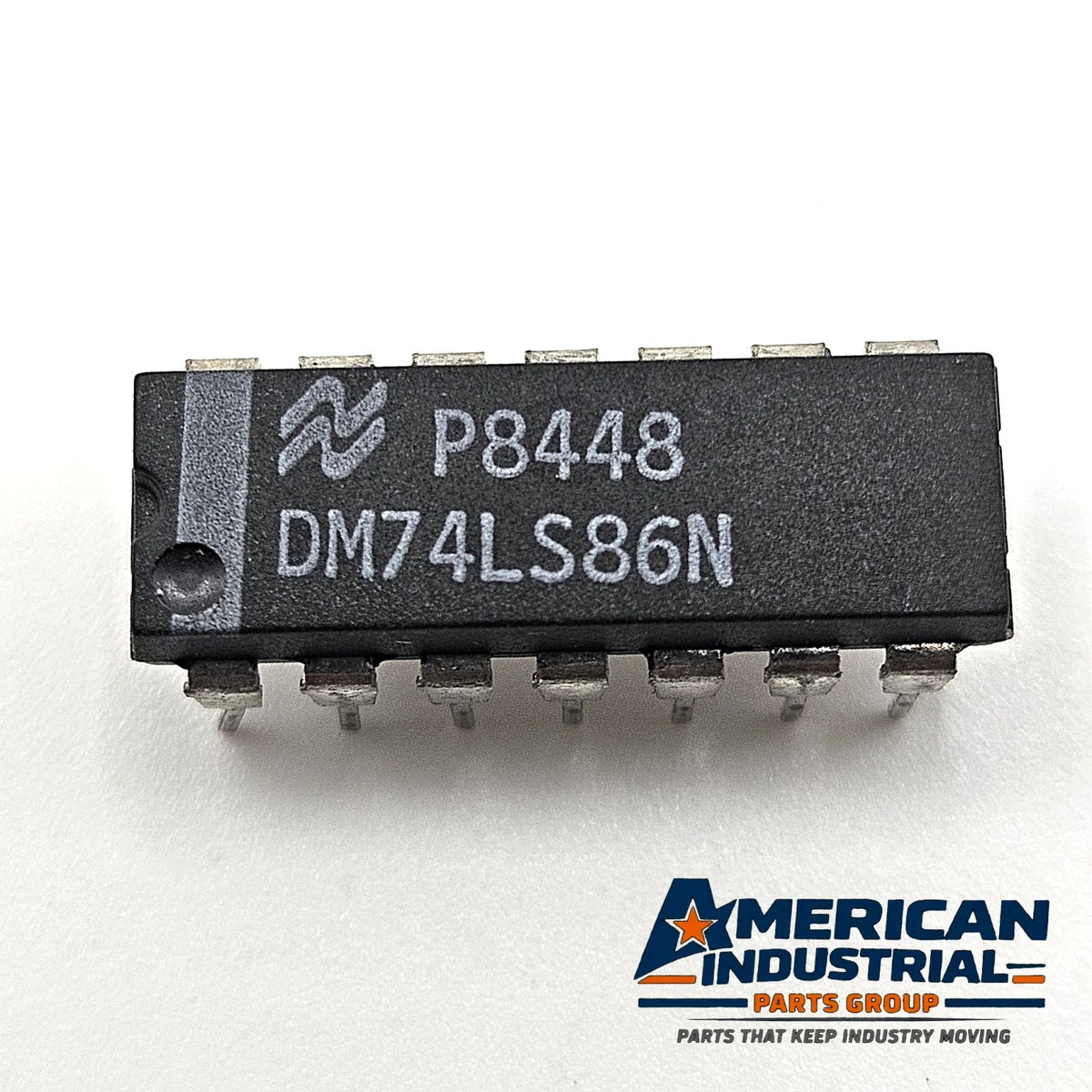

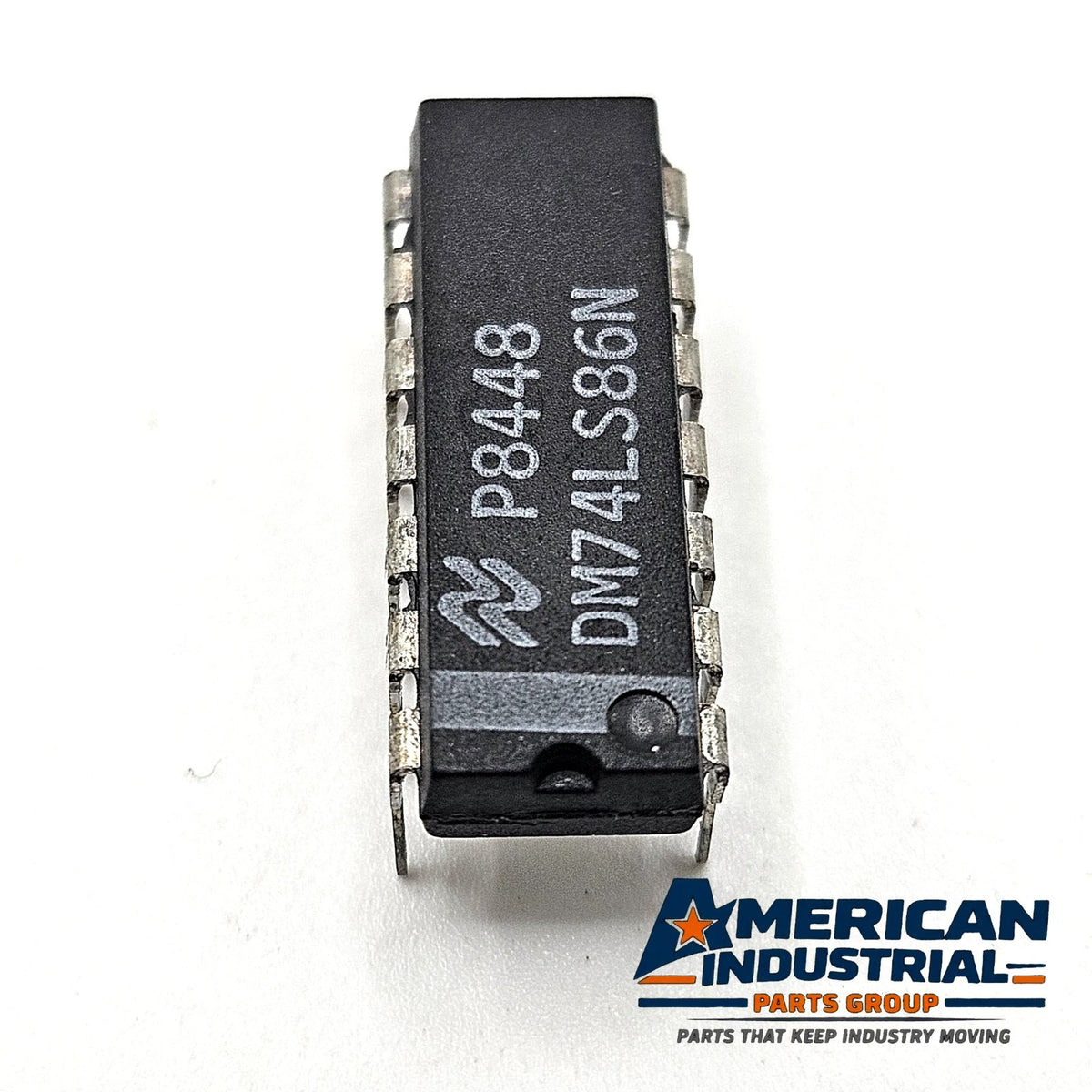

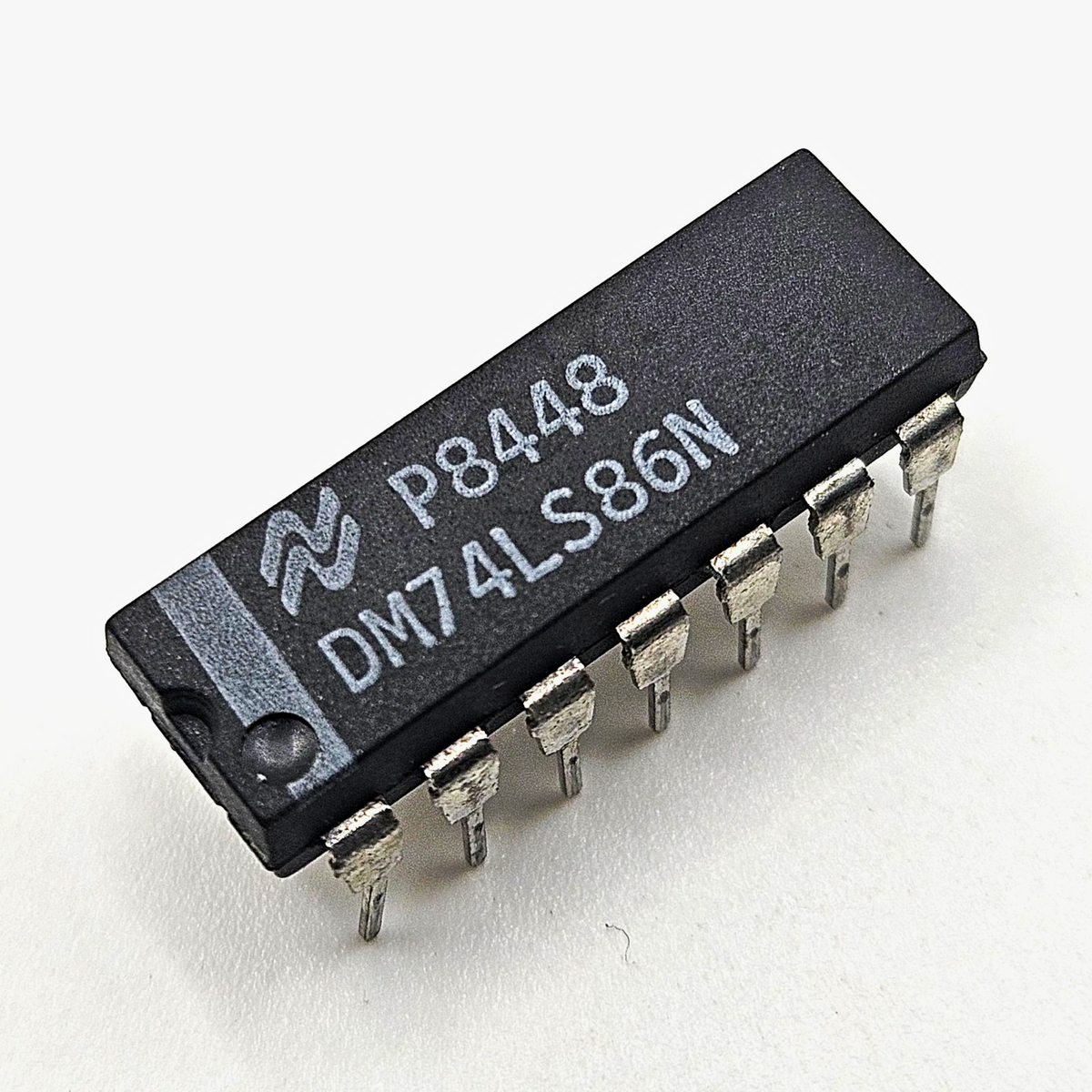

National Semiconductor DM74LS86N quad 2-input exclusive-OR logic gate in a 14-pin DIP package.

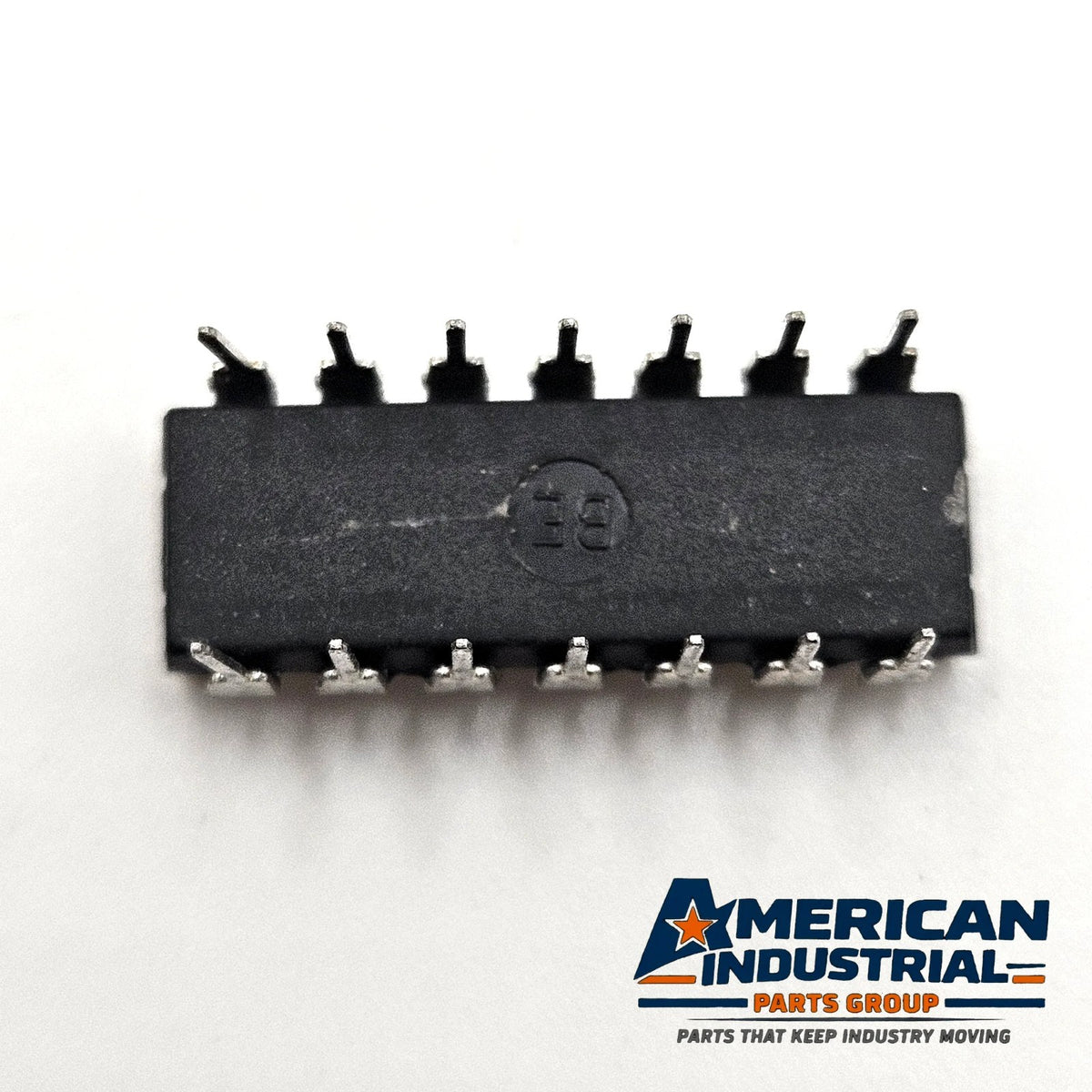

This new old stock component is unused and shows the original National Semiconductor marking/logo. The device marking also includes P8448. Please review all photos carefully for the exact part marking, package condition, and pin condition.
Suitable for vintage electronics repair, digital logic projects, TTL circuits, industrial control repairs, test equipment, computer hardware restoration, and replacement applications requiring the DM74LS86N part number.
No electrical testing has been performed. Only the quantity shown in the listing is included.
COMPATIBILITY & CROSS-REFERENCE
The National Semiconductor DM74LS86N is a 74LS86-family quad 2-input exclusive-OR gate in a 14-pin DIP for 5V TTL logic. SN74LS86N and other 74LS86N devices share the same function and package, so they can serve as cross-references in 74LS86 sockets. It is not a drop-in for 74HC86 or 74S86 devices, which have different electrical characteristics. Use it to replace a failed 74LS86 in vintage computers, arcade boards, and TTL logic repair, and confirm the pinout against your board before installing.
Q: What does the DM74LS86N replace?
A: Other 74LS86 quad XOR gates in 14-pin DIP sockets, including SN74LS86N devices.
Q: How many gates are in each chip?
A: Four independent 2-input exclusive-OR gates.
Q: Is it tested?
A: No. It is new old stock, untested and sold as shown.
