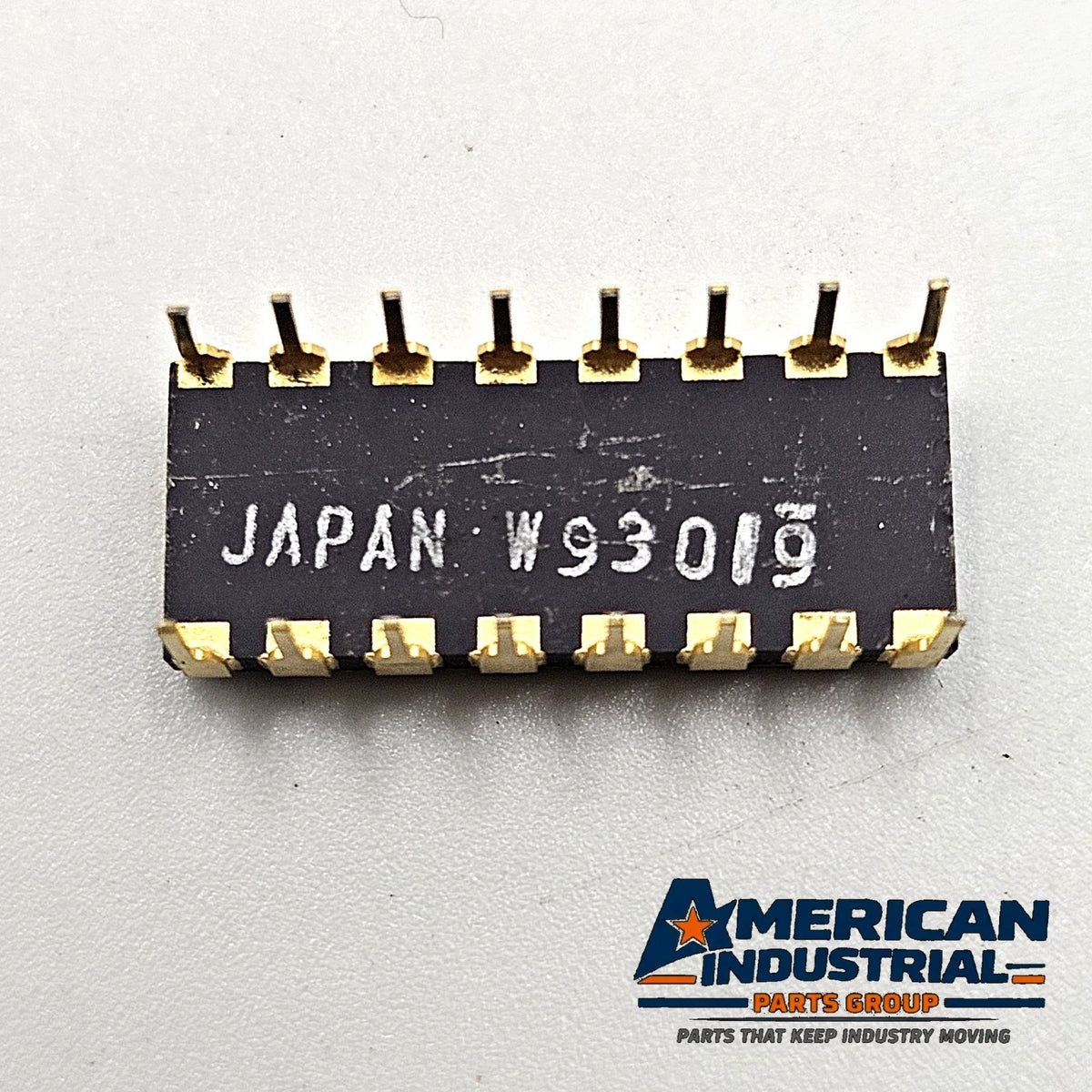

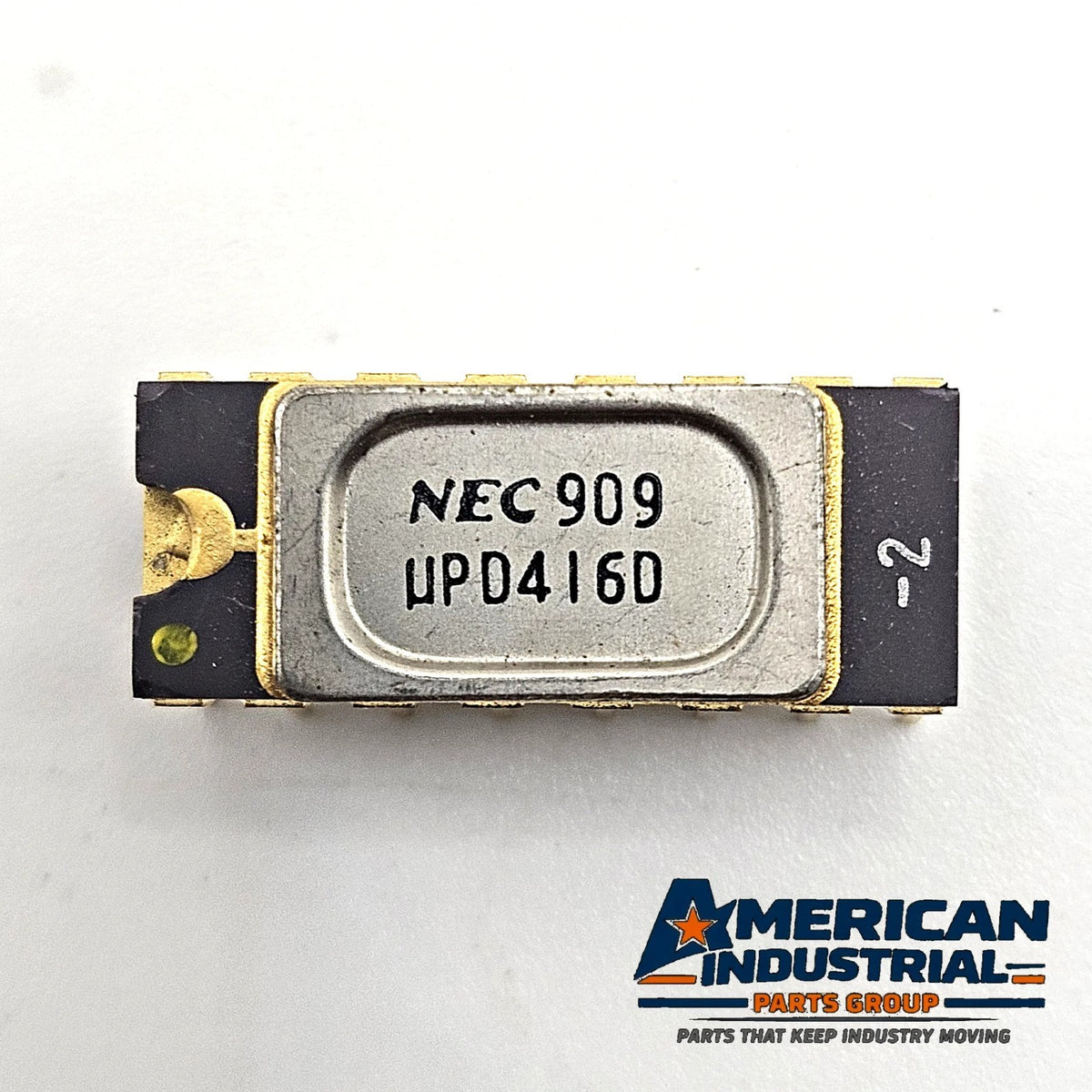

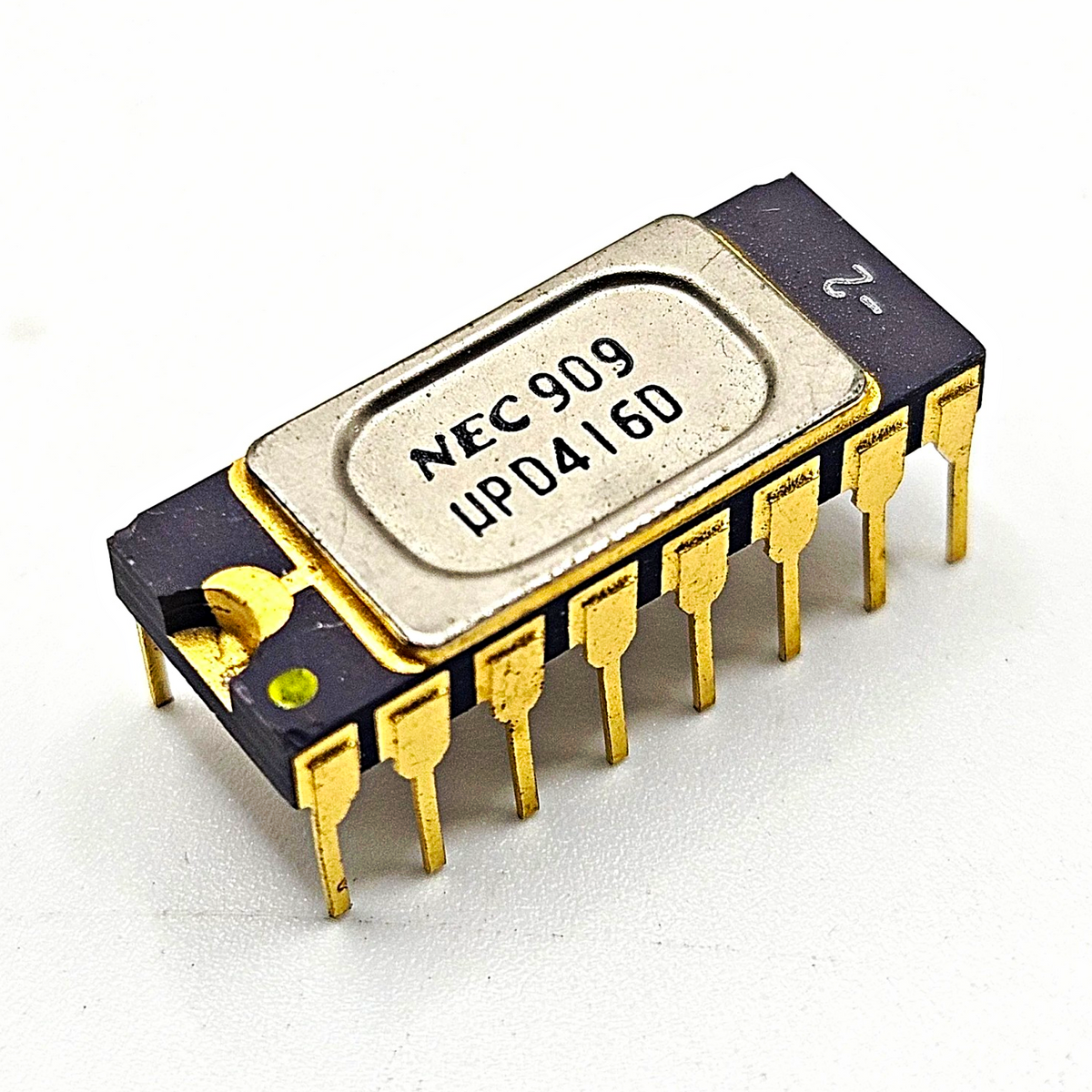

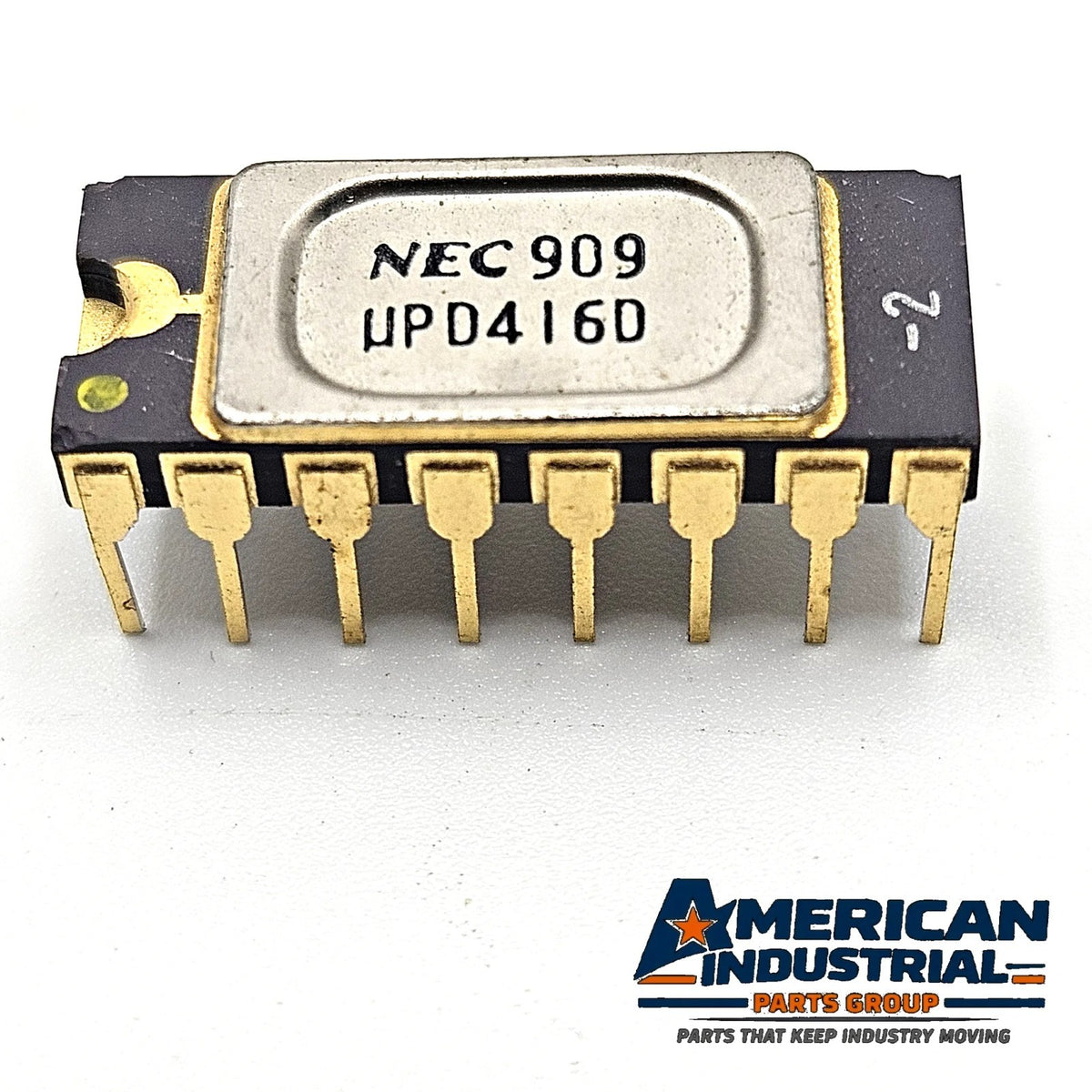

NEC UPD416D-2 16Kx1 200ns Dynamic RAM Gold Pin Ceramic DIP-16 Vintage NOS IC

ITEM SPECIFICS
Brand: NEC
Model: μPD416D-2
MPN: UPD416D-2
Type: Dynamic RAM Integrated Circuit
Memory Type: NMOS DRAM
Memory Organization: 16K x 1 Bit
Memory Density: 16 Kbit
Access Mode: Page Mode
Access Time: 200 ns
Refresh Type: RAS-Only Refresh Supported
Package Type: Ceramic DIP
Number of Pins: 16
Lead Finish: Gold-Colored Plated Leads
Country/Region of Manufacture: Japan
Product Status: Discontinued / Obsolete
Condition: New Old Stock

DESCRIPTION
NEC μPD416D-2 vintage dynamic RAM integrated circuit. This discontinued memory IC provides a 16,384-word × 1-bit organization with a 200 ns maximum access time and page-mode operation.
The ceramic 16-pin DIP package and gold-colored plated leads make this component suitable for vintage electronics repair, legacy computer restoration, period-correct circuit restoration, and replacement applications requiring the exact NEC μPD416D-2 specification.

Features:
NEC μPD416D-2
16,384 x 1-Bit Memory Organization
16 Kbit Memory Density
200 ns Speed Grade
NMOS Dynamic RAM
Page-Mode Operation
RAS-Only Refresh Supported
16-Pin Ceramic DIP Package
Gold-Colored Plated Leads
Manufactured in Japan
Discontinued / Obsolete Component
Vintage Electronics Replacement IC
This component is new old stock and may show cosmetic marks, discoloration, or other evidence of long-term storage and handling. It has not been represented as electrically tested. Please review all photographs carefully for the exact physical condition, markings, and included item.
Confirm the exact part number, speed grade, pin configuration, timing requirements, refresh method, and electrical requirements of your equipment before installation.

DISCLAIMER
This item is new old stock and has been stored for an extended period. It may show cosmetic marks or discoloration from storage and handling. No original manufacturer packaging is shown or included. Electrical operation has not been represented as tested. Please review all photos for the exact condition and markings. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.

LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of NEC. All product names, trademarks, brands, and logos are the property of their respective owners. This discontinued component was sourced from existing inventory and is not covered by the original manufacturer’s warranty.

COMPATIBILITY & CROSS-REFERENCE
The NEC μPD416 is a 16,384 x 1-bit dynamic NMOS RAM in the industry-standard 4116 16K DRAM family. Published cross-references list it alongside the TMS4116 (Texas Instruments), MK4116 (Mostek), MCM4116 (Motorola), AM9016 (AMD), and MB8116 (Fujitsu). Speed grade, supply voltages, and timing must match your equipment — always compare datasheets before substituting a different manufacturer's part or speed grade.

Q&A
Q: What is the NEC μPD416D-2? A: A 16K x 1 (16,384 x 1-bit) dynamic NMOS RAM with a 200 ns access time in a 16-pin ceramic DIP package.
Q: Is the μPD416 compatible with the 4116? A: The μPD416 is listed in published 4116-family cross-references alongside the TMS4116, MK4116, and MB8116. Confirm speed grade and your equipment's supply voltages before installing.
Q: Why is this chip discontinued? A: NEC spun off its semiconductor business as NEC Electronics in 2002, which merged into Renesas Electronics in 2010, and 16K NMOS DRAMs were superseded by higher-density memory. Remaining supply is new old stock.
