NTE Electronics NTE3087 Optoisolator TTL NAND Gate Output 8-Pin DIP ECG3087 New
NTE Electronics NTE3087 Optoisolator TTL NAND Gate Output 8-Pin DIP ECG3087 New
Regular price
$9.95 USD
Regular price
Sale price
$9.95 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: NTE Electronics
MPN: NTE3087
Model: NTE3087
Cross Reference: ECG3087, SK2087
Type: Optoisolator / Optocoupler
Output Type: Open Collector, Schottky-Clamped (TTL Logic Gate)
Number of Channels: 1
Package / Case: 8-Pin Mini-DIP (Plastic)
Isolation Voltage: 2500 Vrms
Input Forward Current (IF): 20 mA (40 mA pulse)
Reverse Voltage (VR): 5 V
Output Current (IO): 50 mA
Output Voltage (VO): 7 V
Supply Voltage (VCC): 5 V typ, 7 V max
Output Power Dissipation: 85 mW
Propagation Delay: 60 ns typ / 120 ns max
Operating Temperature: 0°C to +70°C
Mounting: Through Hole
Condition: New
DESCRIPTION
The NTE Electronics NTE3087 optoisolator combines a GaAsP LED emitter with an integrated high-gain, high-speed, multi-stage photodetector. Its output is an open-collector, Schottky-clamped transistor that can sink 50 mA and is compatible with LSTTL/TTL logic on a 5 V supply. The output can be bussed, ORed and strobed, and an enable input provides gating.
Features:
2500 Vrms input-to-output isolation
LSTTL/TTL-compatible open-collector gate output with enable input
50 mA output sink current; fan-out of 8 TTL loads
High speed: 60 ns typical propagation delay
Low-level output voltage (VOL) of 0.6 V max; high-level output current (IOH) of 250 µA max
Typical current transfer ratio of 1000%
8-pin plastic mini-DIP
Pinout:
Pin 1: N.C.
Pin 2: Anode (+)
Pin 3: Cathode (–)
Pin 4: N.C.
Pin 5: GND
Pin 6: VOUT
Pin 7: VE (Enable)
Pin 8: VCC
The datasheet requires a 0.1 µF bypass capacitor between pins 8 and 5.
Compatibility:
Direct replacement for ECG3087 and SK2087.

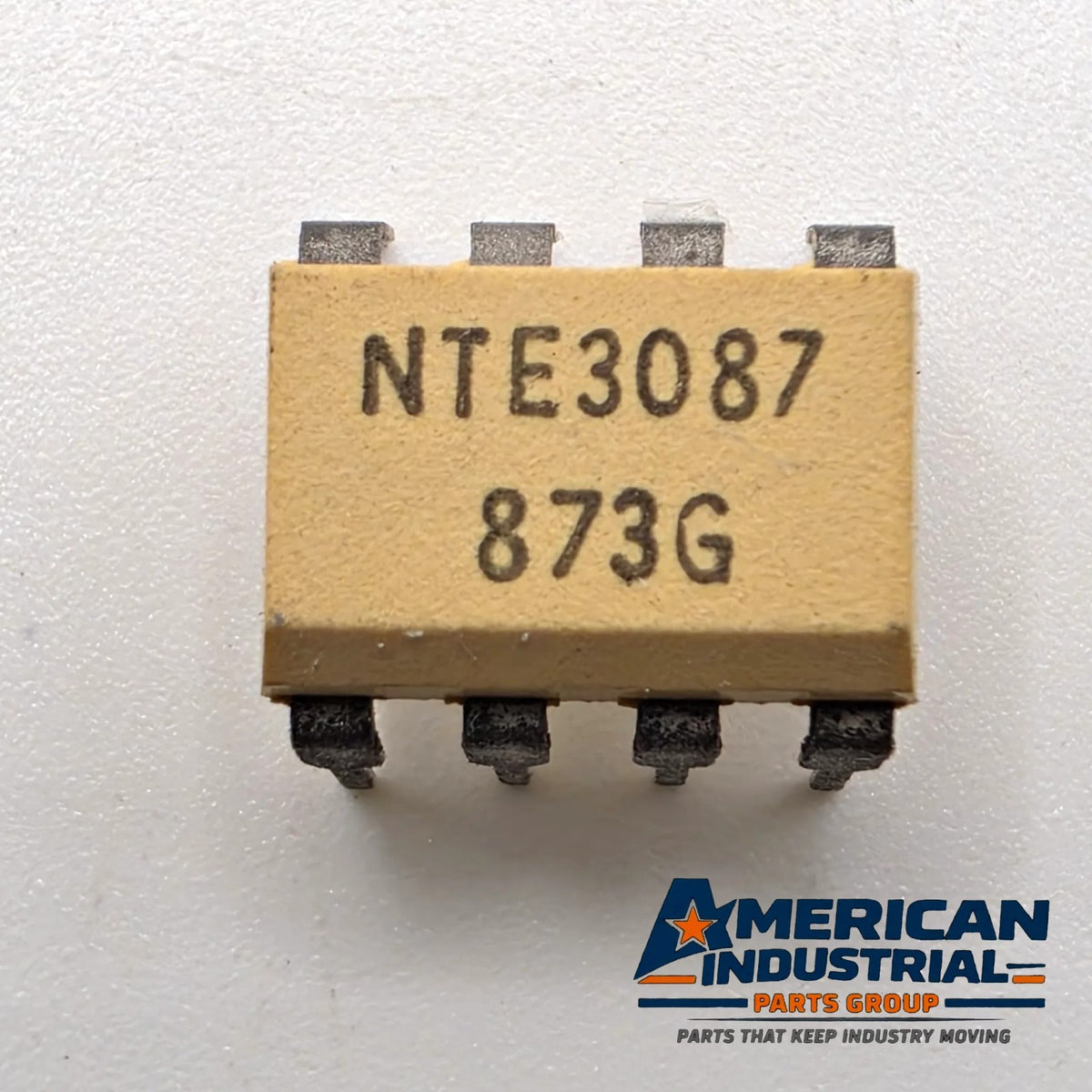

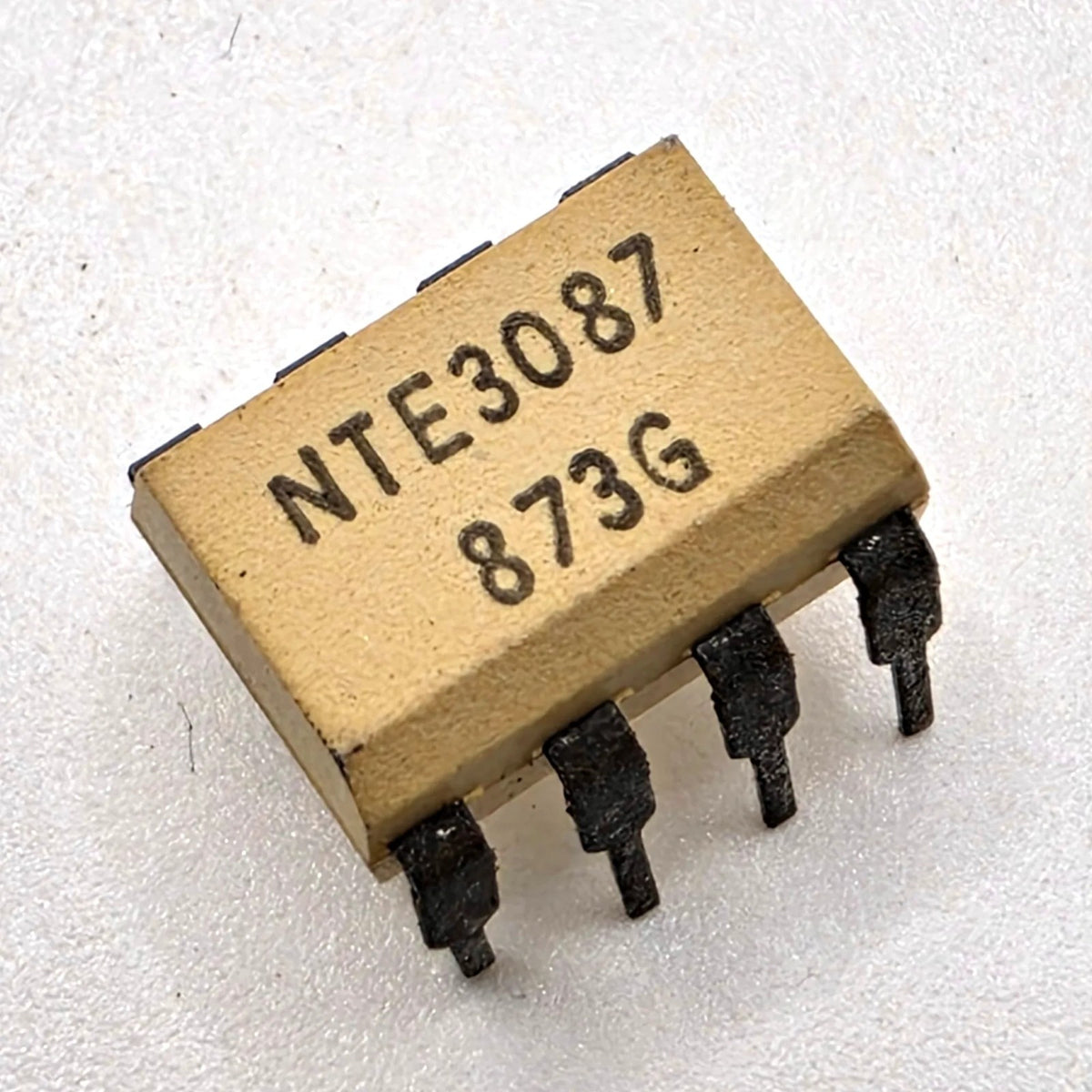

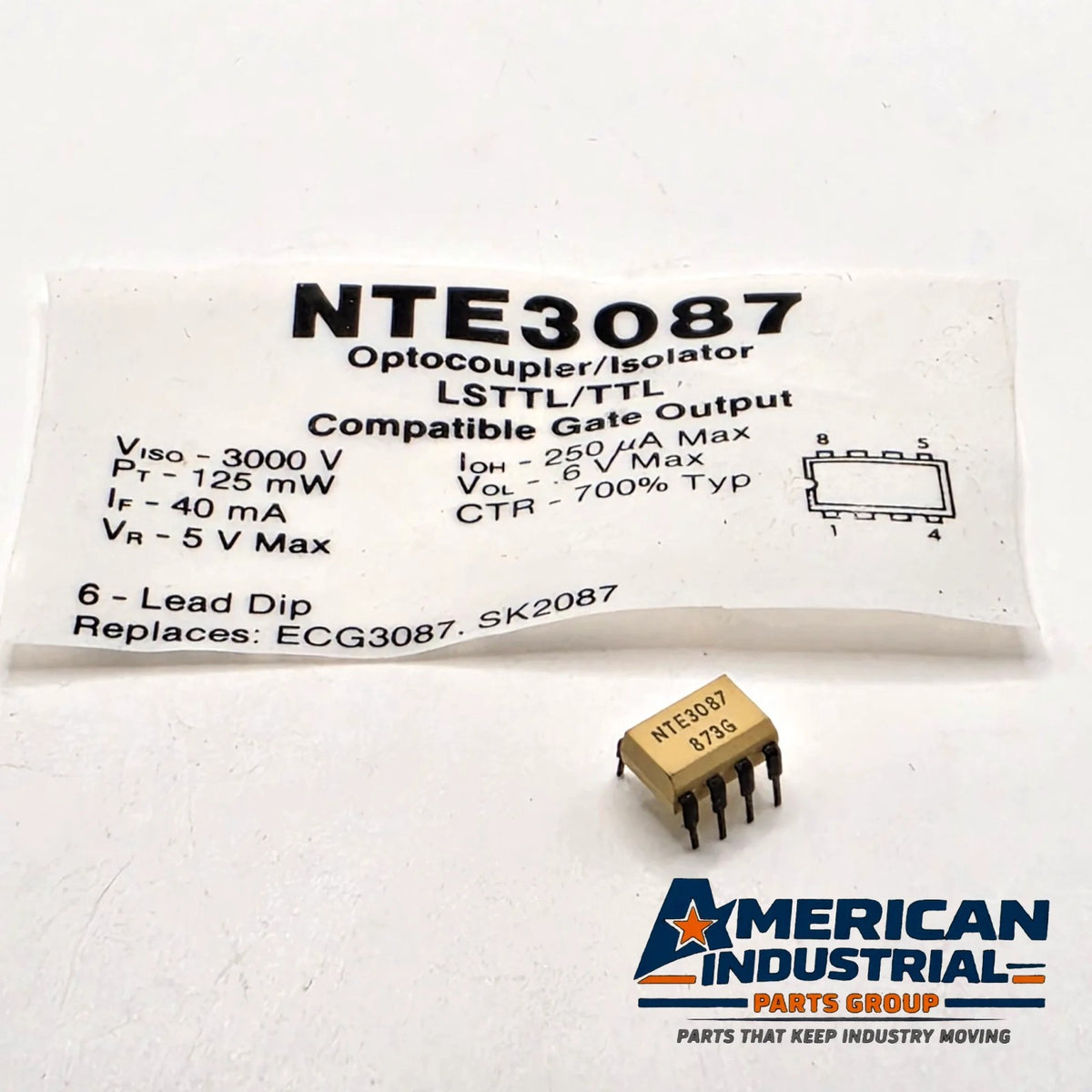

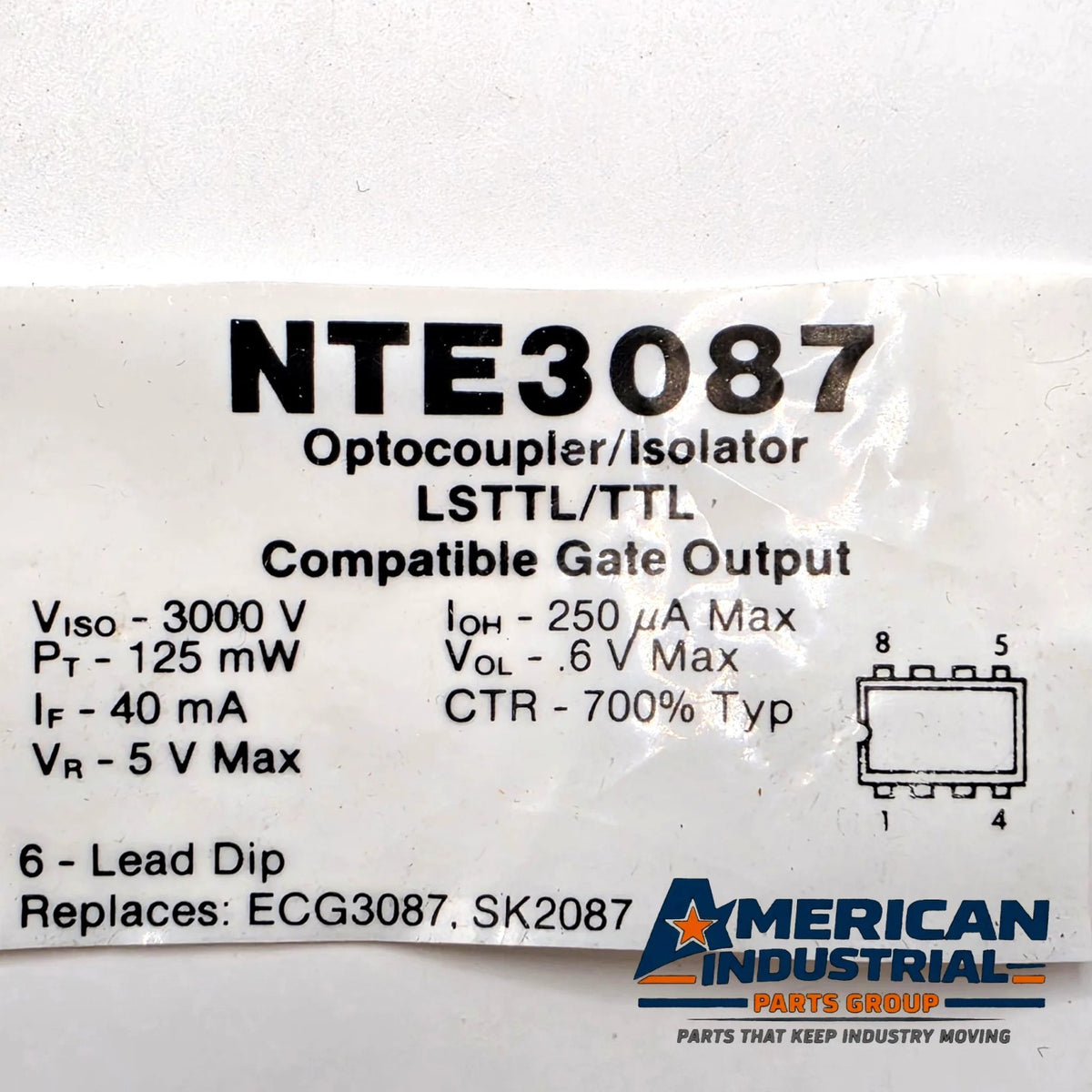

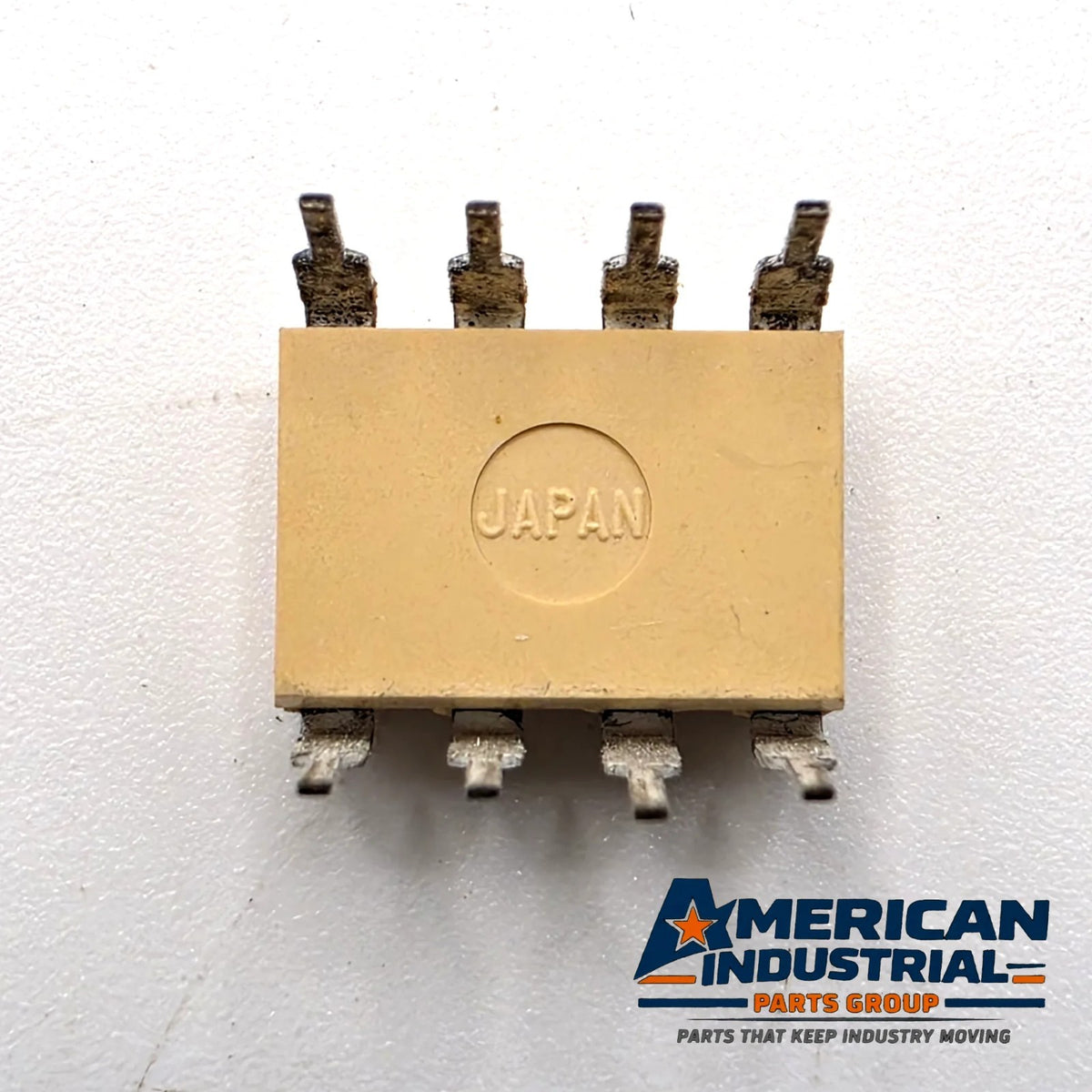

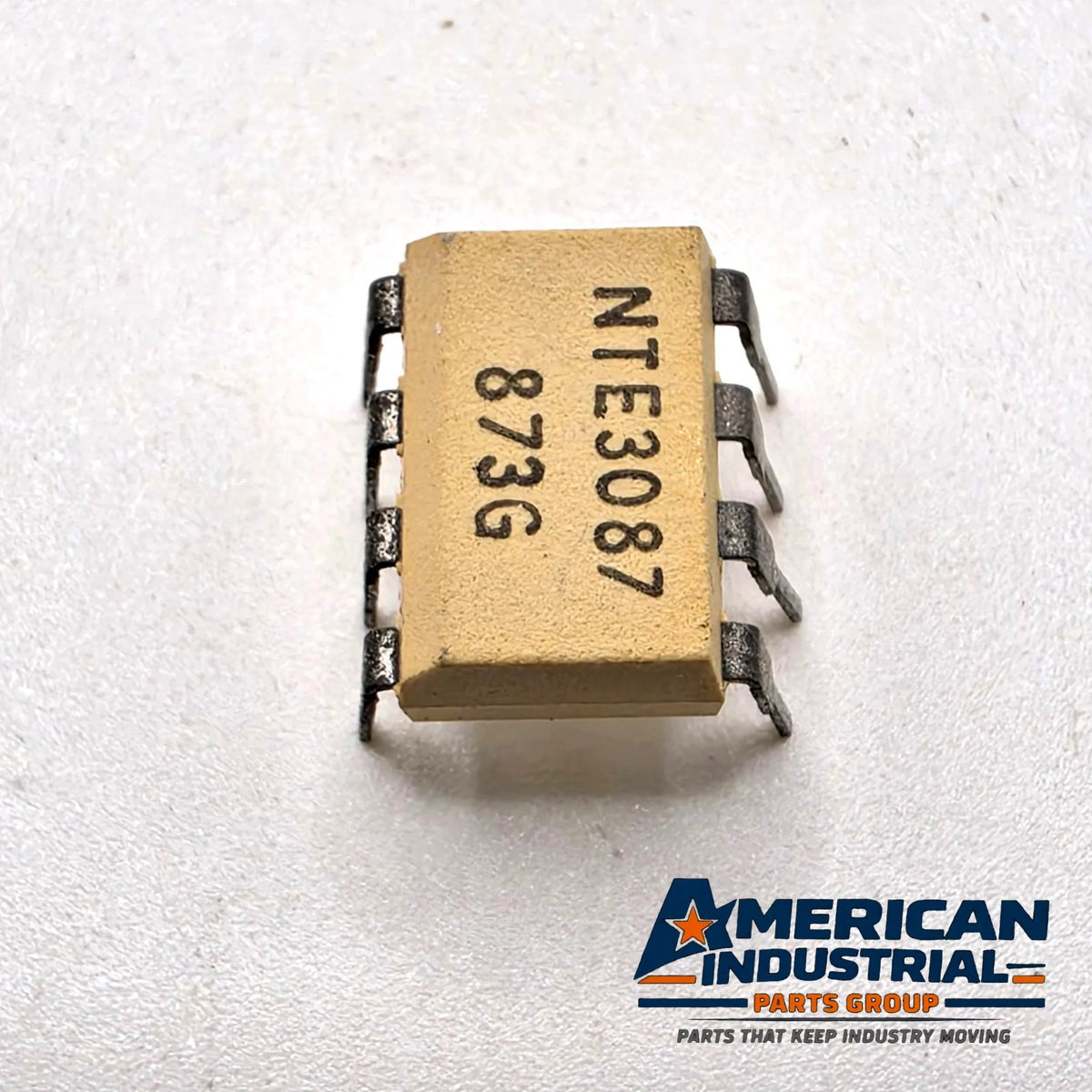

Please note: NTE's printed bag label states "6-Lead Dip" and lists some ratings that differ from NTE's published datasheet. The part itself is an 8-pin DIP, as shown in the photos and confirmed by the NTE datasheet and the pin diagram on the same label. The specifications in this listing come from the manufacturer datasheet.
Q&A
Q: Is this 6-pin or 8-pin?
A: It is 8-pin. The "6-Lead" text on the bag label is a misprint; the device and the NTE datasheet are both 8-pin.
Q: Does it replace the ECG3087?
A: Yes. NTE lists ECG3087 and SK2087 as direct replacements.
Q: Does it include the original bag?
A: Yes. It ships in the original NTE labeled bag, as pictured.
DISCLAIMER
Item is sold as pictured. Please review all photos carefully and compare part numbers before purchasing.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of NTE Electronics or any other manufacturer listed. All brand names and part numbers are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
NTE3087, ECG3087, SK2087, optoisolator, optocoupler, optocoupler optoisolator, TTL optoisolator, logic gate output optocoupler, open collector optoisolator, 8-pin DIP optocoupler, NTE Electronics
Thank you for shopping with American Industrial Parts Group!
