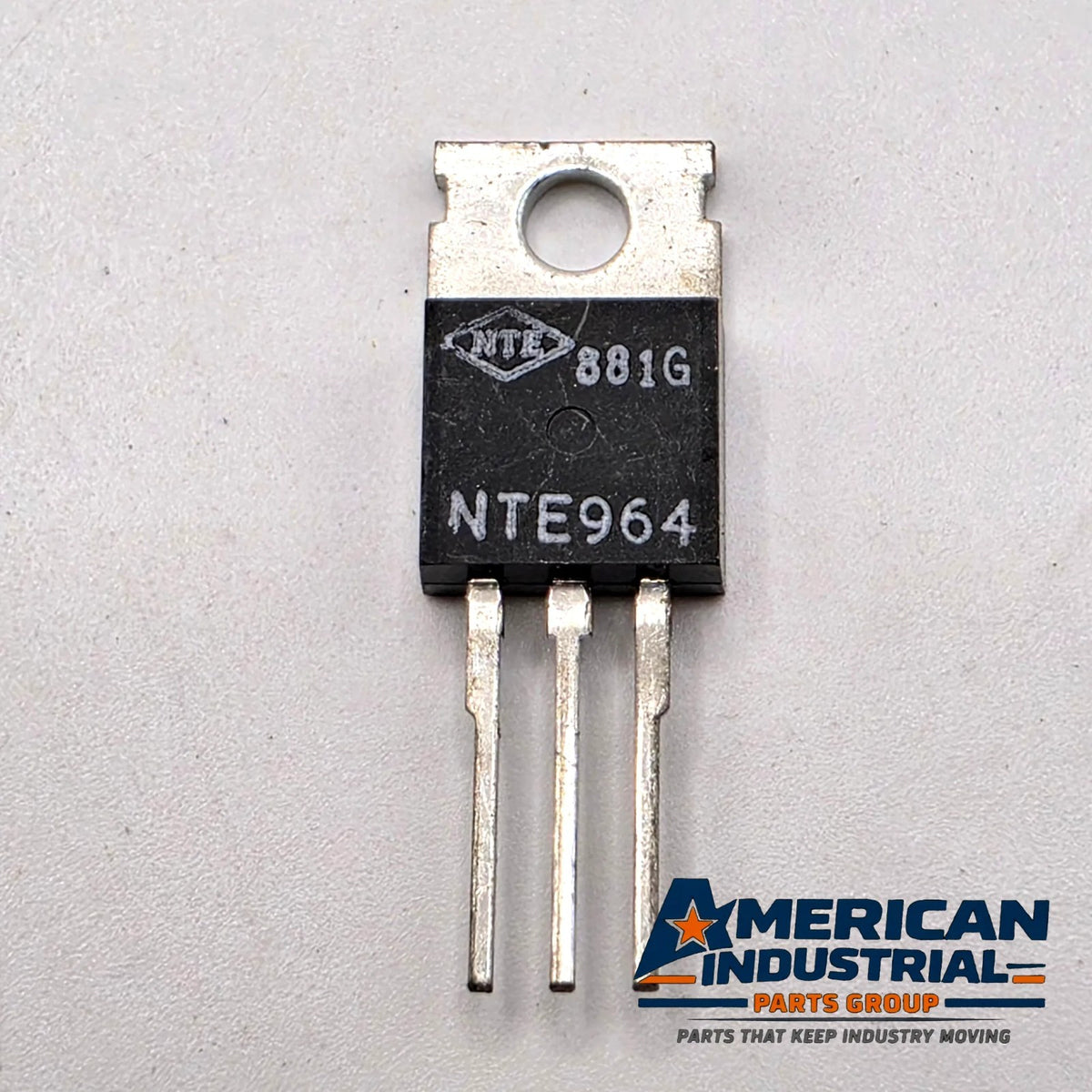

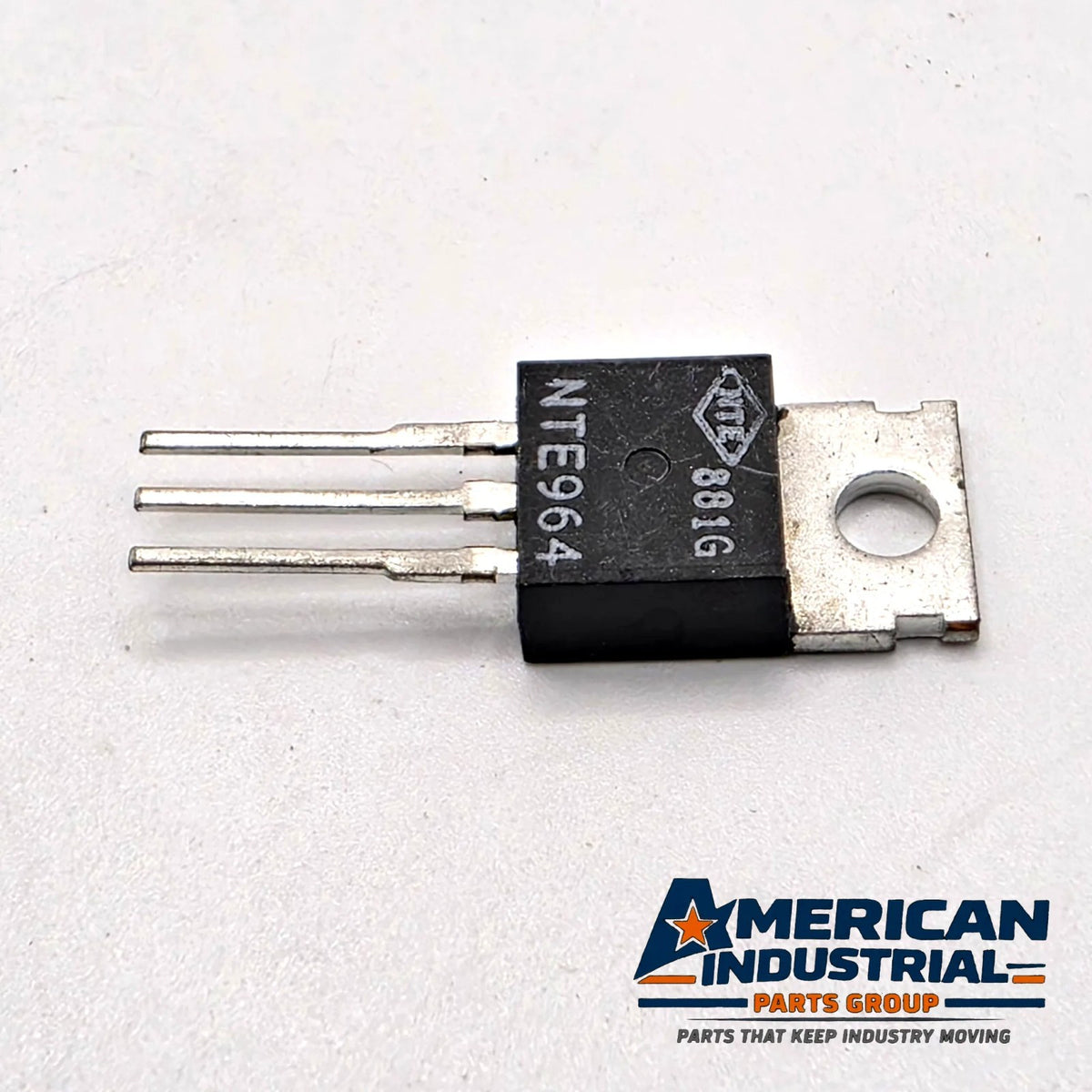

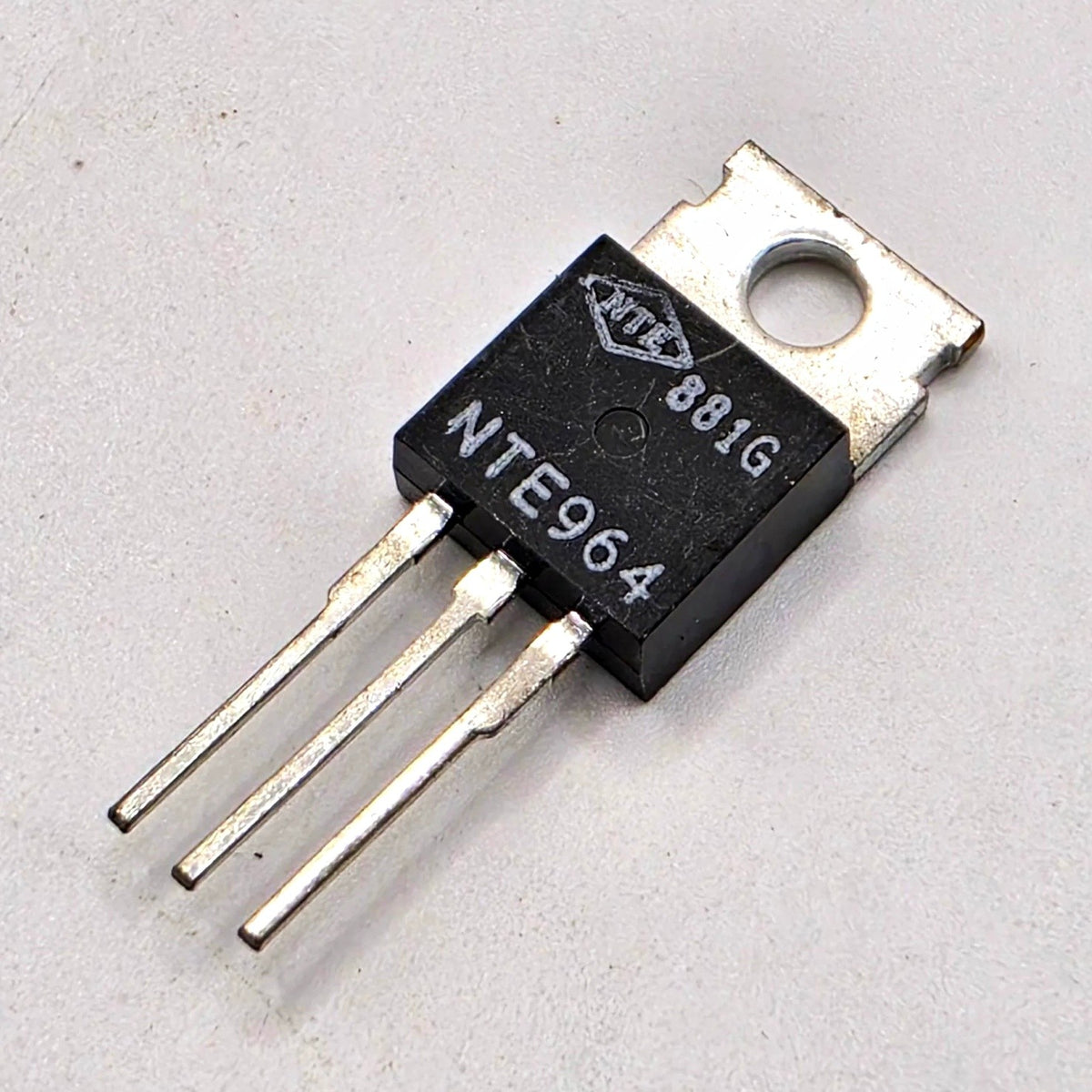

NTE Electronics NTE964 8V 1A Positive Voltage Regulator TO-220 7808 ECG964 New
NTE Electronics NTE964 8V 1A Positive Voltage Regulator TO-220 7808 ECG964 New
Regular price
$4.99 USD
Regular price
Sale price
$4.99 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: NTE Electronics
MPN: NTE964
Cross Reference: ECG964, SK3630, 7808
Type: 3-Terminal Fixed Positive Linear Voltage Regulator
Output Voltage: 8 V
Output Current: 1 A
Maximum Input Voltage: 35 V
Output Voltage Tolerance: 7.7 V to 8.3 V at 25°C
Operating Junction Temperature: −55°C to +150°C
Package: TO-220
Mounting: Through-Hole
Date Code: 881G
Condition: New
DESCRIPTION
NTE Electronics NTE964 8V 1A 3-Terminal Positive Voltage Regulator, TO-220.
Features:
Fixed +8 V output at 1 A or more, with adequate heatsinking
Output voltage: 7.7 V to 8.3 V at 25°C; 7.6 V to 8.4 V across the full line, load and power range
Maximum input voltage: 35 V DC
Internal thermal overload protection, short-circuit current limiting and output transistor safe-area compensation
Power dissipation is internally limited
Thermal resistance: 5°C/W junction-to-case and 65°C/W junction-to-ambient
Operating junction temperature: −55°C to +150°C
TO-220 package with a mounting tab
Date Code: 881G

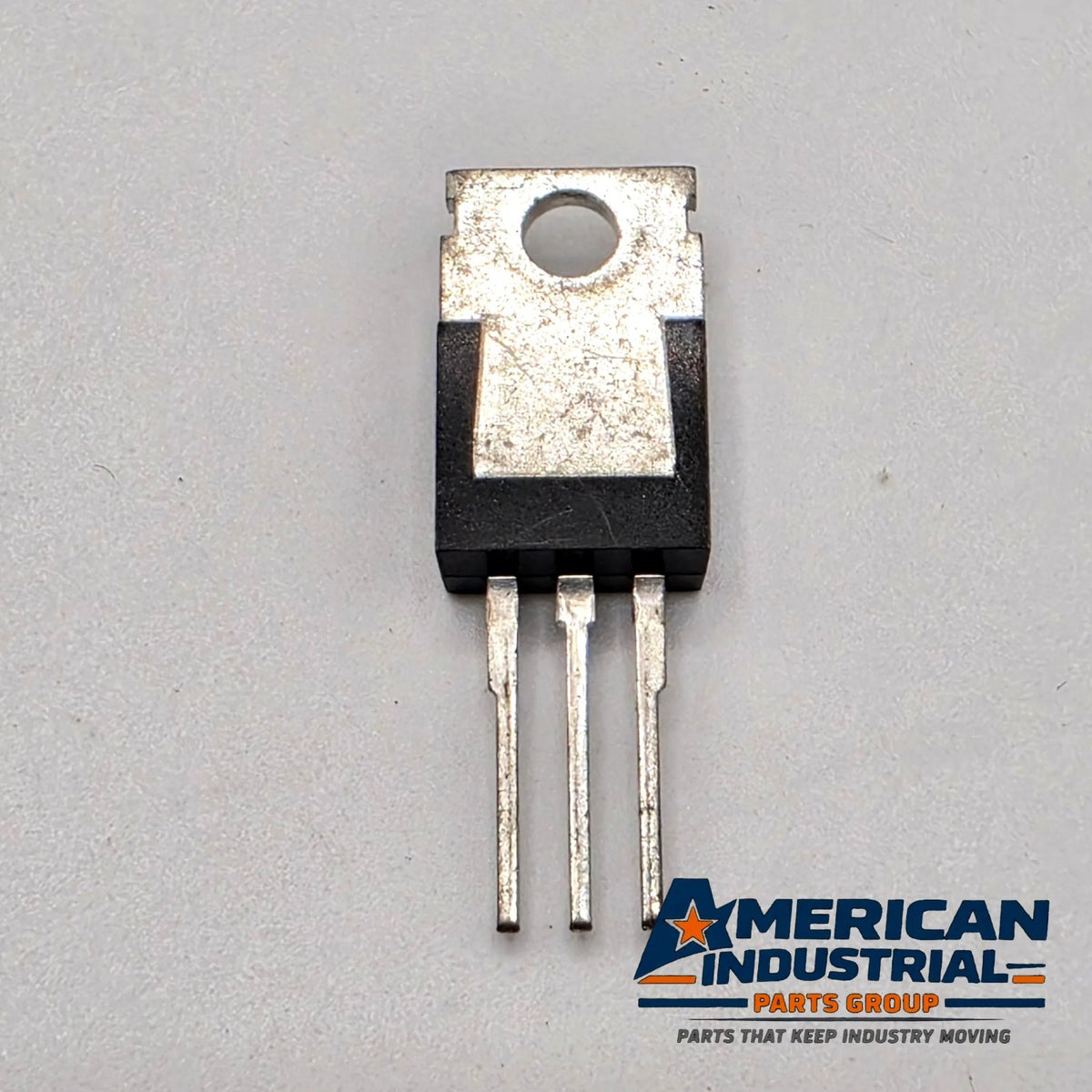

Unused. The leads are straight. The tab and the back of the body show light surface wear.
Compatibility:
Direct replacement for ECG964, SK3630, and 7808-type 8 V positive regulators (LM7808, MC7808, µA7808) in power supplies, audio equipment, TVs, test instruments and industrial controls.
Q&A
Q: Is this the same as a 7808?
A: It is an 8 V, 1 A, 3-terminal positive regulator in a TO-220 package, the same function as 7808-type regulators. Verify the pinout against your original part.
Q: Does it need a heatsink?
A: That depends on the load. Full 1 A operation needs adequate heatsinking.
Q: Is a mounting kit included?
A: No. The listing is for the regulator only.
DISCLAIMER
Please review all photos and specifications before purchasing, and make sure this part is right for your application. Item is sold as shown in the photos.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of NTE Electronics. All product names, trademarks, brands, and logos are the property of their respective owners and are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
NTE964 NTE 964 ECG964 SK3630 7808 LM7808 MC7808 8V voltage regulator 8 volt regulator TO-220 positive voltage regulator 1A NTE Electronics regulator 3 terminal regulator 7808 voltage regulator
Thank you for shopping with American Industrial Parts Group!
