Opto 22 G4IAC5 AC Input Module 120VAC 5V Logic G4 I/O 90-140VAC Used

ITEM SPECIFICS
Brand: Opto 22
Model: G4IAC5
MPN: G4IAC5
Series: G4
Type: Digital AC/DC Input Module
Nominal Input Voltage: 120 VAC
Input Voltage Range: 90–140 VAC or VDC
Input Current: 5 mA at maximum line
Off-State Input Allowed: 3 mA, 45 V
Input Resistance: 28 kΩ
Logic Voltage: 5 VDC nominal (4.5–6 VDC range)
Logic Supply Current: 12 mA
Output: Open-collector transistor, 50 mA max (sinking)
Output Voltage Drop: 0.4 V at 50 mA
Output Leakage: 100 µA at 30 VDC (no input)
Turn-On / Turn-Off Time: 20 ms / 20 ms
Isolation: 4000 Vrms input to output
Control Resistance (Rc): 220 Ω
Operating Temperature: -30°C to +70°C
Storage Temperature: -30°C to +85°C
Status Indicator: Built-in LED
Certifications: UL Recognized, CSA
Color: Yellow (Opto 22 AC input color code)
Condition: Used
Quantity: 1

DESCRIPTION

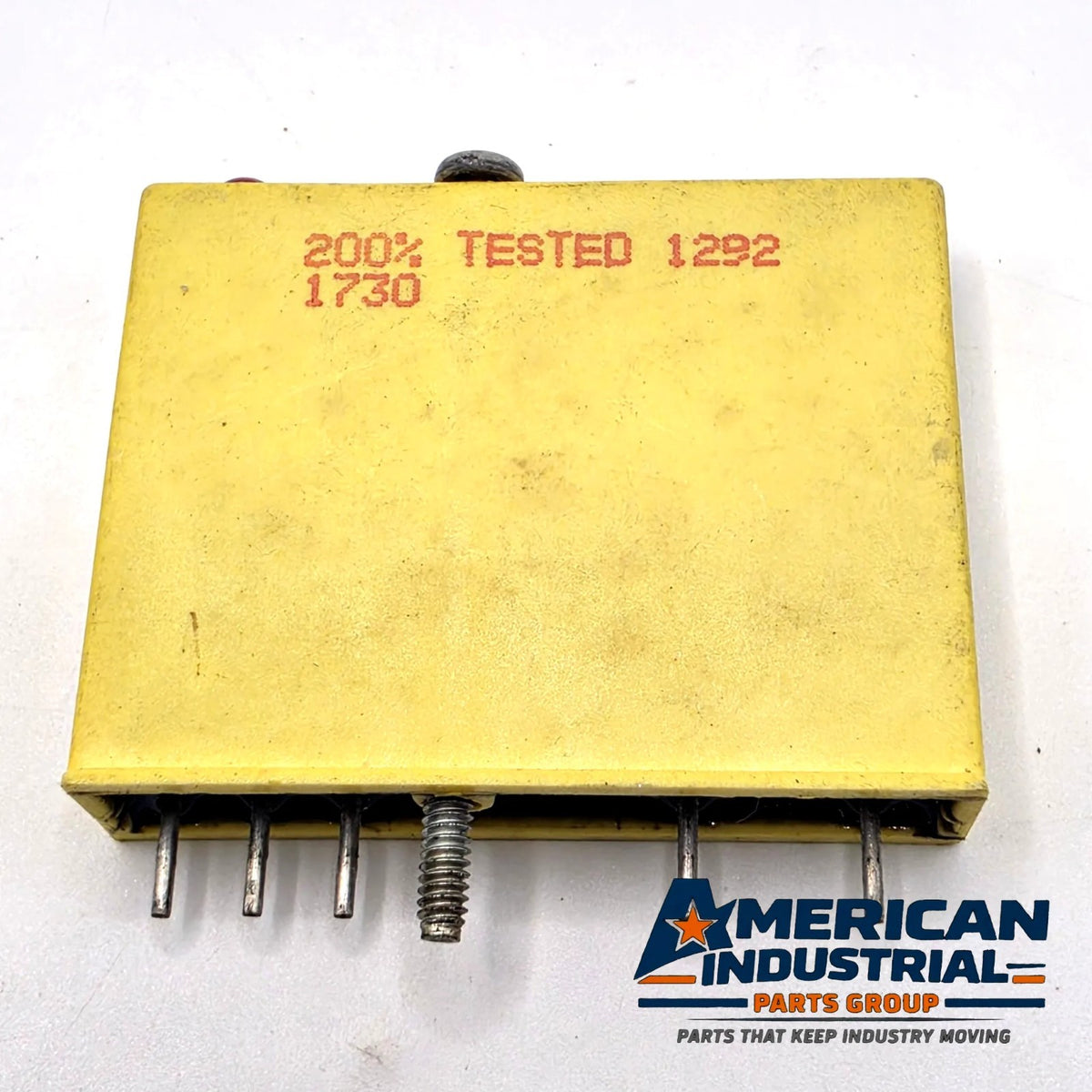

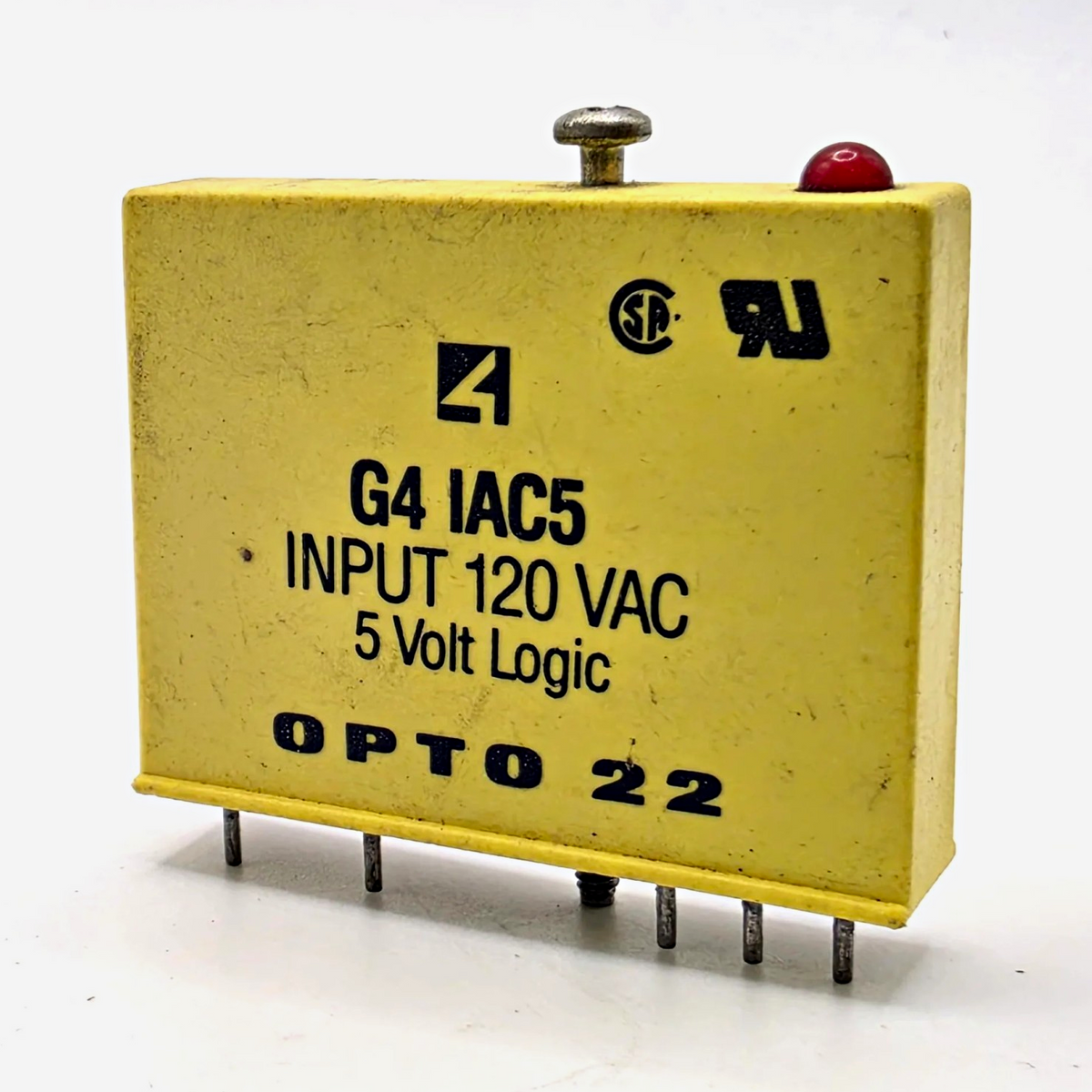

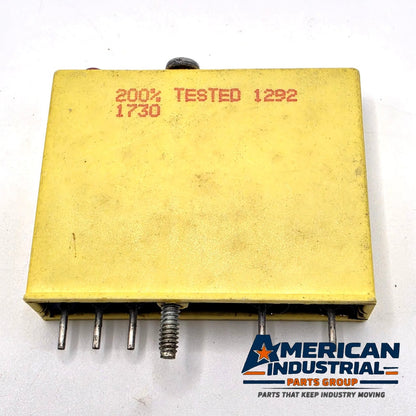

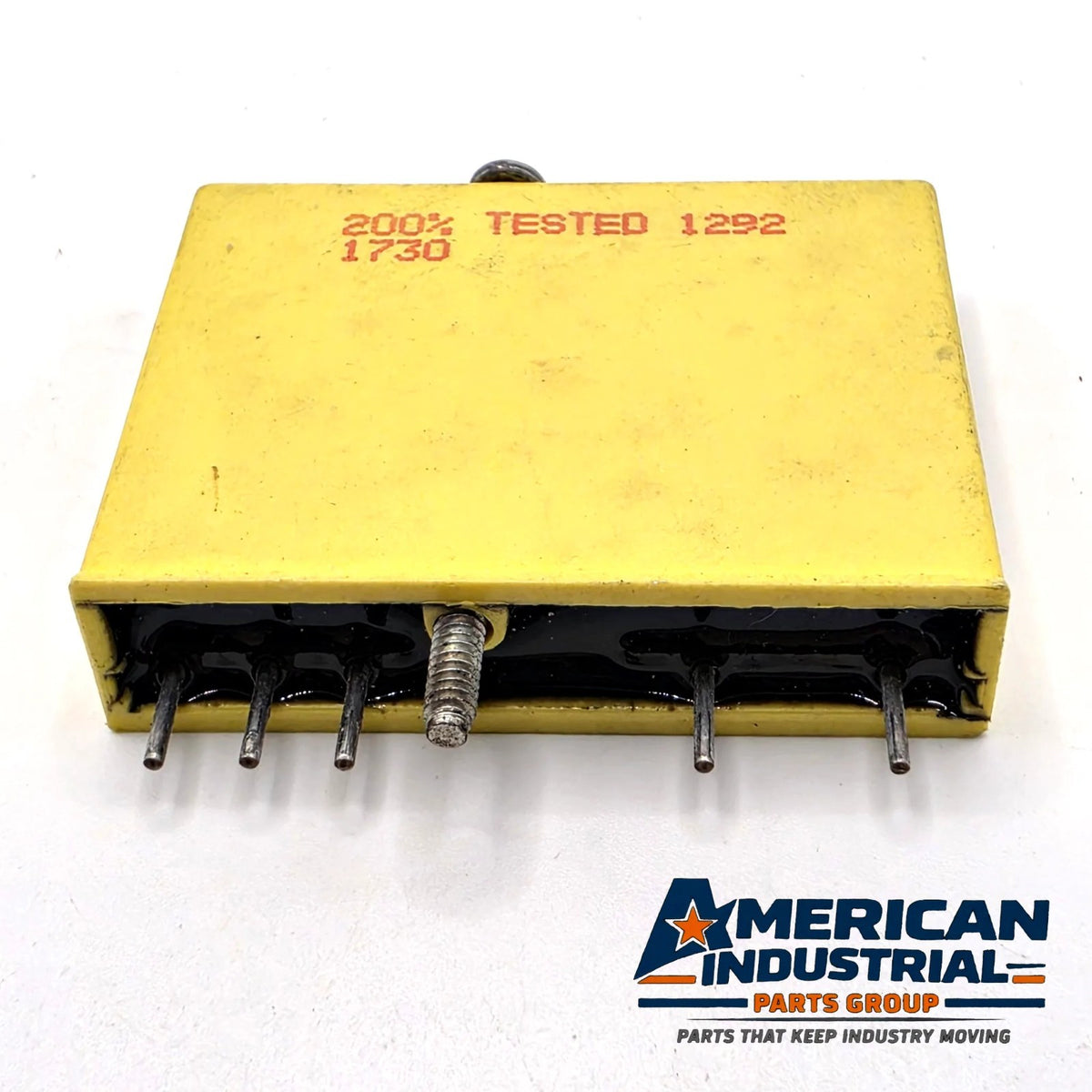

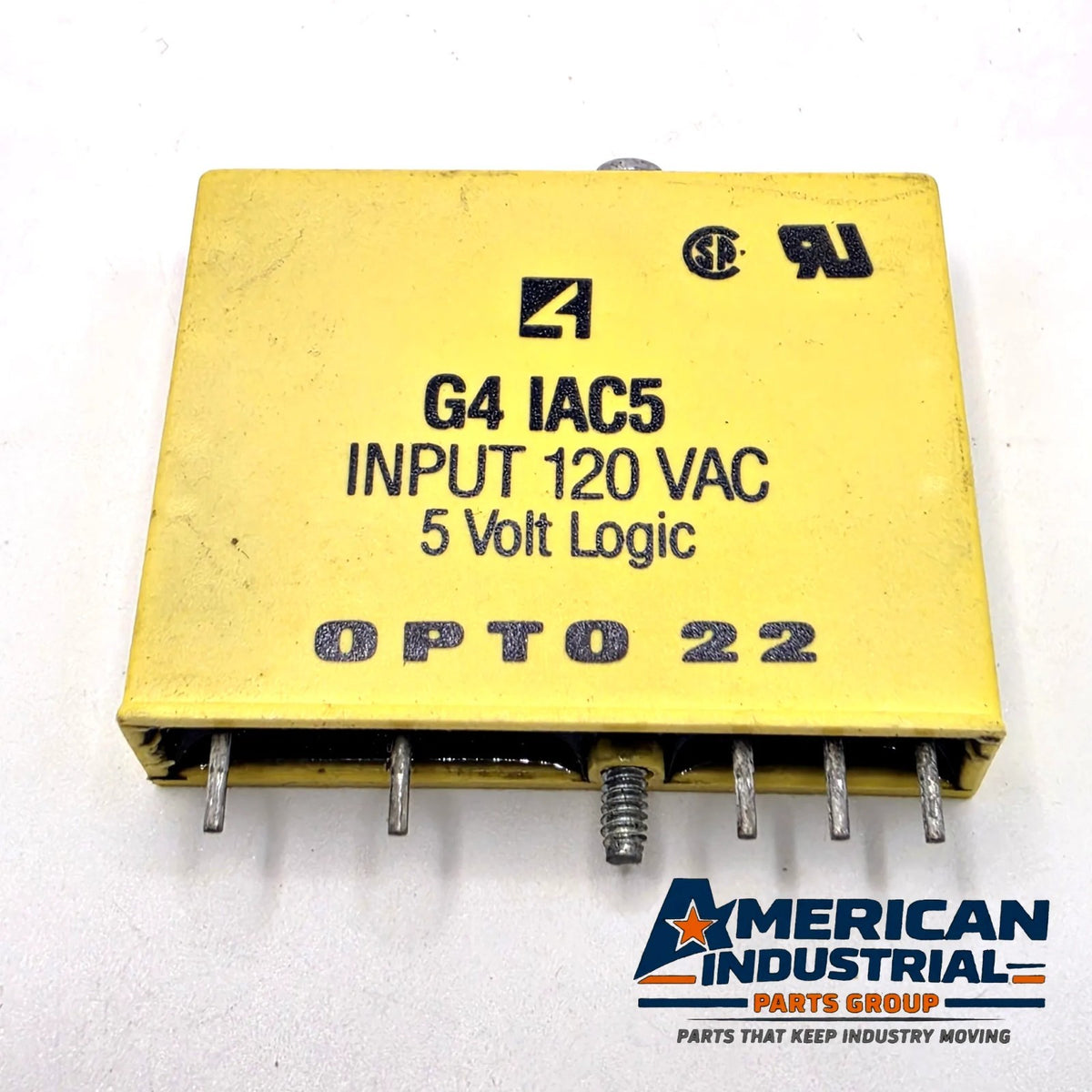

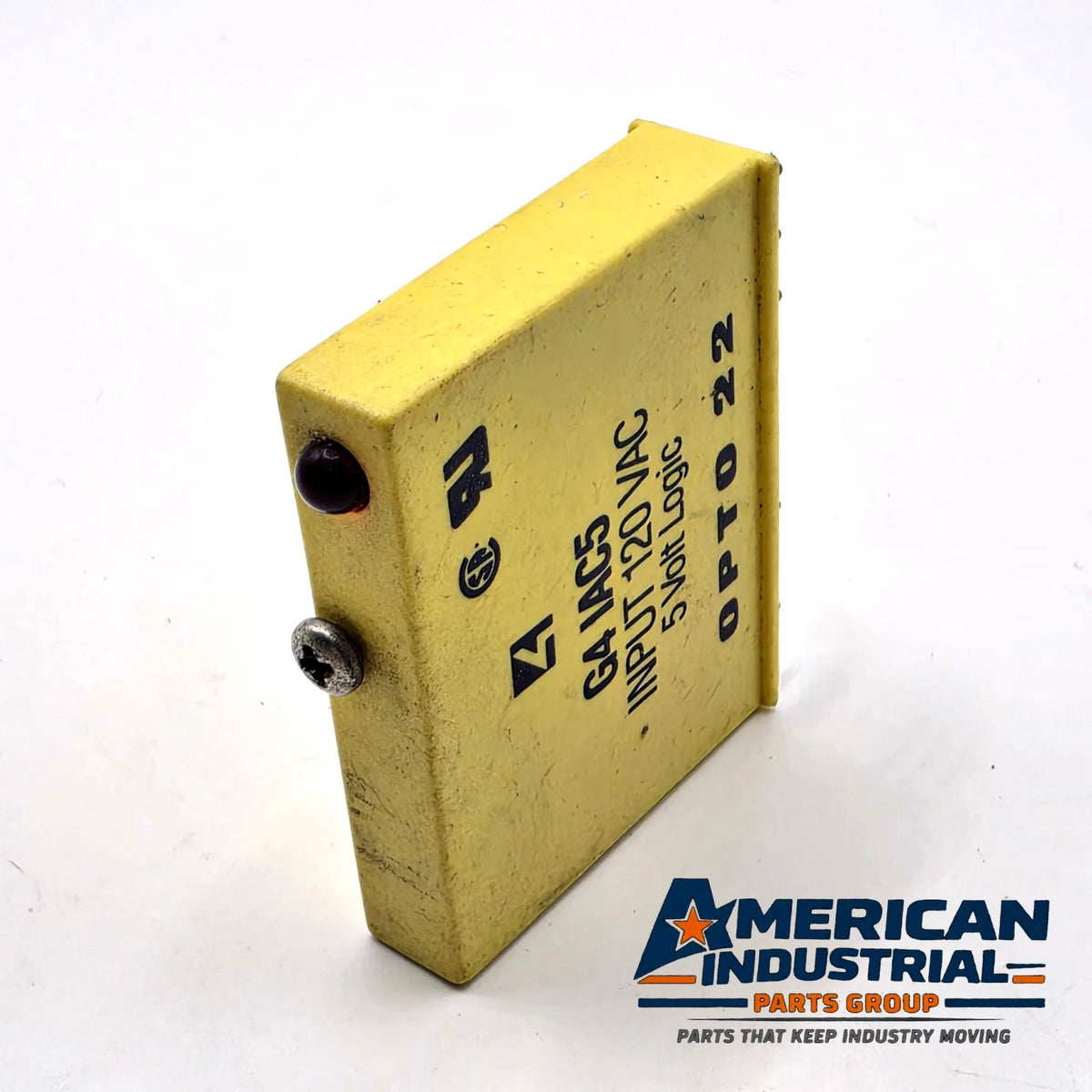

Used Opto 22 G4IAC5 G4 Series digital AC input module, rated 120 VAC input with 5 volt logic. The front reads "G4 IAC5, Input 120 VAC, 5 Volt Logic, Opto 22," with UL Recognized and CSA marks. The back carries a factory stamp reading "200% TESTED 1292 1730." The hold-down screw, status LED and pins are intact. Surface dust, light marks and minor discoloration on the yellow housing, as pictured.
The G4IAC5 detects on/off AC or DC voltage from 90 to 140 V and passes it to a 5 VDC logic system through 4000 Vrms optical isolation. Input filtering and a hysteresis amplifier give a clean logic signal from noisy field voltages. Use it to monitor push buttons, limit switches, motor starter auxiliary contacts and other 120 VAC devices. The module plugs into Opto 22 G4 I/O mounting racks.

Features:
Senses 90–140 VAC or VDC
5 VDC logic (4.5–6 VDC range)
4000 Vrms optical isolation, input to output
20 ms turn-on and turn-off
Open-collector transistor output, 50 mA sinking
Input filtering and hysteresis
Built-in status LED
Hold-down screw for rack mounting
UL Recognized, CSA

Compatibility:
Direct replacement for the Opto 22 G4IAC5 in G4 Series digital I/O mounting racks. The G4IAC5A is the 240 VAC version (180–280 V) and is not a 120 VAC equivalent. For 15 or 24 VDC logic racks, use the G4IAC15 or G4IAC24 instead. The G4 series uses a different form factor from Opto 22's standard and SNAP I/O modules, so confirm your rack type before ordering.

Q&A
Q: What does the G4IAC5 do?
A: It detects a 90–140 V AC or DC signal and converts it to an isolated 5 VDC logic signal for a controller or PLC.
Q: Can it sense DC voltage?
A: Yes. Opto 22 rates the input at 90–140 VAC or VDC.
Q: What is the difference between the G4IAC5 and the G4IAC5A?
A: The G4IAC5 is for 120 V signals (90–140 V). The G4IAC5A is for 240 V signals (180–280 V). Both use 5 VDC logic.
Q: How fast does it respond?
A: 20 ms turn-on and 20 ms turn-off.
Q: What logic voltage does it need?
A: 5 VDC nominal, with a 4.5–6 VDC range. It draws 12 mA.
