Opto 22 G4IDC5 Digital Input Module 10-32VDC 12-32VAC 5V Logic G4 I/O Used
Opto 22 G4IDC5 Digital Input Module 10-32VDC 12-32VAC 5V Logic G4 I/O Used
Regular price
$11.95 USD
Regular price
Sale price
$11.95 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Opto 22
Model: G4IDC5
MPN: G4IDC5
Series: G4
Type: Digital Input Module
Number of Input Channels: 1
DC Input Voltage: 10–32 VDC
AC Input Voltage: 12–32 VAC
Nominal Logic Voltage: 5 VDC
Logic Supply Range: 4.5–6 VDC
Maximum Input Current: 25 mA
Turn-On Time: 5 ms
Turn-Off Time: 5 ms
Status Indicator: Built-In LED
Connection Type: Plug-In Pins
Mounting: Compatible G4 I/O Rack
Condition: Used
Quantity: 1 Module
DESCRIPTION
Opto 22 G4IDC5 single-channel digital input module for interfacing field signals with a 5-volt logic system. Detects on/off voltage signals from devices such as proximity switches, limit switches, pushbuttons, and photoelectric switches.
Used module with visible scuffs, discoloration, and surface dirt.
Marked 10–32 VDC input and 5 Volt Logic.
Manufacturer also specifies 12–32 VAC input capability.
Built-in LED status indicator.
Plug-in connection pins and captive retaining screw.
Includes one module as pictured. Mounting rack and accessories are not included.
COMPATIBILITY & CROSS-REFERENCE
Direct replacement for the Opto 22 G4IDC5 in G4 Series digital I/O mounting racks. The G4IDC5D is a different module, with a 2.5–28 VDC input and faster 1 ms turn-on and 1.5 ms turn-off, so it is not a direct substitute. For 15 or 24 VDC logic systems, use the G4IDC15 or G4IDC24 instead. G4 modules do not fit Opto 22 standard-series (PB) or SNAP racks, so confirm your rack type before ordering.
Q&A
Q: What does the G4IDC5 do? A: It detects a 10–32 VDC or 12–32 VAC field signal and converts it to an isolated 5 VDC logic signal.
Q: What is the difference between the G4IDC5 and the G4IDC5D? A: The G4IDC5D accepts 2.5–28 VDC and switches faster (1 ms on, 1.5 ms off). The G4IDC5 is the 10–32 VDC version with 5 ms response.
Q: Will it fit a standard Opto 22 PB rack? A: No. It needs a G4 rack.
DISCLAIMER

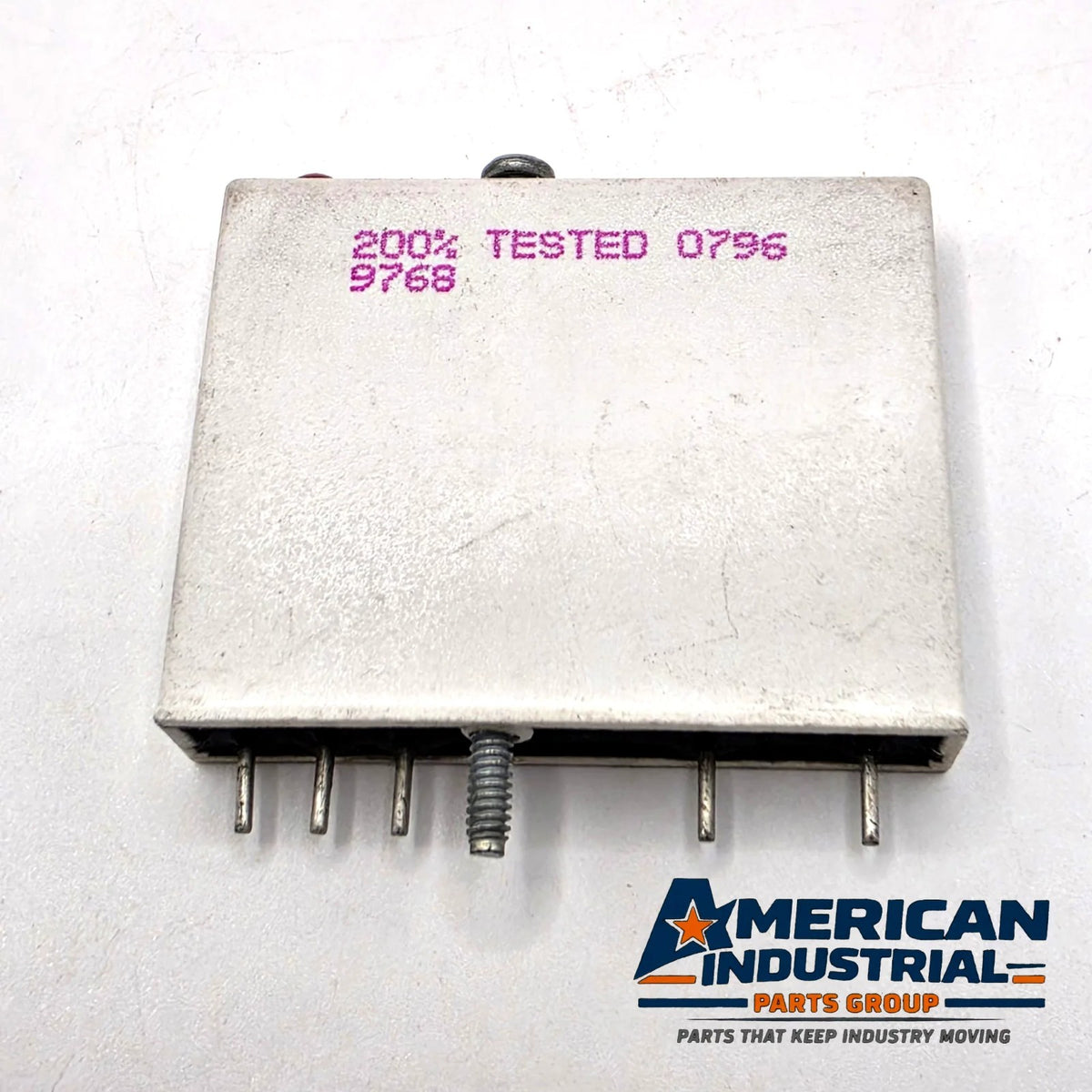

Used item with physical condition shown in the photographs. No claim of functional testing is made. The printed factory test marking does not establish present operating condition. Buyer is responsible for verifying voltage requirements, pin configuration, and compatibility with the intended G4 mounting rack and control system.
LEGAL DISCLAIMER
American Industrial Parts Group is an independent reseller and is not an authorized distributor or representative of Opto 22. All manufacturer names, trademarks, and product designations belong to their respective owners and are used solely for identification. Manufacturer warranty coverage is not guaranteed.
Opto 22 G4IDC5 digital input module, Opto22 G4 IDC5, G4-IDC5 input module, 10-32VDC input 5V logic, 12-32VAC input module, G4 series solid-state I/O, single-channel discrete input, optically isolated input interface, plug-in G4 rack module, industrial control input module, proximity switch interface, limit switch input, photoelectric sensor input, control panel replacement module, input not detecting replacement.
Thank you for shopping with American Industrial Parts Group!
