Opto 22 G4IDC5D DC Input Module 2.5-28VDC 5V Logic G4 Digital I/O Used
Opto 22 G4IDC5D DC Input Module 2.5-28VDC 5V Logic G4 Digital I/O Used
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Shipping calculated at checkout.
5 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Opto 22
MPN: G4IDC5D
Model: G4IDC5D
Series: G4 Digital I/O
Type: DC Input Module
Input Voltage Range: 2.5–28 VDC
Logic Voltage: 5 VDC (4.5–6 VDC)
Input Current: 30 mA max
Turn-On / Turn-Off Time: 1 ms / 1.5 ms
Isolation: 4000 V transient / 1500 V for 1 minute
Operating Temperature: -30 °C to +70 °C
Case Color: White
Indicator: LED
Certifications: UL Recognized, CSA
Quantity: 1
Condition: Used
DESCRIPTION

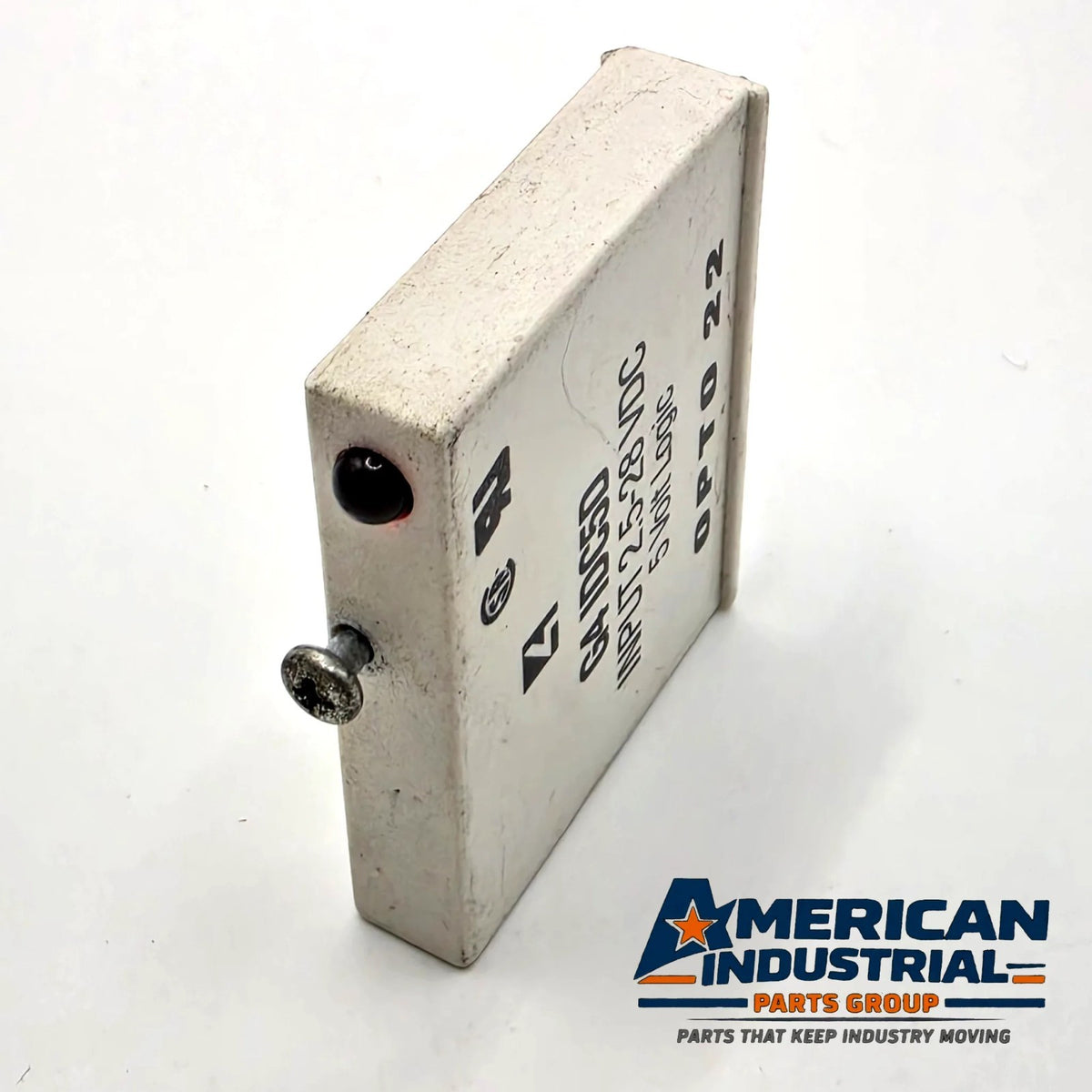

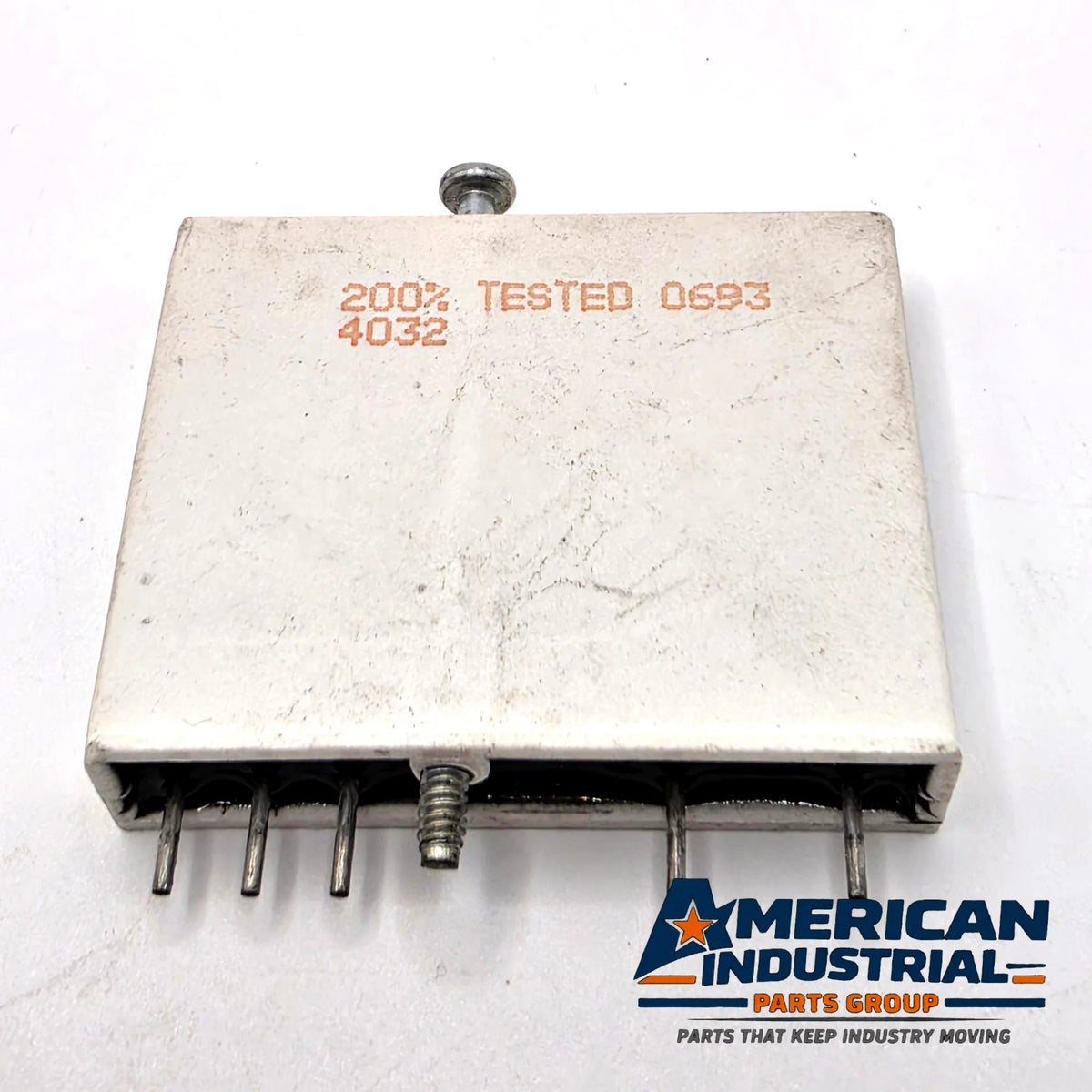

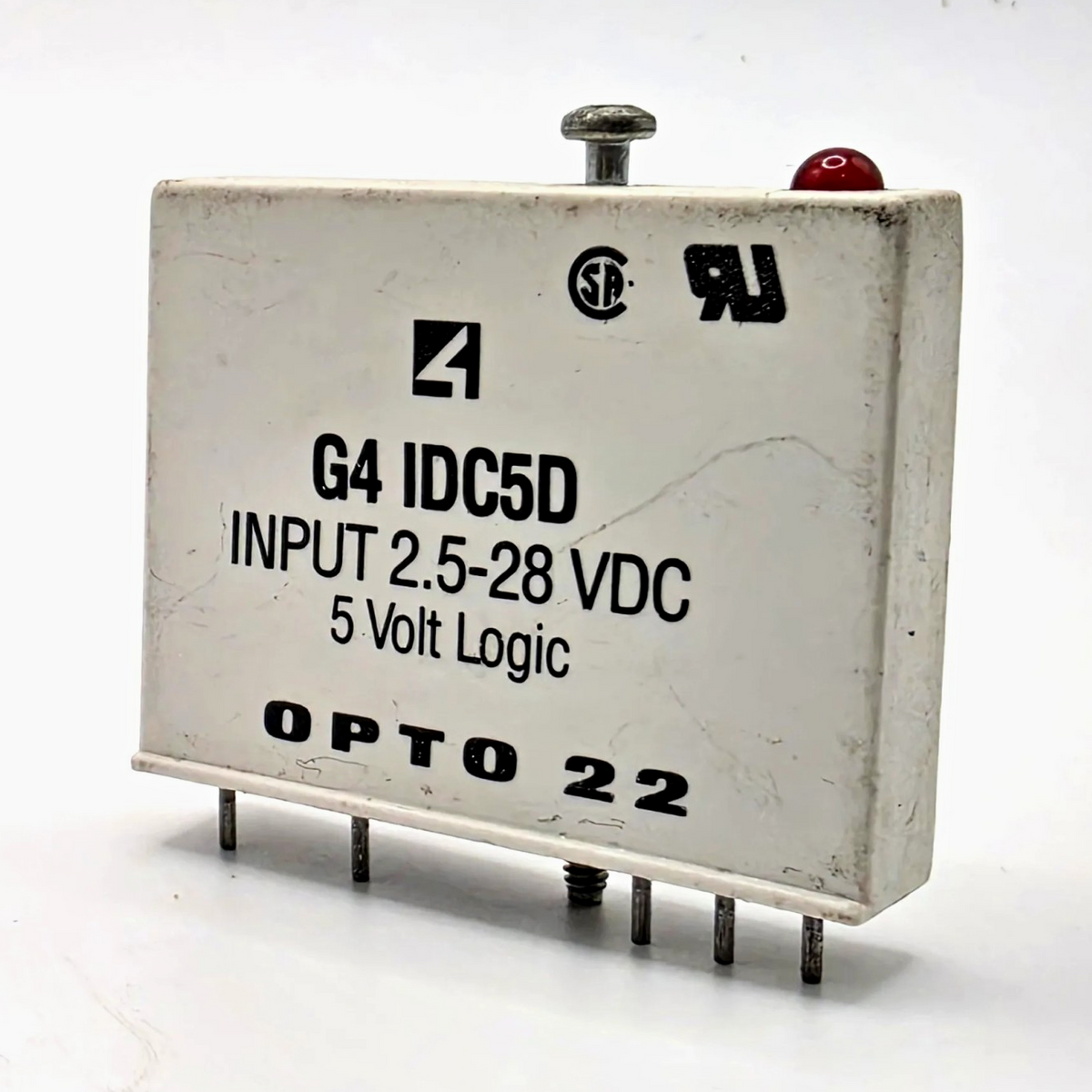

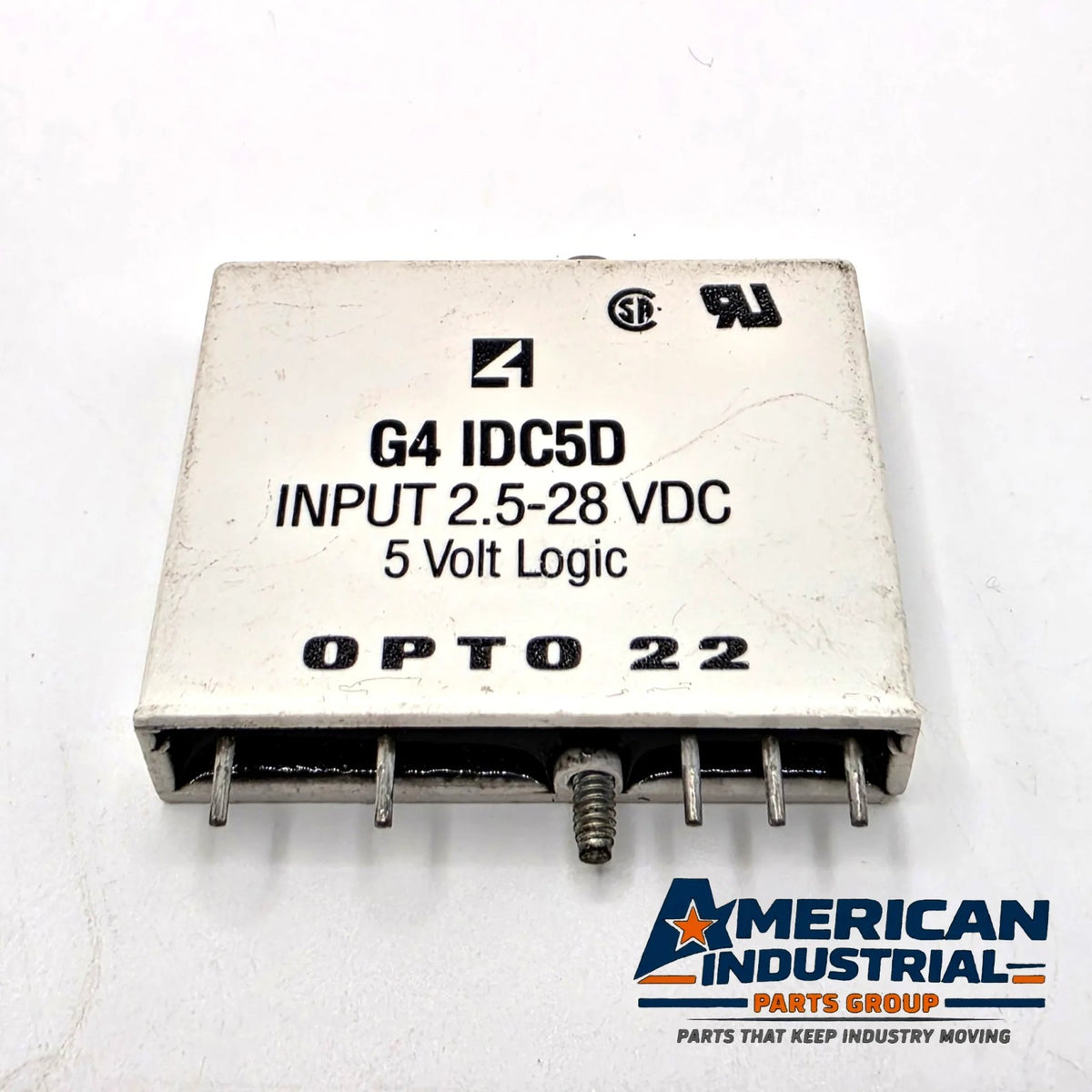

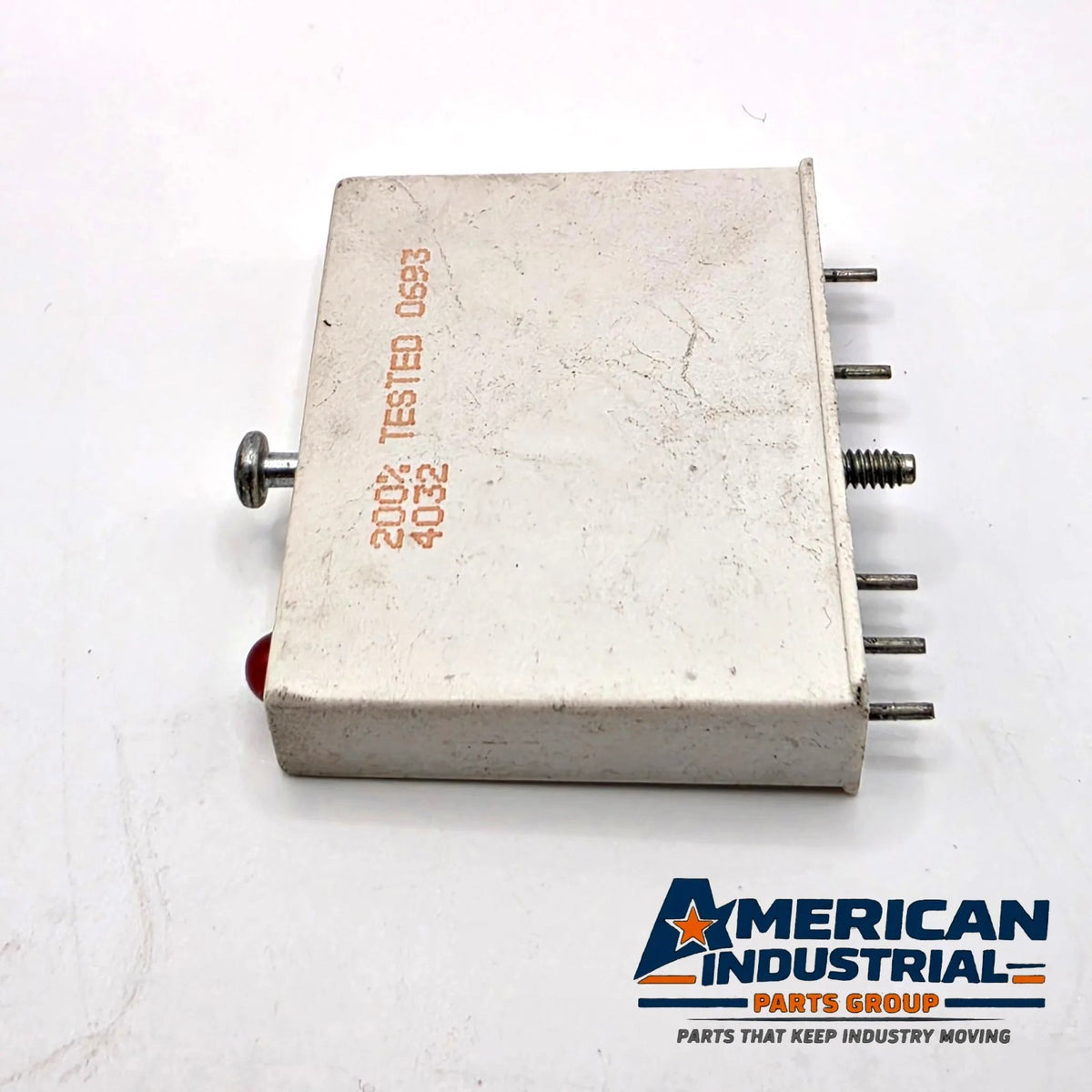

This is a used Opto 22 G4IDC5D G4 series digital DC input module, rated 2.5–28 VDC input with a 5-volt logic output. It was pulled from working equipment. The case shows handling marks, light scuffs and smudges. All pins and the hold-down screw are intact. The back is printed "200% TESTED 0693 4032."
Features:
Senses DC field signals from 2.5 to 28 VDC
5 VDC logic output (4.5–6 VDC range), 12 mA logic supply current
Fast response: 1 ms turn-on, 1.5 ms turn-off
No input filtering or hysteresis, which suits data-acquisition and lower-voltage sensing
Optical isolation: 4000 V transient, 1500 V for 1 minute

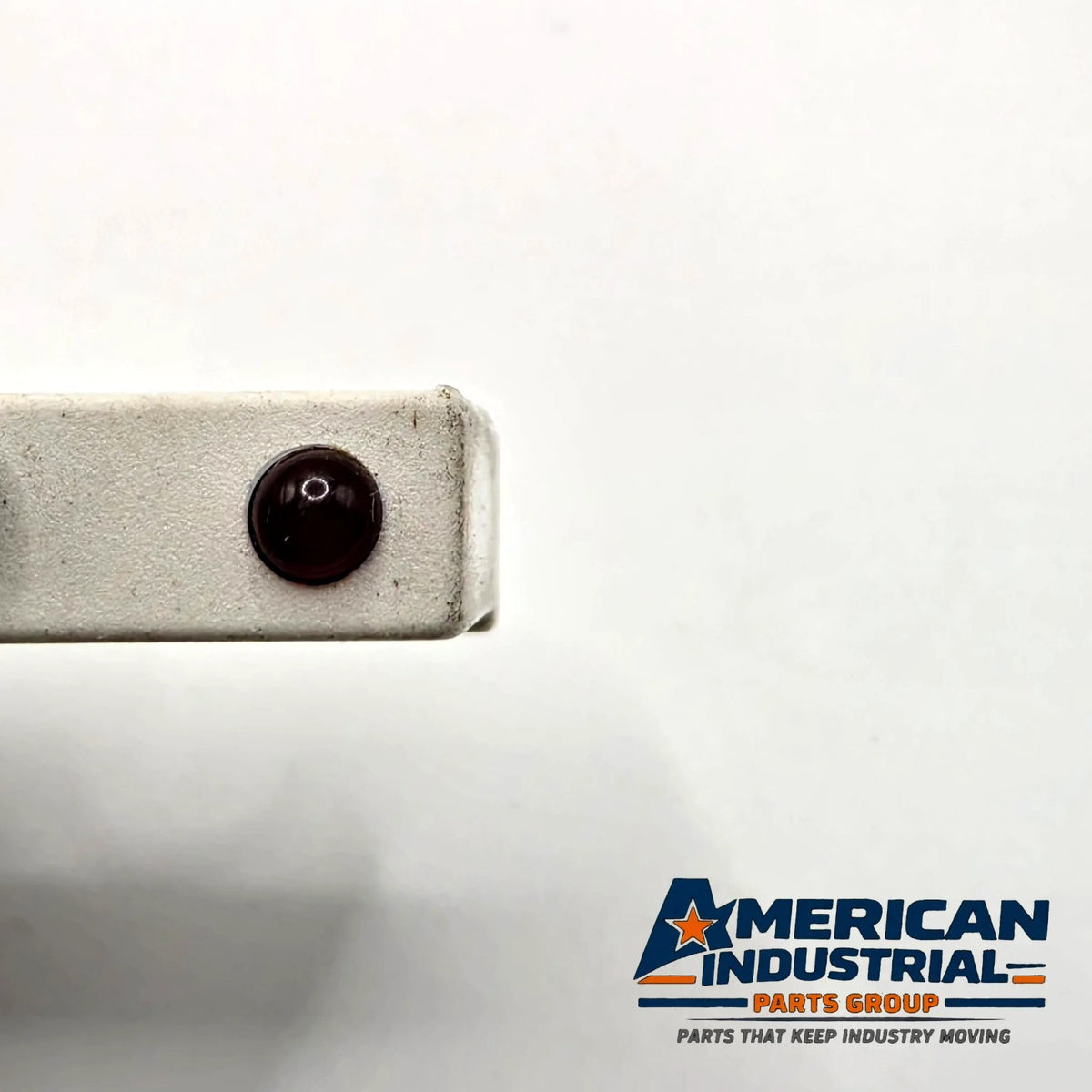

Built-in LED status indicator
Captive hold-down screw
Operating temperature: -30 °C to +70 °C
Compatibility:
Plugs into Opto 22 G4 series I/O mounting racks (G4PB4, G4PB8, G4PB16, G4PB24 and similar) and the Opto 22 Raspberry Pi Digital I/O Carrier Board. It isn't interchangeable with standard-series (non-G4) or SNAP modules. It isn't a direct substitute for the G4IDC5 (10–32 VDC, filtered, 5 ms response), so confirm your application before swapping.
Q&A
Q: What's the difference between the G4IDC5D and the G4IDC5?
A: The G4IDC5D accepts a lower input range (2.5–28 VDC) and switches faster (1 ms / 1.5 ms). It has no input filtering or hysteresis. The G4IDC5 is the general-purpose 10–32 VDC version with filtering and 5 ms response.
Q: Will this work in a standard Opto 22 PB rack?
A: No. It's a G4 series module and needs a G4 rack.
Q: Is the hold-down screw included?
A: Yes, the screw is captive in the module.
Q: Has this been tested?
A: It was pulled from working equipment and sold as used.
DISCLAIMER
The item shown in the photos is the exact item you will receive. Please review all photos and the description carefully before purchasing. Specifications are given for reference; verify compatibility with your equipment before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of Opto 22. Brand names, trademarks and part numbers are used for identification purposes only. Electrical components should be installed by qualified personnel in accordance with applicable codes.
g4idc5d, G4 IDC5D, Opto 22 G4IDC5D, Opto22 G4IDC5D, opto 22 g4 input module, G4 DC input module, 2.5-28 VDC input module, 5V logic input module, opto 22 digital I/O, G4PB16 module, G4IDC5 alternative, solid state I/O module
Thank you for shopping with American Industrial Parts Group!
