Opto 22 G4OAC5 AC Output Module 120VAC 3A 5V Logic G4 Solid State I/O Used

ITEM SPECIFICS
Brand: Opto 22
Model: G4OAC5
MPN: G4OAC5
Series: G4
Type: Digital AC Output Module (Solid State)
Nominal Line Voltage: 120 VAC
Operating Output Voltage Range: 12–140 VAC
Current Rating: 3 A at 45°C; 2 A at 70°C
UL Motor Load Rating: 1.5 A
Logic Voltage: 5 VDC nominal (4–8 VDC range)
Logic Input Current: 12 mA nominal
Control Resistance: 220 Ω
One-Cycle Surge: 80 A peak
Off-State Leakage: 5 mA RMS at 60 Hz
Minimum Load Current: 20 mA
Switching: Zero-voltage turn-on, zero-current turn-off
Isolation: 4000 V transient; 1500 V for 1 minute
Operating Temperature: -30°C to +70°C
Status Indicator: Built-in LED
Fuse: Removable 4A 250V (installed)
Certifications: UL Recognized, CSA
Condition: Used
Quantity: 1

DESCRIPTION

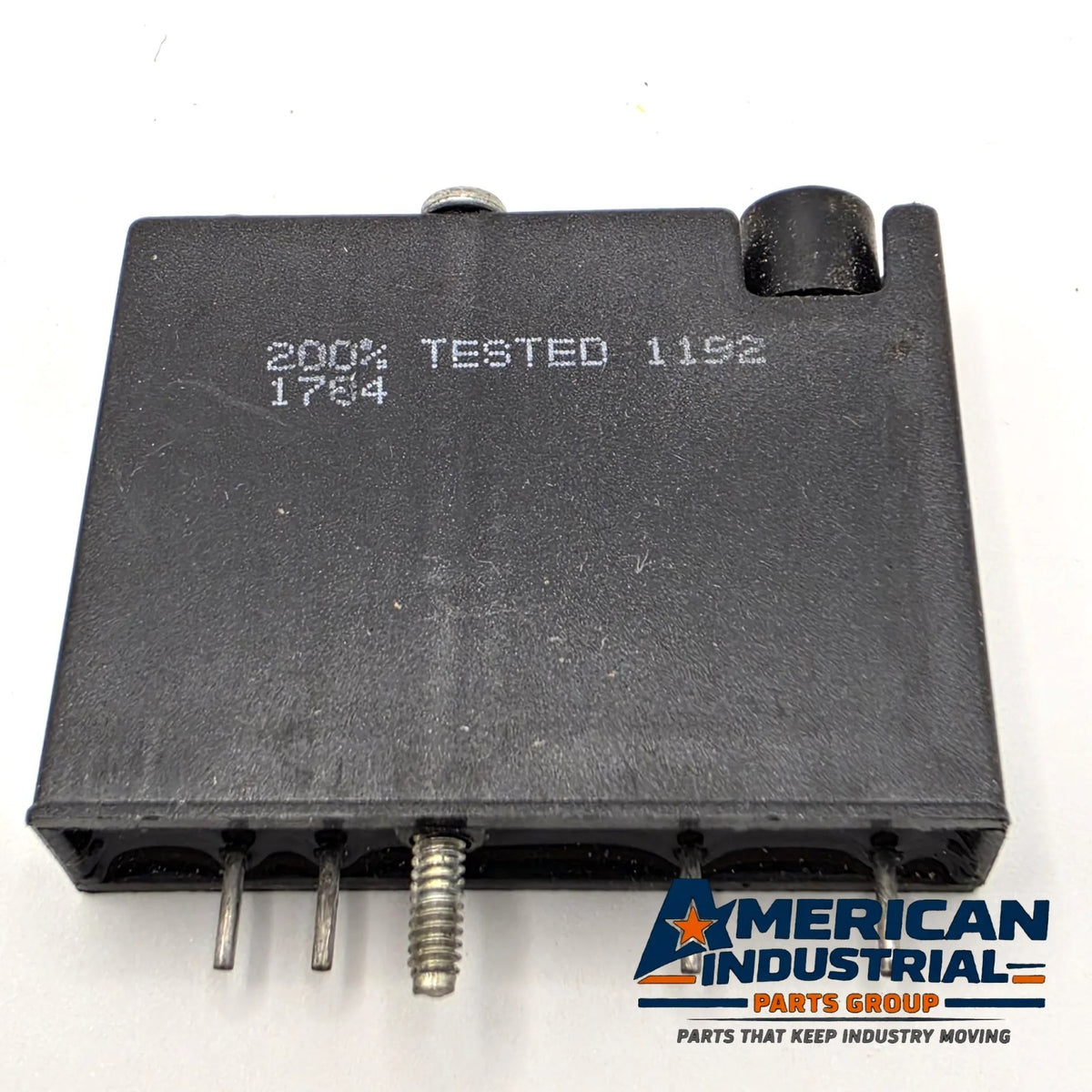

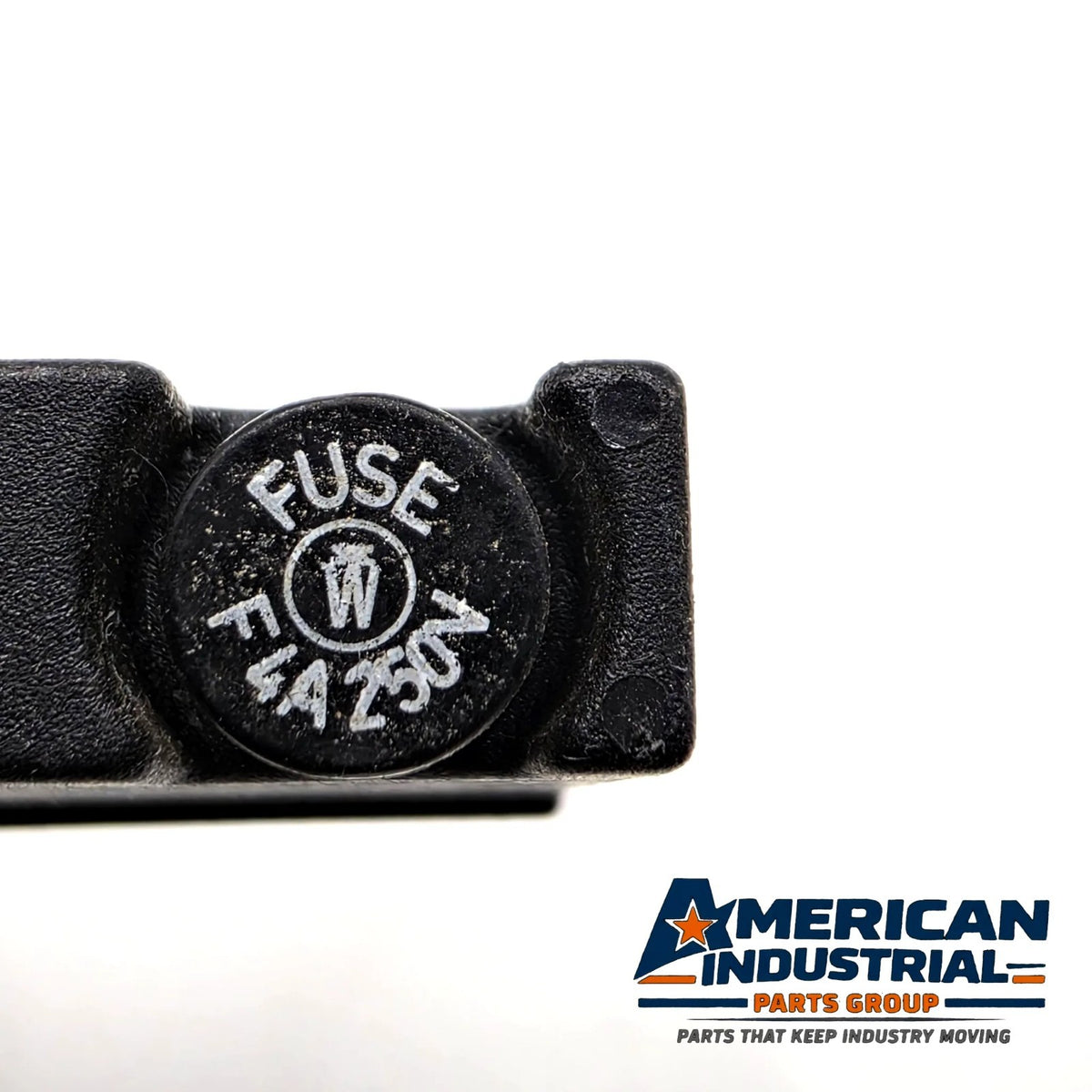

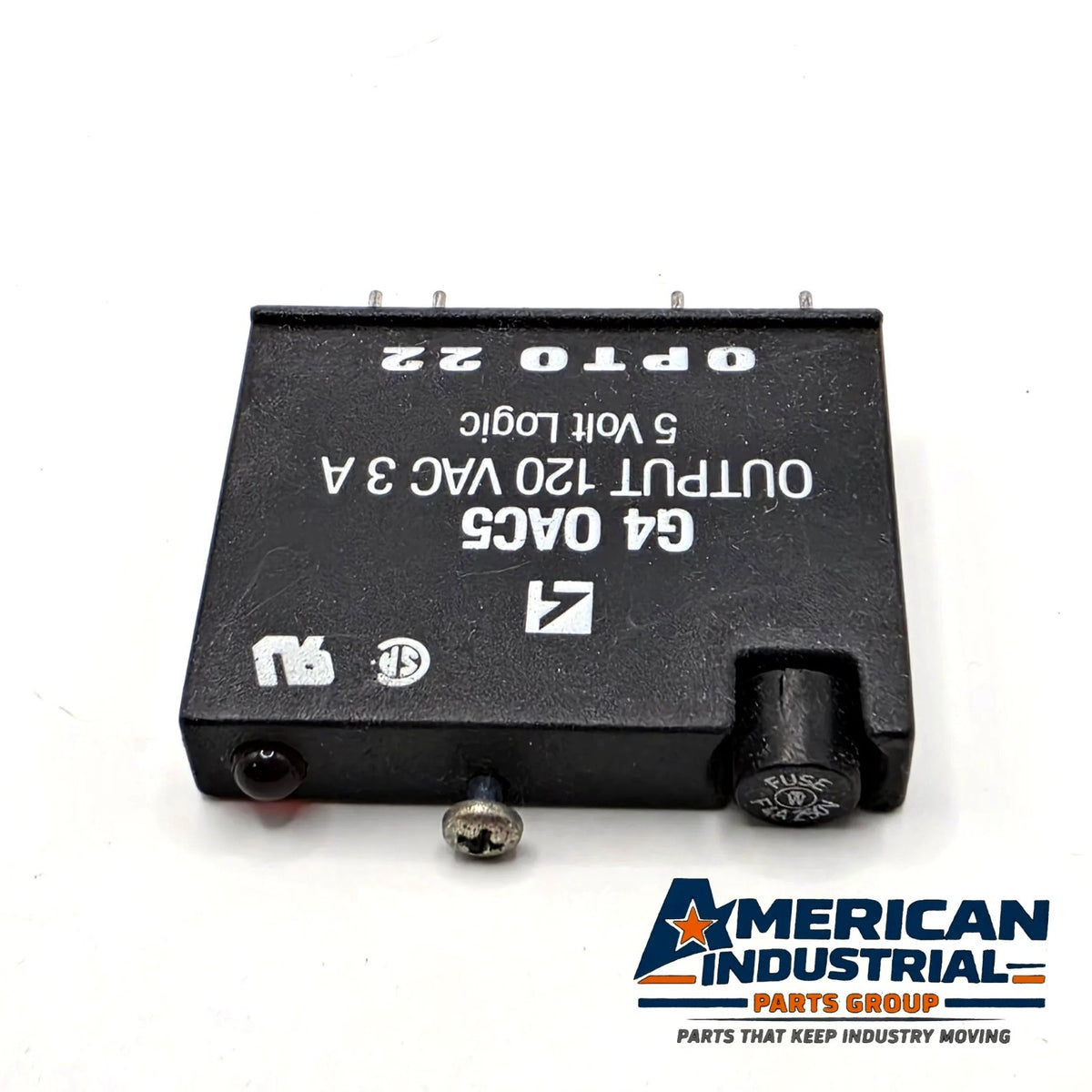

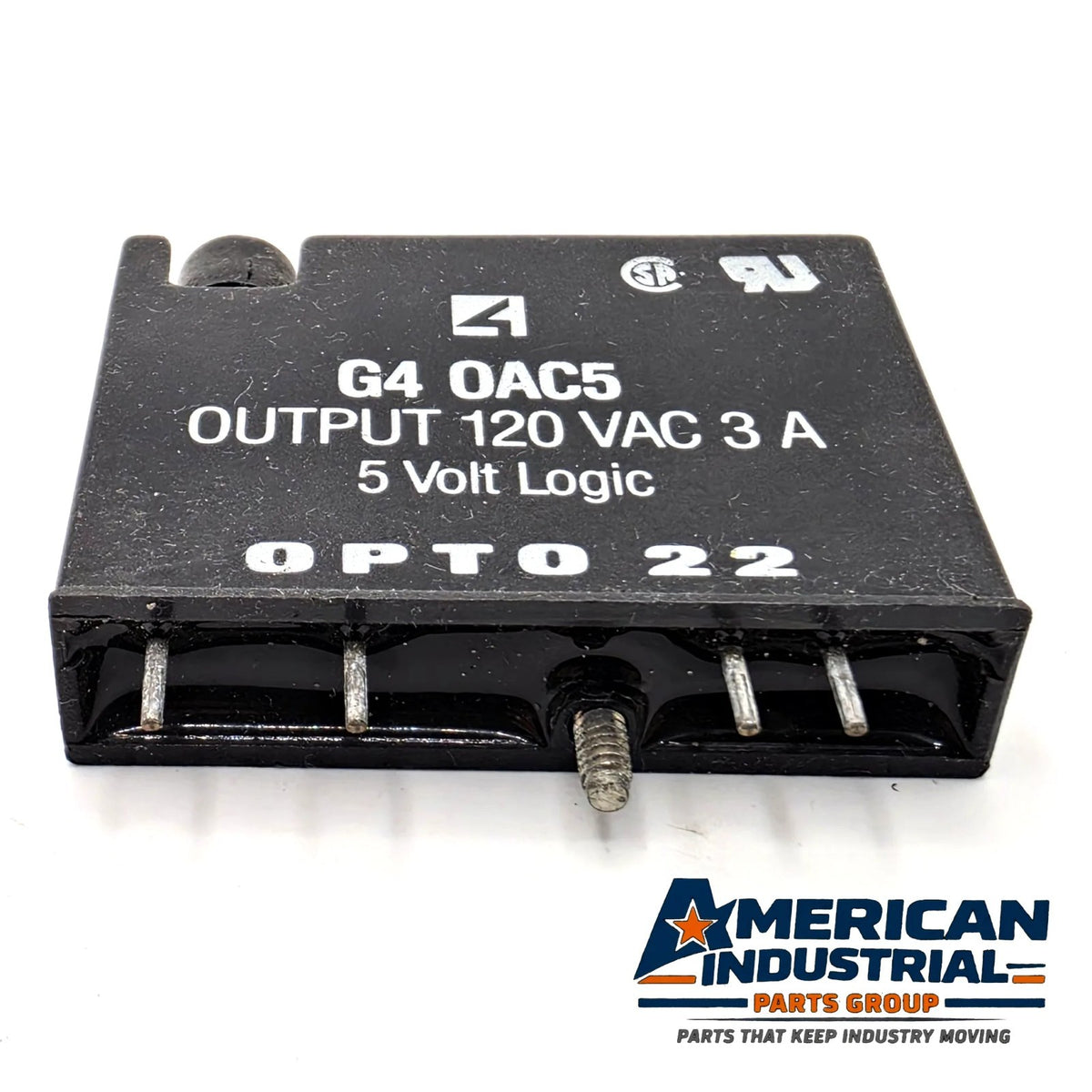

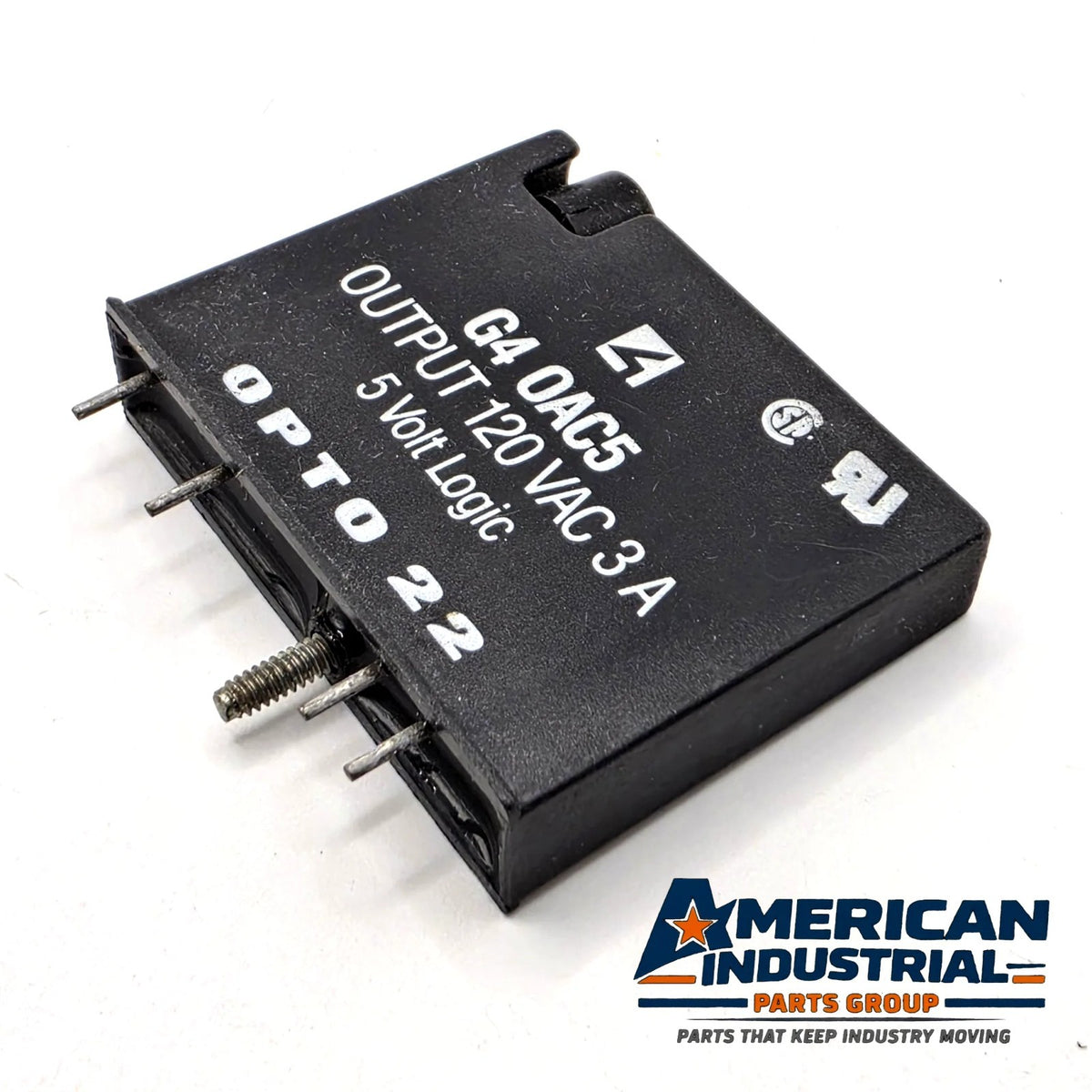

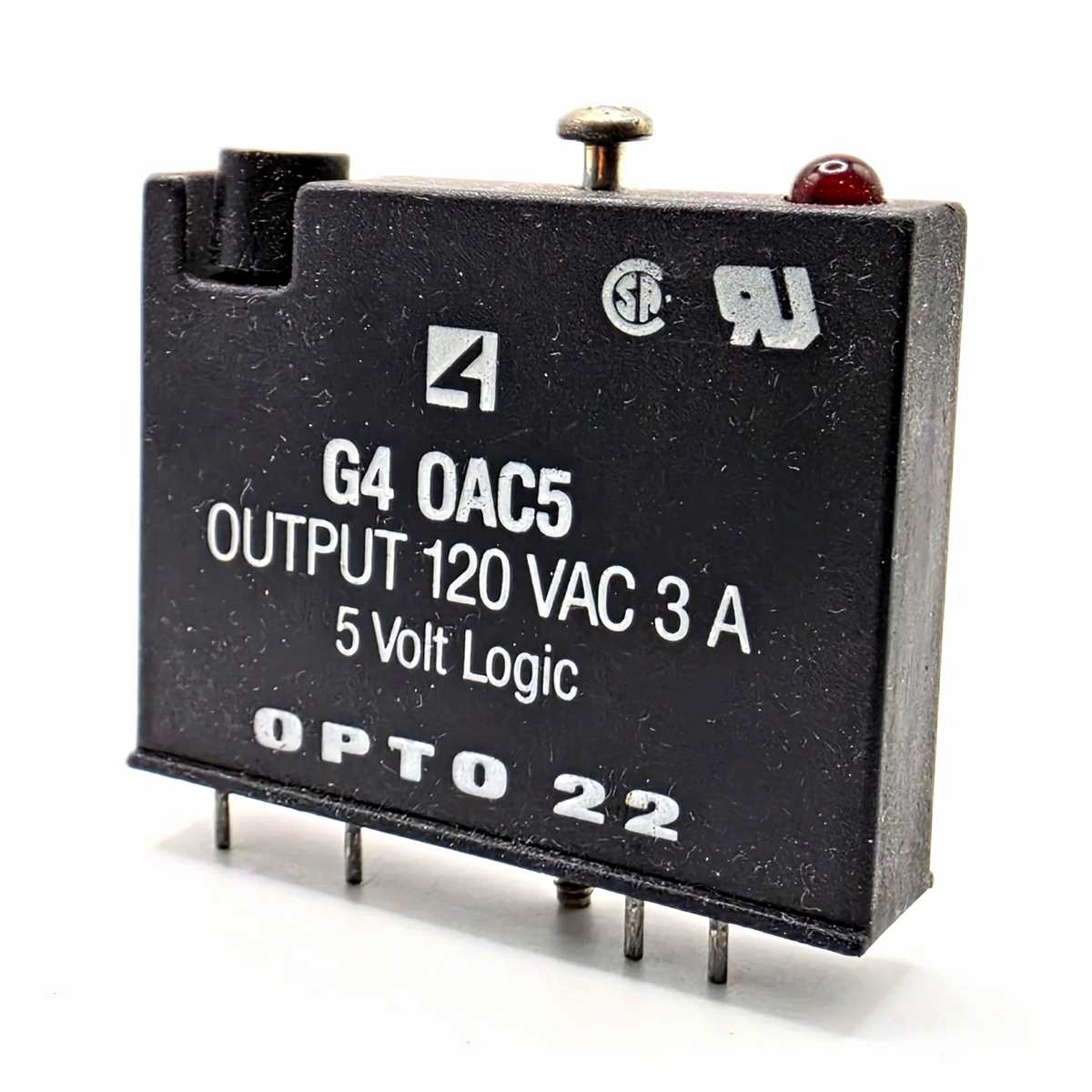

Used Opto 22 G4OAC5 G4 Series digital AC output module, rated 120 VAC 3 A with 5 volt logic. The front reads "G4 OAC5, Output 120 VAC 3 A, 5 Volt Logic, Opto 22," with UL Recognized and CSA marks. The back carries the factory "200% TESTED 1192" stamp. The removable fuse, marked 4A 250V, is installed, and the hold-down screw, status LED and pins are intact. Light surface dust and handling marks on the housing, as pictured.

The G4OAC5 is a solid-state output module that switches AC loads from 12 to 140 VAC under a 5 VDC logic signal. Zero-voltage turn-on and zero-current turn-off reduce electrical noise. The module plugs into Opto 22 G4 I/O mounting racks.

Features:
Switches 12–140 VAC loads
3 A at 45°C, 2 A at 70°C
5 VDC logic control (4–8 VDC range)
Zero-voltage turn-on, zero-current turn-off
4000 V transient optical isolation
80 A peak one-cycle surge rating
Built-in status LED
Removable 4 A fuse
Hold-down screw for rack mounting
UL Recognized, CSA

Compatibility:
Direct replacement for the Opto 22 G4OAC5 in G4 Series digital I/O mounting racks. The G4OAC5A is the 240 VAC version and is not a 120 VAC equivalent. For 15 or 24 VDC logic, use the G4OAC15 or G4OAC24 instead. The G4 series uses a different form factor from Opto 22's standard and SNAP I/O modules, so confirm your rack type before ordering.

Q&A
Q: What does the G4OAC5 do?
A: It switches an AC load (12–140 VAC, up to 3 A) on and off from a 5 VDC logic signal, with optical isolation between the logic and power sides.
Q: What logic voltage does it need?
A: 5 VDC nominal, with a 4–8 VDC range. It picks up at 4 VDC and drops out at 1 VDC.
Q: Does it have a fuse?
A: Yes. It has a removable 4 amp fuse, installed in this unit.
Q: What is the difference between G4OAC5 and G4OAC5A?
A: The G4OAC5 switches 120 VAC loads (12–140 VAC). The G4OAC5A is rated for 240 VAC loads. Both use 5 VDC logic.
Q: What is the minimum load?
A: 20 mA. Below that, off-state leakage (5 mA RMS) can keep small loads partly energized.
