Opto 22 G4ODC5 DC Output Module 5-60VDC 3A 5V Logic G4 Solid State I/O Used

ITEM SPECIFICS
Brand: Opto 22
Model: G4ODC5
MPN: G4ODC5
Series: G4
Type: Digital DC Output Module (Solid State)
Output Voltage Range: 5–60 VDC
Max Line Voltage: 60 VDC
Current Rating: 3 A at 45°C; 2 A at 70°C
One-Second Surge: 5 A
Max Output Voltage Drop: 1.6 V
Off-State Leakage: 1 mA at max voltage
Logic Voltage: 5 VDC nominal (4–8 VDC range)
Logic Pickup / Dropout: 4 VDC / 1 VDC
Logic Input Current: 12 mA
Control Resistance: 220 Ω
Turn-On / Turn-Off Time: 100 µs / 750 µs
Isolation: 4000 V transient; 1500 V for 1 minute
Operating Temperature: -30°C to +70°C
Fuse: Removable, installed fuse marked F4A 250V
Status Indicator: Built-in LED
Case Color: Red (Opto 22 DC output color code)
Certifications: UL Recognized, CSA
Condition: Used
Quantity: 1

DESCRIPTION

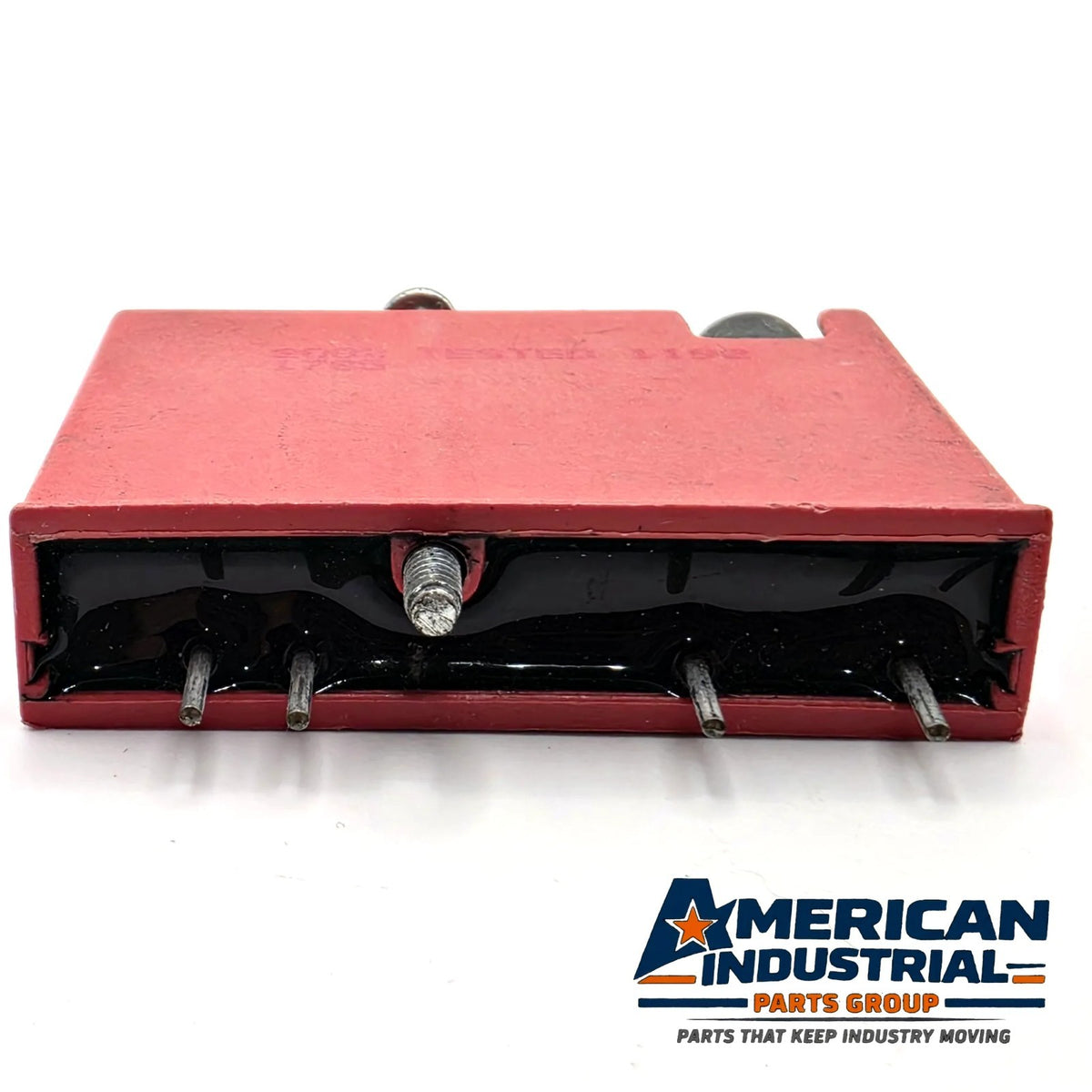

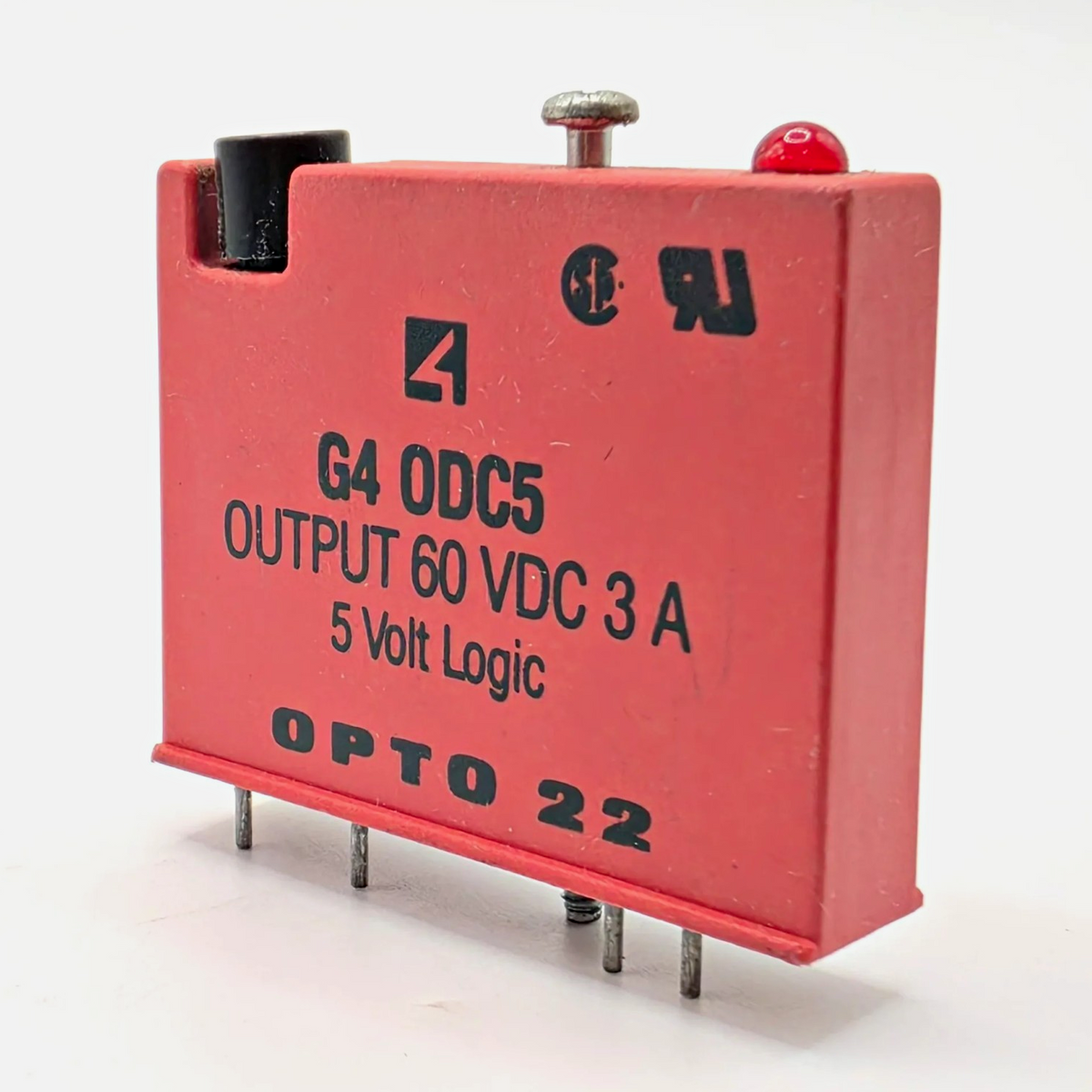

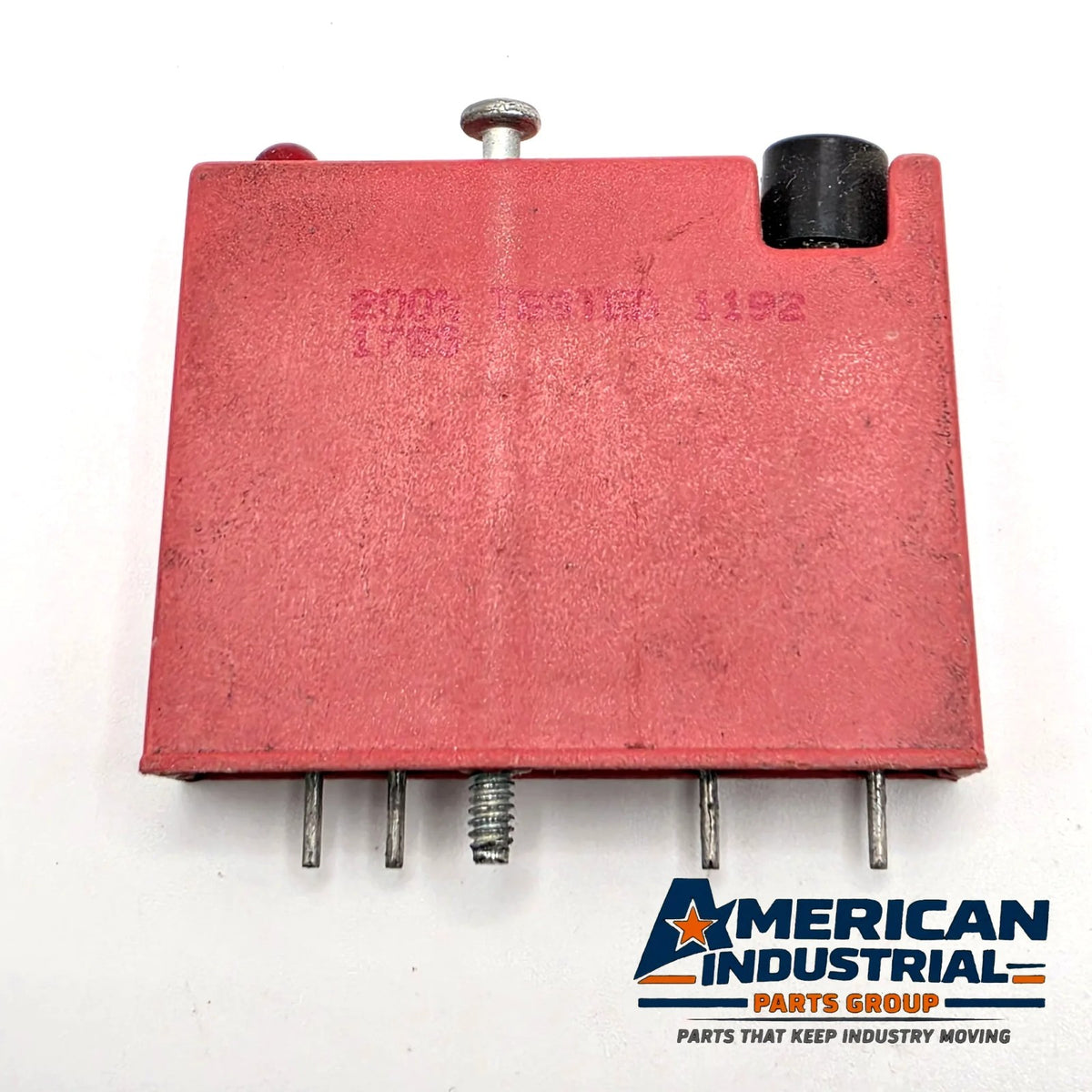

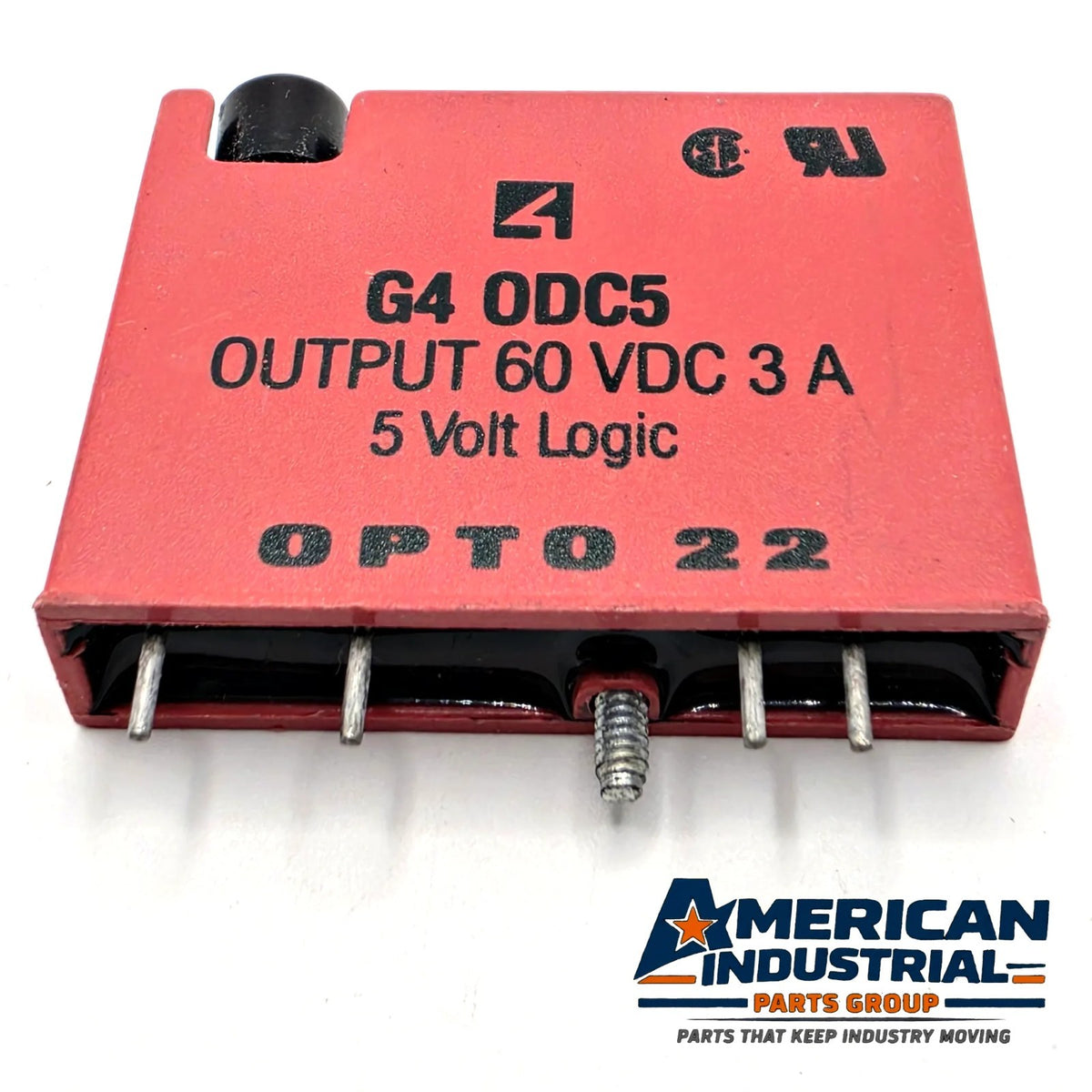

Used Opto 22 G4ODC5 G4 Series digital DC output module that switches 5–60 VDC loads at up to 3 A with 5 volt logic. The front reads "G4 ODC5, Output 60 VDC 3 A, 5 Volt Logic, Opto 22," with CSA and UL Recognized marks. The removable fuse marked "F4A 250V" is installed. The red status LED, the hold-down screw and all pins are intact. Light dust, handling marks and minor scuffs on the housing, as pictured.

The G4ODC5 is a solid-state DC output module. It switches solenoids, DC relays, indicator lamps and small DC motors from a 5 VDC logic signal, with 4000 V optical isolation between the logic and field sides. Turn-on is 100 µs and turn-off is 750 µs, fast enough for pulsed and high-cycle outputs. The module plugs into Opto 22 G4 Series I/O mounting racks.

Features:
Switches 5–60 VDC loads
3 A at 45°C, 2 A at 70°C
5 A one-second surge rating
5 VDC logic control (4–8 VDC range)
100 µs turn-on, 750 µs turn-off
4000 V transient optical isolation
Removable 4 A fuse, installed
Built-in status LED
Hold-down screw for rack mounting
UL Recognized, CSA

Compatibility:
Direct replacement for the Opto 22 G4ODC5 in G4 Series digital I/O mounting racks. For 15 or 24 VDC logic, use the G4ODC15 or G4ODC24. For loads up to 200 VDC, use the G4ODC5A. The G4 series is not interchangeable with Opto 22 standard-series modules (ODC5) or SNAP modules, which use different form factors.

Q&A
Q: What does the G4ODC5 do?
A: It switches a DC load from 5 to 60 VDC, up to 3 A, on and off from an isolated 5 VDC logic signal.
Q: Does it have a fuse?

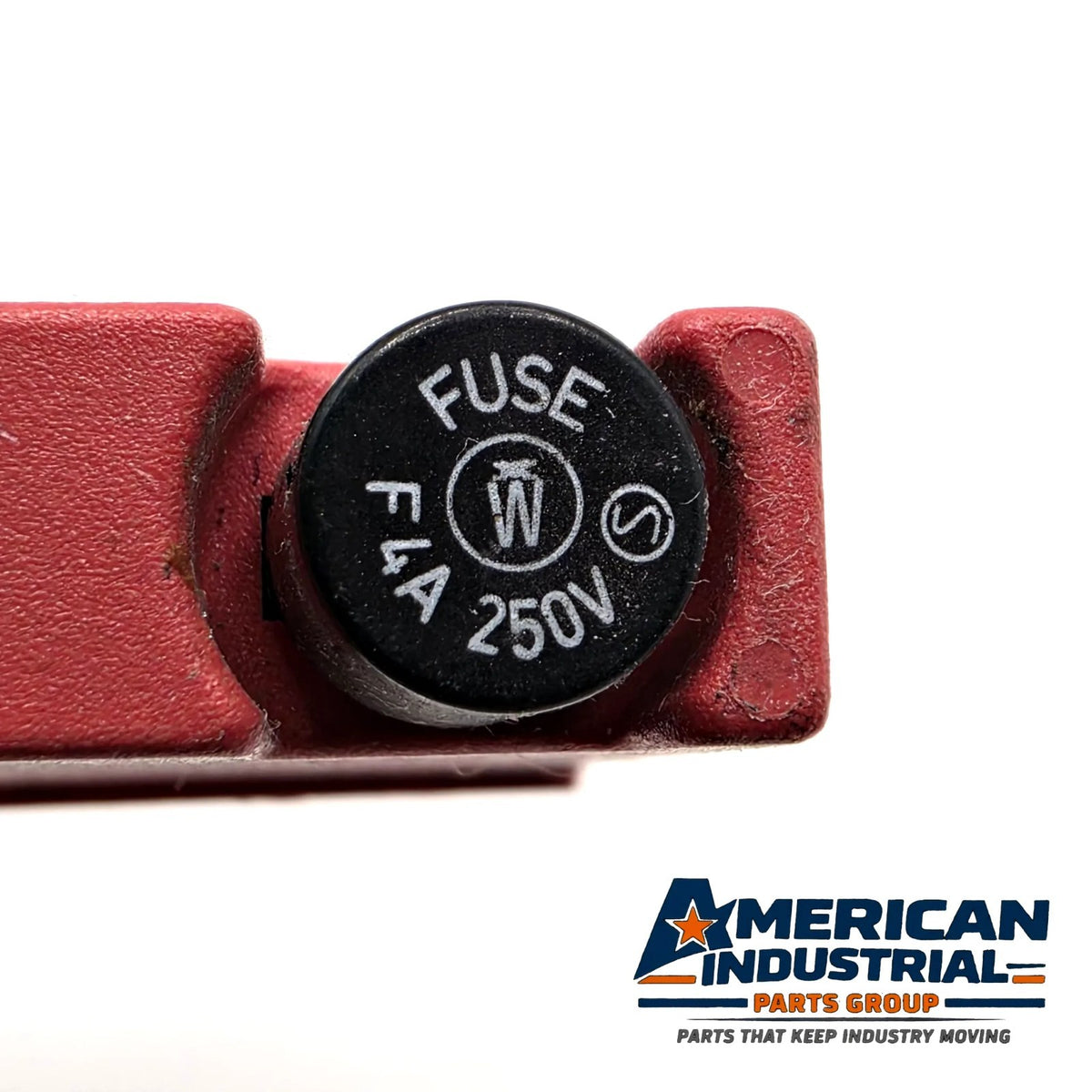

A: Yes. It has a removable fuse, and the installed fuse is marked F4A 250V.
Q: What is the difference between the G4ODC5 and the ODC5?
A: Same ratings, different form factor. The G4ODC5 fits G4 racks, and the ODC5 fits standard PB-series racks.
Q: Can it switch AC loads?
A: No. It is a DC output module. For AC loads, use an Opto 22 G4OAC5.
Q: What logic voltage does it need?
A: 5 VDC nominal, with a 4–8 VDC range. It draws 12 mA.
