Opto 22 IDC5 DC Input Module 10-32VDC 12-32VAC 5V Logic Solid State I/O Used

ITEM SPECIFICS
Brand: Opto 22
Model: IDC5
MPN: IDC5
Series: Standard Digital I/O
Type: Digital DC/AC Input Module
Input Voltage Range: 10–32 VDC or 12–32 VAC
Input Current: 25 mA at max line
Input Resistance: 1.5 kΩ
Input Allowed for No Output: 1 mA / 3 V
Logic Voltage: 5 VDC nominal (4.5–6 VDC range)
Logic Supply Current: 12 mA
Control Resistance (Rc): 220 Ω
Output: Transistor, 50 mA max
Output Voltage Drop: 0.4 V at 50 mA
Output Transistor Breakdown: 30 V
Turn-On / Turn-Off Time: 5 ms / 5 ms
Isolation: 4000 V transient, input to output
Operating Temperature: -30°C to +70°C
Mounting: PCB pin, PB Series mounting racks
Case Color: White (Opto 22 DC input color code)
Certifications: UL Recognized, CSA, CE, RoHS
Country of Manufacture: USA
Condition: Used
Quantity: 1

DESCRIPTION

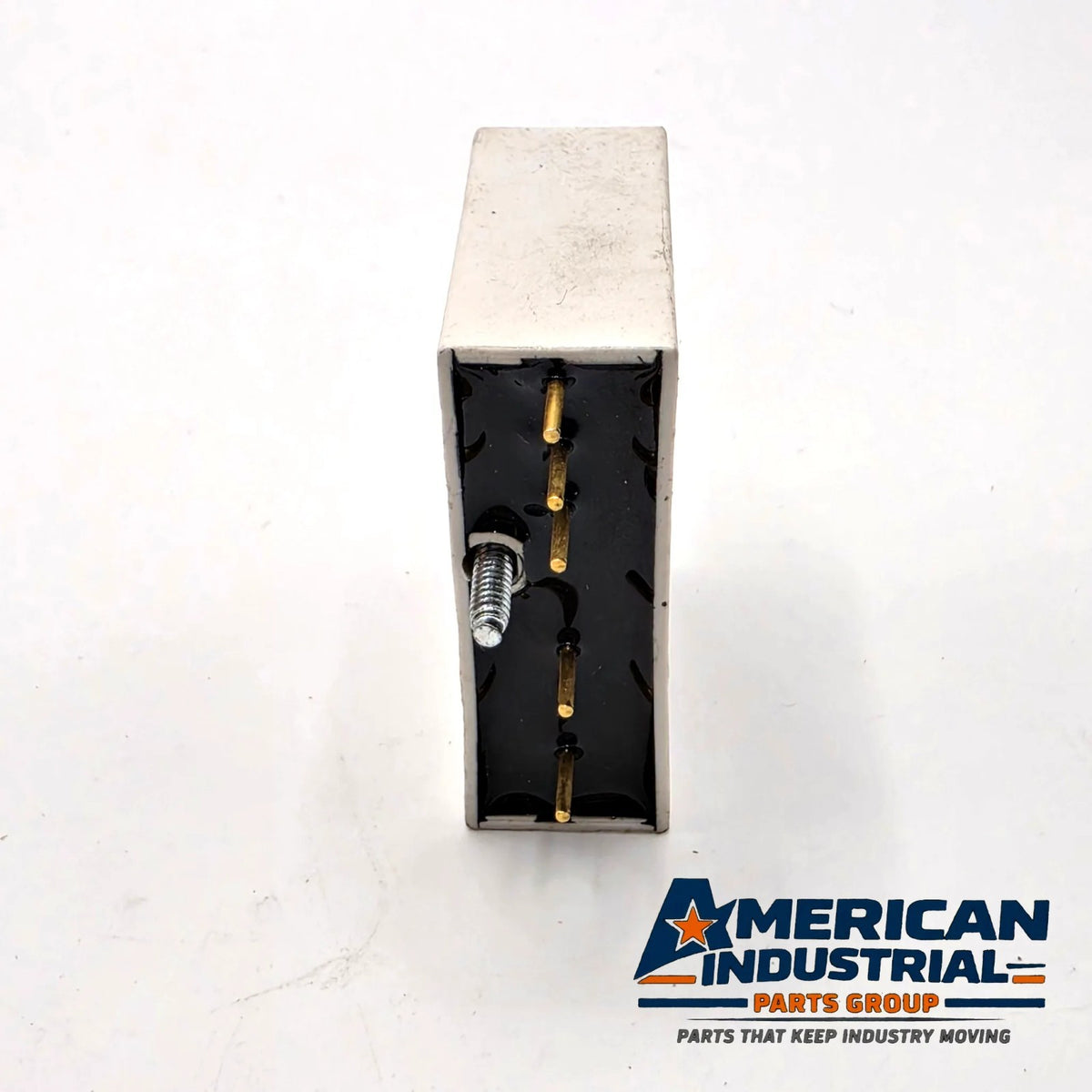

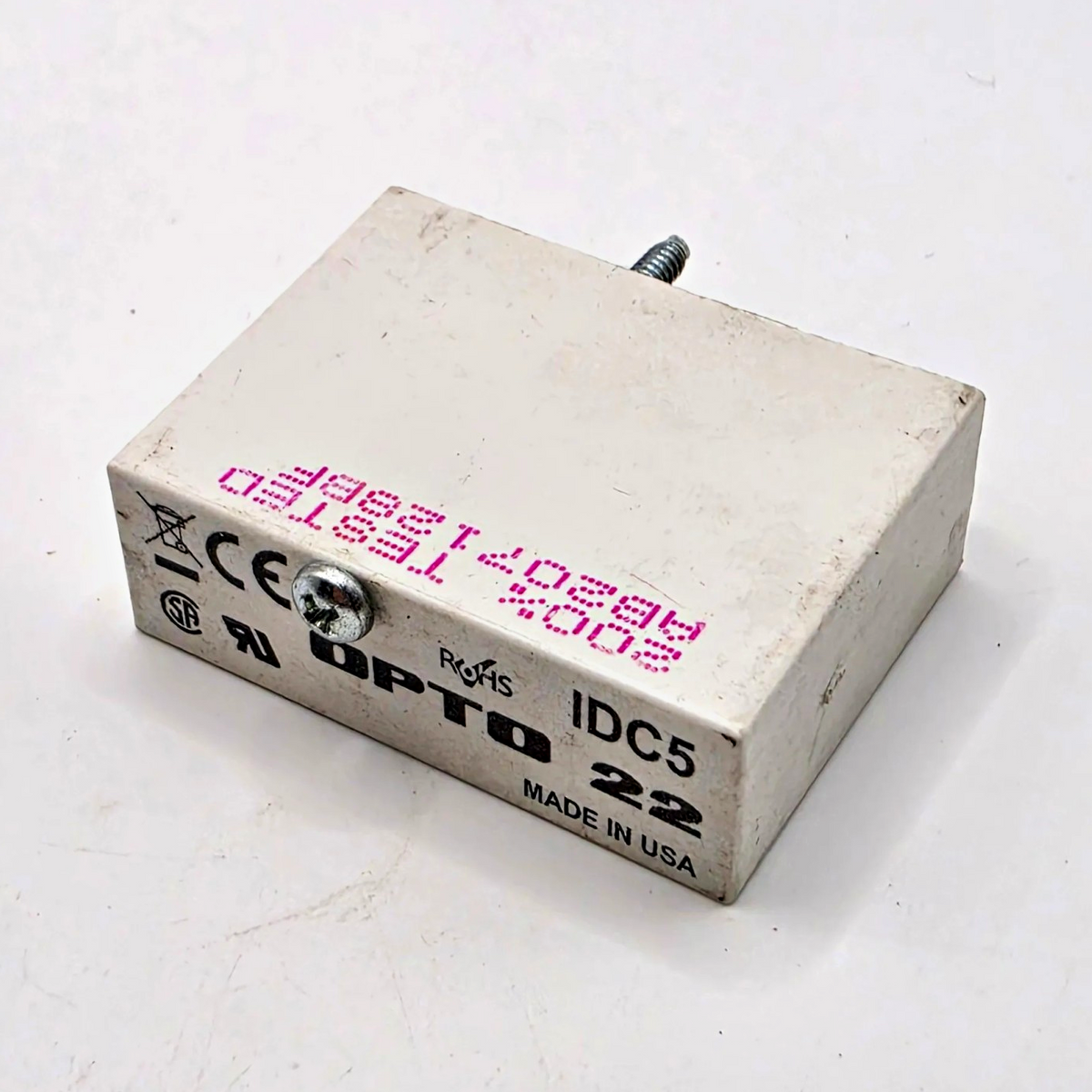

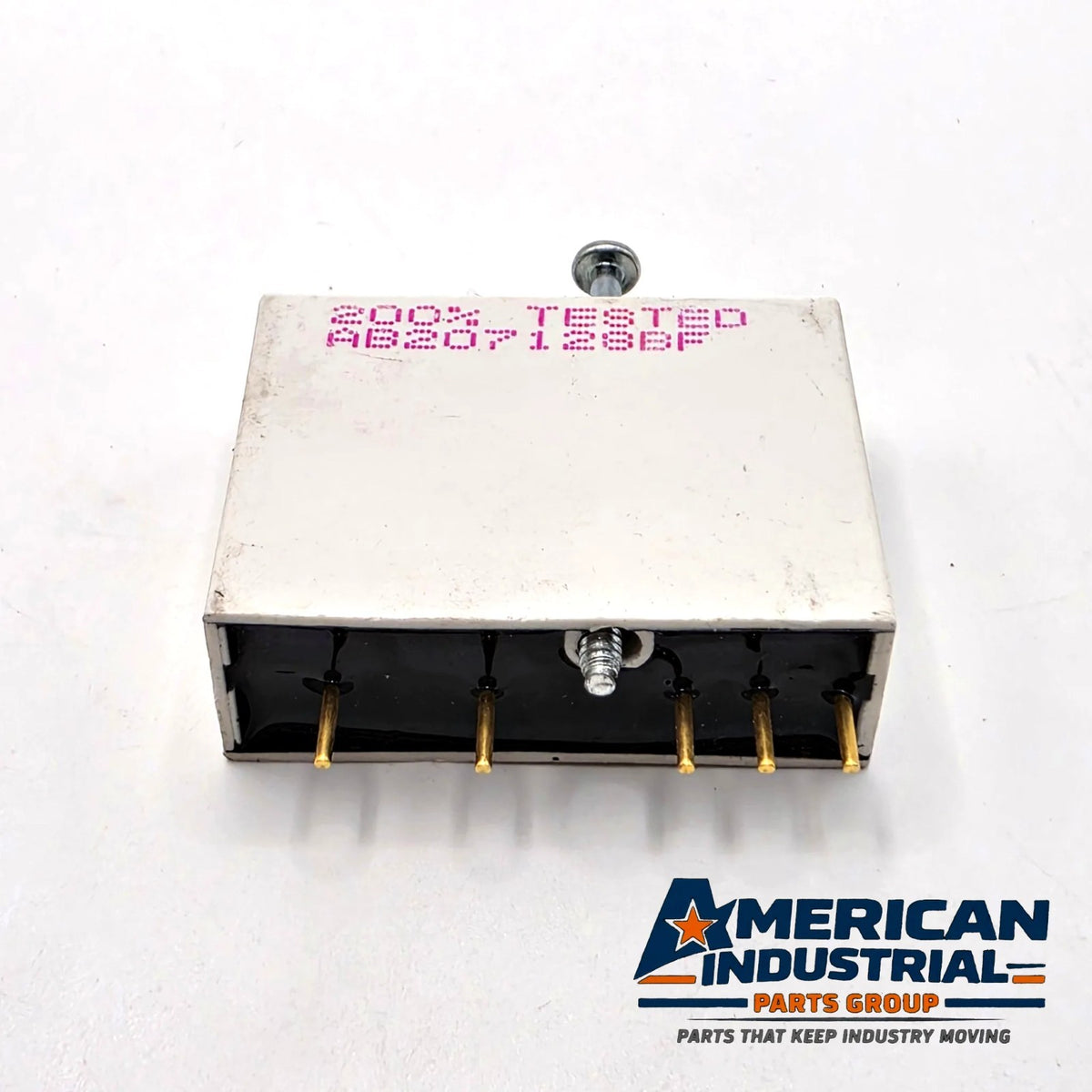

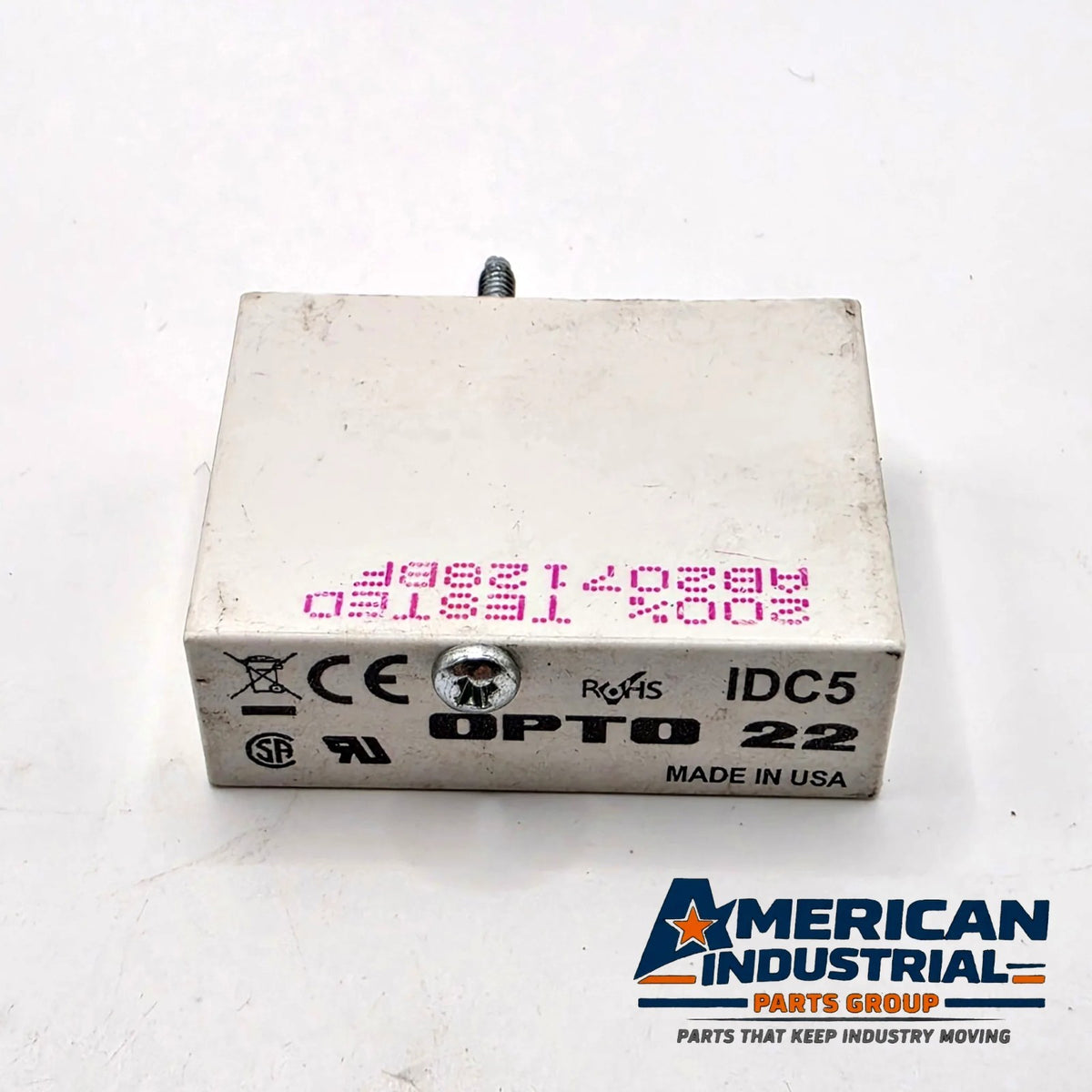

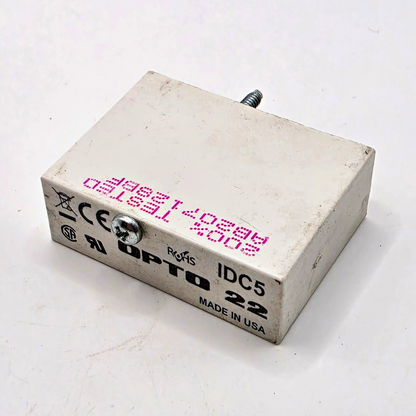

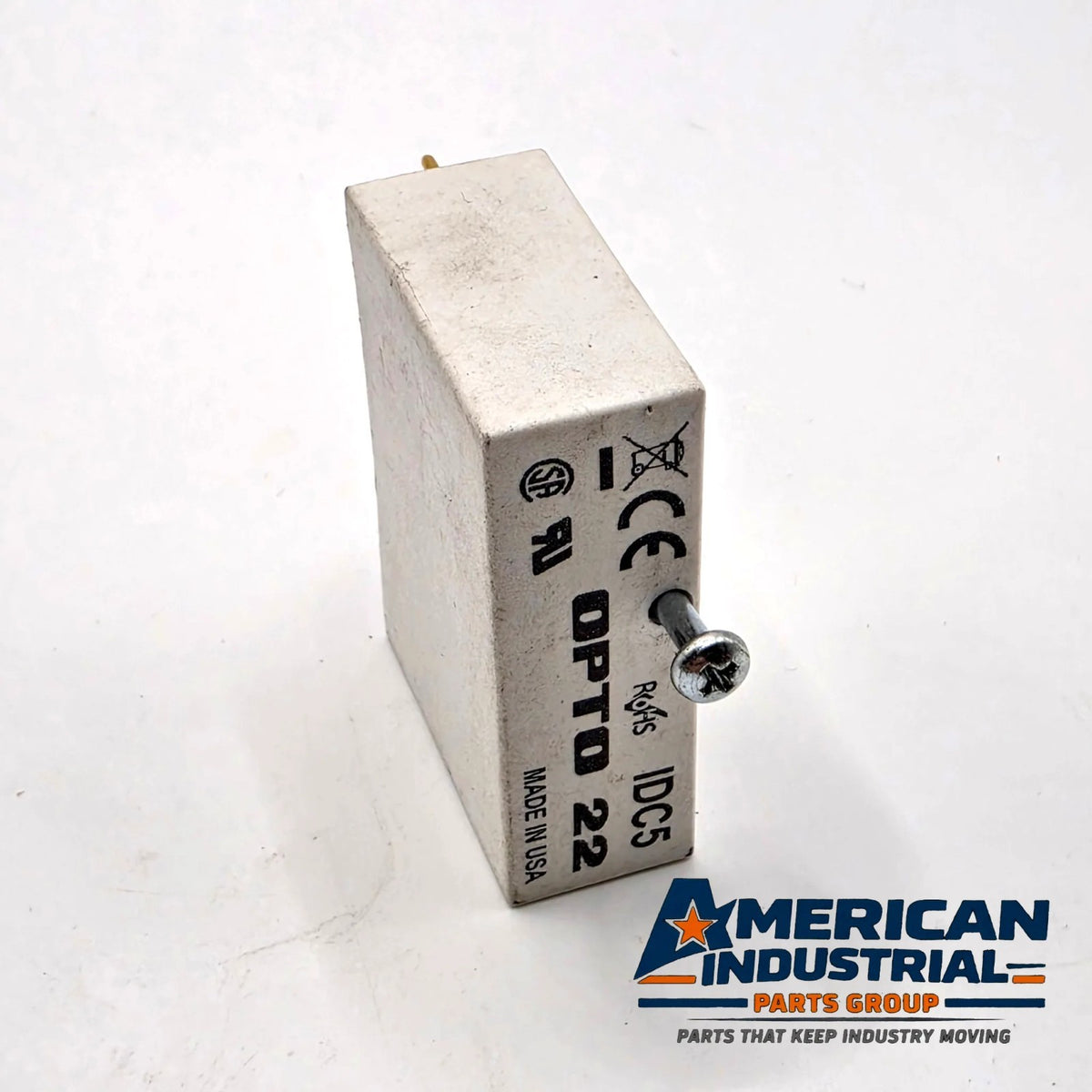

Used Opto 22 IDC5 standard-series digital DC input module. It senses 10–32 VDC or 12–32 VAC and passes the signal to a 5 VDC logic system. The housing reads "IDC5, Opto 22, Made in USA," with CSA, UL Recognized, CE and RoHS marks. The top carries the factory stamp "200% TESTED AB207128BF." The gold pins and hold-down screw are intact. Scuffs, light marks and some dirt on the white housing, as pictured.
The IDC5 is an optically isolated input module. It converts field signals from proximity sensors, photo eyes, limit switches, push buttons and other 12/24 VDC devices into a 5 VDC logic signal for a controller or PLC. Input and logic sides have 4000 V of transient isolation, and turn-on and turn-off are each 5 ms. The module plugs into Opto 22 PB Series standard I/O mounting racks.

Features:
Senses 10–32 VDC or 12–32 VAC
5 VDC logic (4.5–6 VDC range)
4000 V transient optical isolation
5 ms turn-on and turn-off
Transistor output, 50 mA
25 mA input current at max line
Hold-down screw for rack mounting
Made in USA; UL Recognized, CSA, CE, RoHS

Compatibility:
Direct replacement for the Opto 22 IDC5 in Opto 22 PB Series standard digital I/O mounting racks. For 15 or 24 VDC logic, use the IDC15 or IDC24. The IDC5D (fast-switching version) and IDC5G (35–60 V input) are different modules. The standard series is not interchangeable with Opto 22 G4 modules (G4IDC5) or SNAP modules, which use different form factors.

Q&A
Q: What does the IDC5 do?
A: It detects a 10–32 VDC or 12–32 VAC field signal and converts it to an isolated 5 VDC logic signal.
Q: Can it sense AC?
A: Yes. Opto 22 rates it for 12–32 VAC as well as 10–32 VDC.
Q: Will it work with 24 VDC sensors?
A: Yes. 24 VDC is inside the 10–32 VDC input range.
Q: Does it fit G4 or SNAP racks?
A: No. The IDC5 is a standard-series module for PB Series racks.
Q: What does the white color mean?
A: Opto 22 color-codes its modules, and white marks DC input modules.
