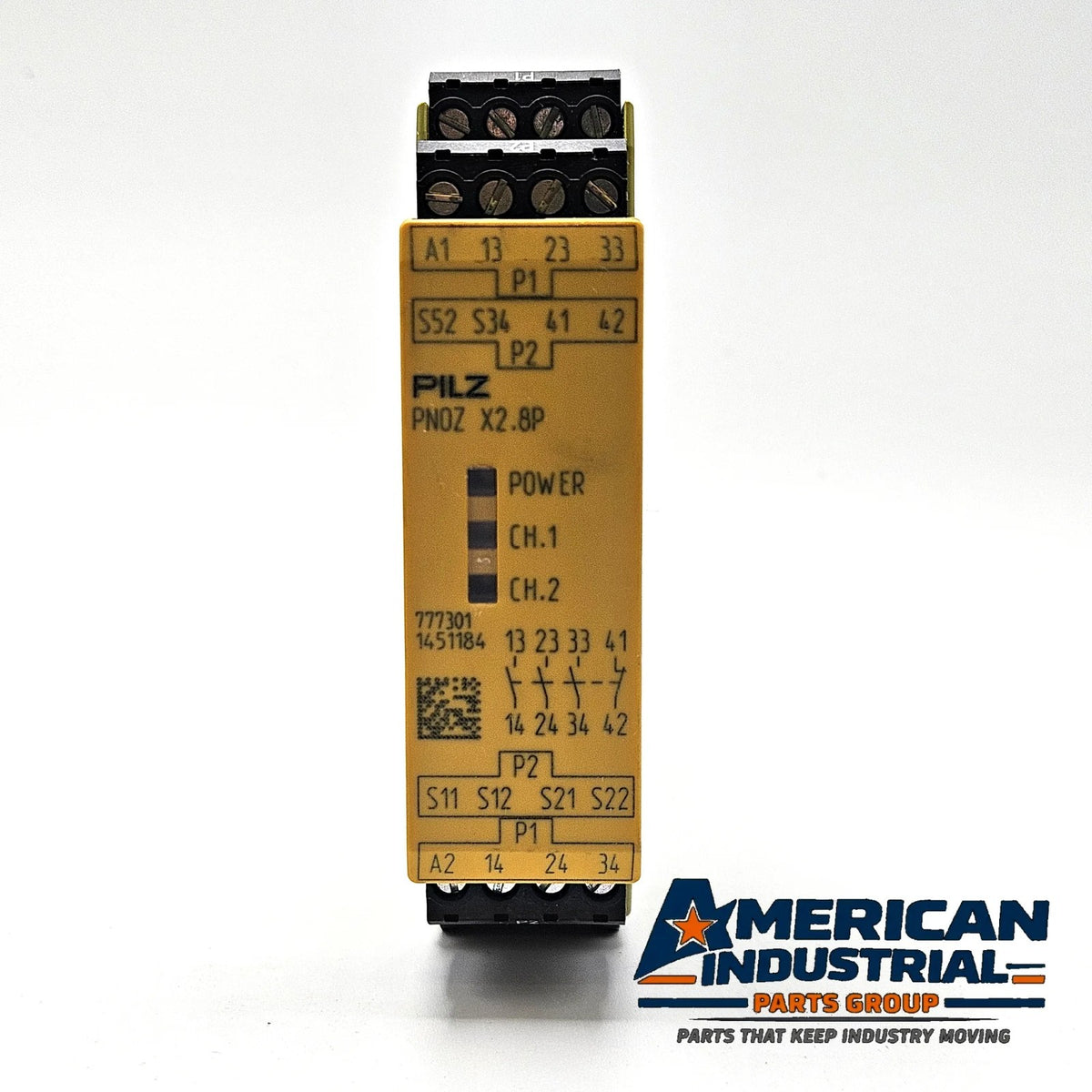

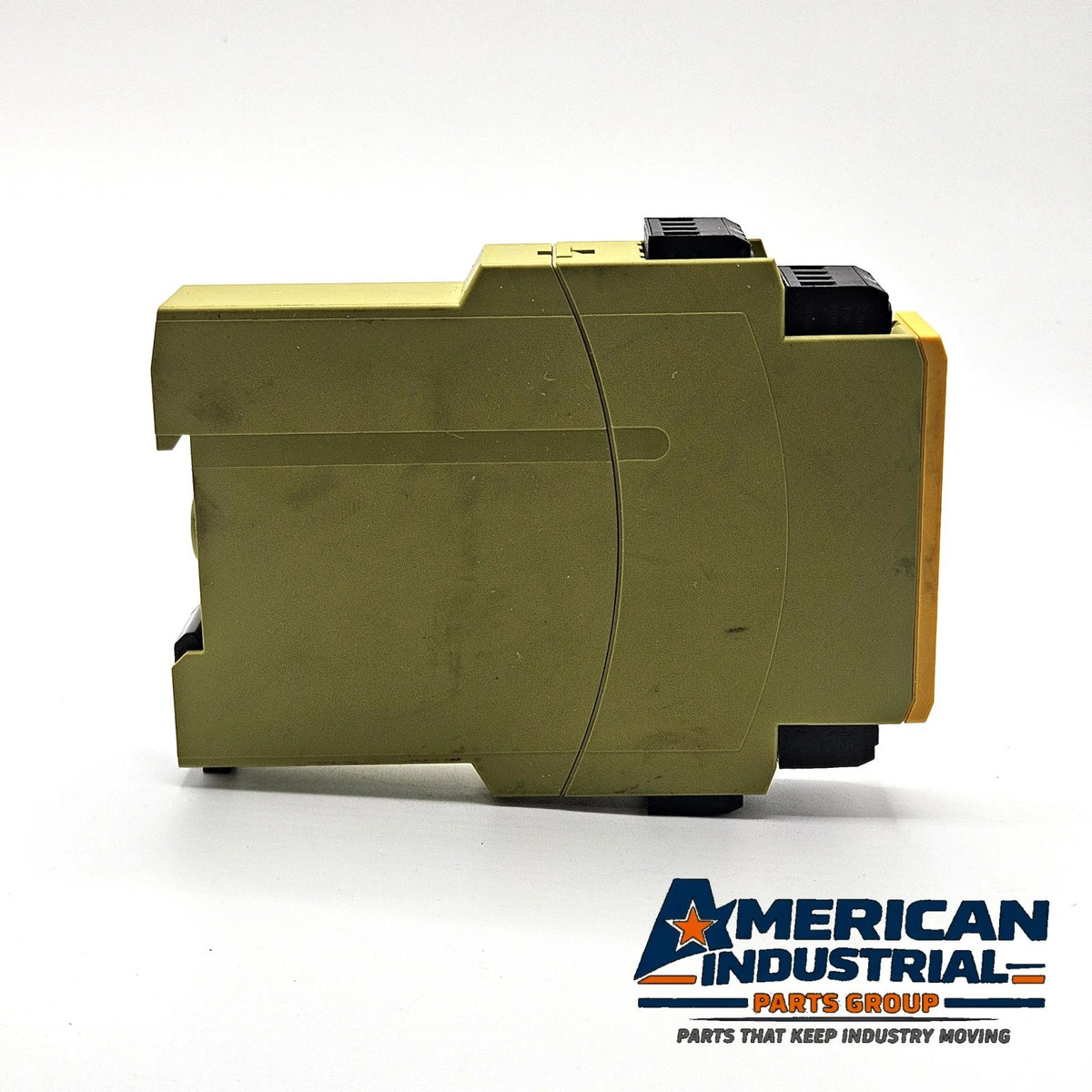

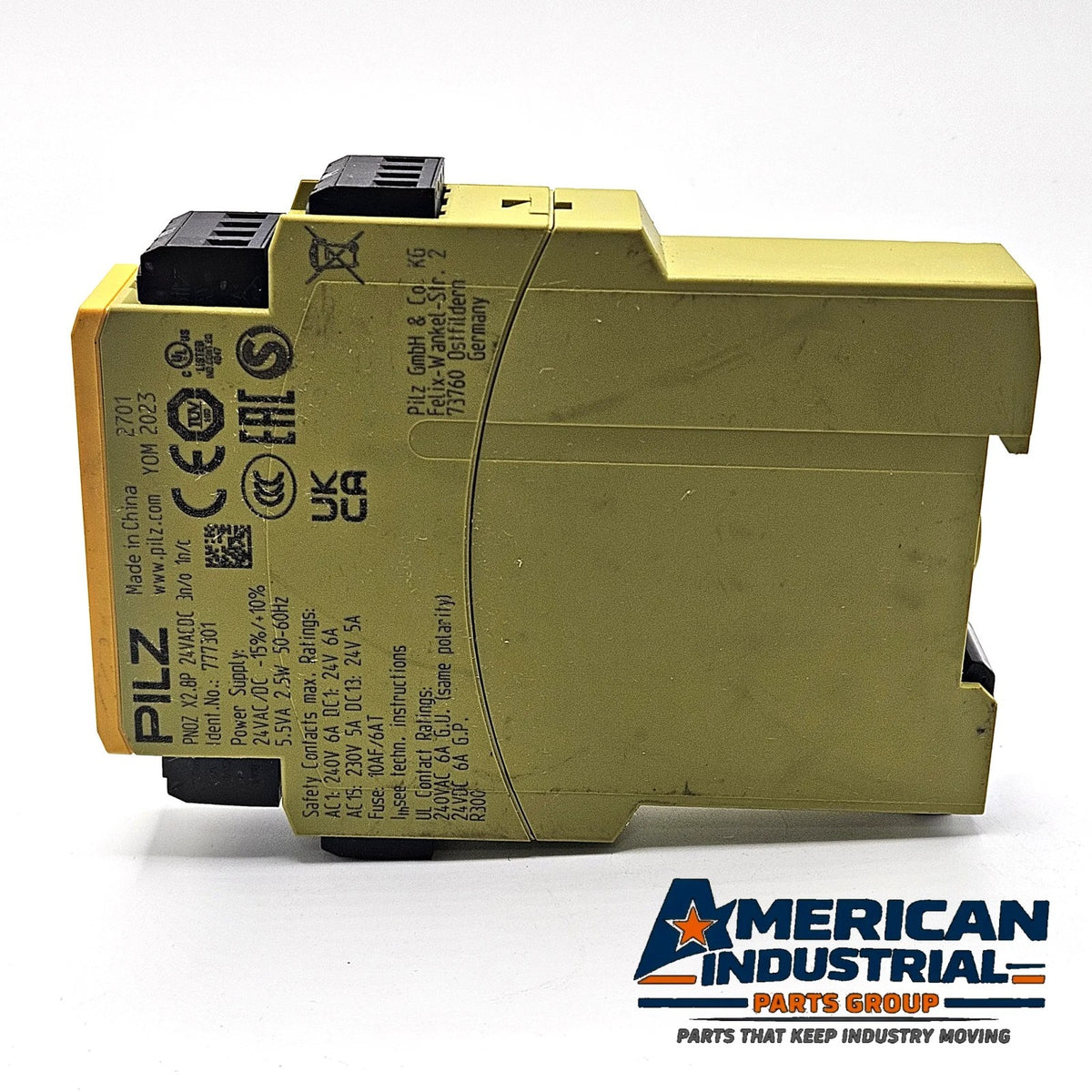

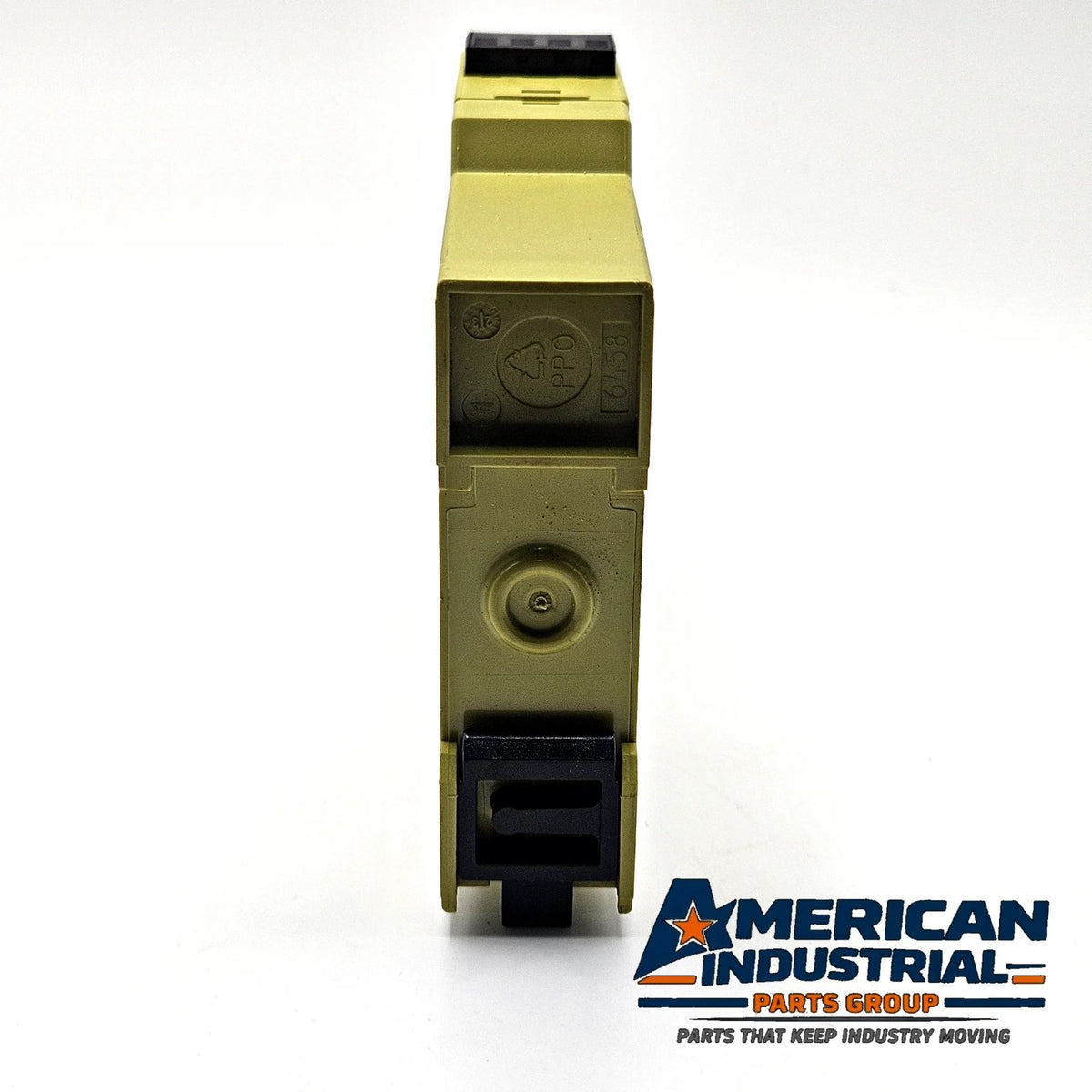

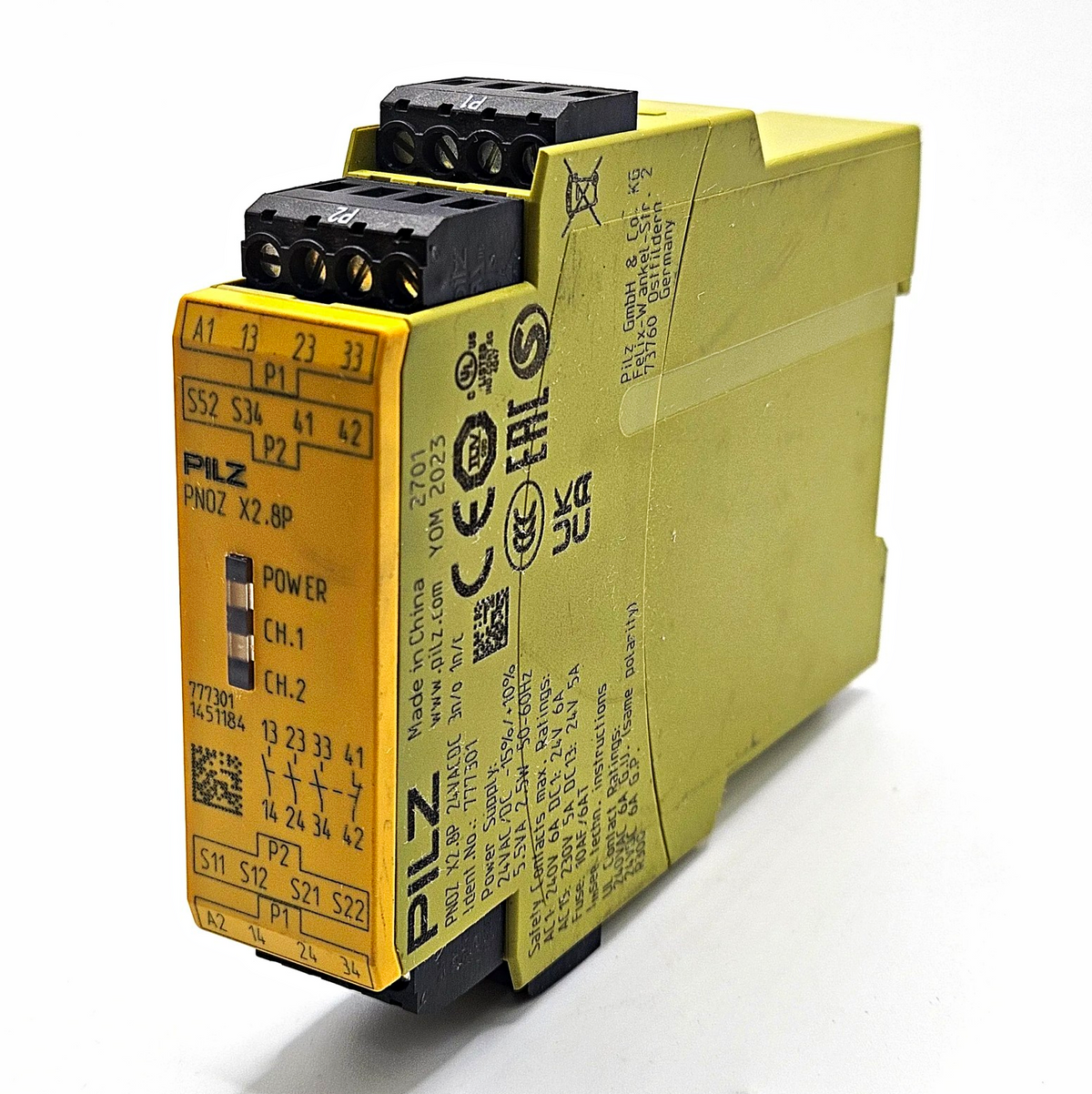

Pilz 777301 PNOZ X2.8P Safety Relay 24VAC/DC 3NO 1NC E-Stop Used
Pilz 777301 PNOZ X2.8P Safety Relay 24VAC/DC 3NO 1NC E-Stop Used
Regular price
$169.99 USD
Regular price
Sale price
$169.99 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Pilz
Model: PNOZ X2.8P
MPN: 777301
Series: PNOZ X
Type: Safety Relay
Supply Voltage: 24VAC/DC
AC Frequency: 50–60Hz
Safety Contacts: 3 Normally Open
Auxiliary Contacts: 1 Normally Closed
Input Configuration: Single-Channel or Dual-Channel
Reset Type: Automatic or Manual
Maximum Contact Rating: 6A
Terminal Type: Plug-In Screw Terminals
Mounting Style: DIN Rail
Country/Region of Manufacture: China
Condition: Used
DESCRIPTION
Pilz 777301 PNOZ X2.8P standalone safety relay designed to monitor emergency-stop circuits and safety gates in industrial machinery and automation systems.
Features:
Pilz PNOZ X2.8P
Part Number 777301
24VAC/DC Supply Voltage
Single-Channel or Dual-Channel Wiring
Short-Circuit Detection Capability
Automatic or Manual Reset
3 Normally Open Safety Contacts
1 Normally Closed Auxiliary Contact
Plug-In Screw Terminals
DIN-Rail Mounting
The unit is in used condition and shows cosmetic wear from previous installation, use, removal, and handling, including scratches, marks, discoloration, and terminal-screw wear. Please review all photographs for the exact condition of the unit being offered.
DISCLAIMER
This item is used. No independent functional testing was performed, and no operational history was provided. The buyer is responsible for confirming suitability, configuration, and safe operation before installation. Safety-related equipment must be installed and validated by qualified personnel. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Pilz. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from secondary-market inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The PNOZ X2.8P is a standalone safety relay in Pilz's PNOZ X series. Per Pilz's operating manual, order number 777301 is the 24 VAC/DC supply version, while order number 777302 is the 24–240 VAC/DC wide-range version of the same relay — confirm your control-circuit supply voltage before substituting one for the other. The unit provides three safety contacts (terminals 13-14, 23-24 and 33-34) and one auxiliary contact (41-42), supports single- or dual-channel input wiring with or without detection of shorts across contacts, and can be configured for automatic or manual reset, in a 22.5mm housing with plug-in screw terminals. Typical applications are monitoring E-STOP pushbuttons and safety gates. Pilz's manual notes that in the automatic-start configuration the unit restarts as soon as the safeguard is reset, so external circuit measures are required where an unexpected restart would be hazardous. Installation and validation of safety functions must be performed by qualified personnel.
Q&A
Q: What is the difference between the Pilz 777301 and 777302? A: Supply voltage. The 777301 is the 24 VAC/DC version; the 777302 is the 24–240 VAC/DC wide-range version, per Pilz's operating manual.
Q: What contacts does the PNOZ X2.8P provide? A: Three normally open safety contacts (13-14, 23-24, 33-34) and one normally closed auxiliary contact (41-42).
Q: What does it monitor? A: E-STOP pushbuttons and safety gates, using single- or dual-channel input wiring with automatic or manual reset.
Pilz 777301 PNOZ X2.8P PNOZX2.8P Safety Relay 24VACDC 24V AC DC 3NO 1NC Emergency Stop Relay E-Stop Relay Safety Gate Relay Machine Safety Relay Dual Channel Safety Relay Single Channel Safety Relay Automatic Reset Manual Reset DIN Rail Safety Module Industrial Automation Relay Machine Guarding Relay Plug-In Screw Terminal Relay Replacement Safety Relay Industrial Control Safety System
Thank you for shopping with American Industrial Parts Group!
