QTC 74OL6000 OPTOLOGIC High-Speed Logic Optocoupler DIP-6 NOS
QTC 74OL6000 OPTOLOGIC High-Speed Logic Optocoupler DIP-6 NOS
Regular price
$12.99 USD
Regular price
Sale price
$12.99 USD
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: QTC / QT Optoelectronics
Model: 74OL6000
MPN: 74OL6000
Series: OPTOLOGIC
Type: High-Speed Logic-to-Logic Optocoupler
Logic Function: Non-Inverting LSTTL-to-TTL Buffer
Number of Channels: 1
Data Rate: 15 MBd
Isolation Voltage: 5300 Vrms
Output Type: Push-Pull / Totem-Pole
Output Current: 40 mA
Supply Voltage: 4.5V to 5.5V
Propagation Delay: 100 ns Maximum
Package/Case: PDIP-6 / 6-Pin DIP
Mounting Style: Through-Hole
Quantity: 1

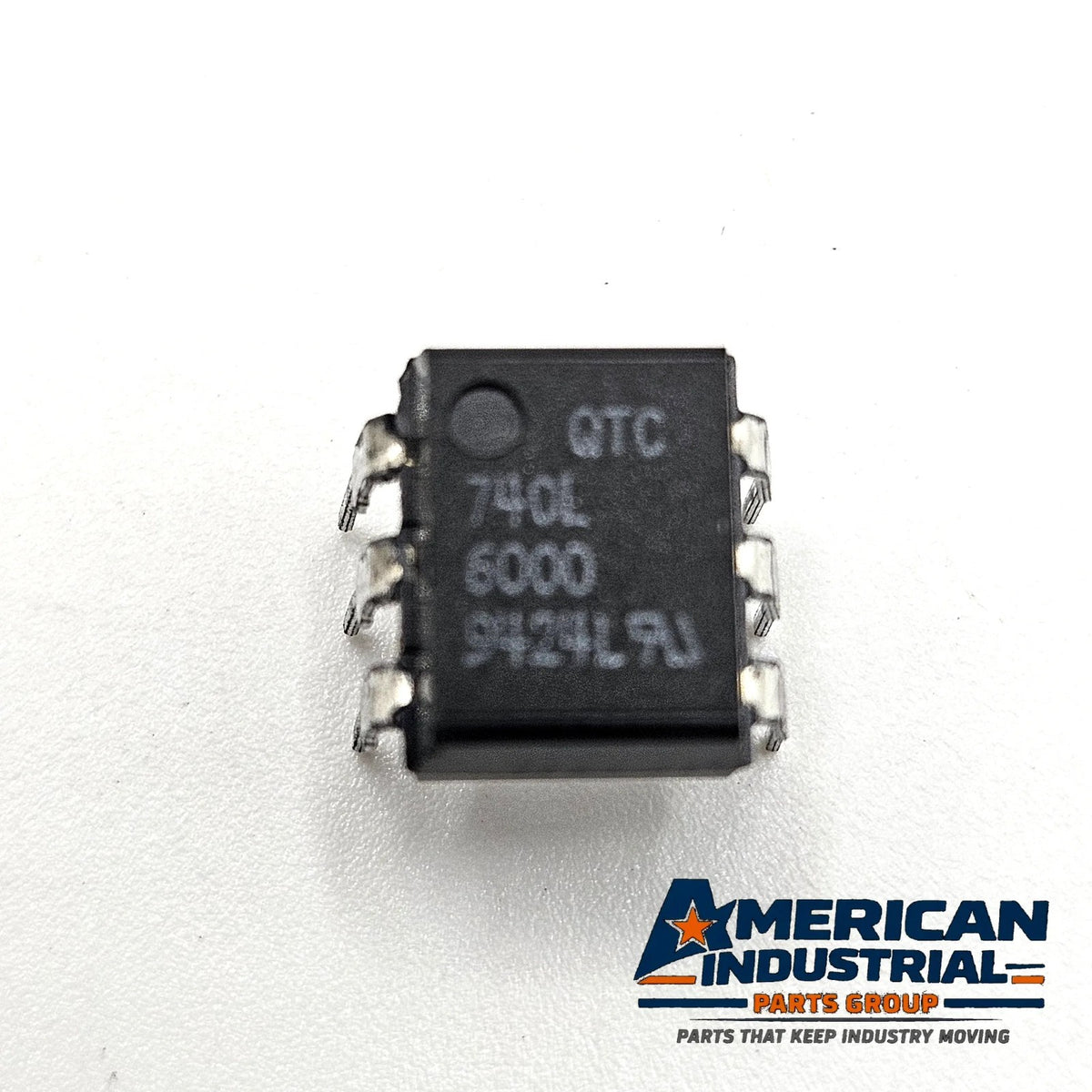

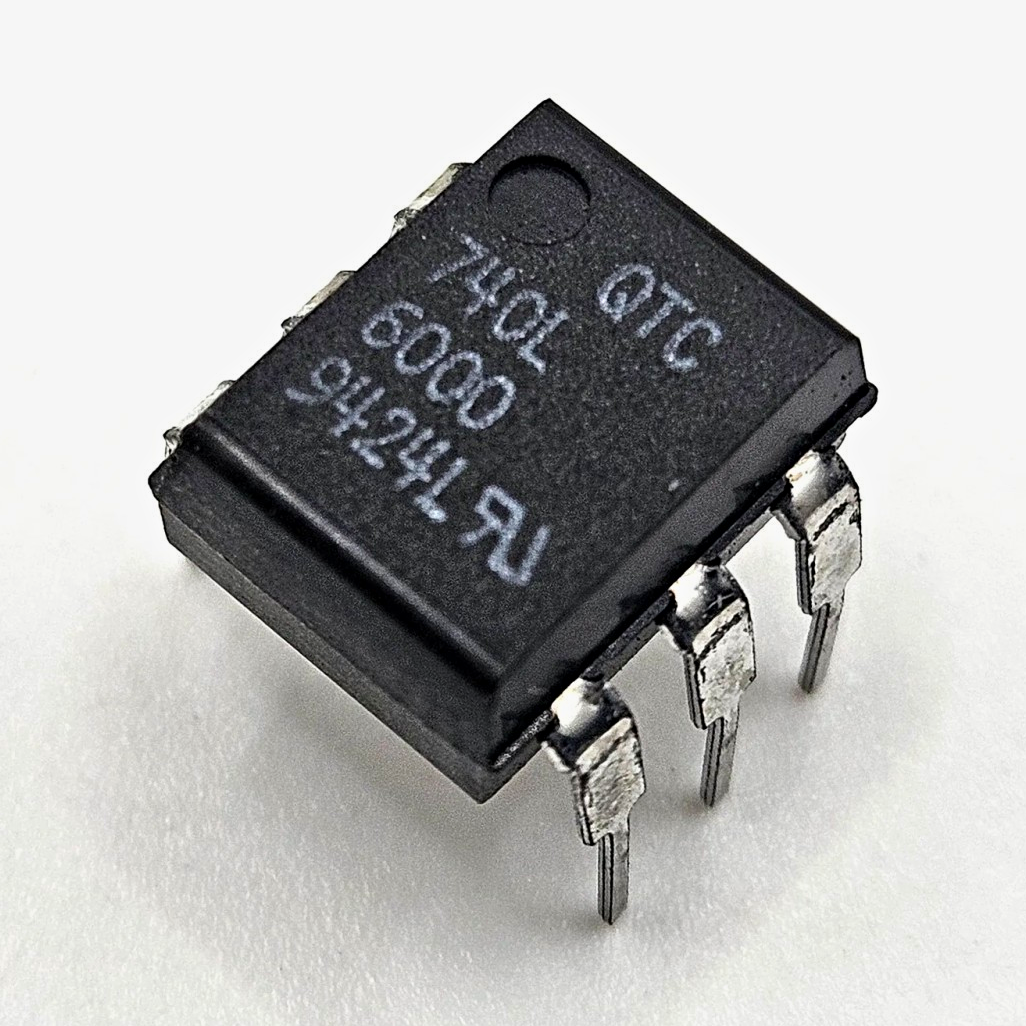

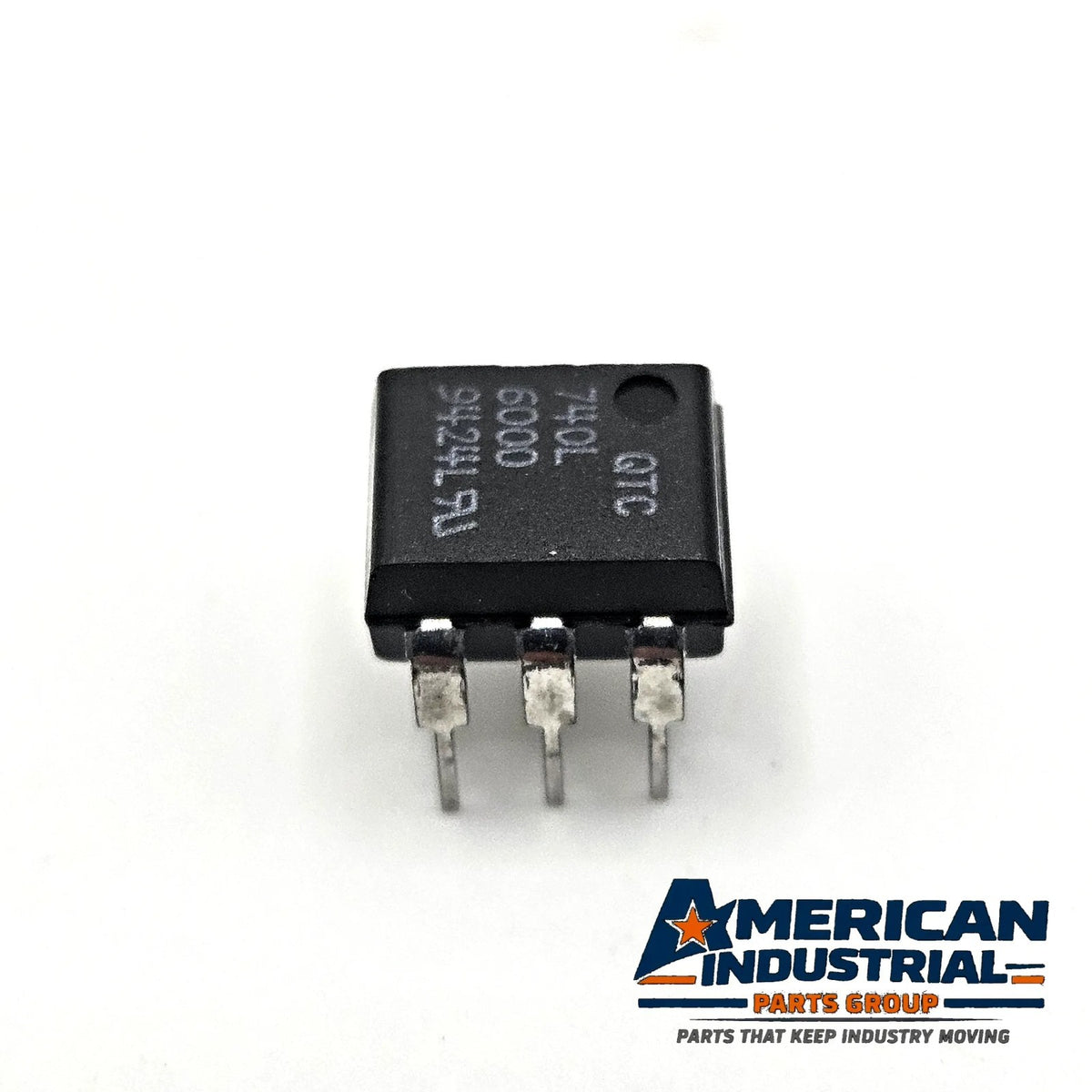

Device Marking: 74OL6000 9424L
Product Status: Obsolete / Discontinued
Condition: New Old Stock
DESCRIPTION
QTC / QT Optoelectronics 74OL6000 OPTOLOGIC high-speed logic-to-logic optocoupler. This single-channel device provides a non-inverting LSTTL-compatible input and TTL push-pull/totem-pole output in a through-hole 6-pin DIP package.
Features:
QTC / QT Optoelectronics 74OL6000
OPTOLOGIC Series
High-Speed Logic-to-Logic Optocoupler
Non-Inverting TTL Buffer
15 MBd Data Rate
5300 Vrms Isolation Voltage
Push-Pull / Totem-Pole Output
Single Channel
6-Pin Through-Hole DIP Package
Obsolete Vintage Electronic Component
Quantity Included: One Device
This item is New Old Stock from bulk manufacturer inventory. It has not been installed or used but may show minor cosmetic wear or lead oxidation from long-term storage and handling. The seller has not functionally tested this component.

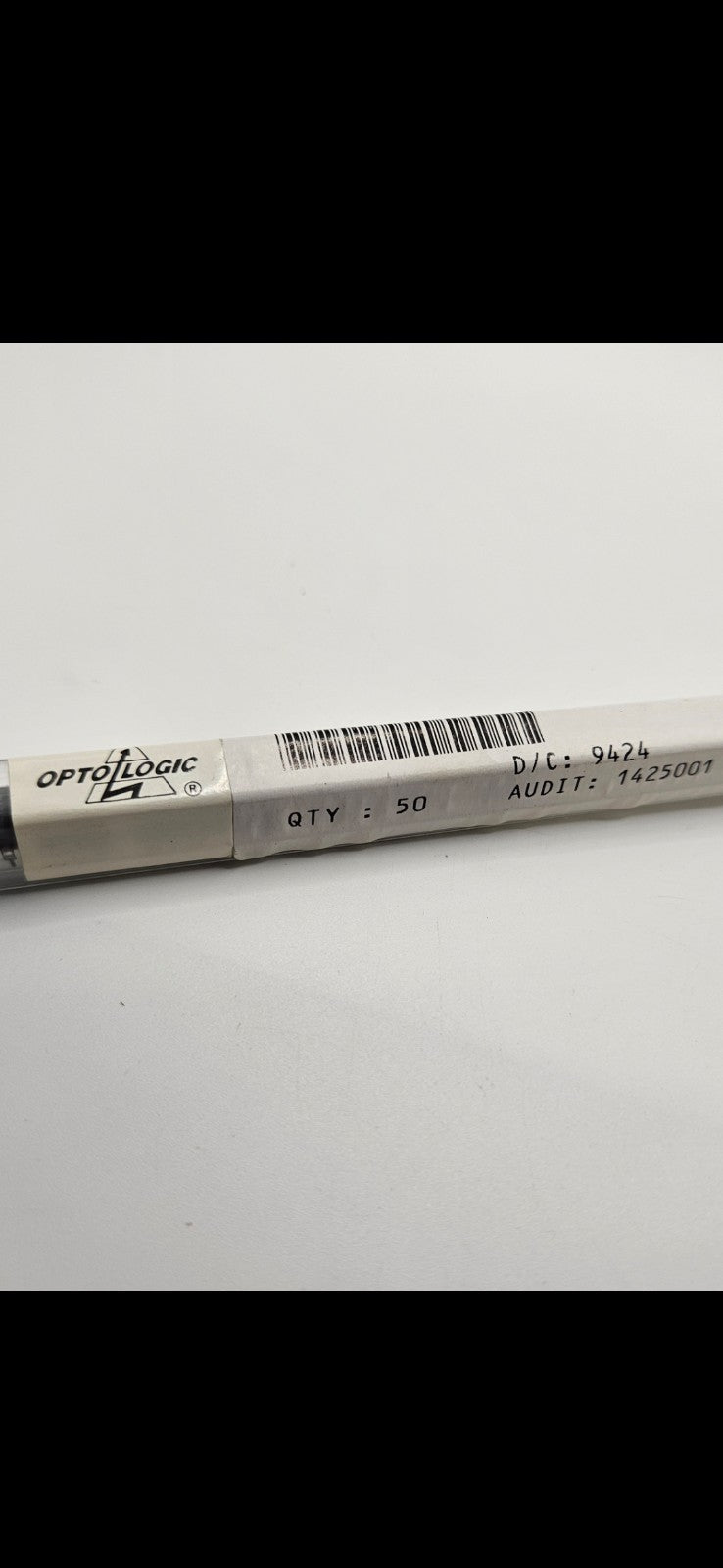

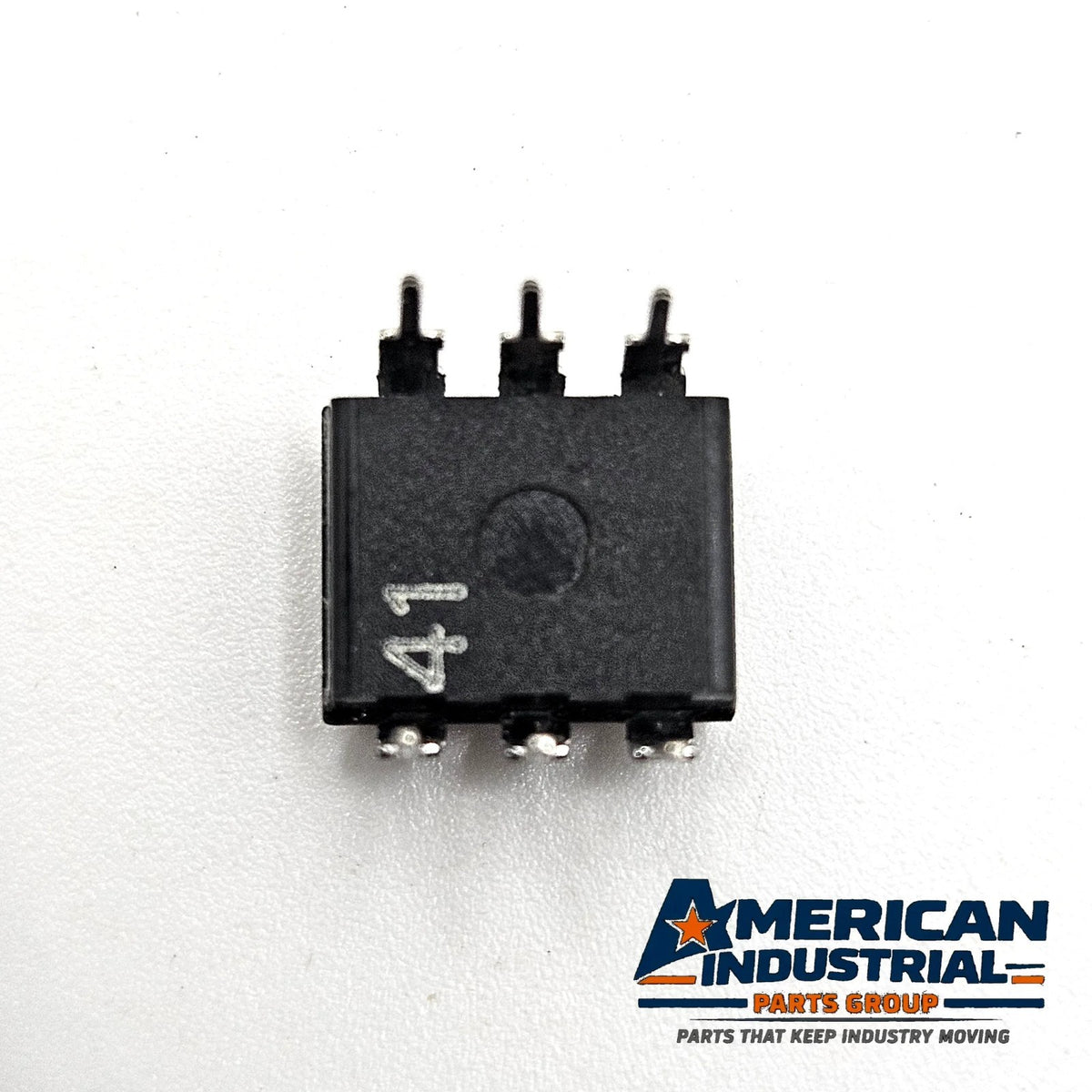

You will receive one QTC 74OL6000 device. The bulk storage tube is not included. Please review all photos for identification and condition.
COMPATIBILITY & CROSS-REFERENCE
The QTC 74OL6000 is a single-channel OPTOLOGIC high-speed logic-to-logic optocoupler with a non-inverting LSTTL-compatible input and a TTL push-pull output, in a 6-pin DIP. Verify pinout, supply requirements, and suitability for your circuit before installation.
Q: What data rate and isolation does it support?
A: 15 MBd and 5300 Vrms isolation.
Q: What supply voltage does it use?
A: 4.5 V to 5.5 V.
Q: What package is it?
A: 6-pin DIP, through-hole.
DISCLAIMER
This item is New Old Stock and may show minor cosmetic or storage-related wear. The seller has not functionally tested this component. Please confirm the part number, package, electrical specifications, and application requirements before purchase. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of QTC, QT Optoelectronics, Fairchild Semiconductor, or onsemi. All product names, trademarks, brands, and logos are the property of their respective owners. Products are independently sourced and are not covered by manufacturer warranties.
QTC 74OL6000 740L6000 74OL 6000 QT Optoelectronics OPTOLOGIC OptoLogic Fairchild 74OL6000 onsemi 74OL6000 High Speed Optocoupler Logic Output Optoisolator LSTTL TTL Buffer Non Inverting Buffer Push Pull Totem Pole 15MBd 5300V Isolation DIP-6 PDIP-6 Through Hole Integrated Circuit Vintage Electronics Obsolete Semiconductor Discontinued IC Electronic Component MRO Replacement Repair Part optocoupler failed replacement high speed optoisolator replacement
