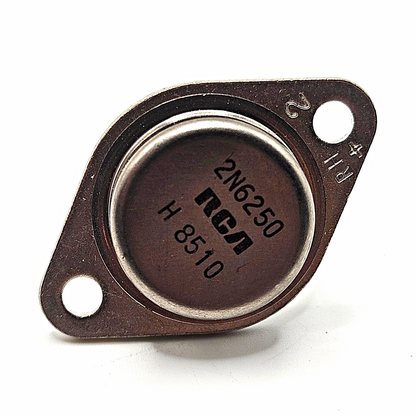

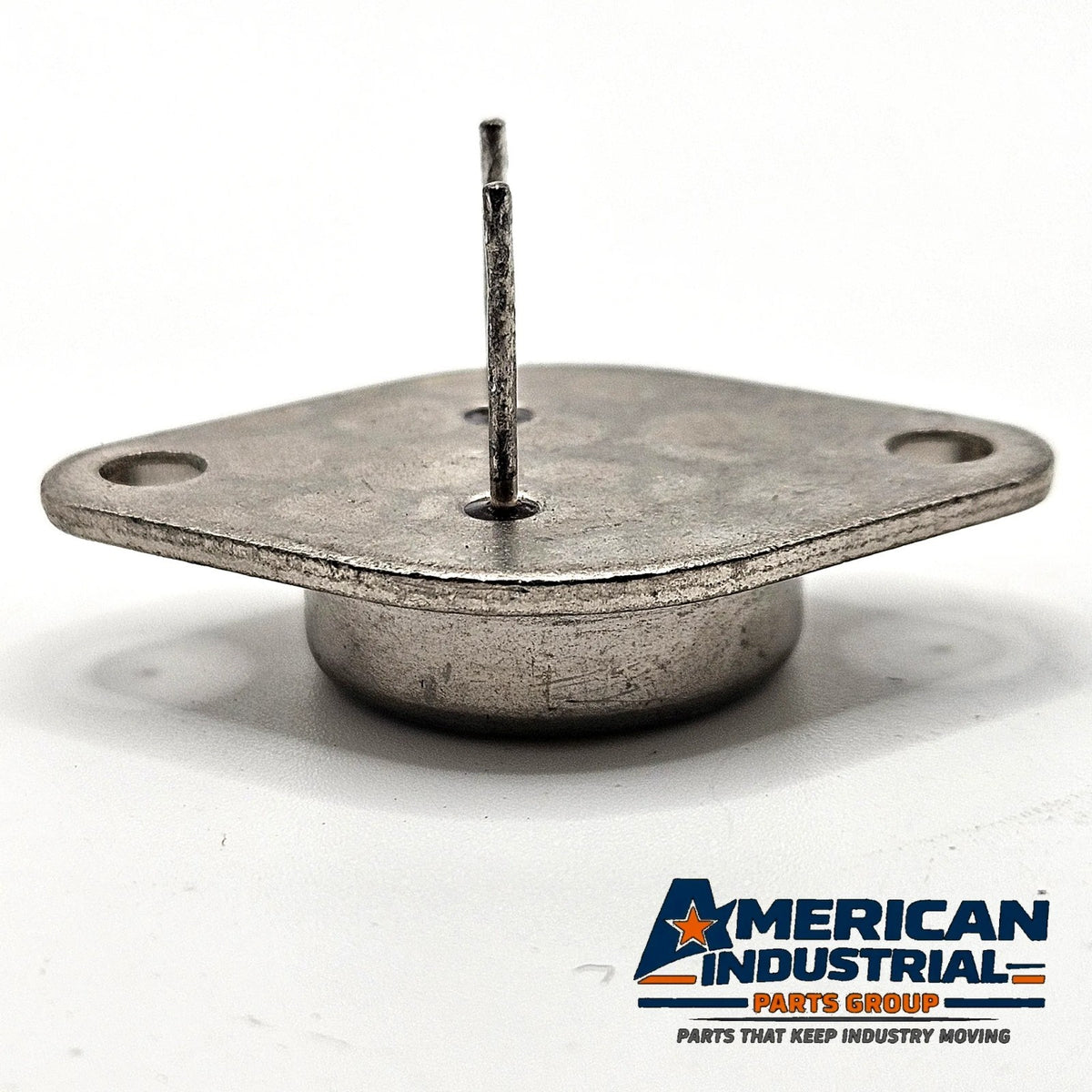

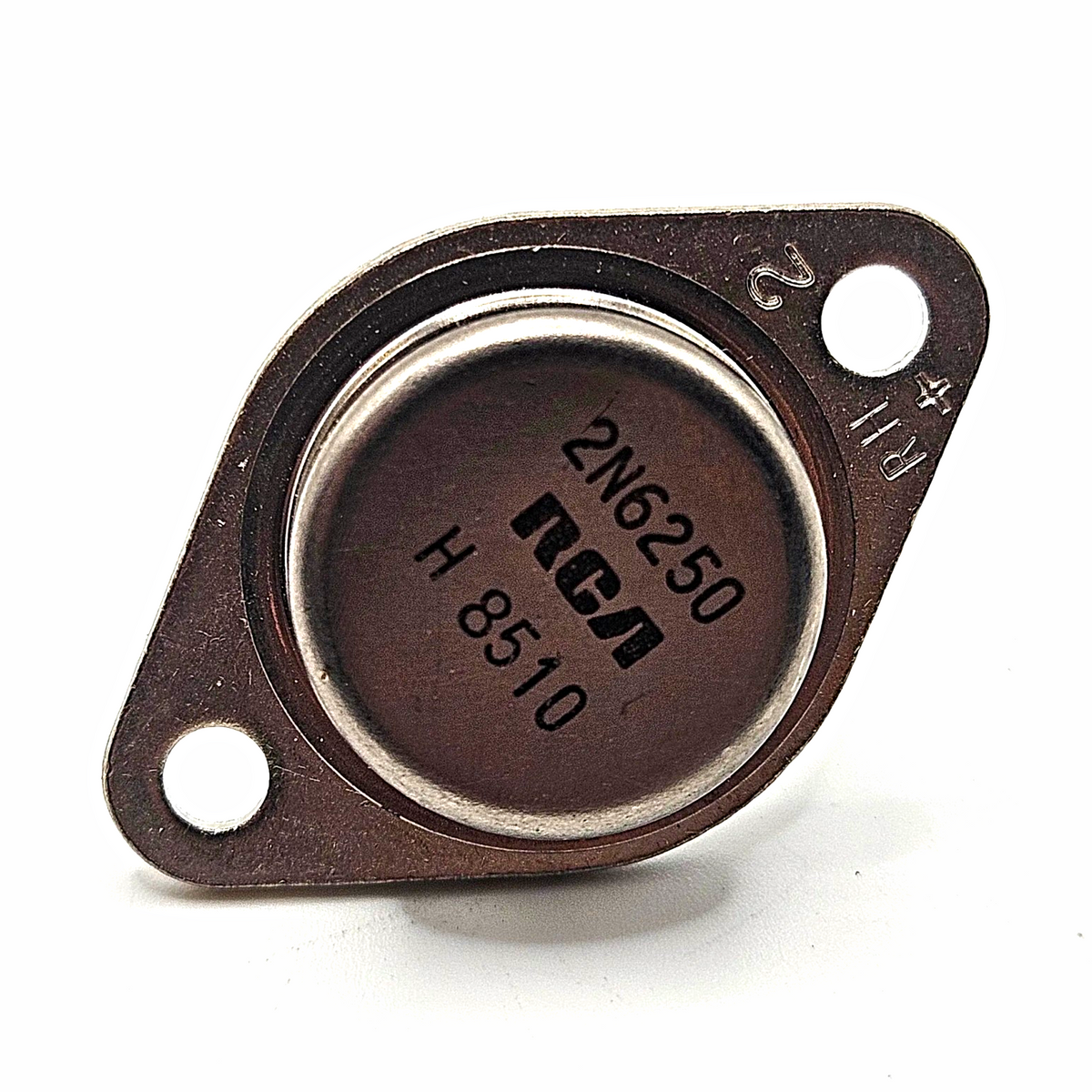

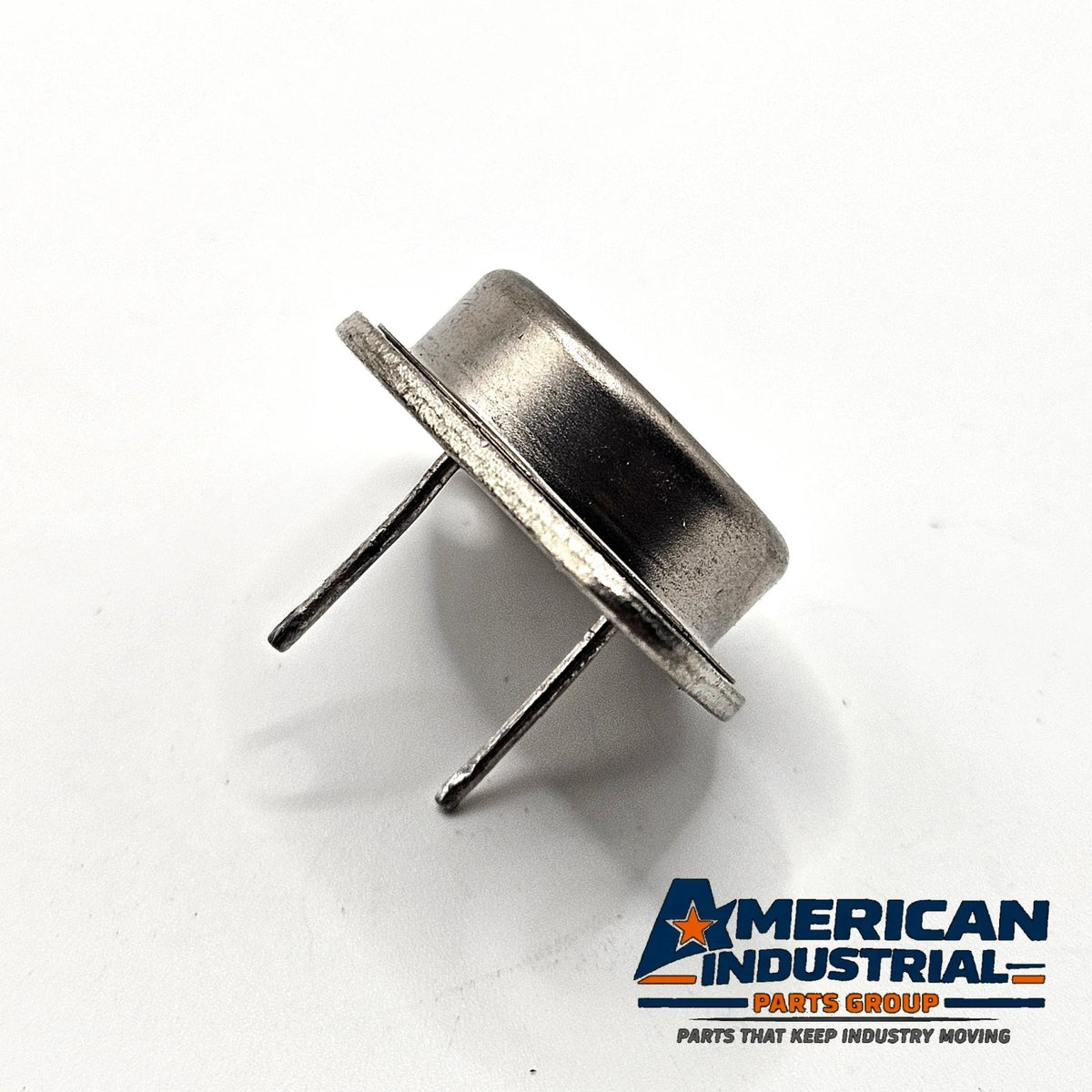

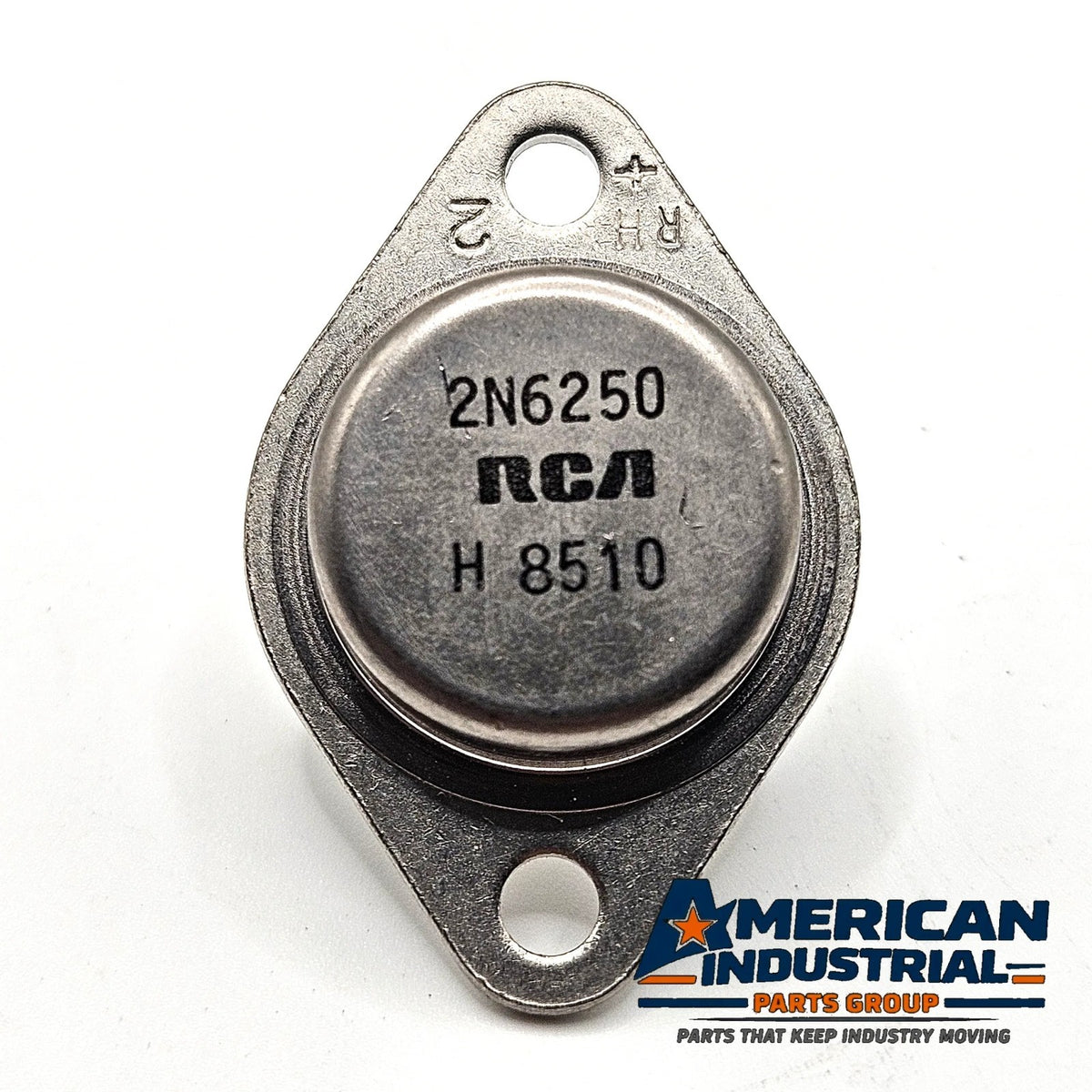

RCA 2N6250 NPN Power Transistor 275V 10A 175W TO-3 NOS
RCA 2N6250 NPN Power Transistor 275V 10A 175W TO-3 NOS
Regular price
$19.95 USD
Regular price
Sale price
$19.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: RCA
Model: 2N6250
MPN: 2N6250
Type: High-Voltage NPN Power Transistor
Transistor Polarity: NPN
Semiconductor Material: Silicon
Collector-Emitter Voltage: 275V
Collector Current: 10A
Maximum Power Dissipation: 175W
Package Type: TO-3 Metal Case
Mounting Style: Chassis Mount
Number of Terminals: 2
Visible Component Code: H 8510
Number of Items: 1
Country/Region of Manufacture: Unknown
Condition: New Old Stock
DESCRIPTION
RCA 2N6250 high-voltage silicon NPN power transistor in a two-terminal TO-3 metal package. The 2N6250 is rated for a collector-emitter voltage of 275V, collector current of 10A, and maximum power dissipation of 175W.
Features:
RCA 2N6250
High-Voltage Silicon NPN Power Transistor
275V Collector-Emitter Voltage
10A Collector Current
175W Maximum Power Dissipation
TO-3 Metal Package
Two-Terminal Configuration
Chassis-Mount Design
Visible Component Code H 8510
New Old Stock
This listing includes one transistor. The component may show minor scratches, oxidation, discoloration, or other cosmetic evidence of long-term storage and handling. Please review all photos carefully for the exact condition and markings.
DISCLAIMER
This item is new old stock and has not been installed or placed into service by us. Electrical operation has not been independently tested. Vintage electronic components should be inspected and tested by a qualified technician before installation. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of RCA. All product names, trademarks, brands, and logos are the property of their respective owners. This product is sourced from surplus inventory and is not covered by a manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The 2N6250 is a JEDEC-registered high-voltage NPN silicon power transistor in a TO-3 (TO-204AA) package, and is the middle member of the 2N6249 / 2N6250 / 2N6251 family rated 200V, 275V and 350V collector-emitter respectively. Published family ratings are 375V collector-base and 6.0V emitter-base for the 2N6250, with 10A collector current. The series was designed for high-voltage inverters, switching regulators and line-operated amplifier applications, and has been second-sourced by several manufacturers; military-grade JAN, JANTX and JANTXV versions exist under MIL-PRF-19500/371. Confirm voltage grade, gain and saturation characteristics against the original device before substituting, and note that a lower-voltage 2N6249 is not a substitute in a 275V circuit. The collector is connected to the case, so insulate the package from a grounded heatsink where the circuit requires it.
Q&A
Q: What is the 2N6250? A: A high-voltage NPN silicon power transistor in a TO-3 metal package, rated 275V collector-emitter with 10A collector current and 175W dissipation.
Q: How does it differ from the 2N6249 and 2N6251? A: Same family, different voltage grades — 200V, 275V and 350V collector-emitter respectively.
Q: What was this transistor designed for? A: High-voltage inverters, switching regulators and line-operated amplifier applications.
RCA 2N6250 2N 6250 NPN Power Transistor High Voltage Transistor Silicon Transistor Bipolar Junction Transistor BJT 275V Transistor 10A Transistor 175W Transistor TO-3 TO3 Metal Case Transistor Chassis Mount Transistor Switching Transistor Switching Regulator High Voltage Inverter Line Operated Amplifier Industrial Power Transistor Power Supply Repair Amplifier Repair Vintage Electronics Electronic Component New Old Stock NOS Replacement Transistor Industrial Electronics
