RCA General Electric 2N6259 NPN Power Transistor 150V 16A TO-3 High Voltage New
RCA General Electric 2N6259 NPN Power Transistor 150V 16A TO-3 High Voltage New
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Shipping calculated at checkout.
8 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: RCA
MPN: 2N6259
Marking: GE/RCA
Type: Bipolar (BJT), NPN
Material: Silicon
Package: TO-3 metal can
Collector-Emitter Voltage VCEO(sus): 150 V
Collector-Base Voltage VCBO: 170 V
Emitter-Base Voltage VEBO: 7 V
Continuous Collector Current IC: 16 A
DC Current Gain hFE: 15–60 at IC = 8 A, VCE = 2 V

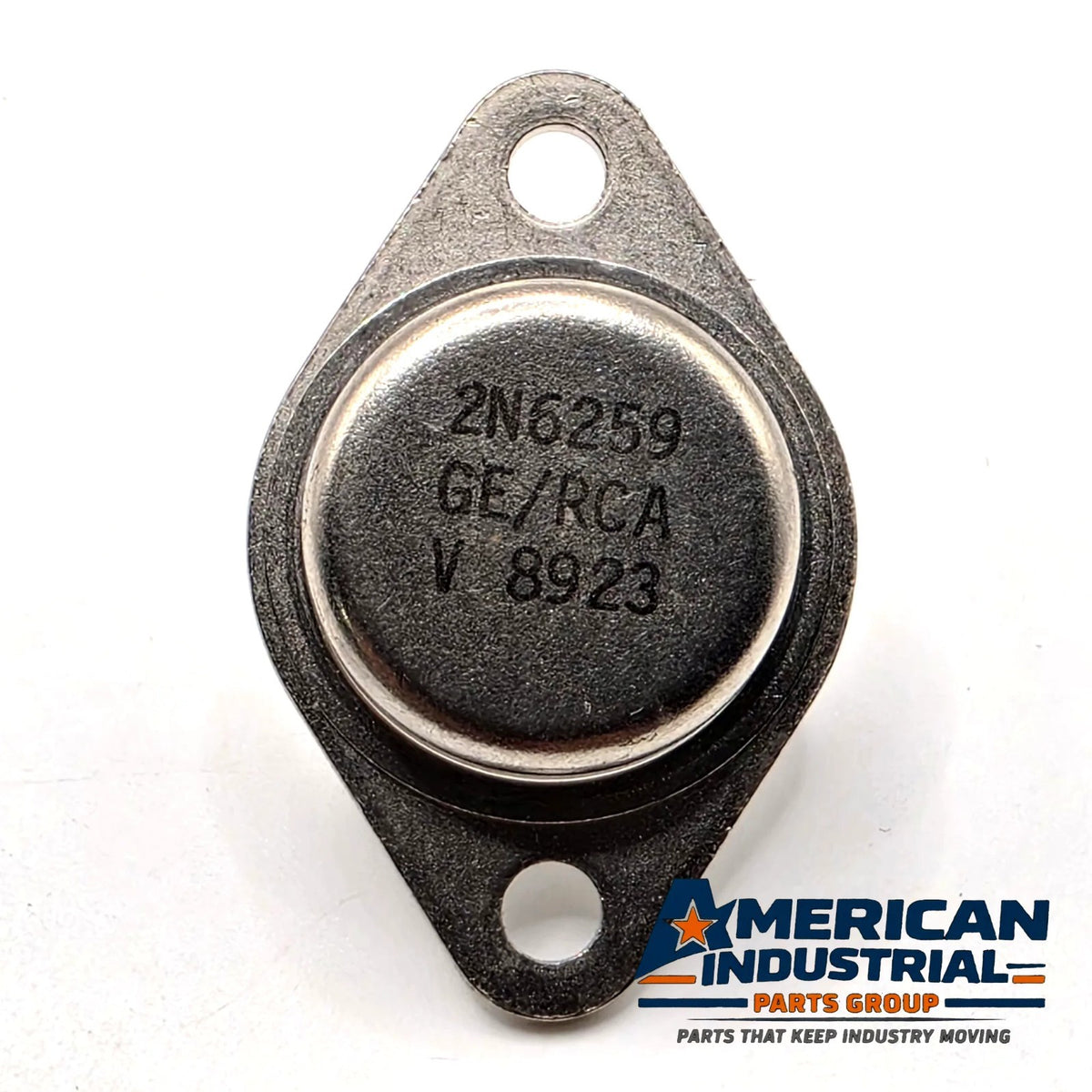

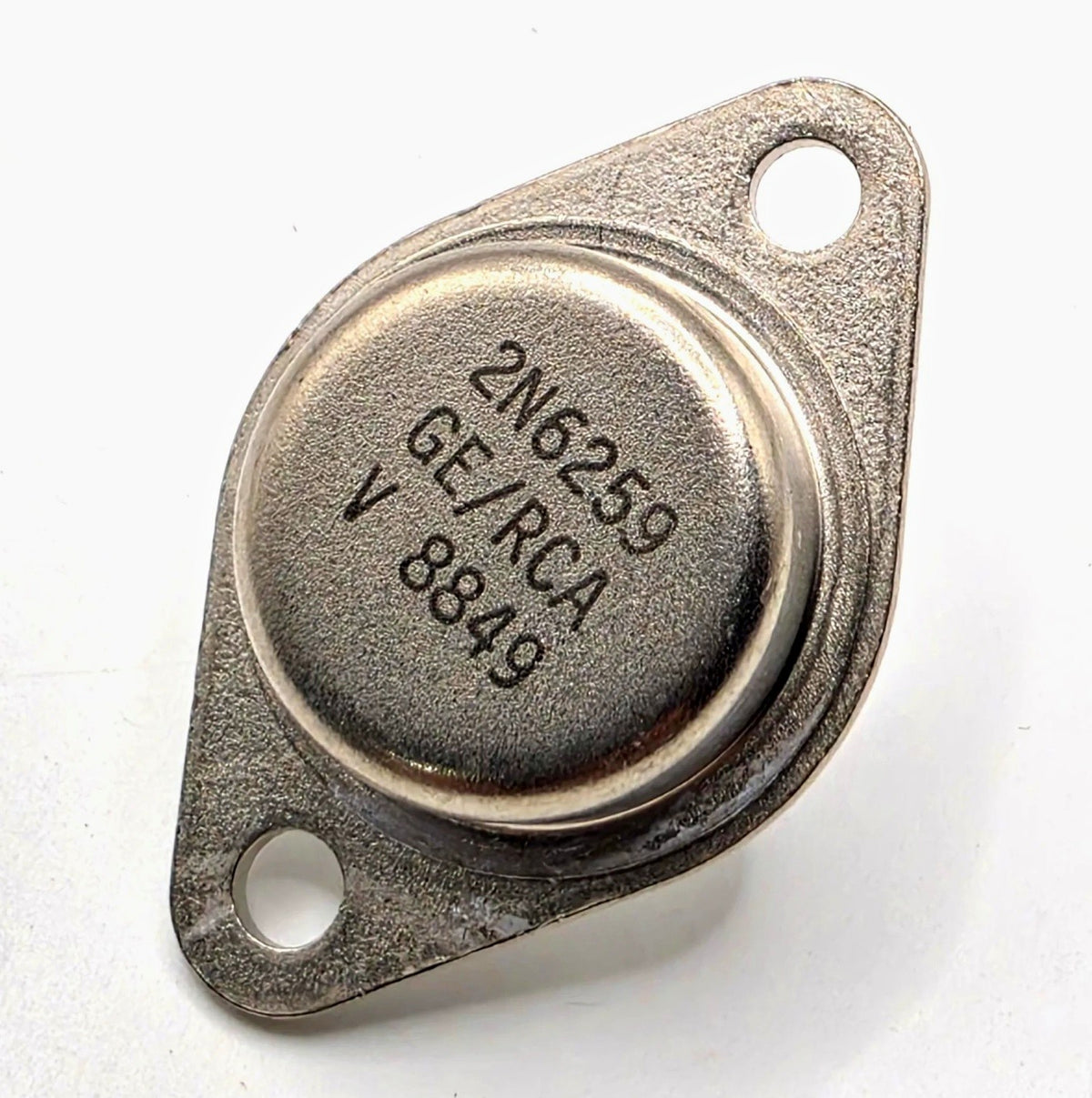

Date Code: 8849 (1988, week 49) / 8923 (1989, week 23)
Condition: New
DESCRIPTION

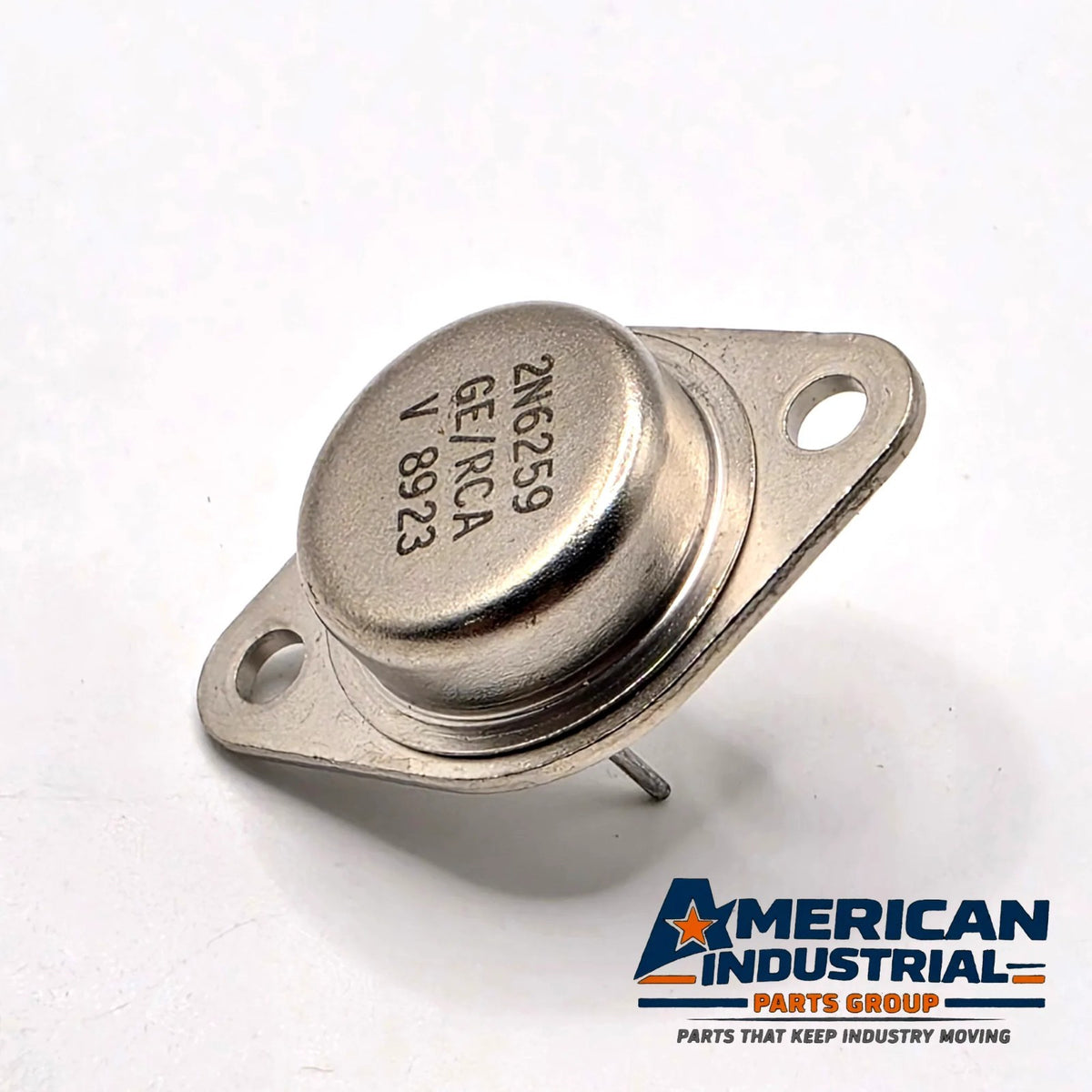

RCA 2N6259 NPN Silicon High-Voltage Power Transistor, TO-3. Marked GE/RCA.
Features:
NPN silicon power transistor in a JEDEC TO-3 metal can
VCEO(sus): 150 V. VCEX: 170 V. VCBO: 170 V. VEBO: 7 V
Continuous collector current: 16 A (30 A peak)
DC current gain (hFE): 15–60 at IC = 8 A, VCE = 2 V. 10 minimum at IC = 16 A
VCE(sat): 1.0 V max at IC = 8 A
Operating junction temperature: −65 °C to +200 °C

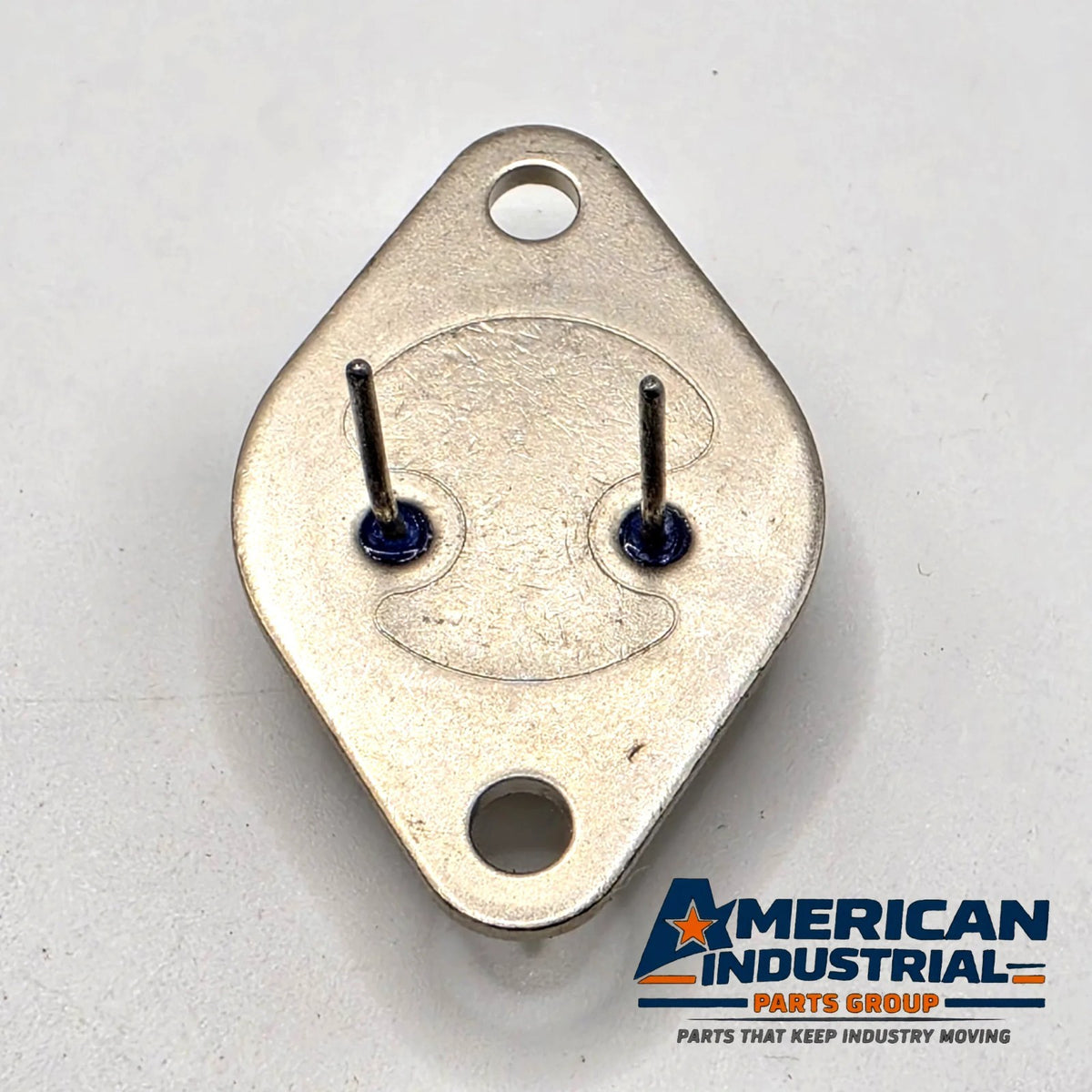

Two-pin TO-3; the case is the collector
Date Code: 8849 (1988, week 49) / 8923 (1989, week 23)
New old stock. The flange and leads are clean.
Compatibility:
Direct replacement for 2N6259 in high-voltage linear and switching circuits, including power supplies, series regulators, inverters, audio amplifier output stages and industrial controls. Also used as a replacement in NTE and ECG cross-reference applications that call for a 2N6259.
Q&A
Q: What does "GE/RCA" mean?
A: GE acquired RCA in 1986, and RCA Solid State semiconductors made in the late 1980s carried the GE/RCA marking.
Q: Which pin is the collector?
A: On a TO-3 package, the metal case is the collector. The two pins are the base and the emitter.
Q: Is a mounting kit included?
A: No. The listing is for the transistor only.
DISCLAIMER
Please review all photos and specifications before purchasing, and make sure this part is right for your application. Item is sold as shown in the photos.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of RCA or General Electric. All product names, trademarks, brands, and logos are the property of their respective owners and are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
2N6259 RCA 2N6259 GE RCA 2N6259 NPN power transistor TO-3 transistor high voltage power transistor 150V 16A transistor NOS RCA transistor vintage RCA semiconductor audio amplifier output transistor power supply transistor
Thank you for shopping with American Industrial Parts Group!
