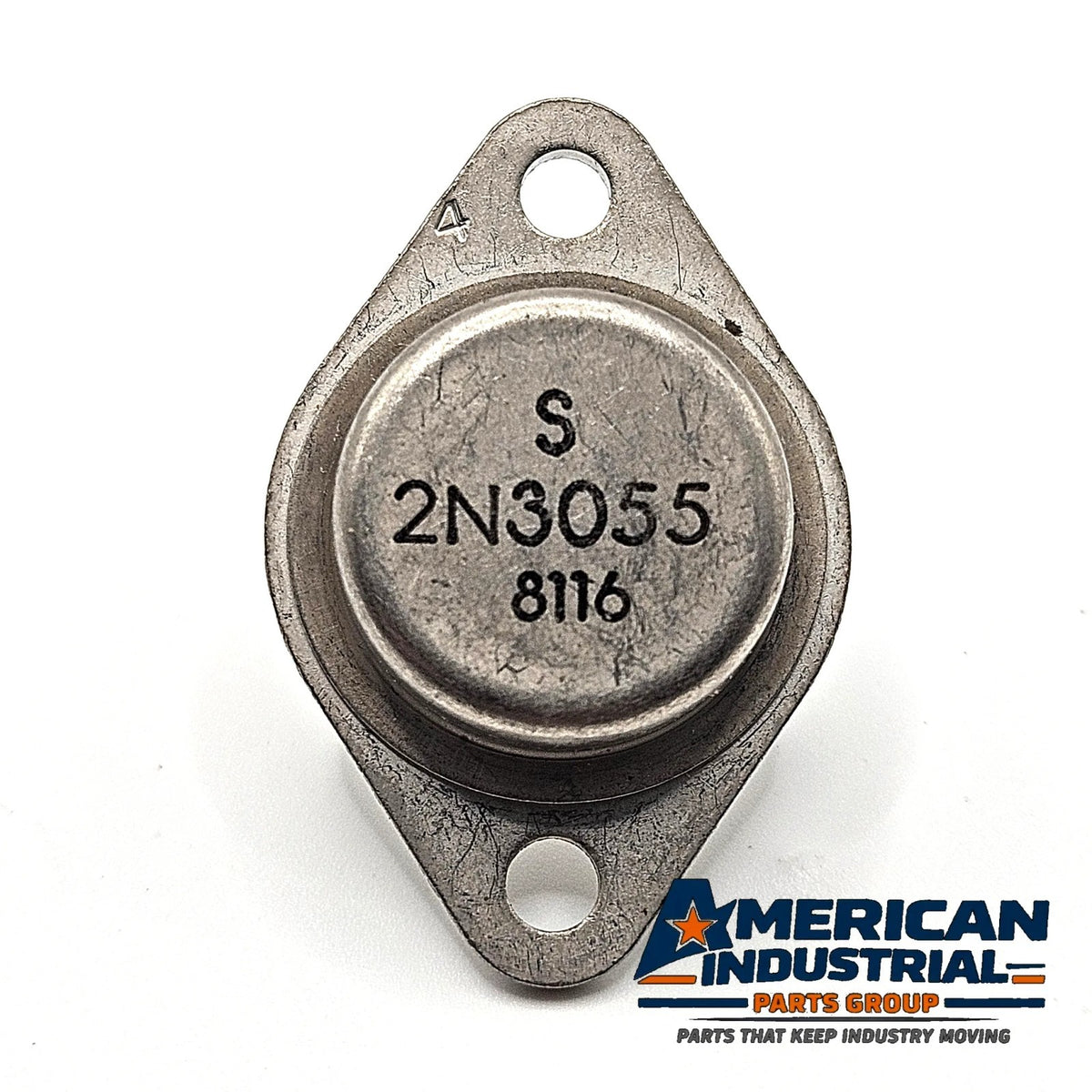

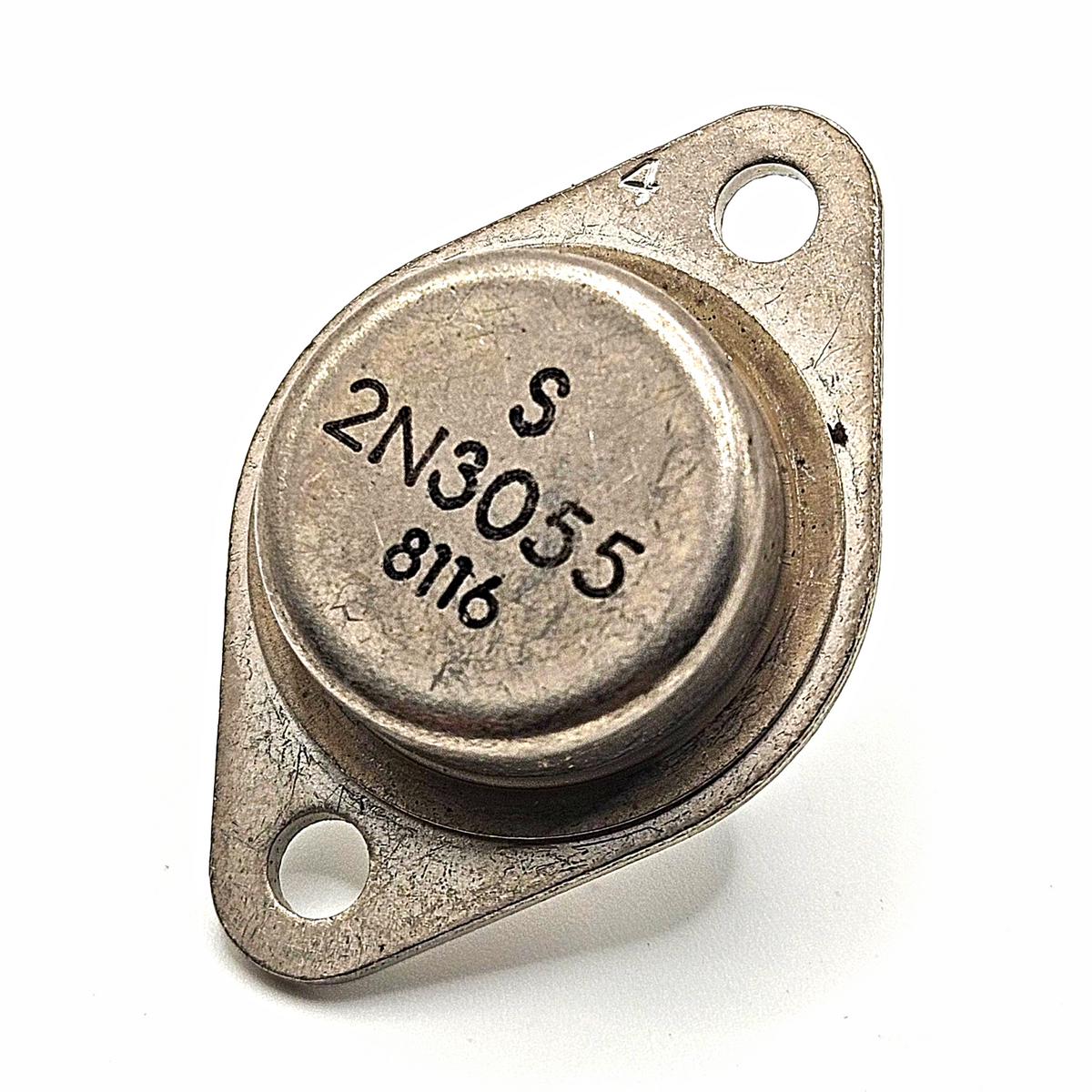

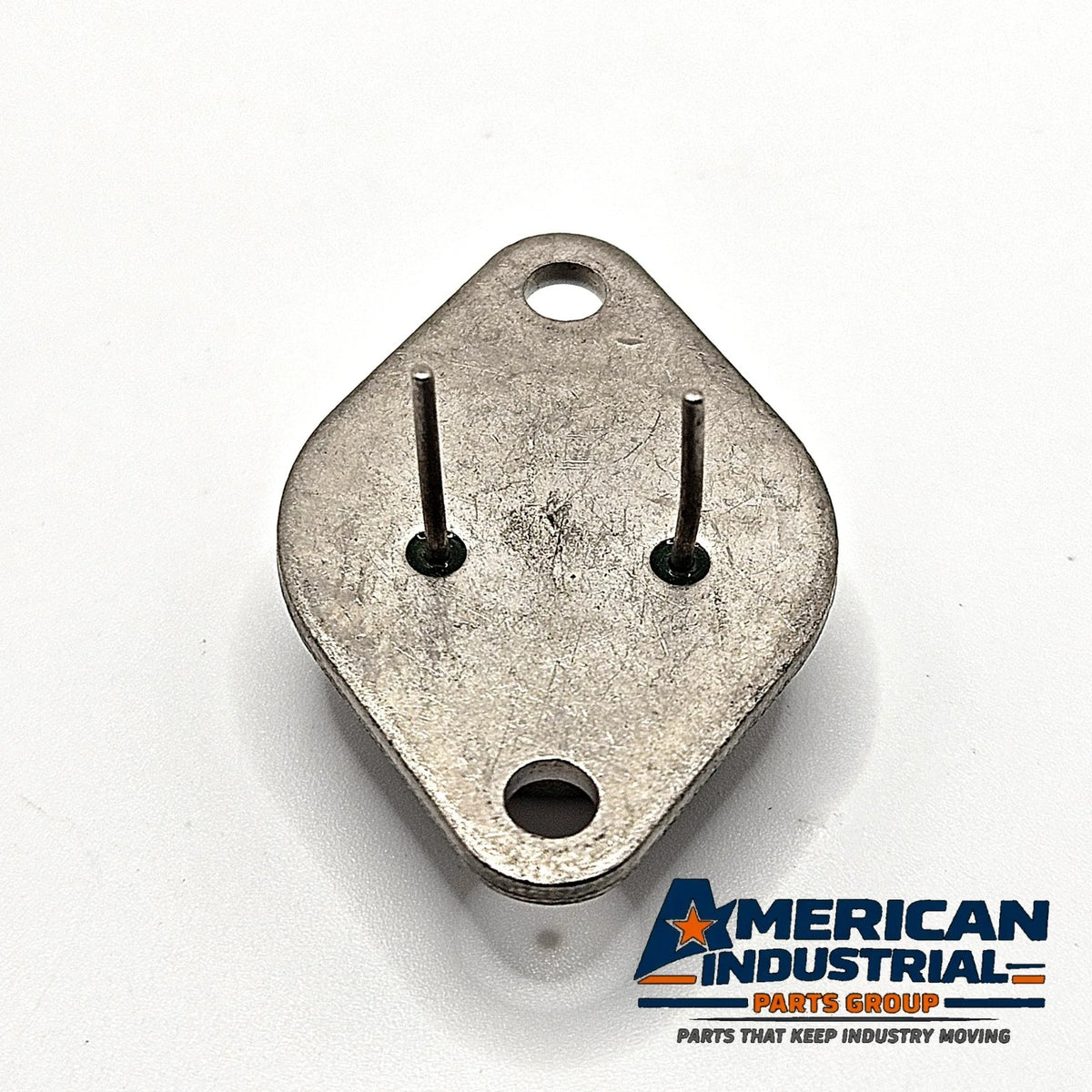

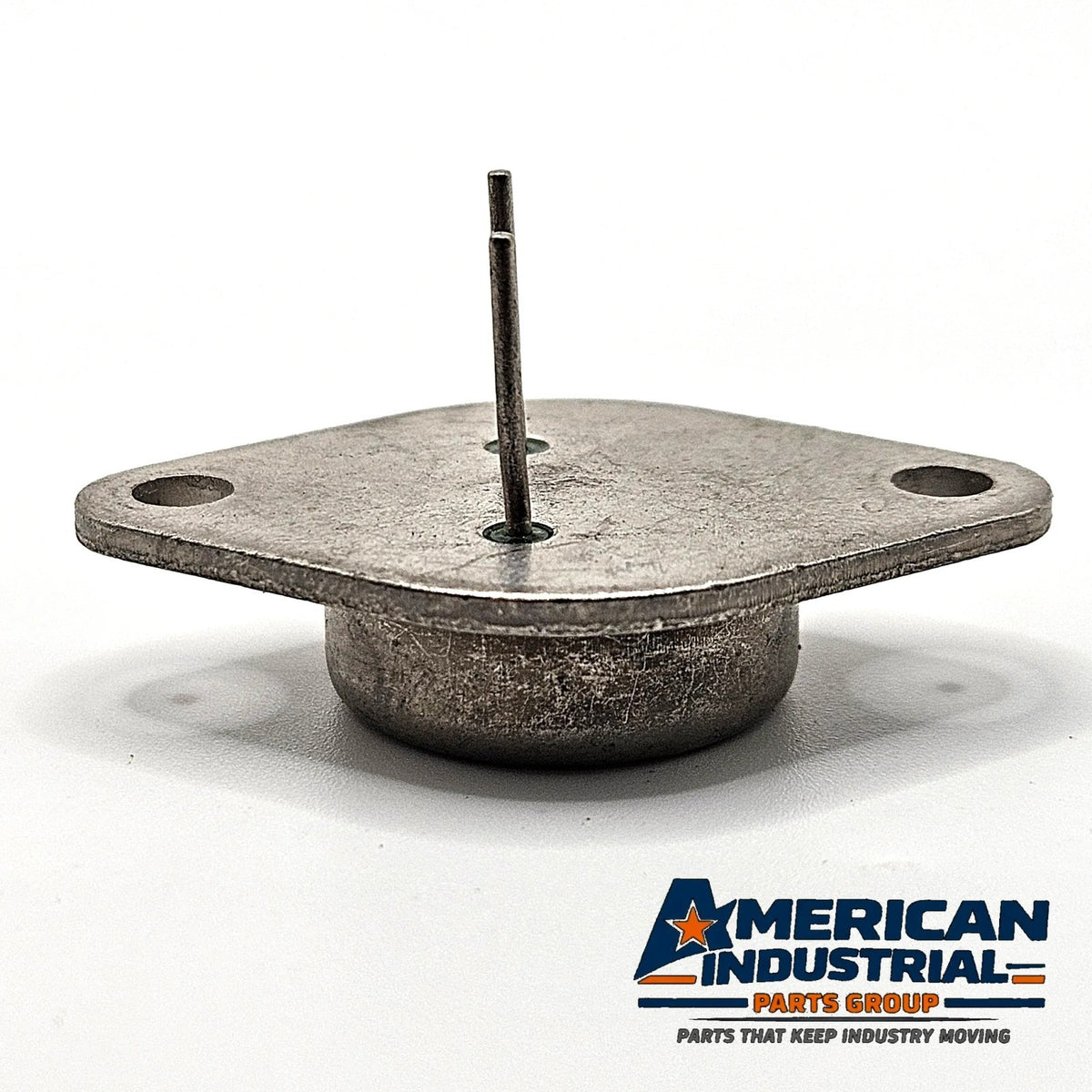

Solitron 2N3055 NPN Silicon Power Transistor 60V 15A 115W TO-3 NOS
Solitron 2N3055 NPN Silicon Power Transistor 60V 15A 115W TO-3 NOS
Regular price
$8.95 USD
Regular price
Sale price
$8.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Solitron
Model: 2N3055
MPN: 2N3055
Type: NPN Silicon Power Transistor
Transistor Polarity: NPN
Configuration: Single
Number of Elements: 1
Maximum Collector Current: 15A
Collector-Emitter Voltage: 60V
Maximum Power Dissipation: 115W
Package/Case: TO-3
Mounting Style: Through-Hole / Chassis Mount
Number of Pins: 2
Component Marking: 8116
Condition: New old stock
DESCRIPTION
Solitron 2N3055 NPN silicon bipolar power transistor in a metal TO-3 package. The 2N3055 is designed for general-purpose power switching and amplifier applications.
Features:
Solitron 2N3055
NPN Silicon Power Transistor
15A Maximum Collector Current
60V Collector-Emitter Voltage
115W Maximum Power Dissipation
Single-Transistor Configuration
Metal TO-3 Package
Two-Pin Through-Hole Design
Case Serves as Collector
Component Marking 8116
This transistor is new old stock and may show scratches, discoloration, oxidation, or other cosmetic wear from long-term storage and handling. Please review all photos for the exact condition and markings.
DISCLAIMER
This item is new old stock. It may show cosmetic wear, discoloration, oxidation, or aging from long-term storage and handling. Please verify the 2N3055 specifications, package, pin configuration, and electrical requirements for your application before installation. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Solitron. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The 2N3055 is a JEDEC-registered NPN silicon power transistor in a TO-3 (TO-204AA) metal package, second-sourced by many manufacturers including Solitron Devices. Registered ratings are 60V collector-emitter, 100V collector-base, 15A continuous collector current, 115W dissipation and a DC current gain of 20 to 70 at 4A. Its complementary PNP device is the MJ2955, and the two are commonly paired in push-pull output stages. The NTE and ECG aftermarket cross-reference house number for the 2N3055 is NTE130 / ECG130. Note that variants such as the 2N3055H and 2N3055HV carry different voltage ratings — confirm the specific manufacturer's datasheet before substituting. The collector is electrically connected to the case, so the package must be insulated from a grounded heatsink where the circuit requires it.
Q&A
Q: What is the 2N3055? A: An NPN silicon power transistor in a TO-3 metal package, rated 60V with 15A continuous collector current and 115W dissipation.
Q: What is the complementary PNP transistor? A: The MJ2955.
Q: What is the NTE/ECG cross-reference number? A: NTE130 (ECG130).
Solitron 2N3055 Solitron Devices 2N 3055 NPN Silicon Power Transistor NPN Power Transistor 60V Transistor 15A Transistor 115W Transistor TO-3 Transistor TO3 Metal Can Transistor Bipolar Junction Transistor BJT Power Semiconductor Vintage Transistor New Old Stock NOS Semiconductor Amplifier Transistor Power Supply Transistor Voltage Regulator Transistor General Purpose Switching Transistor Audio Amplifier Repair Electronic Repair Replacement Component Chassis Mount Transistor Through Hole Transistor
Thank you for shopping with American Industrial Parts Group!
