Sylvania ECG6045 60A 1000V Stud Mount Rectifier Diode DO-5 NOS
Sylvania ECG6045 60A 1000V Stud Mount Rectifier Diode DO-5 NOS
Regular price
$19.99 USD
Regular price
Sale price
$19.99 USD
Shipping calculated at checkout.
2 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Sylvania
Model: ECG6045
MPN: ECG6045
Condition: New old stock
Type: Industrial Silicon Rectifier Diode
Diode Configuration: Single
Maximum Continuous Current: 60 A
Peak Reverse Voltage: 1000 V
Package / Case: DO-5
Mounting Type: Stud Mount
Polarity: Anode to Case
Cathode Connection: Insulated Ring-Lug Lead
Quantity: 1
Country of Manufacture: Not specified
DESCRIPTION

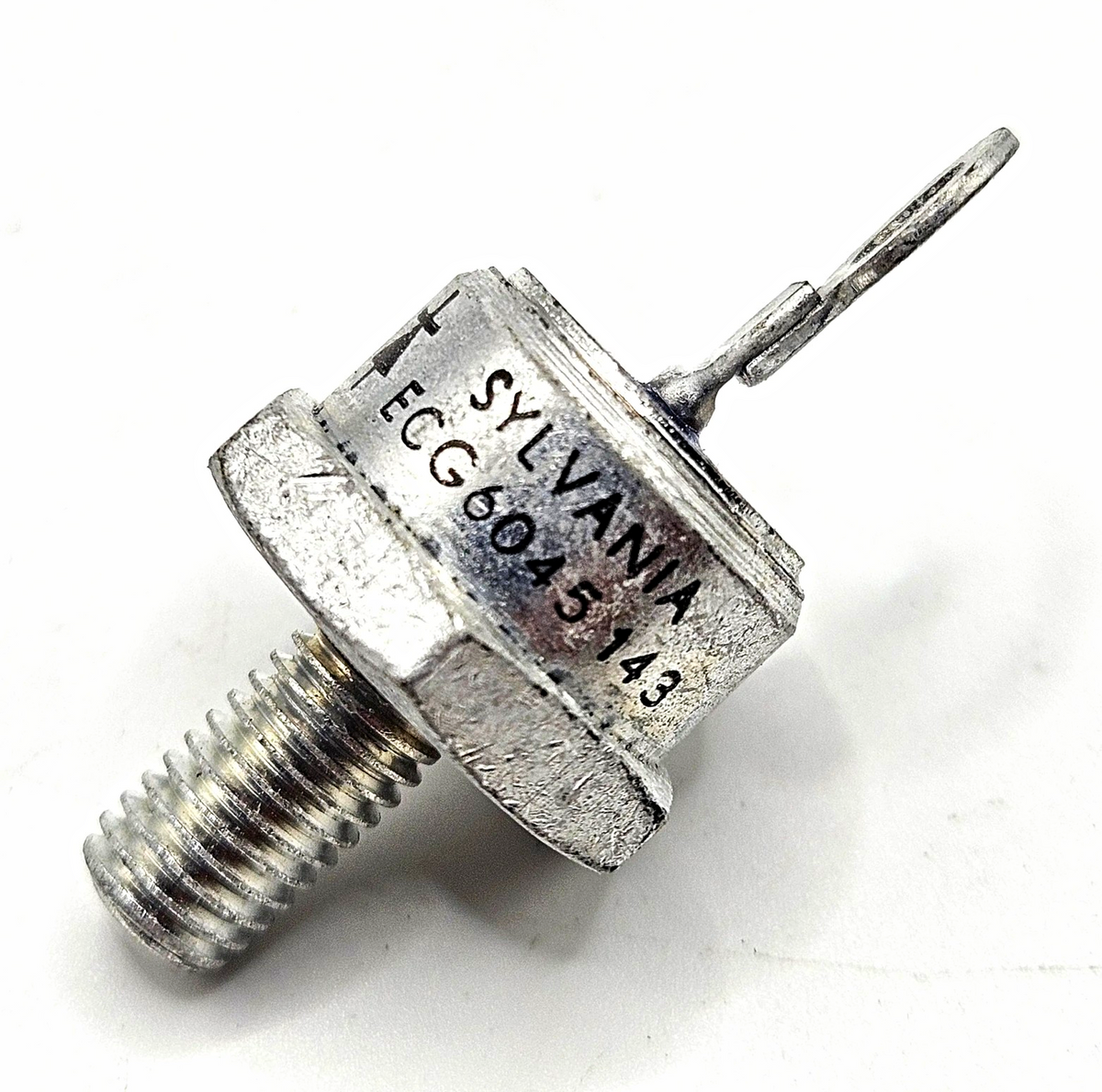

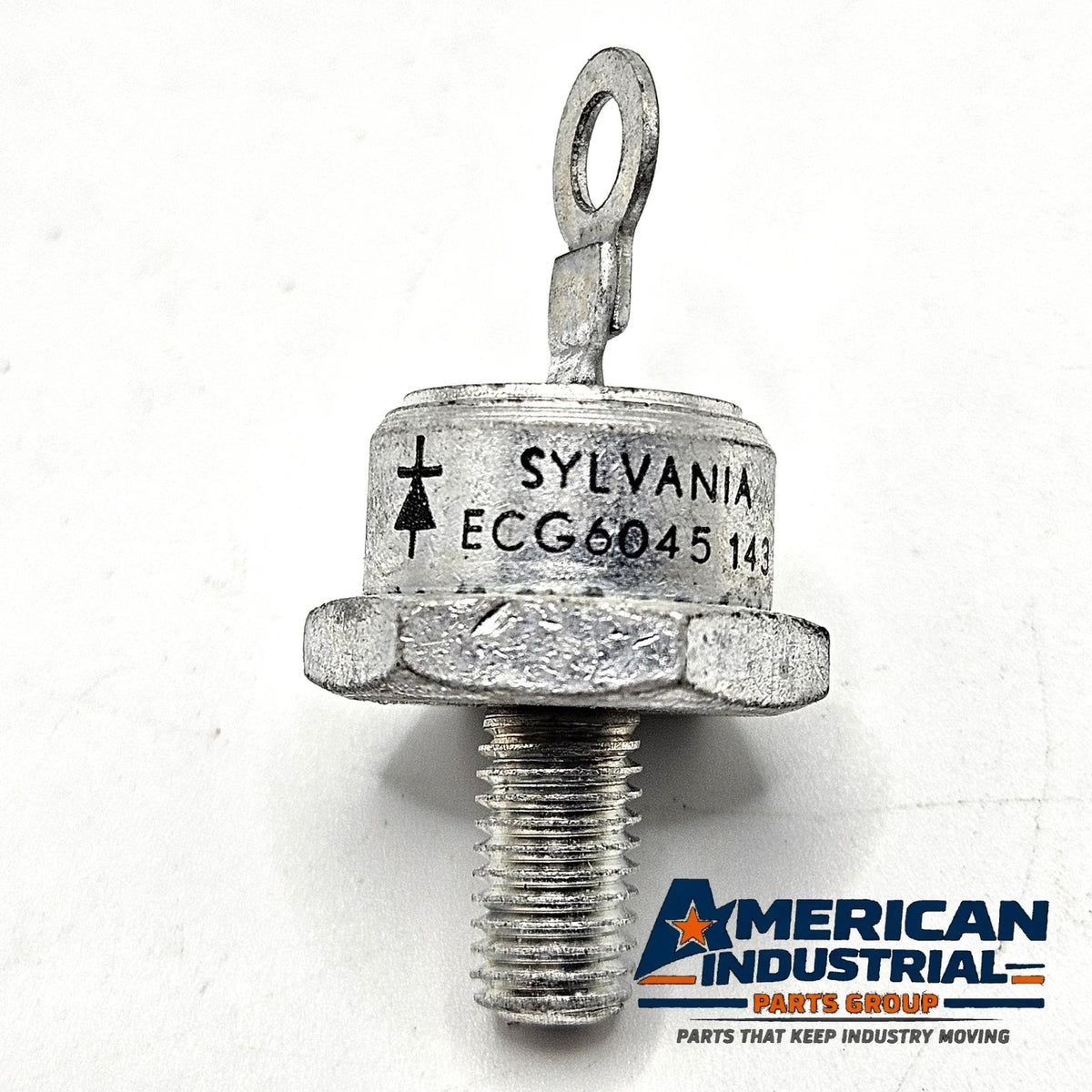

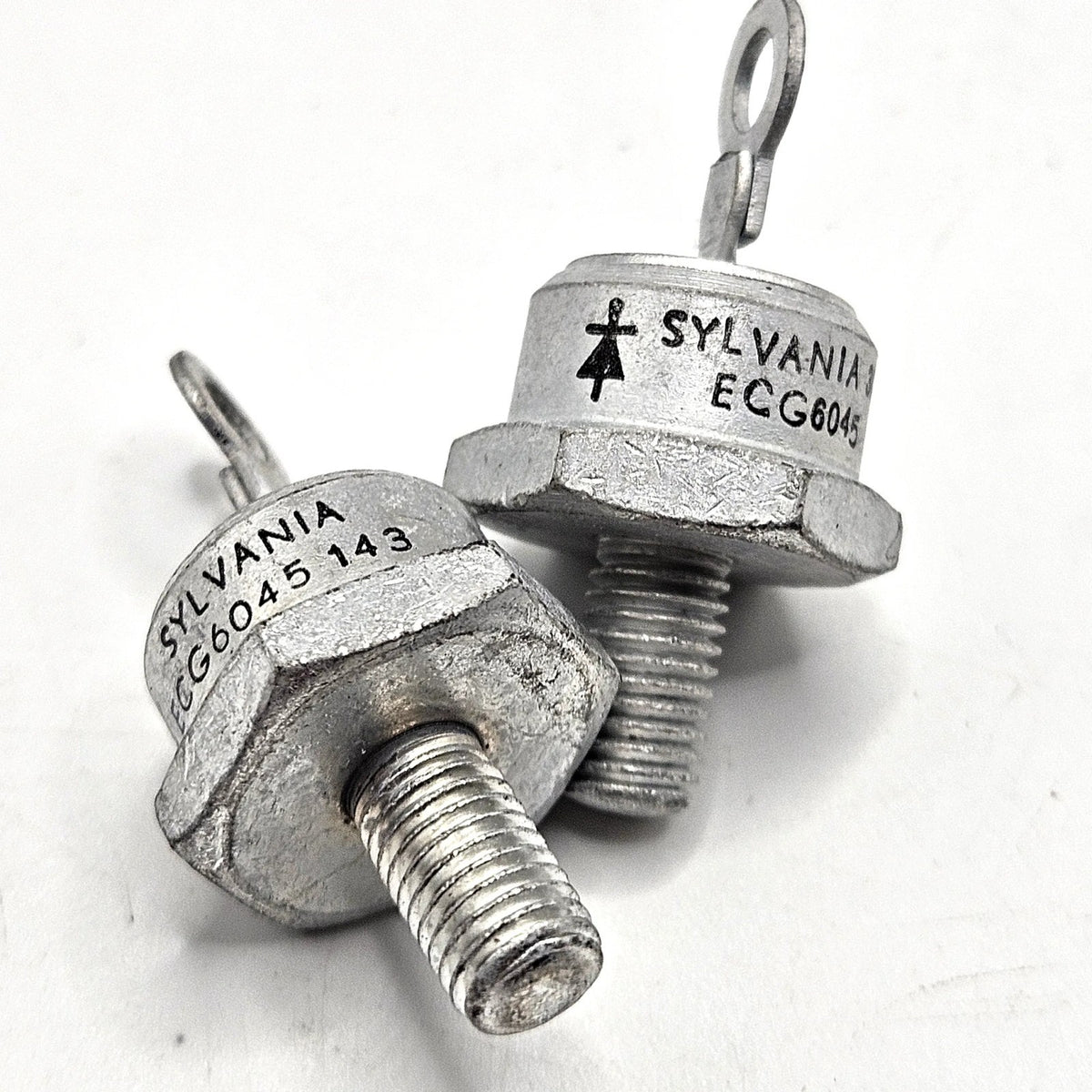

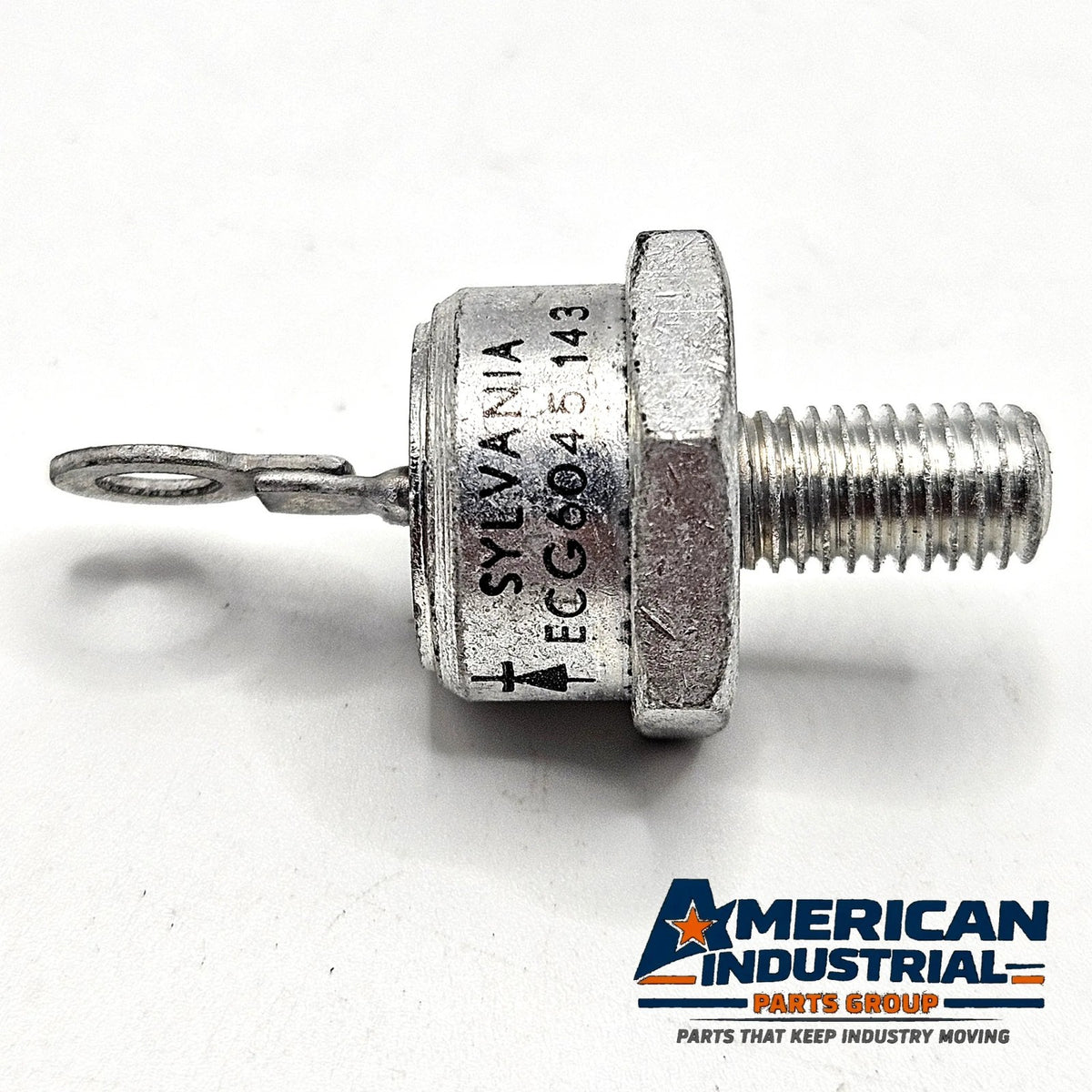

Sylvania ECG6045 industrial silicon rectifier diode rated for 60 amps and 1000 volts.

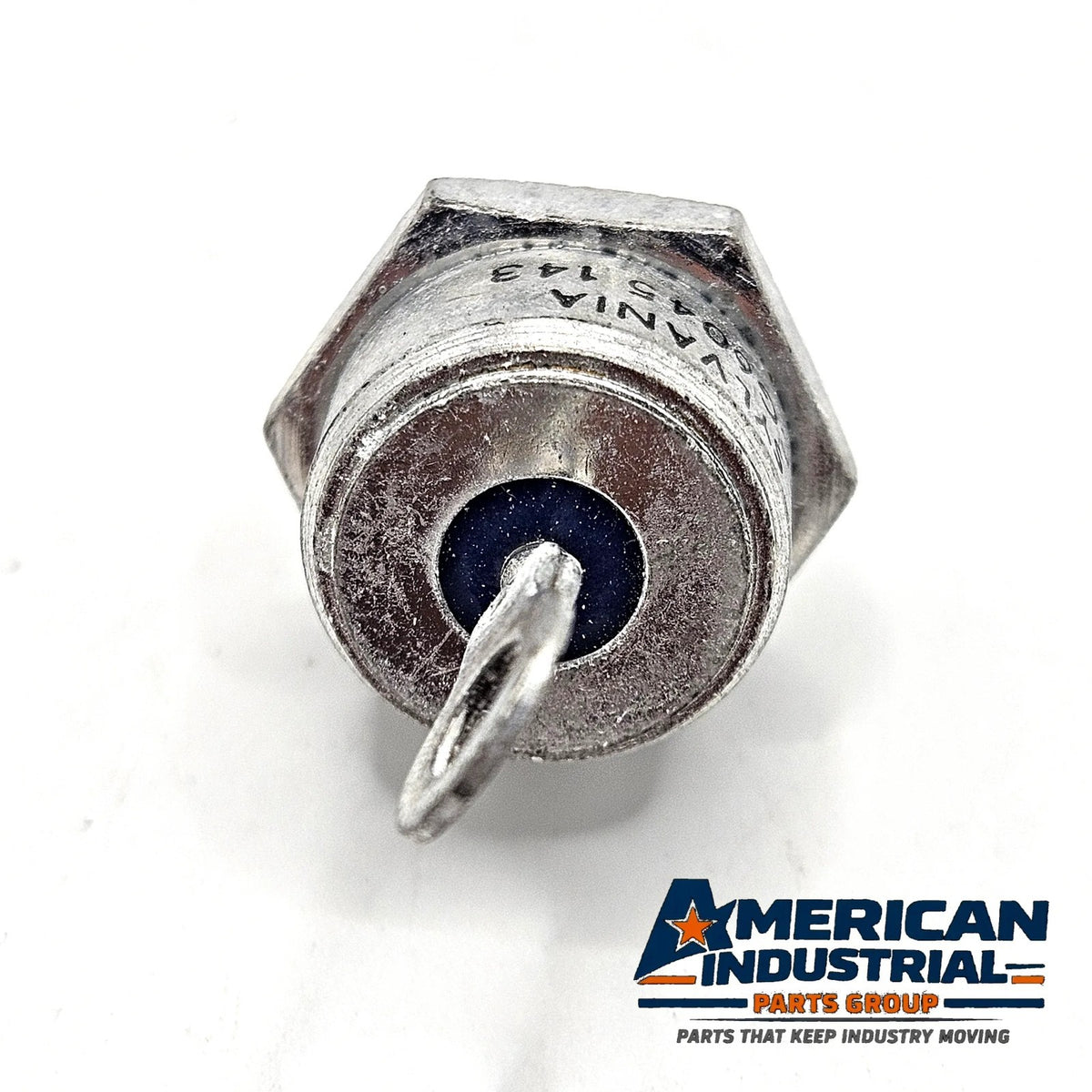

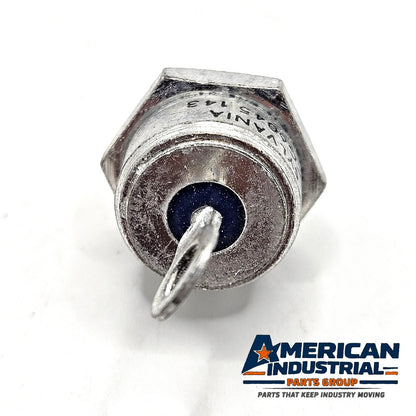

This is a single stud-mount power rectifier in a DO-5 case. The ECG6045 uses anode-to-case polarity, with the cathode connected to the insulated ring-lug terminal.
Condition: New old stock. The component has been stored for an extended period and may exhibit minor cosmetic marks, oxidation, or shelf wear consistent with age and storage. It has not been installed or placed into service.
No functional testing has been performed. Please review all photographs and verify the part number, electrical specifications, polarity, mounting requirements, and compatibility before purchasing.

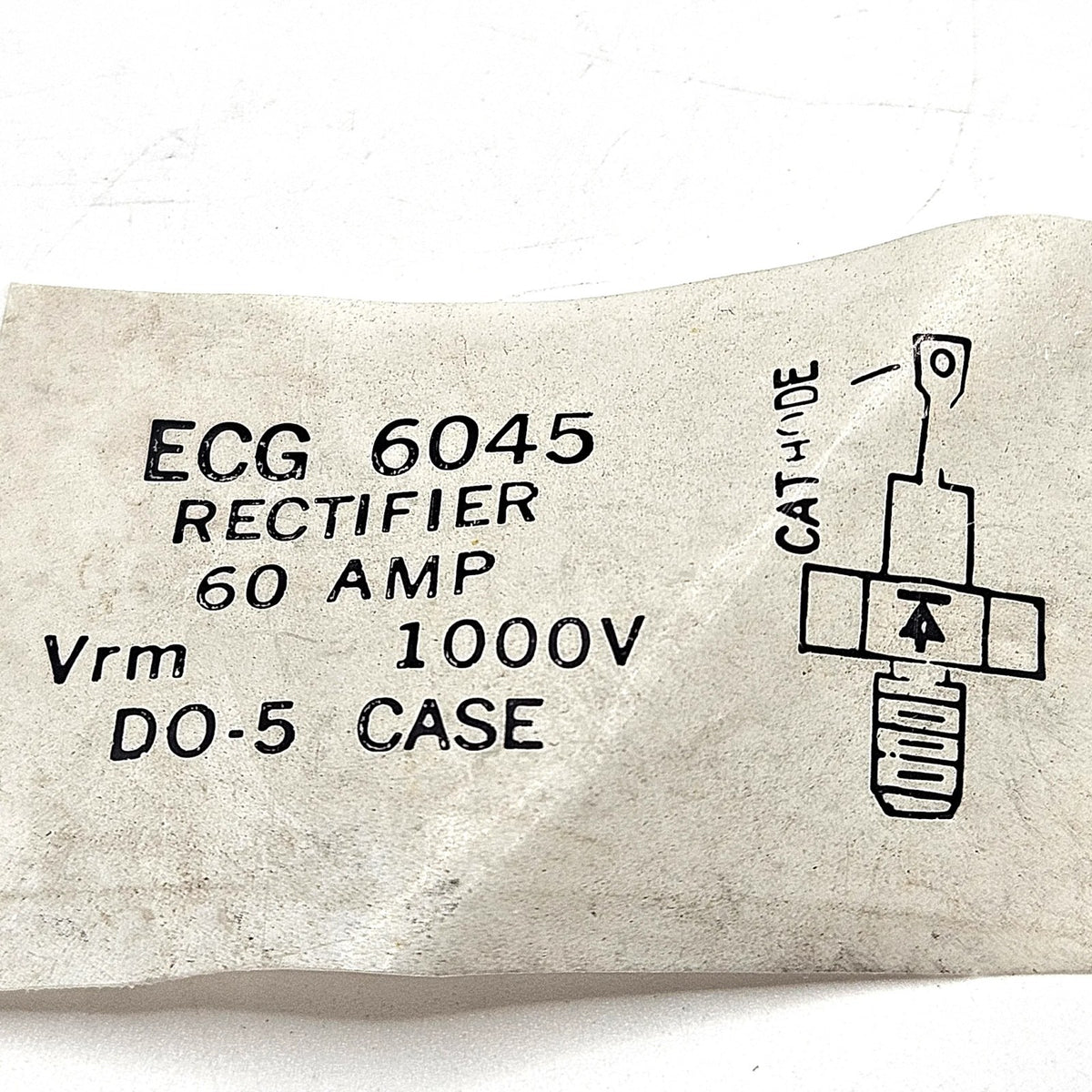

Included: One Sylvania ECG6045 rectifier diode, exactly as pictured.
NTE6045 is a recognized replacement reference, but buyers must independently confirm suitability for their specific application.
COMPATIBILITY & CROSS-REFERENCE
Cross-reference: NTE6045 (60A, 1000V silicon rectifier, DO-5). Direct replacement for a Sylvania ECG6045.
Polarity is specific: this part is anode to case. A cathode-to-case rectifier is not a drop-in match, so verify polarity, mounting, and heat-sinking before installing.
Q&A
Q: What is a Sylvania ECG6045?
A: A 60A, 1000V silicon rectifier diode in a DO-5 stud-mount case with anode-to-case polarity.
Q: What replaces an ECG6045?
A: The NTE6045 is the equivalent cross-reference. Confirm suitability for your application.
Q: What is the polarity?
A: Anode to case, with the cathode on the insulated ring-lug lead.
DISCLAIMER
Unless otherwise stated, this new old stock component has not been energized or functionally tested. Installation should be performed by qualified personnel. Verify polarity, voltage, current, mounting torque, heat-sinking requirements, and circuit compatibility before use.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or representative of Sylvania, Philips ECG, or NTE Electronics. All trademarks, brand names, and part numbers are the property of their respective owners and are used solely for identification purposes.
Sylvania ECG6045, ECG 6045, NTE6045, NTE 6045, industrial silicon rectifier, rectifier diode, power diode, stud mount diode, DO-5 diode, DO5 rectifier, 60 amp rectifier, 60A diode, 1000 volt diode, 1kV rectifier, anode case diode, cathode lead rectifier, vintage semiconductor, industrial electronic component, power supply repair, welding equipment repair, motor control repair, failed rectifier replacement, power supply rectifier replacement
Thank you for shopping with American Industrial Parts Group!
