Texas Instruments SN74LS74AN Dual D Flip-Flop 14-Pin DIP New Open Box
Texas Instruments SN74LS74AN Dual D Flip-Flop 14-Pin DIP New Open Box
Regular price
$4.95 USD
Regular price
Sale price
$4.95 USD
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Texas Instruments
MPN: SN74LS74AN
Series: 74LS
Type: Dual D-Type Flip-Flop
Function: Positive-Edge-Triggered D Flip-Flop
Features: Preset and Clear
Number of Elements: 2
Number of Bits per Element: 1
Package: 14-Pin PDIP / DIP
Mounting Style: Through-Hole
Country Marking: Portugal
Date/Trace Marking: 8206A
Condition: New open box
Quantity: 1
DESCRIPTION
One Texas Instruments SN74LS74AN integrated circuit in new open box condition.

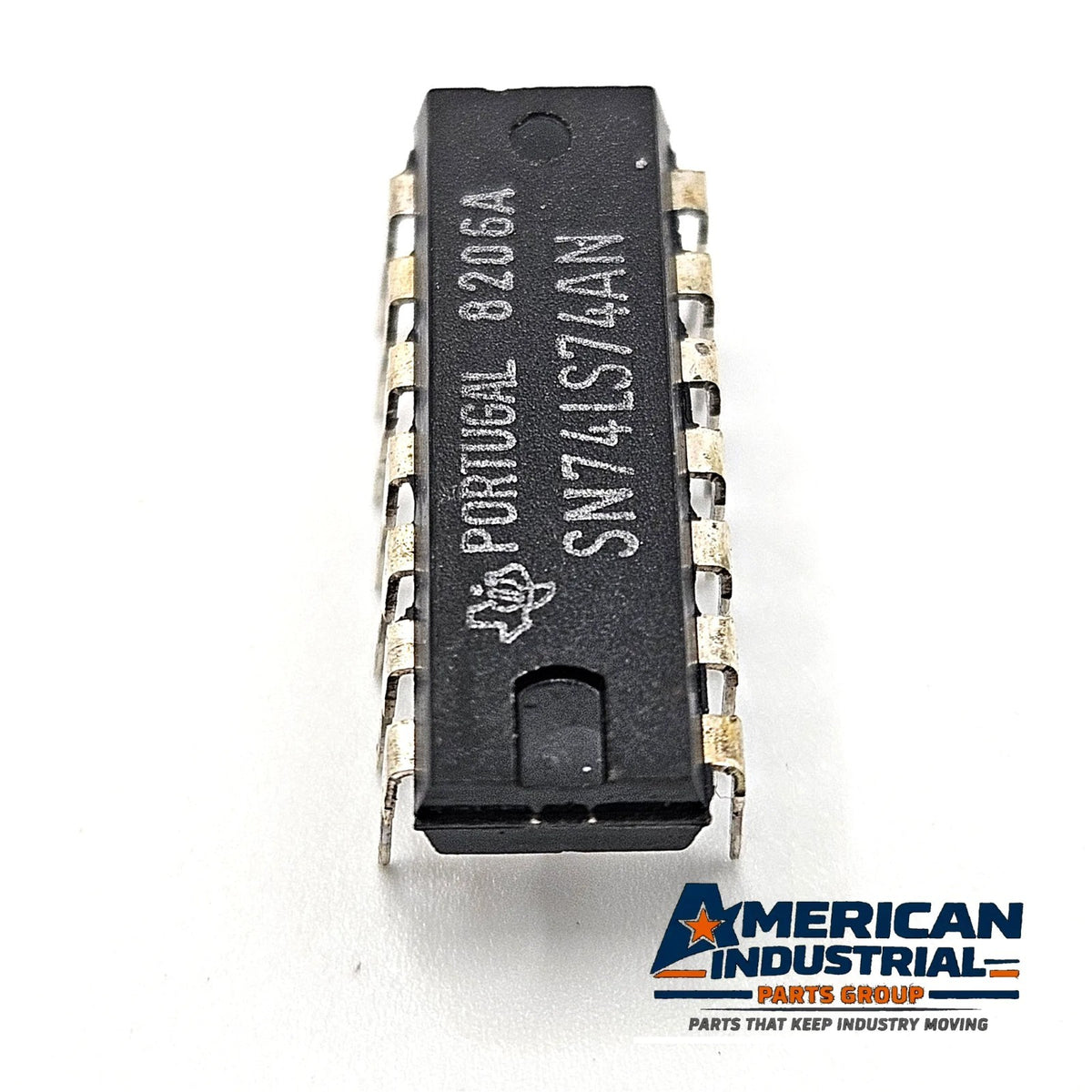

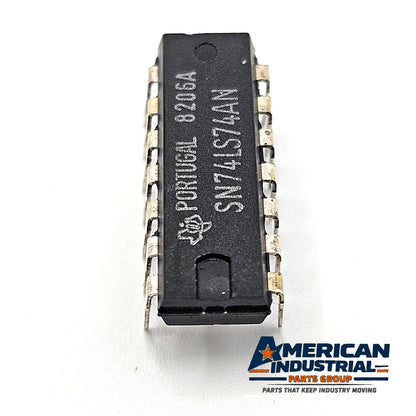

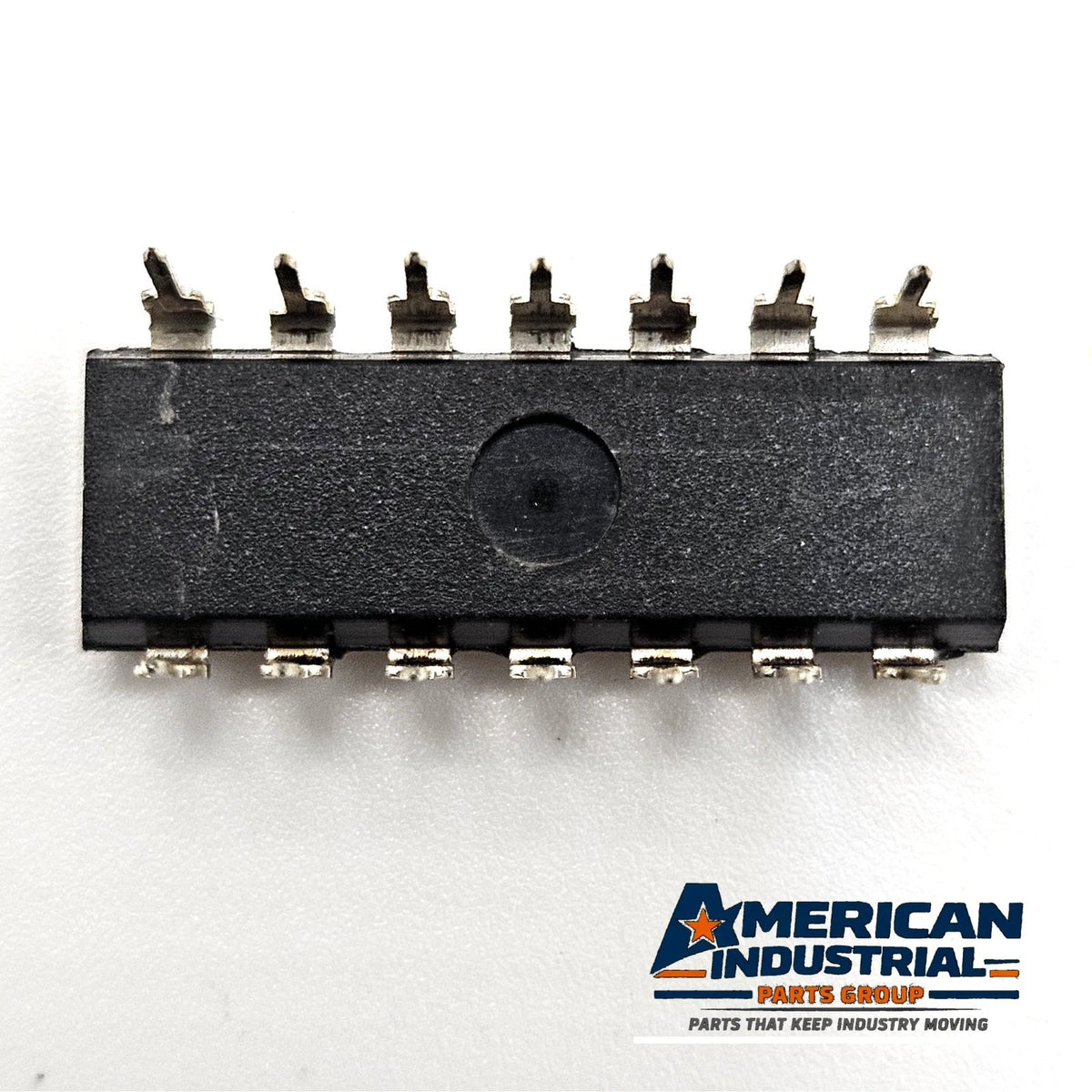

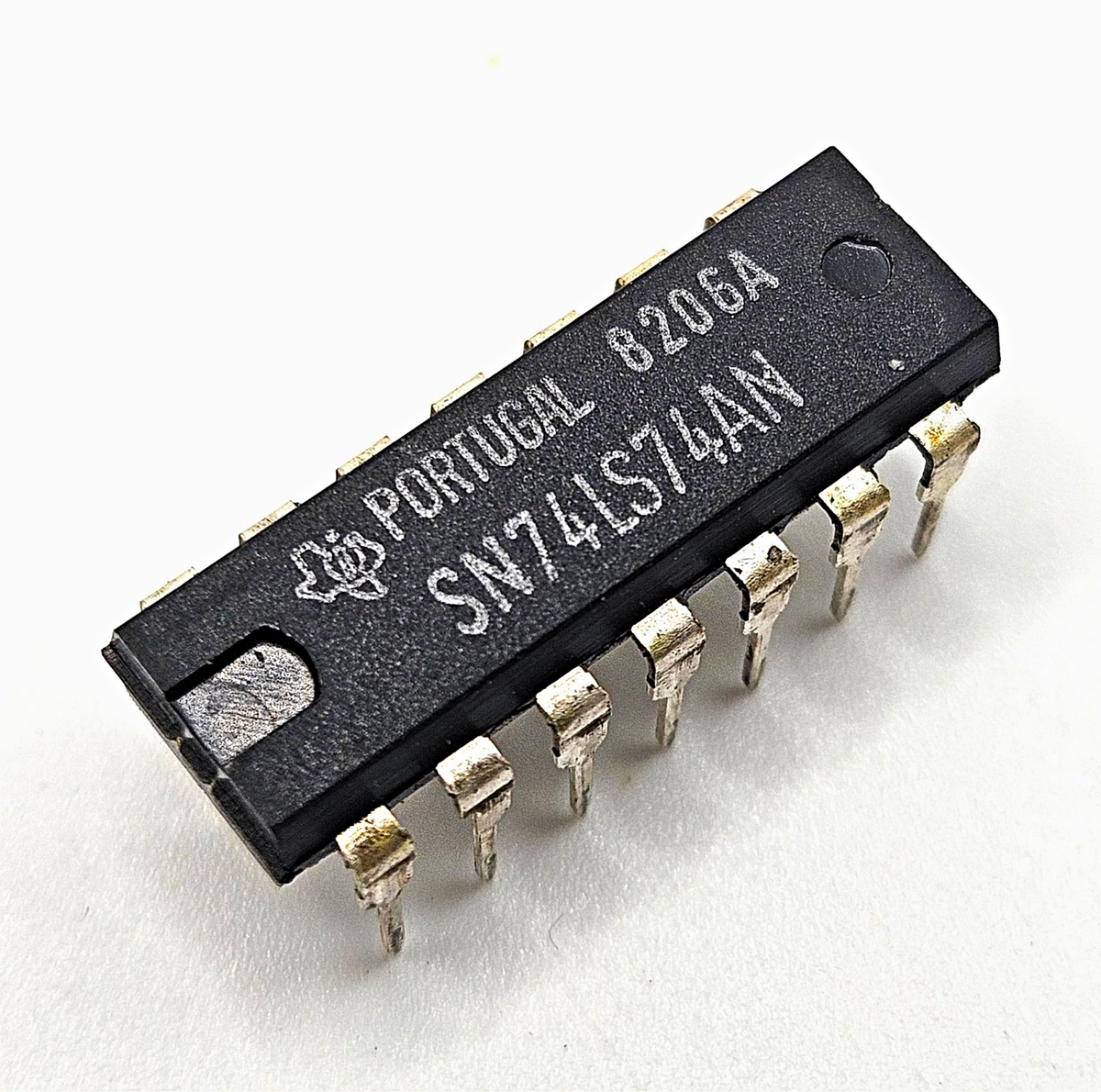

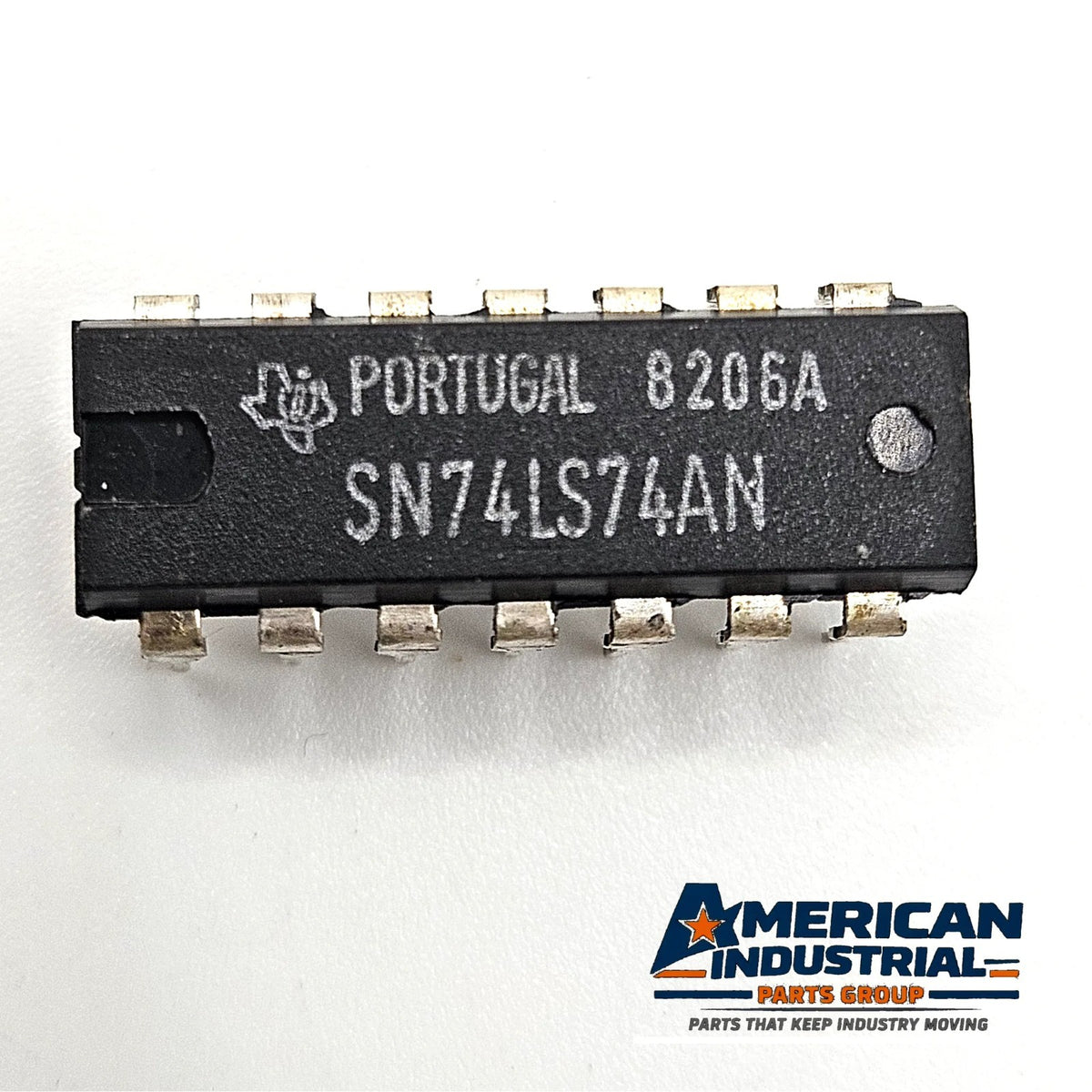

This is a dual D-type positive-edge-triggered flip-flop with preset and clear functions in a 14-pin through-hole DIP package. The device is marked SN74LS74AN and Portugal 8206A.
The part is untested and sold as shown. Please review all photos for exact condition and included components.
DISCLAIMER
New open box. Leads and package may show minor storage or handling marks. Ships fast with tracking. 30-day returns; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of Texas Instruments or any successor company. All trademarks belong to their respective owners. This is secondary-market inventory and is not covered by any manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The Texas Instruments SN74LS74AN is a 74LS74-family dual D-type positive-edge-triggered flip-flop with preset and clear in a 14-pin DIP for 5V TTL logic. Motorola SN74LS74AN, National Semiconductor DM74LS74AN, and Signetics 74LS74AN are the same function and package, so each can serve as a cross-reference for the others in 74LS74 sockets. It is not a drop-in for 74HC74 or 74S74 devices, which have different electrical characteristics. Use it to replace a failed 74LS74 in vintage computers, arcade boards, and TTL logic repair, and confirm the pinout against your board before installing.
Q: What does the Texas Instruments SN74LS74AN replace?
A: Other 74LS74 dual D flip-flops in 14-pin DIP sockets, including DM74LS74AN, 74LS74AN, and other SN74LS74AN parts.
Q: What supply voltage does it use?
A: It is a 5V TTL part; the Texas Instruments SN74LS74A datasheet lists 4.75V to 5.25V.
Q: Is it tested?
A: No. It is new open box, untested, and sold as shown.
Texas Instruments SN74LS74AN SN74LS74A 74LS74 dual D flip-flop positive edge triggered preset clear 14-pin DIP PDIP through-hole TTL logic IC vintage electronics computer arcade repair new open box 74LS74 not working replacement flip-flop not toggling arcade board logic chip failed TTL flip-flop replacement
