Texas Instruments SN74S15N Triple 3-Input AND Gate DIP-14 NOS

ITEM SPECIFICS
Brand: Texas Instruments
Model: SN74S15N
MPN: SN74S15N
Series: 74S
Type: Logic Gate IC
Logic Function: Triple 3-Input Positive-AND Gate
Number of Gates: 3
Inputs per Gate: 3
Output Type: Open Collector
Logic Family: Schottky TTL
Supply Voltage: 4.75V to 5.25V
Package Type: DIP-14
Number of Pins: 14
Mounting Style: Through-Hole
Operating Temperature: 0°C to 70°C
Top Marking: 7702
Country/Region of Manufacture: El Salvador
Quantity: 1
Condition: New Old Stock

DESCRIPTION
Texas Instruments SN74S15N triple 3-input positive-AND gate integrated circuit with open-collector outputs. This vintage Schottky TTL logic IC features a 14-pin through-hole DIP package and is suitable for compatible electronic equipment, industrial controls, circuit boards, restoration work, repairs, and legacy electronics applications.

Features:
Texas Instruments SN74S15N
Triple 3-Input Positive-AND Gate
Three Independent Logic Gates
Open-Collector Outputs
Schottky TTL 74S Logic Family
4.75V to 5.25V Supply Range
14-Pin DIP Through-Hole Package
El Salvador Marking
Quantity of One IC

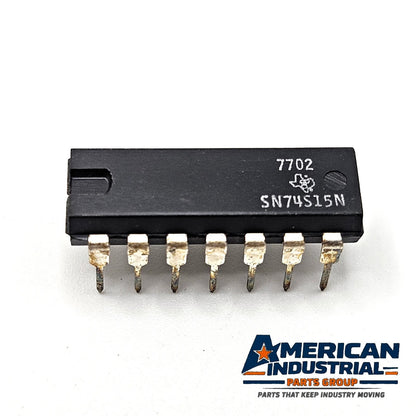

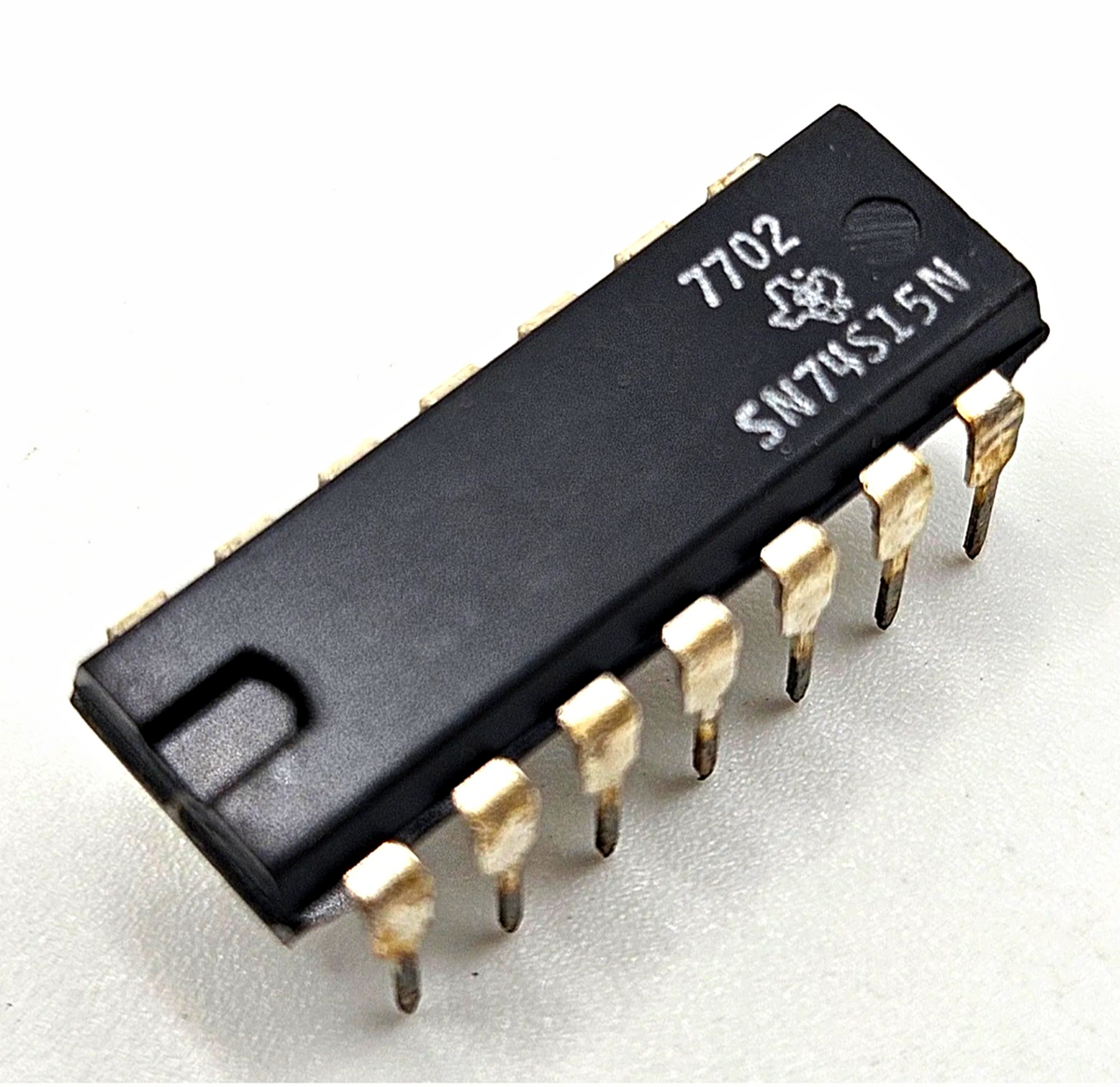

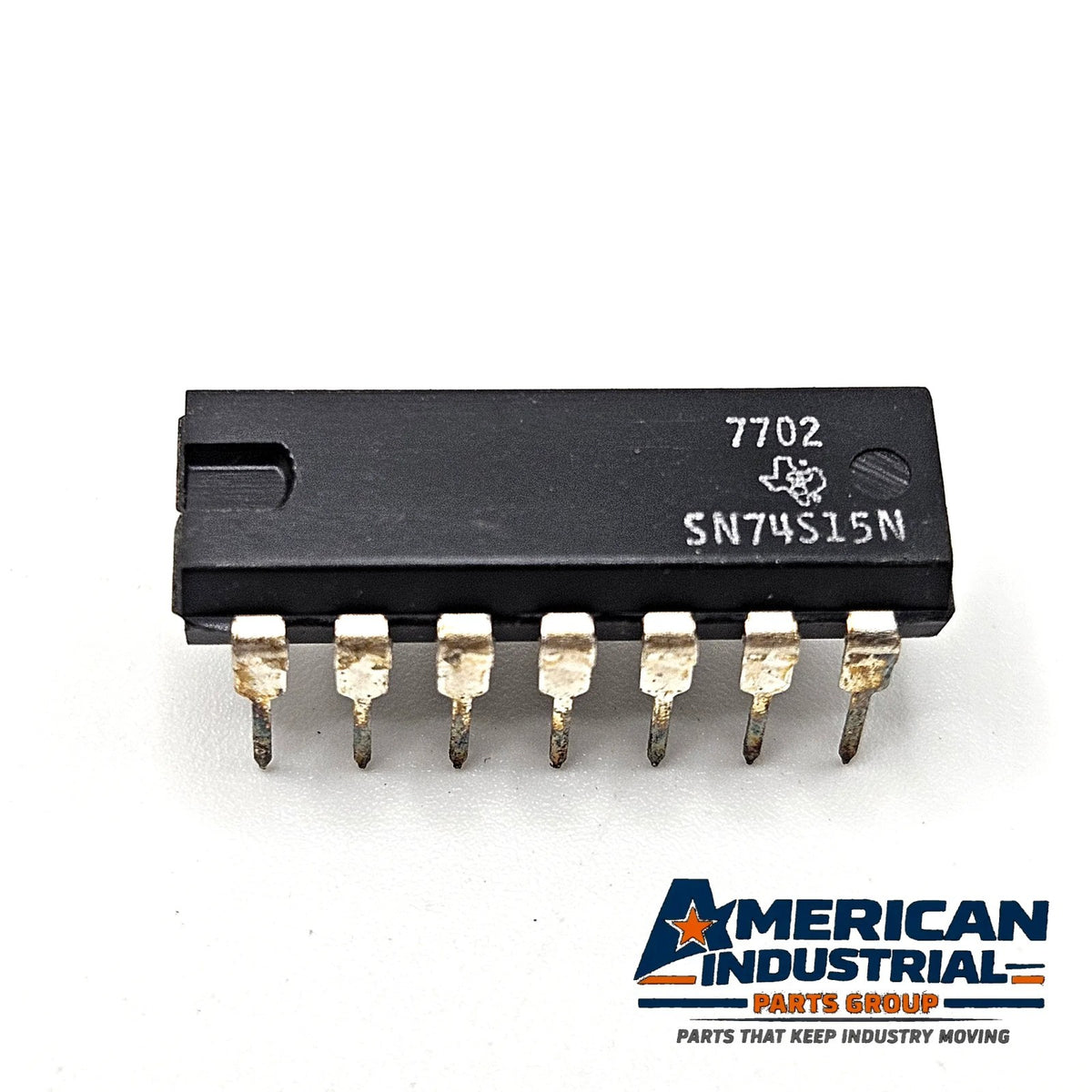

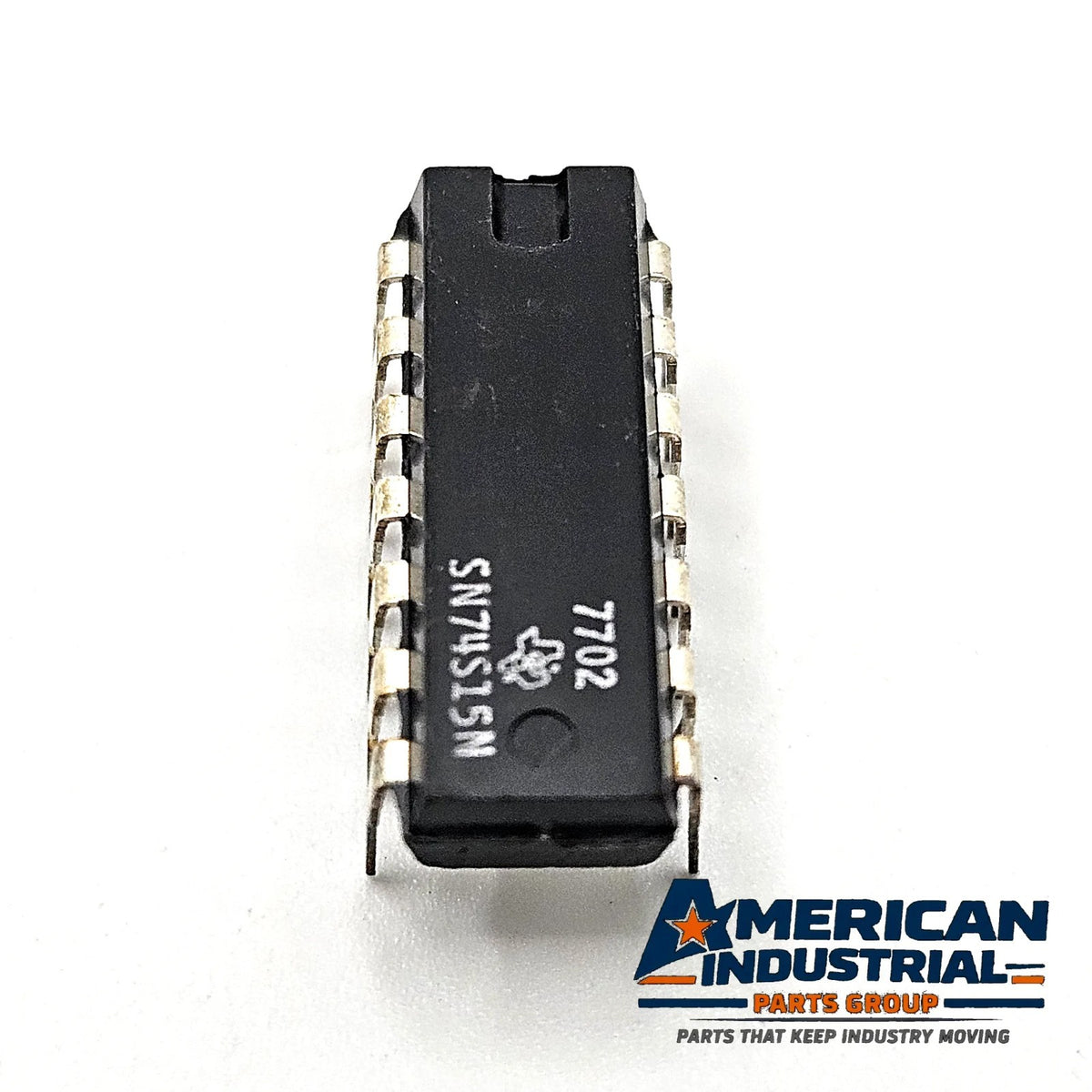

This listing is for one SN74S15N selected from the pictured inventory. The component is new old stock and has not been functionally tested by the seller. Pins may show visible oxidation, tarnish, discoloration, or other cosmetic evidence of long-term storage and handling. Original manufacturer packaging and documentation are not included. Please review the photographs carefully for representative condition.

COMPATIBILITY & CROSS-REFERENCE
The SN74S15N is a triple 3-input positive-AND gate with open-collector outputs in Schottky TTL, in a 14-pin DIP. Verify pinout, pull-up requirements, and suitability for your circuit before installation.

Q: What does the SN74S15N do?
A: It contains three independent 3-input positive-AND gates with open-collector outputs.

Q: What is the supply voltage range?
A: 4.75 V to 5.25 V.

Q: What package is it?
A: 14-pin DIP, through-hole.

DISCLAIMER
This item is new old stock and may show cosmetic wear, oxidation, tarnish, or discoloration from long-term storage and handling. Please review all photos for condition and included components. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.

LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Texas Instruments. All product names, trademarks, brands, and logos are the property of their respective owners. This product is not covered by a manufacturer warranty unless expressly stated.
