Toshiba 2N3773 NPN Power Transistor 140V 16A 150W TO-3 NOS
Toshiba 2N3773 NPN Power Transistor 140V 16A 150W TO-3 NOS
Regular price
$8.99 USD
Regular price
Sale price
$8.99 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Toshiba
Model: 2N3773
MPN: 2N3773
Type: NPN Power Transistor
Transistor Polarity: NPN
Semiconductor Material: Silicon
Collector-Emitter Voltage: 140V
Collector Current: 16A
Maximum Power Dissipation: 150W
Package Type: TO-3 Metal Case
Mounting Style: Chassis Mount
Number of Terminals: 2
Visible Component Code: 8536
Number of Items: 1
Country/Region of Manufacture: Unknown
Condition: New Old Stock
DESCRIPTION

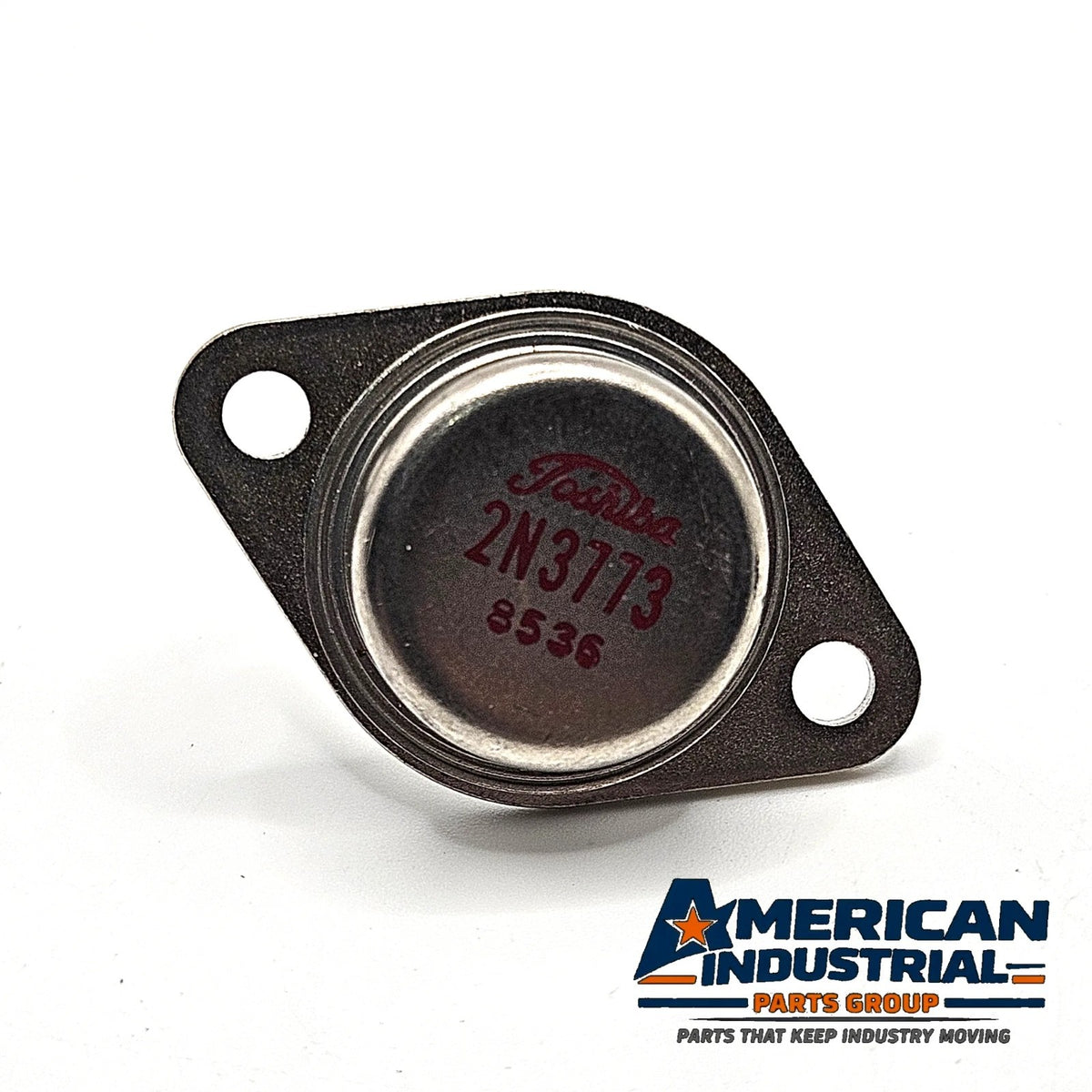

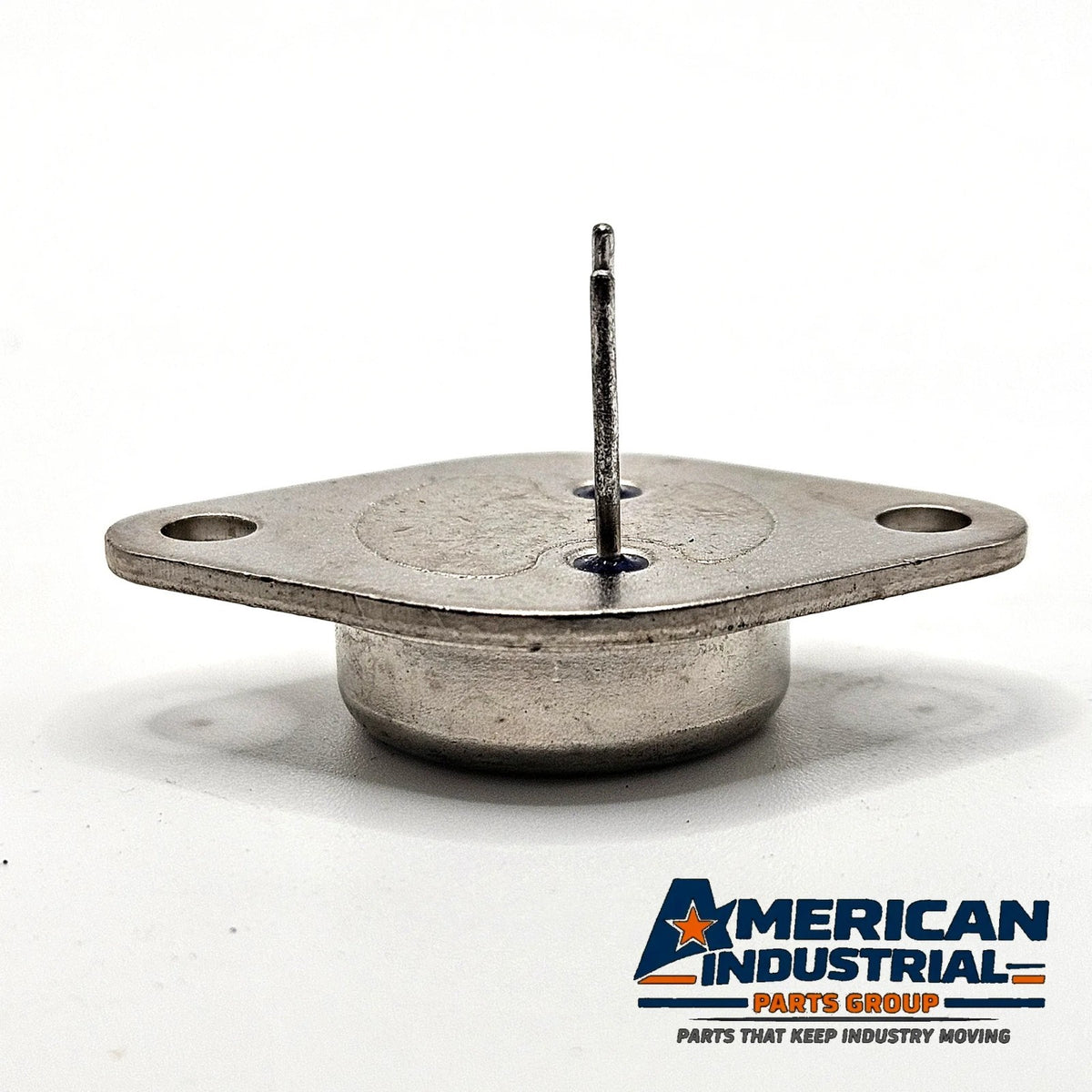

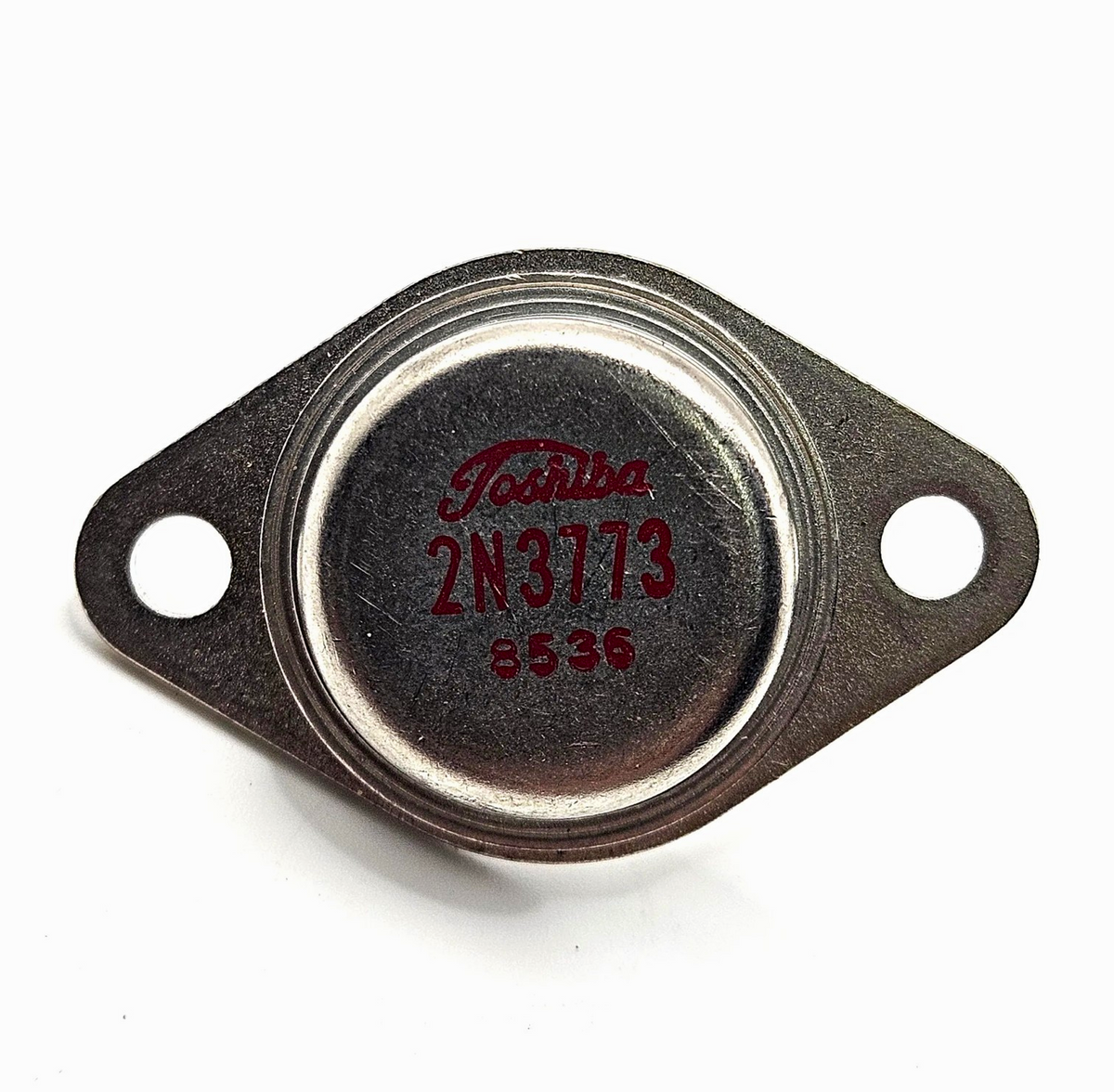

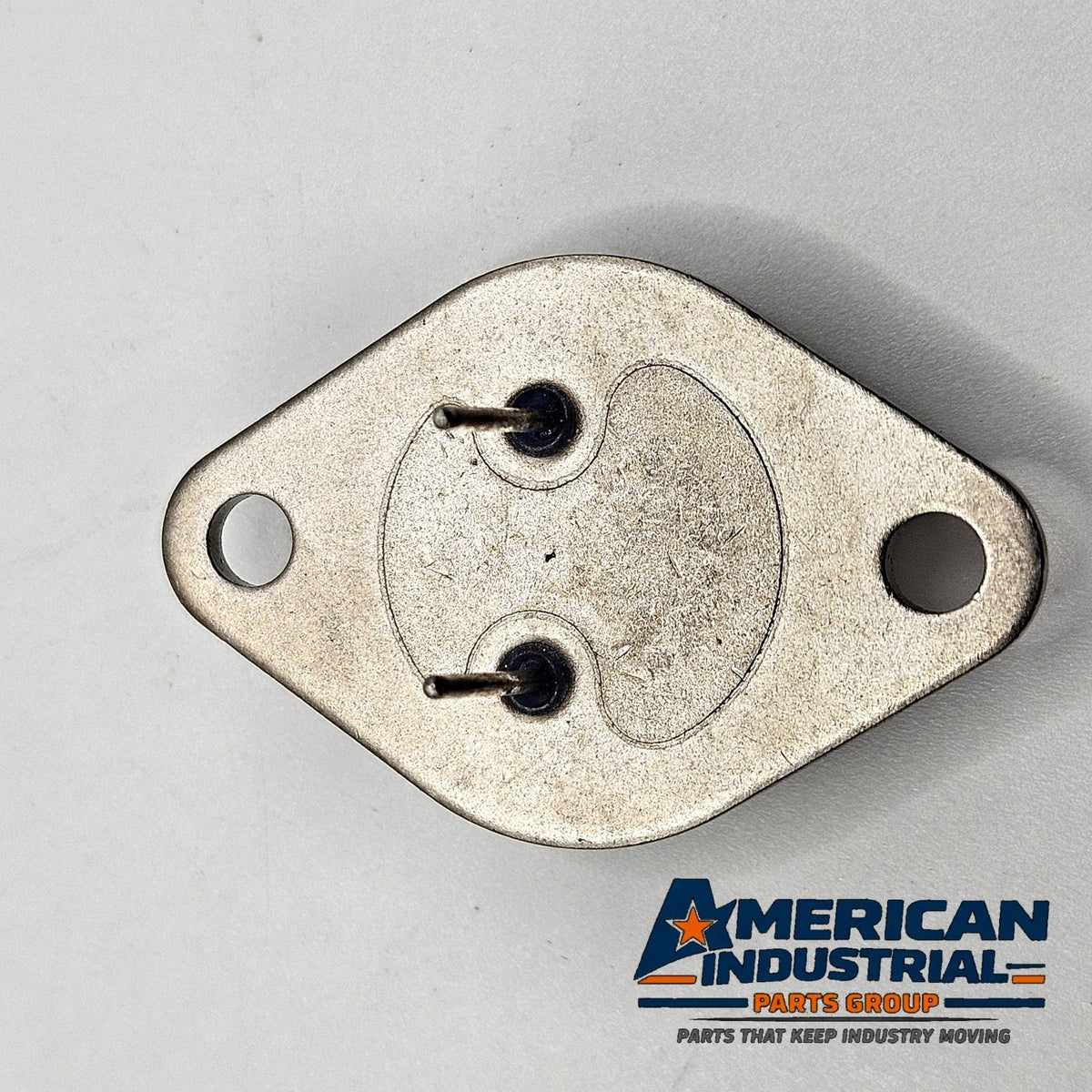

Toshiba 2N3773 silicon NPN power transistor in a two-terminal TO-3 metal package. The 2N3773 is rated for a collector-emitter voltage of 140V, collector current of 16A, and maximum power dissipation of 150W.
Features:
Toshiba 2N3773
Silicon NPN Power Transistor
140V Collector-Emitter Voltage
16A Collector Current
150W Maximum Power Dissipation
TO-3 Metal Package
Two-Terminal Configuration
Chassis-Mount Design
Visible Component Code 8536
New Old Stock
This listing includes one transistor. The component may show minor scratches, oxidation, discoloration, or other cosmetic evidence of long-term storage and handling. Please review all photos carefully for the exact condition and markings.
DISCLAIMER
This item is new old stock and has not been installed or placed into service by us. Electrical operation has not been independently tested. Vintage electronic components should be inspected and tested by a qualified technician before installation. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Toshiba. All product names, trademarks, brands, and logos are the property of their respective owners. This product is sourced from surplus inventory and is not covered by a manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The 2N3773 is a JEDEC-registered NPN silicon power transistor in a TO-3 package, rated 140V collector-emitter sustaining voltage, 160V collector-base, 16A collector current and 150W dissipation at a case temperature of 25°C, with a minimum DC current gain of 15 at 8A. Its complementary PNP device is the 2N6609. Published datasheets describe it as designed for high-power audio, disk-head positioners and other linear applications, as well as power switching circuits such as relay or solenoid drivers, DC-DC converters and inverters. The type is widely second-sourced — ON Semiconductor, Continental Device India and others — so confirm the specific manufacturer's ratings when substituting. The collector is connected to the case, so insulate the package from a grounded heatsink where the circuit requires it.
Q&A
Q: What is the 2N3773? A: An NPN silicon power transistor in a TO-3 metal package, rated 140V with 16A collector current and 150W dissipation.
Q: What is the complementary PNP device? A: The 2N6609.
Q: How does the 2N3773 compare with the 2N3055? A: It is a higher-rated device — 140V and 16A versus 60V and 15A for the 2N3055, with 150W versus 115W dissipation — in the same TO-3 package.
Toshiba 2N3773 2N 3773 NPN Power Transistor Silicon Transistor Bipolar Junction Transistor BJT 140V Transistor 16A Transistor 150W Transistor TO-3 TO3 Metal Case Transistor Chassis Mount Transistor Audio Amplifier Transistor Linear Amplifier Transistor Switching Regulator Transistor Solenoid Driver DC Converter Power Supply Repair Amplifier Repair Vintage Electronics Electronic Component New Old Stock NOS Replacement Transistor Industrial Electronics
Thank you for shopping with American Industrial Parts Group!
