Unitrode SXS100 10kV High Voltage Rectifier Diode Standard Recovery NOS

ITEM SPECIFICS
Brand: Unitrode
MPN: SXS100
Model: SXS100
Series: SXS
Type: High Voltage Rectifier
Rectifier Type: Standard Recovery
Maximum Reverse Voltage: 10 kV (10,000 V)
Mounting Style: Through-Hole
Termination Style: Axial Lead
Number of Pins: 2
Condition: New Old Stock
Additional Marking: HVD
Secondary Marking: 8049

DESCRIPTION
Unitrode SXS100 high-voltage rectifier from new old stock inventory.

The SXS100 is a legacy high-voltage rectifier device rated at 10 kV. The SXS series is identified in legacy documentation as a standard-recovery high-voltage rectifier family.
• Unitrode SXS100
• 10 kV / 10,000 V high-voltage rectifier
• Standard-recovery rectifier

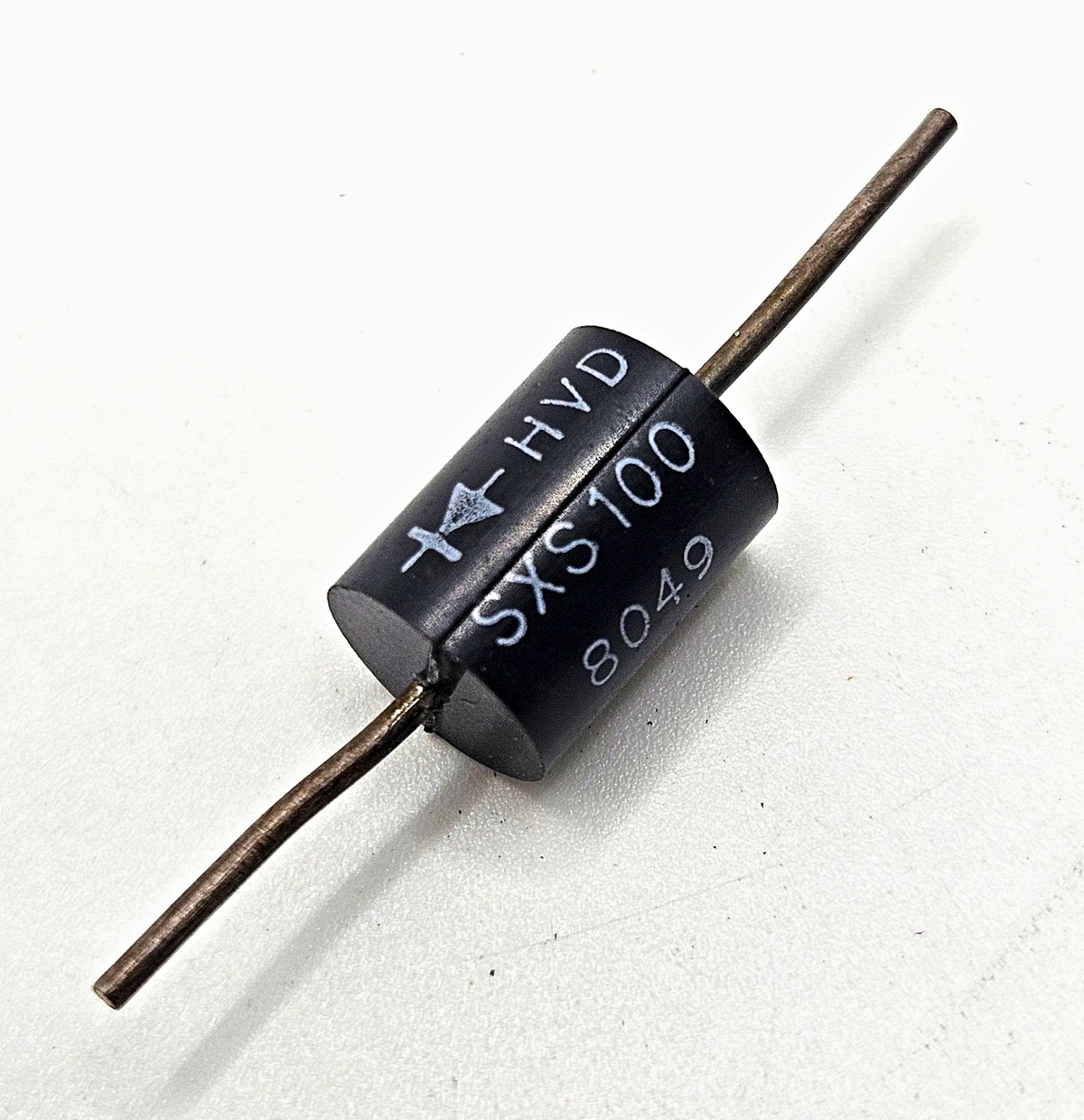

• Axial-leaded configuration

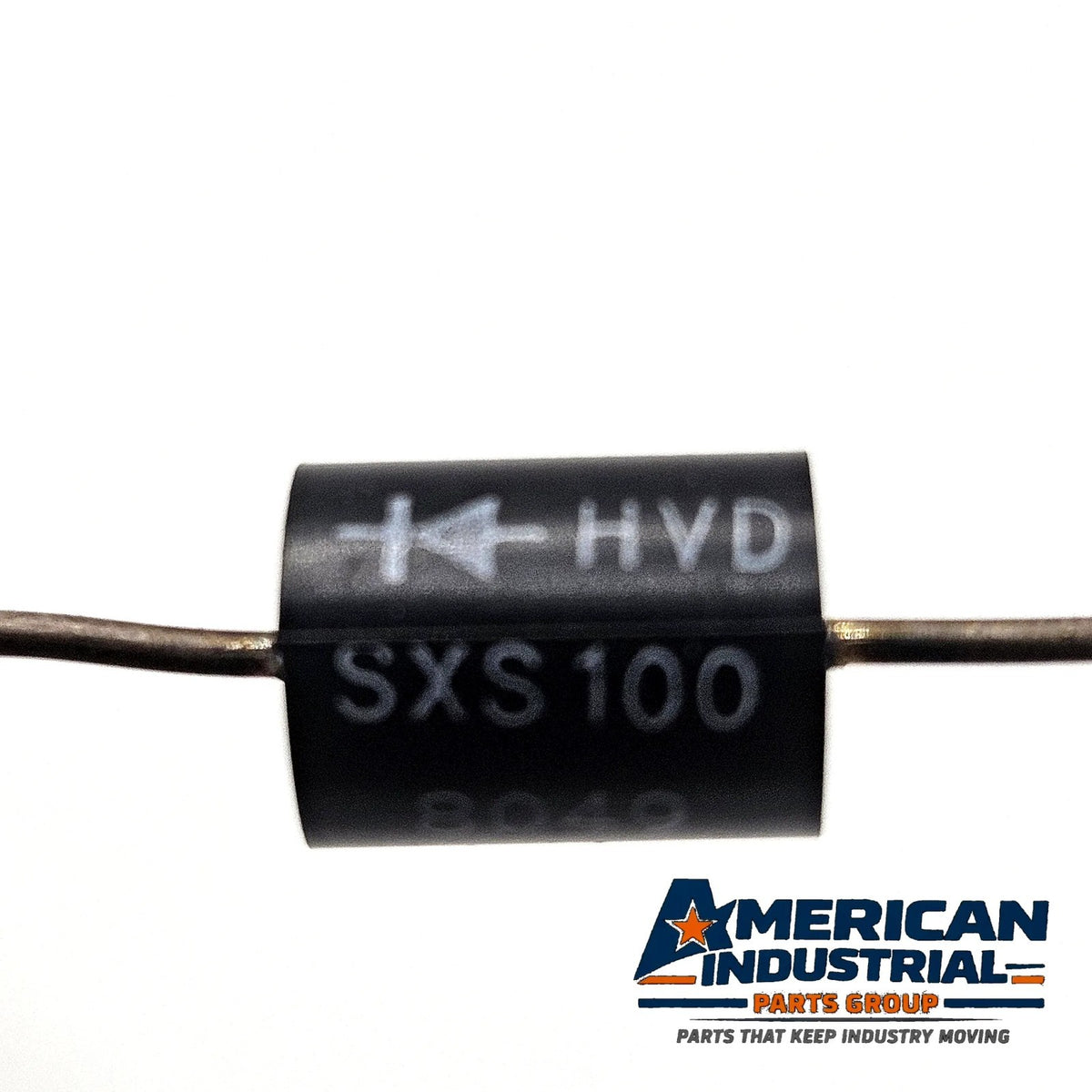

• Polarity symbol marked directly on the component

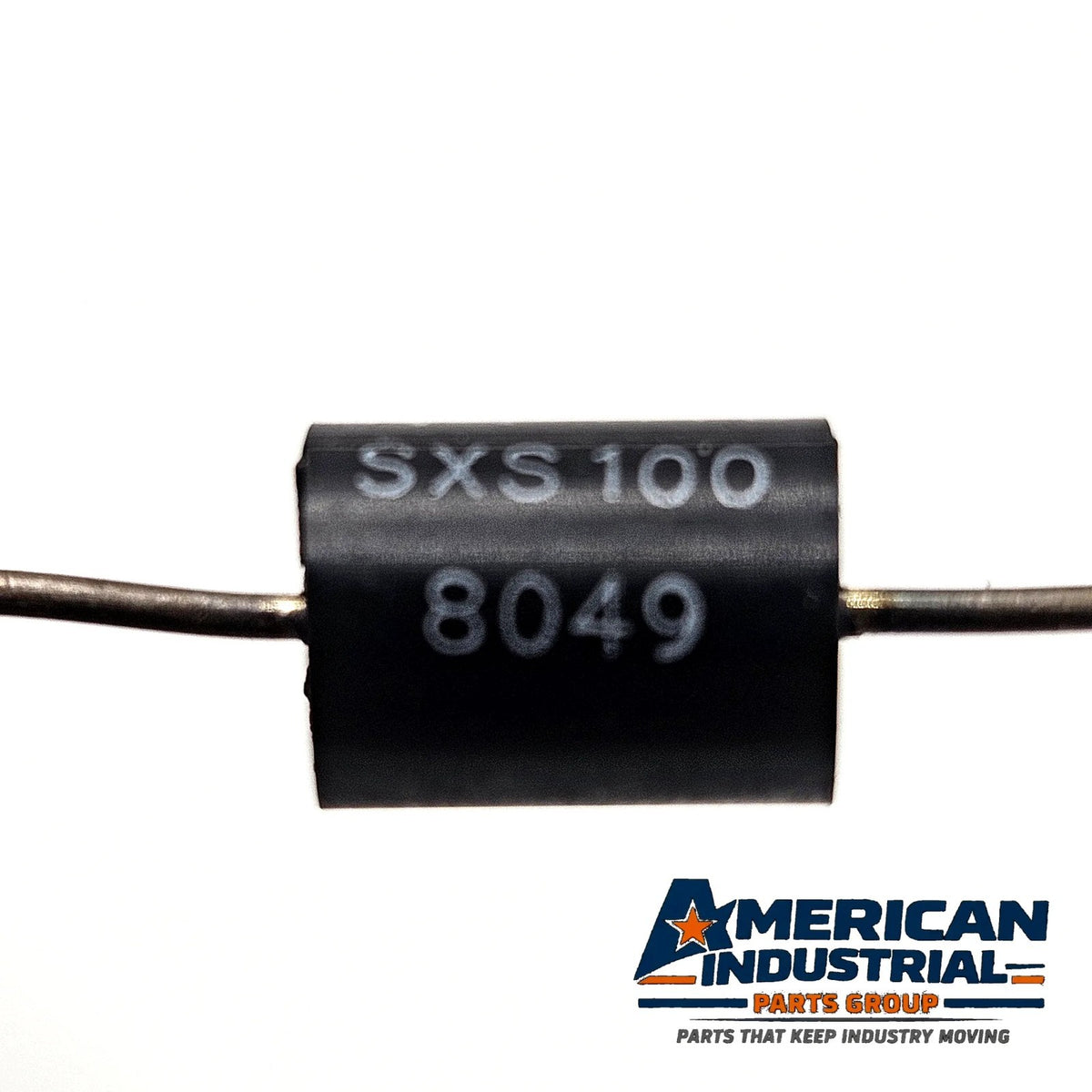

• Component marked “HVD” and “SXS100”
• Secondary marking “8049”
• New old stock
• Vintage/obsolete electronic component
The meaning of the 8049 marking has not been independently verified and is therefore not represented as a manufacturing date.

Please verify the SXS100 part number and required electrical characteristics for your application before purchasing.

DISCLAIMER
New old stock component. Item may show normal cosmetic evidence of long-term storage and handling consistent with its age. Please review the photographs carefully for the exact condition and markings of the item being offered. No testing has been performed unless specifically stated. Buyer is responsible for verifying part number, electrical specifications, suitability, and compatibility before installation.

LEGAL DISCLAIMER
Unitrode is a trademark of its respective owner. American Industrial Parts Group is not an authorized distributor, dealer, or representative of Unitrode or Microsemi. All trademarks, manufacturer names, product names, and part numbers are used solely for identification and reference purposes. No affiliation with or endorsement by the manufacturer is implied.

COMPATIBILITY & CROSS-REFERENCE
The SXS100 is confirmed in Unitrode Corporation's own semiconductor databooks (part number index) as a 10.0kV standard-recovery high-voltage rectifier, the top member of the SXS10–SXS100 series spanning 1.0kV to 10.0kV in 1.0kV–2.0kV steps. The related SX10–SX100 series (without the “S” suffix) covers the same voltage range as full-wave bridge rectifiers rather than single diodes. Unitrode also offered JAN, JANTX and JANTXV military-screened versions of this series. Confirm exact current rating and reverse recovery characteristics against the original Unitrode datasheet page for your specific application before substituting.

Q&A
Q: What is the SXS100 rated for? A: 10.0kV (10,000V) standard-recovery, per Unitrode's own semiconductor databook part-number index.
Q: What is the SXS series? A: Unitrode's family of axial-lead standard-recovery high-voltage rectifiers, spanning 1.0kV (SXS10) to 10.0kV (SXS100).
Q: Is this new or used? A: New old stock — never installed, sourced from vintage surplus inventory.
