ITEM SPECIFICS
Brand: Winford Engineering
Model: BRKSD9M
MPN: BRKSD9M
Type: DB9 Male Slim Breakout Board with Screw Terminals
Connector Type: DB9 Male (9-Pin + Shield)
Form Factor: Slim / Low Profile
Terminal Access: Pins 1–9 + Shield (SH), individually labeled
Connector Hardware: Jack Screws
RoHS Compliant: Yes
Compatible With: RS-232, RS-485, MODBUS, CAN Bus, Serial I/O, Servo Drives, PLC I/O
Country/Region of Manufacture: USA
Condition: Used / Surplus
DESCRIPTION

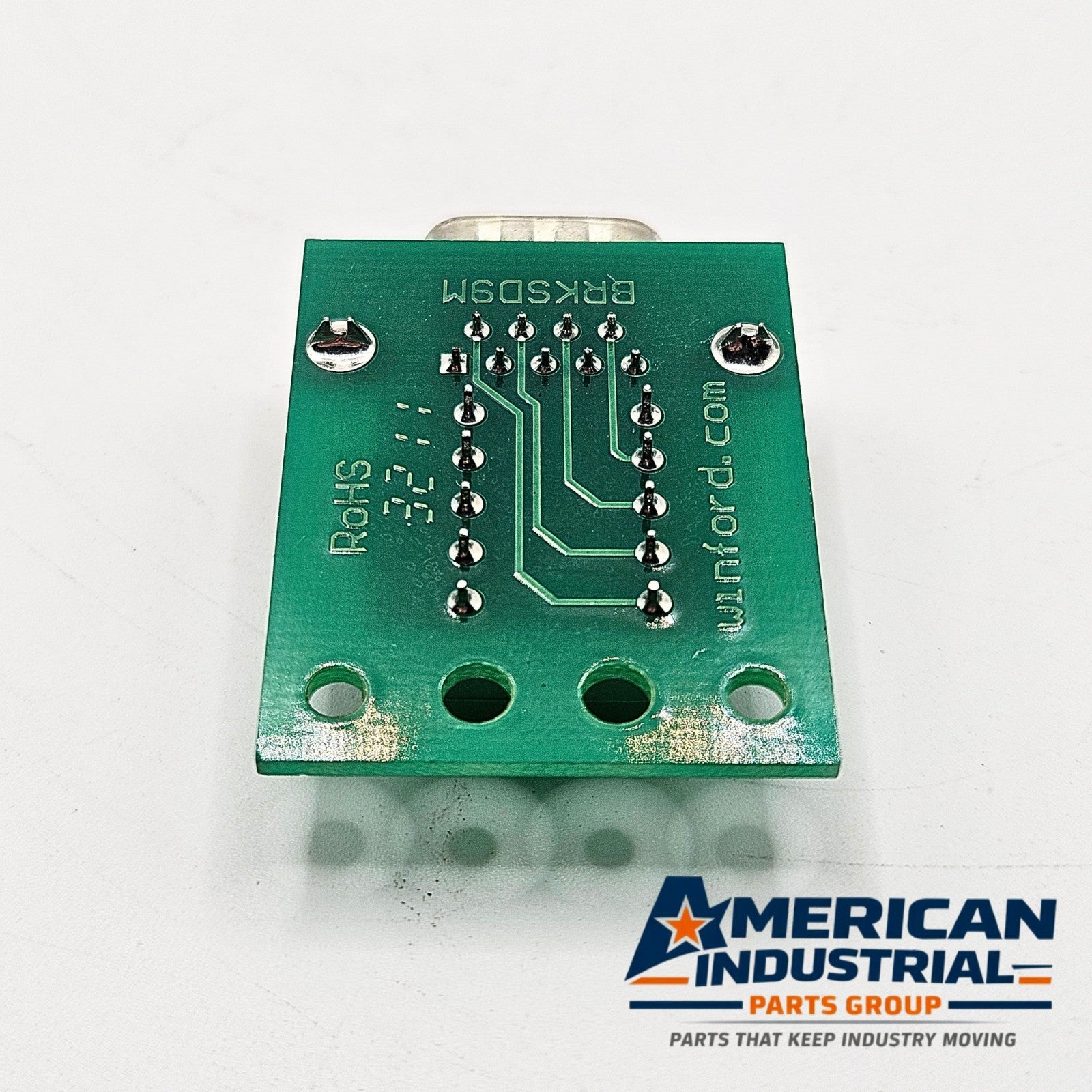

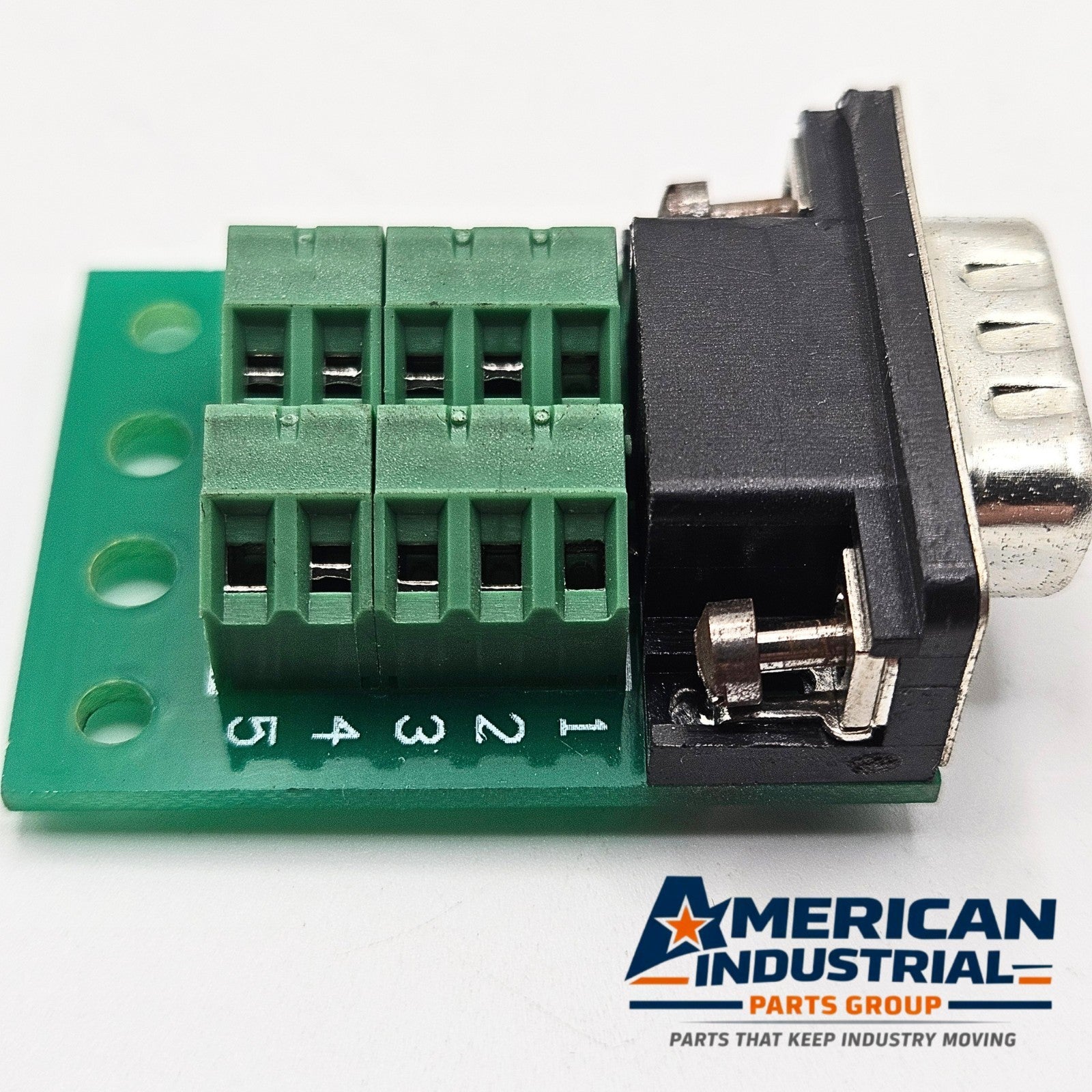

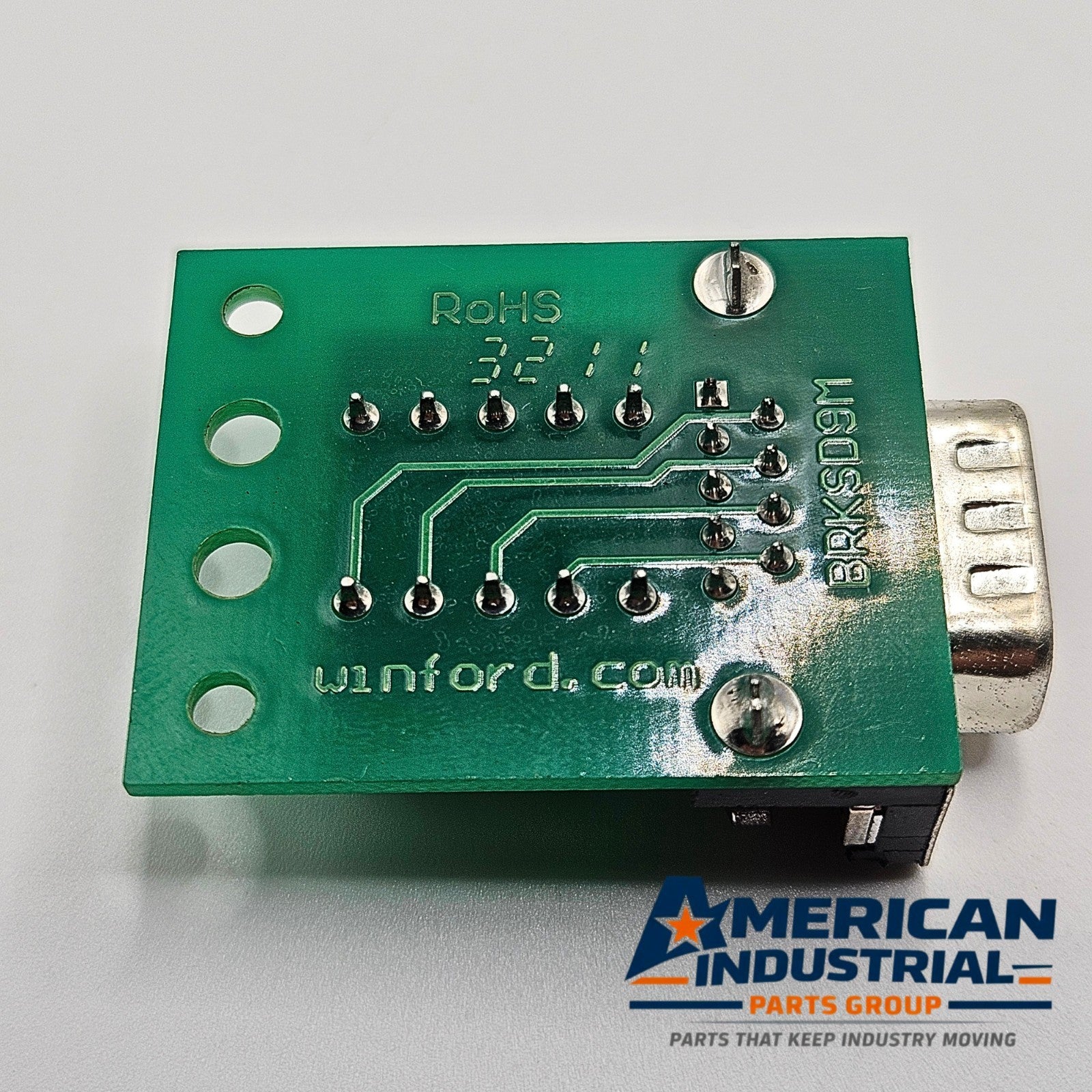

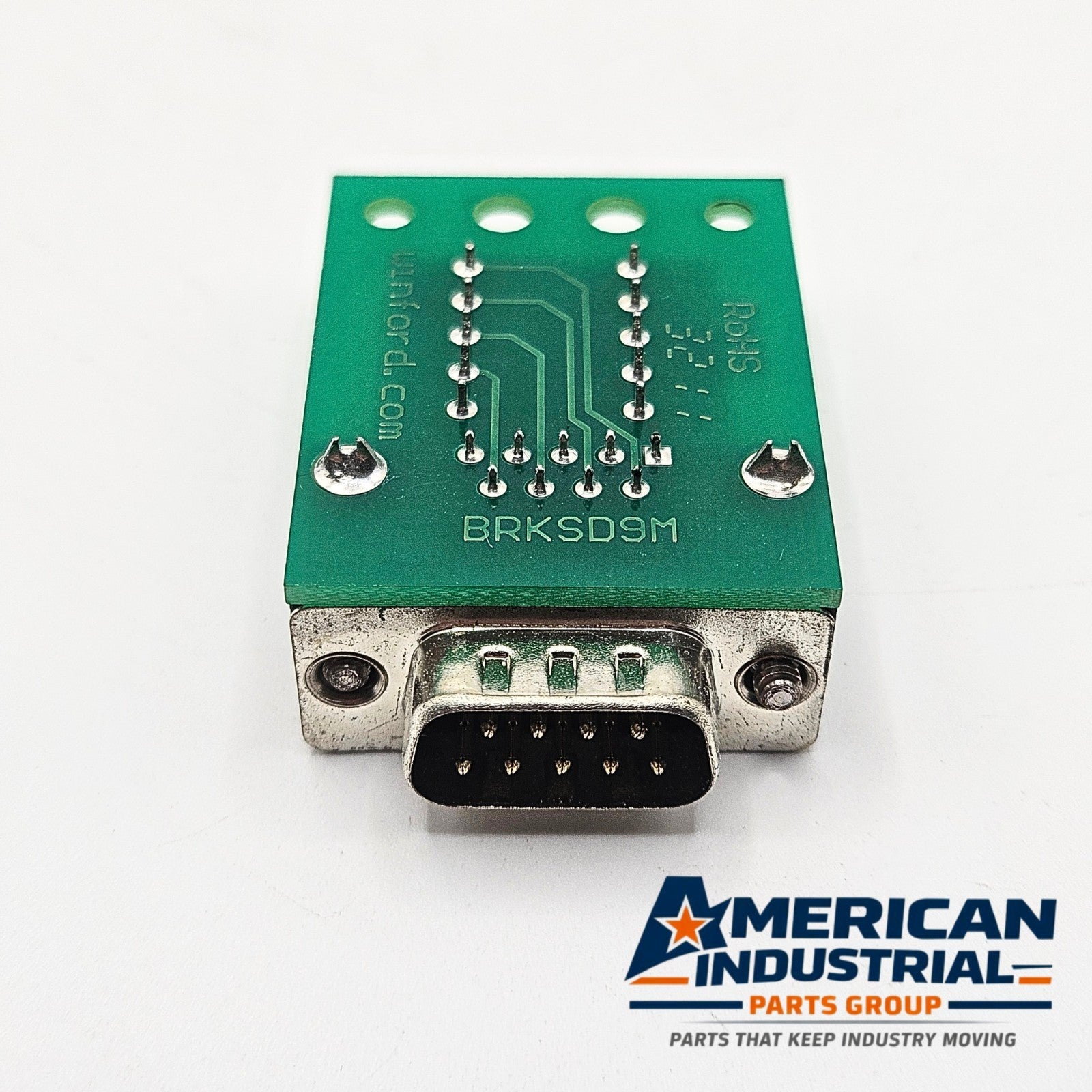

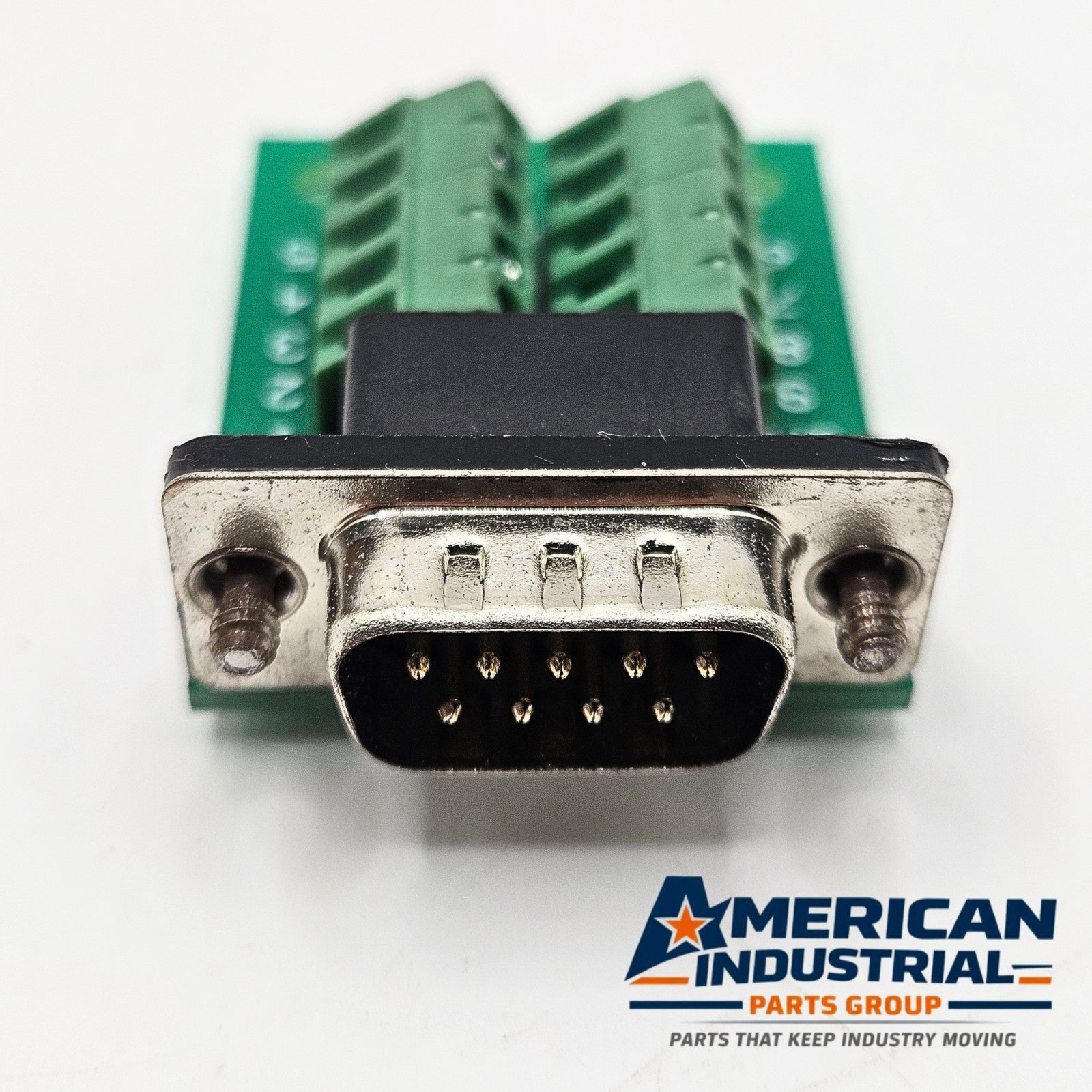

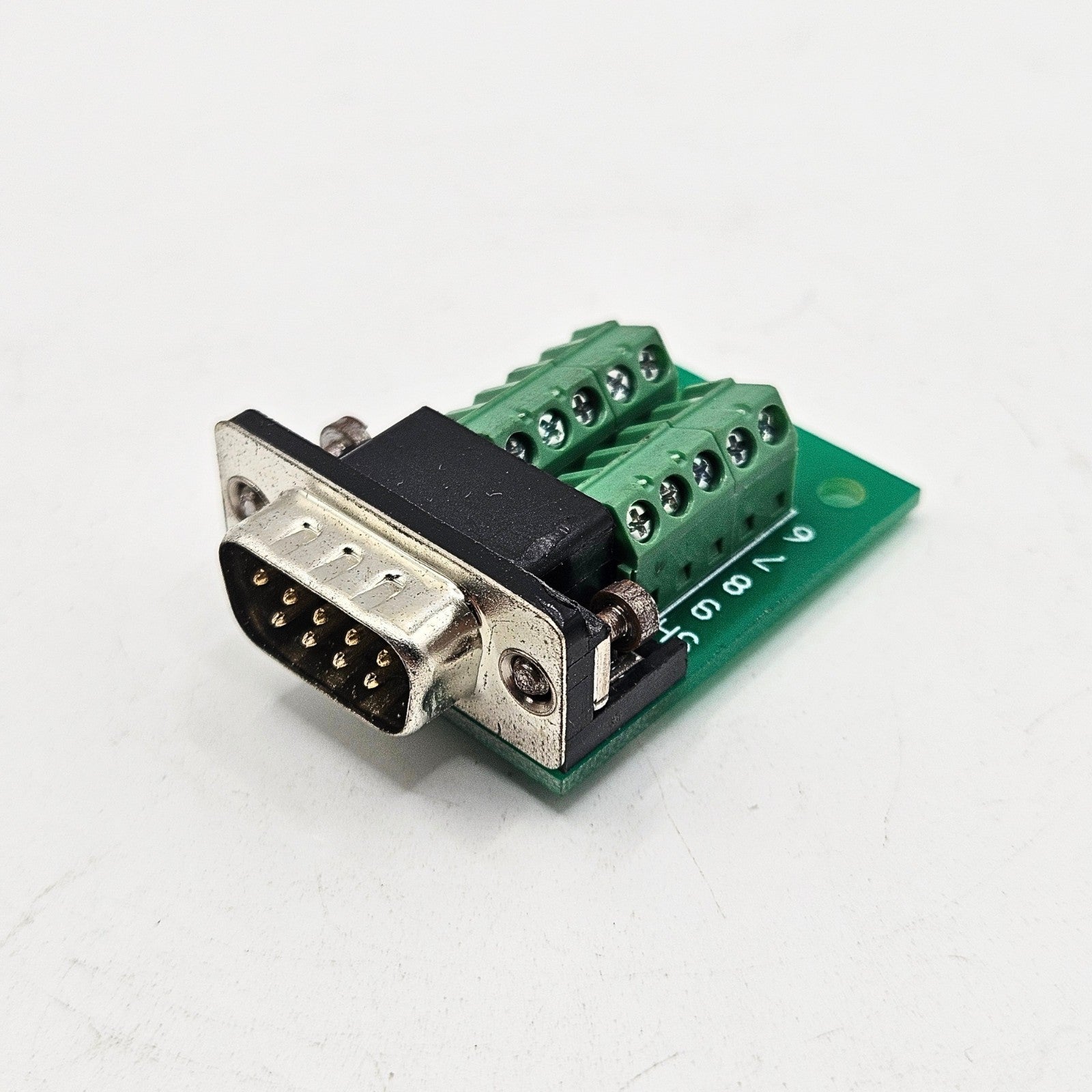

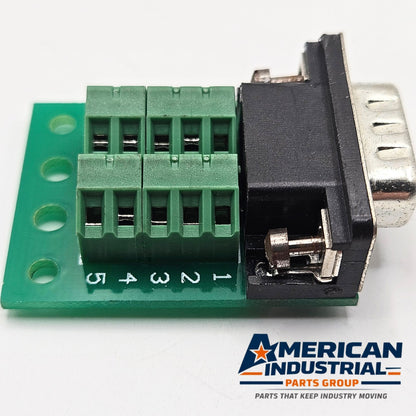

Winford Engineering BRKSD9M DB9 male slim breakout board with screw terminals. This compact board breaks out all 9 pins plus shield of a standard DB9 male connector to individually labeled screw terminal positions (1–9 + SH) for fast and reliable field wiring. The slim form factor allows use in tight multi-connector installations without interfering with adjacent ports. RoHS compliant. Ideal for RS-232 serial port wiring, MODBUS connections, CAN Bus termination, servo drive config cables, PLC I/O interfacing, encoder connections, and industrial automation panel builds.
Features:
Winford Engineering BRKSD9M
DB9 Male Connector
Slim / Low Profile Form Factor
All 9 Pins + Shield Broken Out to Screw Terminals

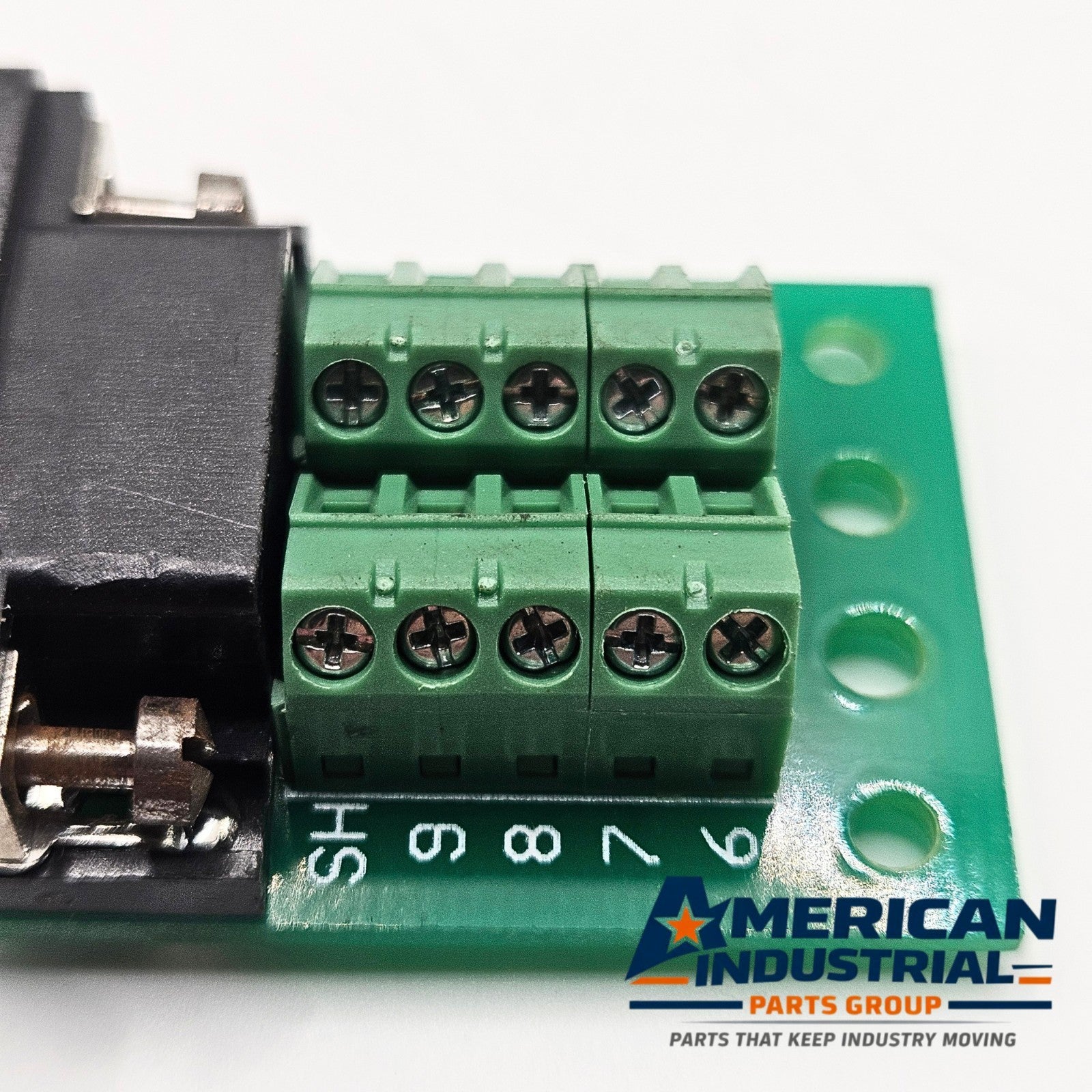

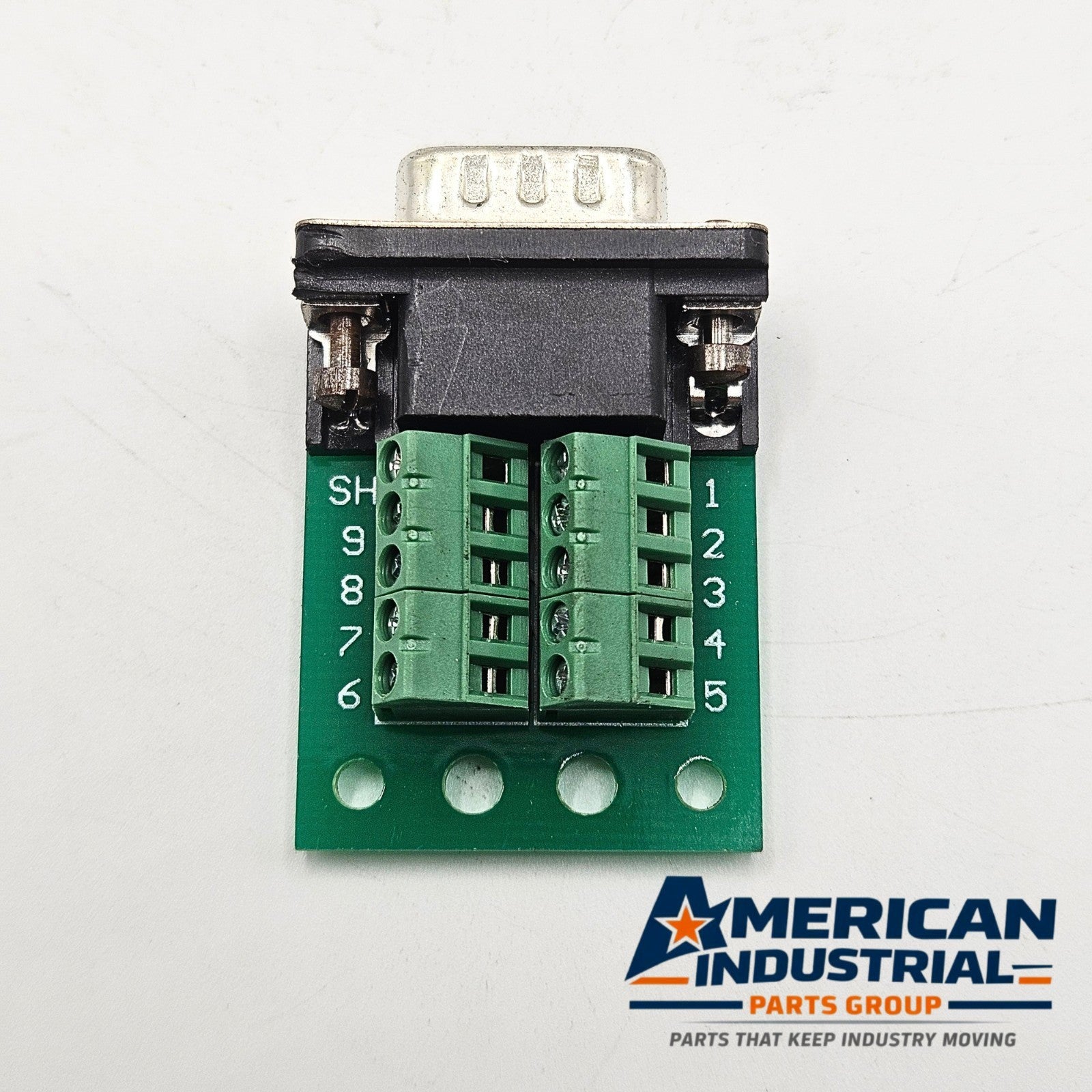

Individually Labeled Terminal Positions (1–9, SH)
Jack Screw Connector Hardware
Panel Mounting Holes
RoHS Compliant
Made in USA
Unit is in used/surplus condition and may show minor handling wear. Please review all photos for exact condition.
DISCLAIMER
This item is used/surplus. May show signs of cosmetic wear (see photos). Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Winford Engineering. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
Winford BRKSD9M BRKSD9 DB9 Breakout Board DB9 Male Breakout DB9 Screw Terminal Board RS232 Breakout Board Serial Port Breakout DB9 Terminal Block DB9 Adapter Board RS232 Terminal Board MODBUS Wiring Board CAN Bus Breakout Servo Drive Config Board PLC Serial Interface DB9 Wiring Board Industrial Automation Breakout Board DB9 Slim Breakout RoHS DB9 Connector Board
