Allen-Bradley 193-EA1DB Series B Electronic Overload Relay 1.0-2.9A Used

ITEM SPECIFICS
Brand: Allen-Bradley
MPN: 193-EA1DB
Model: 193-EA1DB
Series: B
Type: Electronic Overload Relay
Relay Type: Solid-State Overload Relay
Current Range: 1.0–2.9 A
Trip Class: Class 10
Reset Type: Manual Reset
Motor Protection Type: Electronic Motor Protection
Auxiliary Contacts: 95-96 / 97-98
Rated Insulation Voltage: 690 V
Impulse Withstand Voltage: 6 kV
Short Circuit Rating: 5 kA at 600 V
Country of Manufacture: USA
Condition: Used

DESCRIPTION

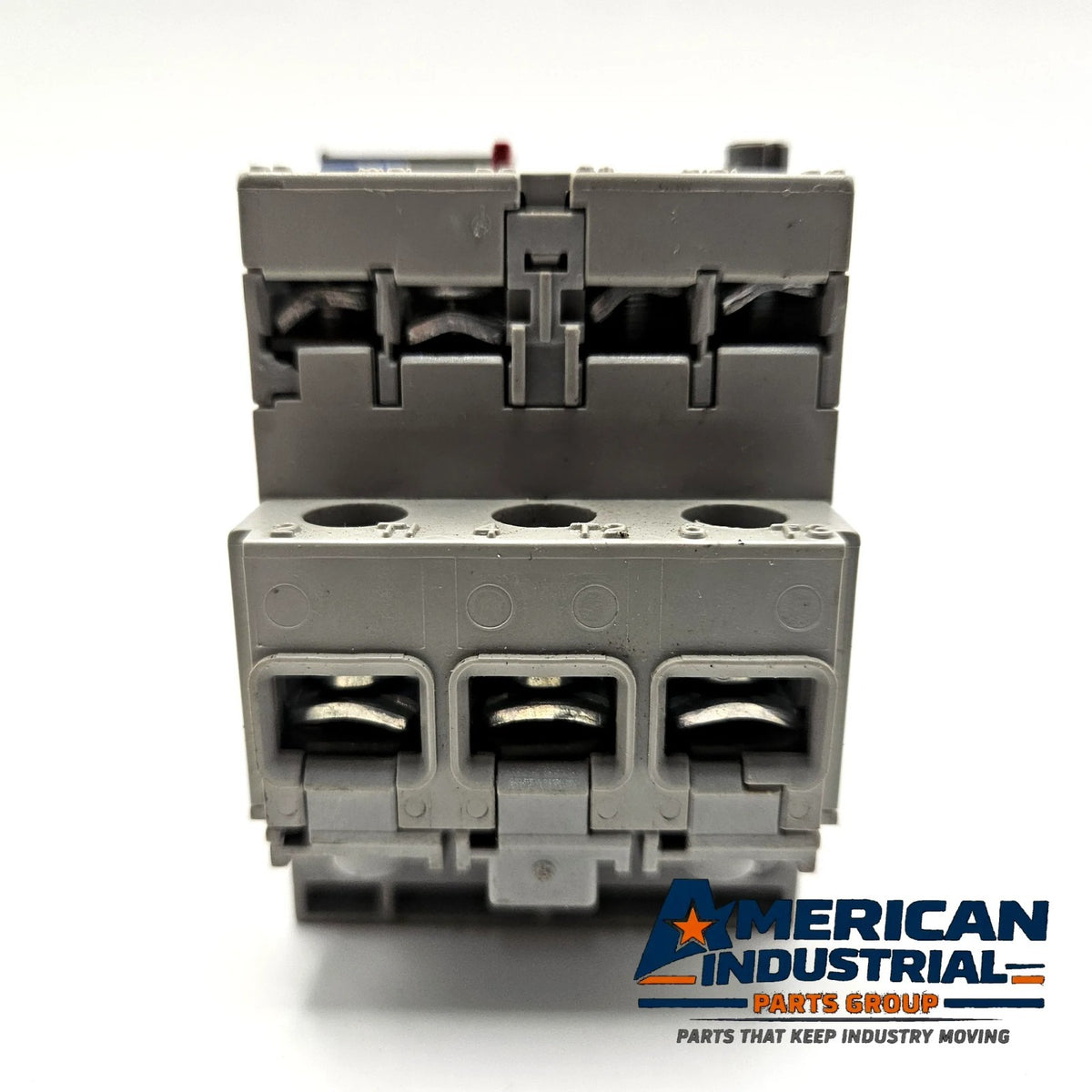

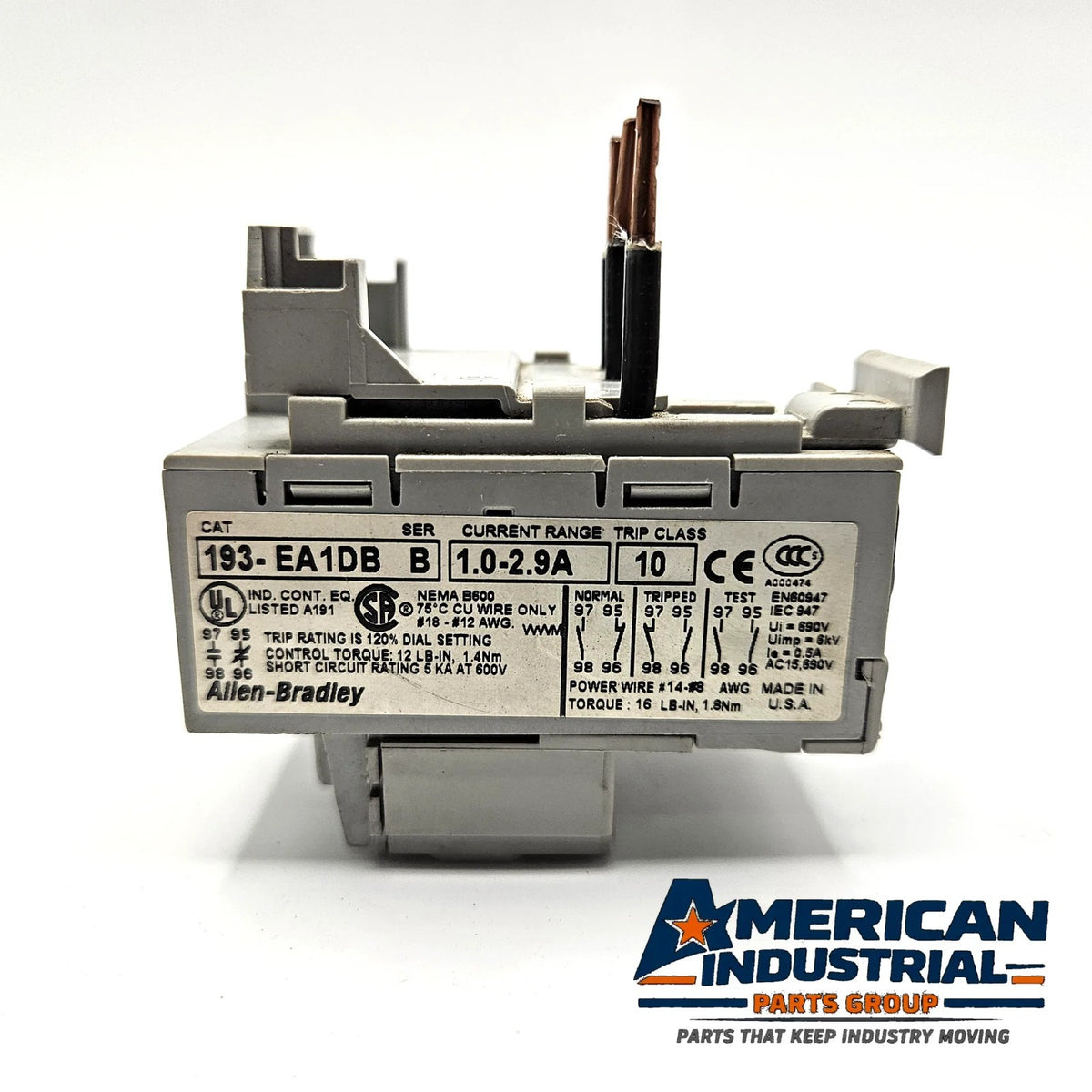

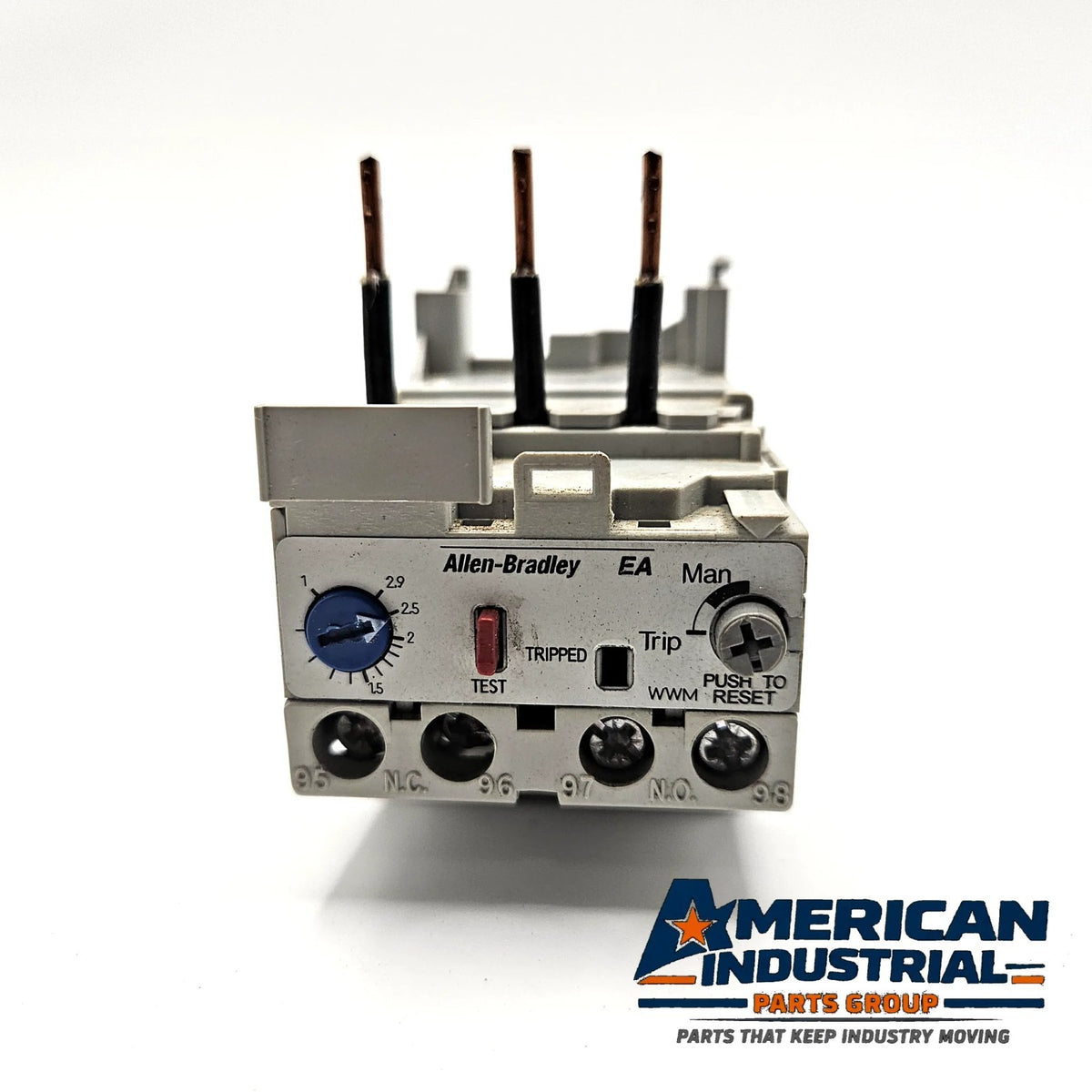

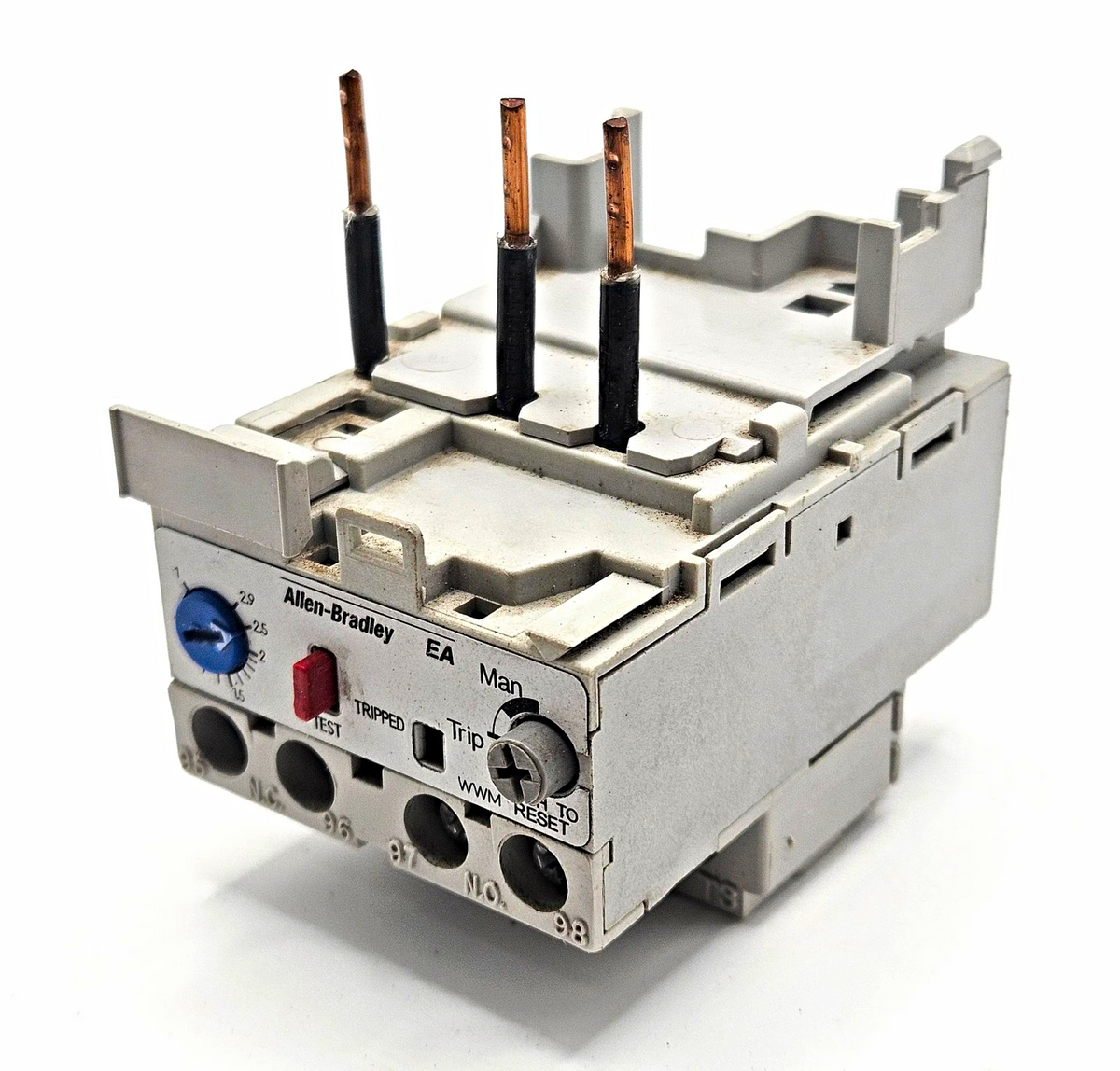

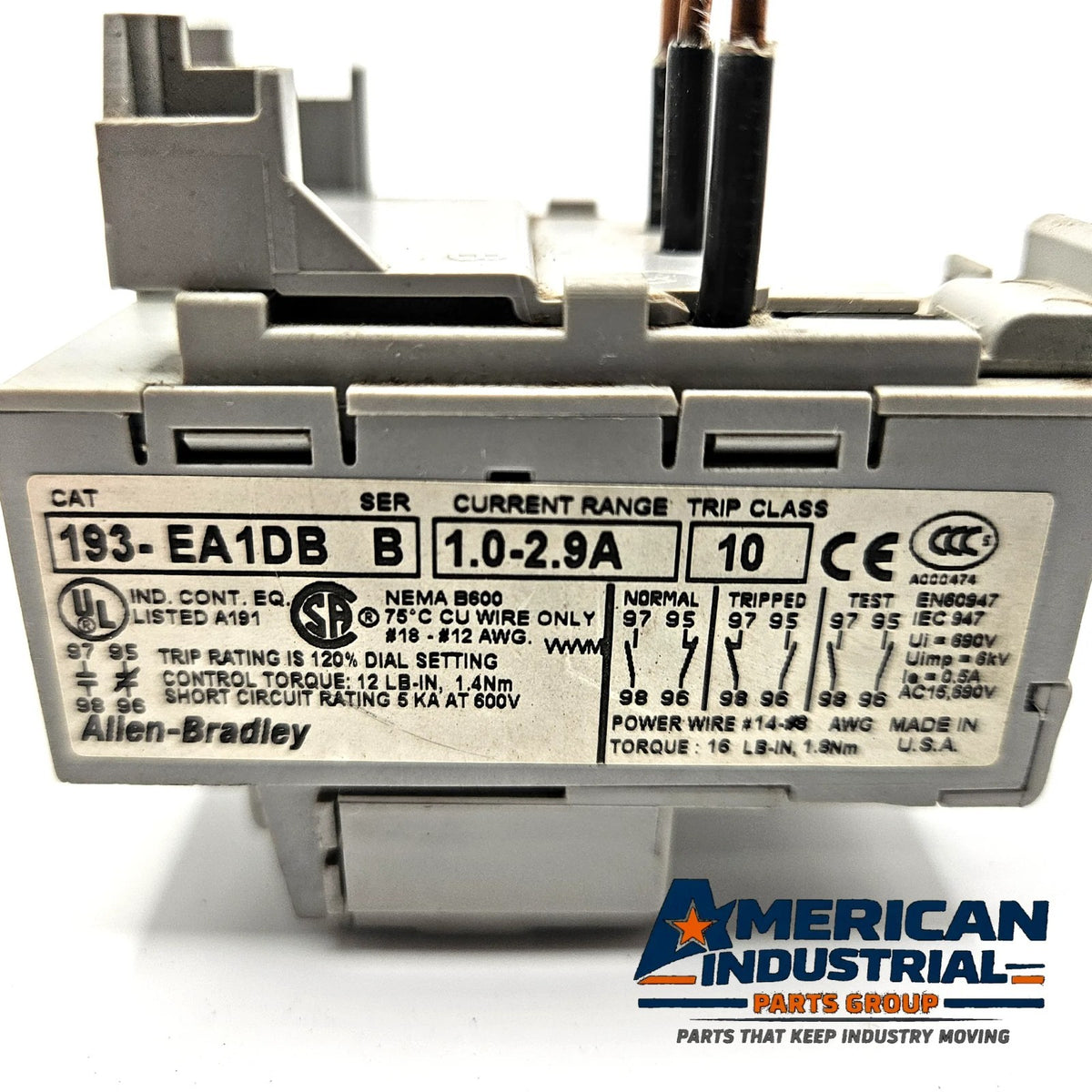

Allen-Bradley 193-EA1DB Series B electronic motor overload relay in used condition.
This solid-state overload relay provides adjustable motor overload protection over a 1.0–2.9 amp current range and uses a Class 10 trip characteristic. The unit includes manual reset and test functions with auxiliary trip contacts.

• Allen-Bradley 193-EA1DB
• Series B
• Electronic / solid-state overload relay
• Adjustable current range: 1.0–2.9 A
• Trip Class 10
• Manual reset
• Test function
• Auxiliary contacts 95-96 and 97-98
• Rated insulation voltage: 690 V
• Impulse withstand voltage: 6 kV
• Short-circuit rating: 5 kA at 600 V
• Made in USA
• Used

The unit shows normal cosmetic wear, discoloration, dust, and handling marks consistent with prior industrial use. Please review all photographs carefully for the exact physical condition and configuration of the item being offered.
Buyer should verify compatibility with the intended Allen-Bradley contactor or starter before installation.

COMPATIBILITY & CROSS-REFERENCE
The Allen-Bradley 193-EA1DB is a Bulletin 193 electronic overload relay with an adjustable 1.0–2.9 A current range. Verify compatibility with your Allen-Bradley contactor or starter, and confirm the current range for your motor, before installation.

Q: What current range does the 193-EA1DB cover?
A: 1.0–2.9 A, adjustable.

Q: What trip class and reset type?
A: Class 10 with manual reset.

Q: What auxiliary contacts does it have?
A: 95-96 and 97-98.

DISCLAIMER
Used industrial component. Item may show cosmetic wear, dirt, discoloration, scratches, or other evidence of previous installation and service. No operational testing is represented unless specifically stated. Please review all photographs carefully. Buyer is responsible for verifying part number, current range, contactor compatibility, electrical ratings, installation requirements, and suitability for the intended application.
